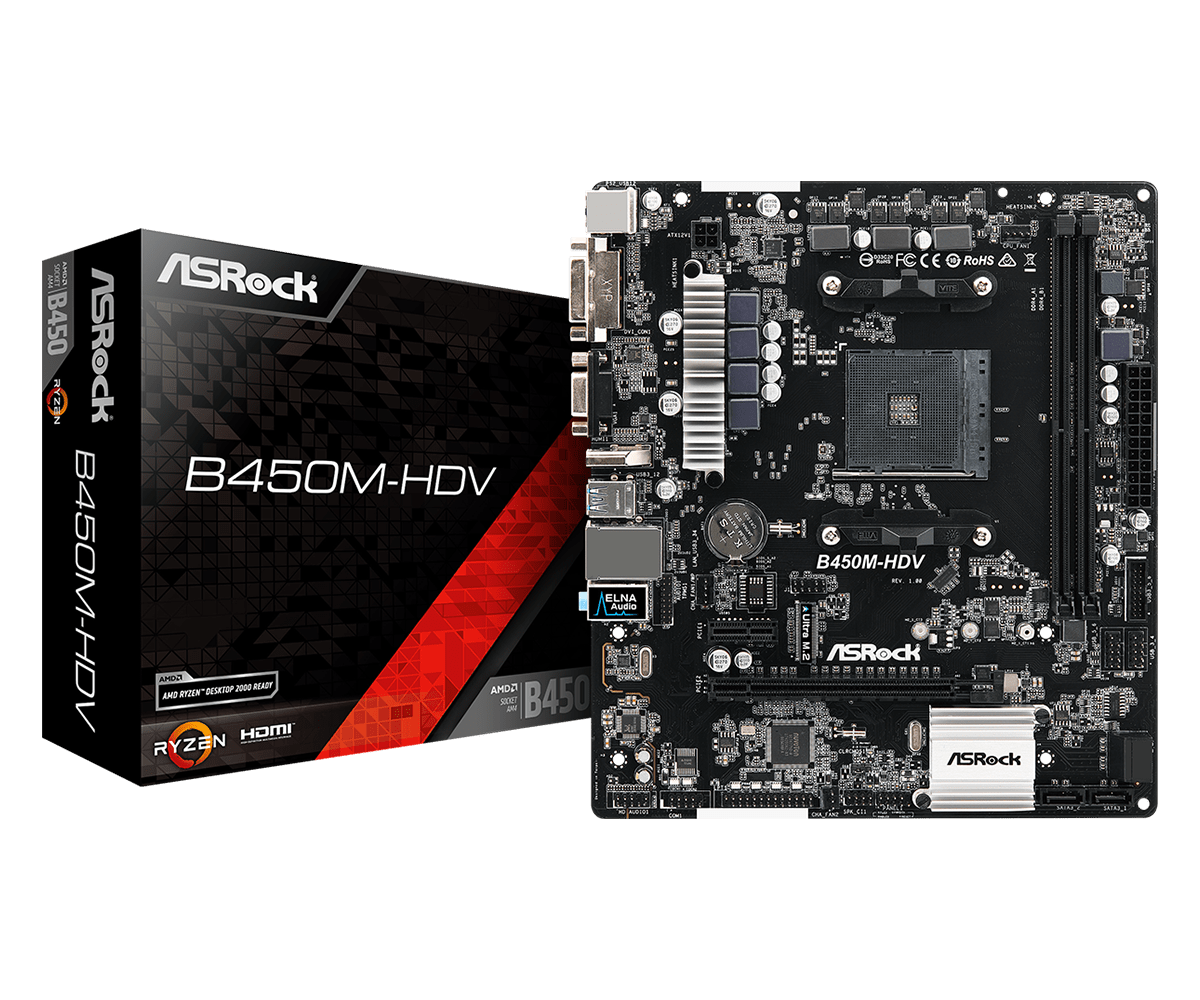

ASROCK B450M HDV AMD AM4 MOTHERBOARD

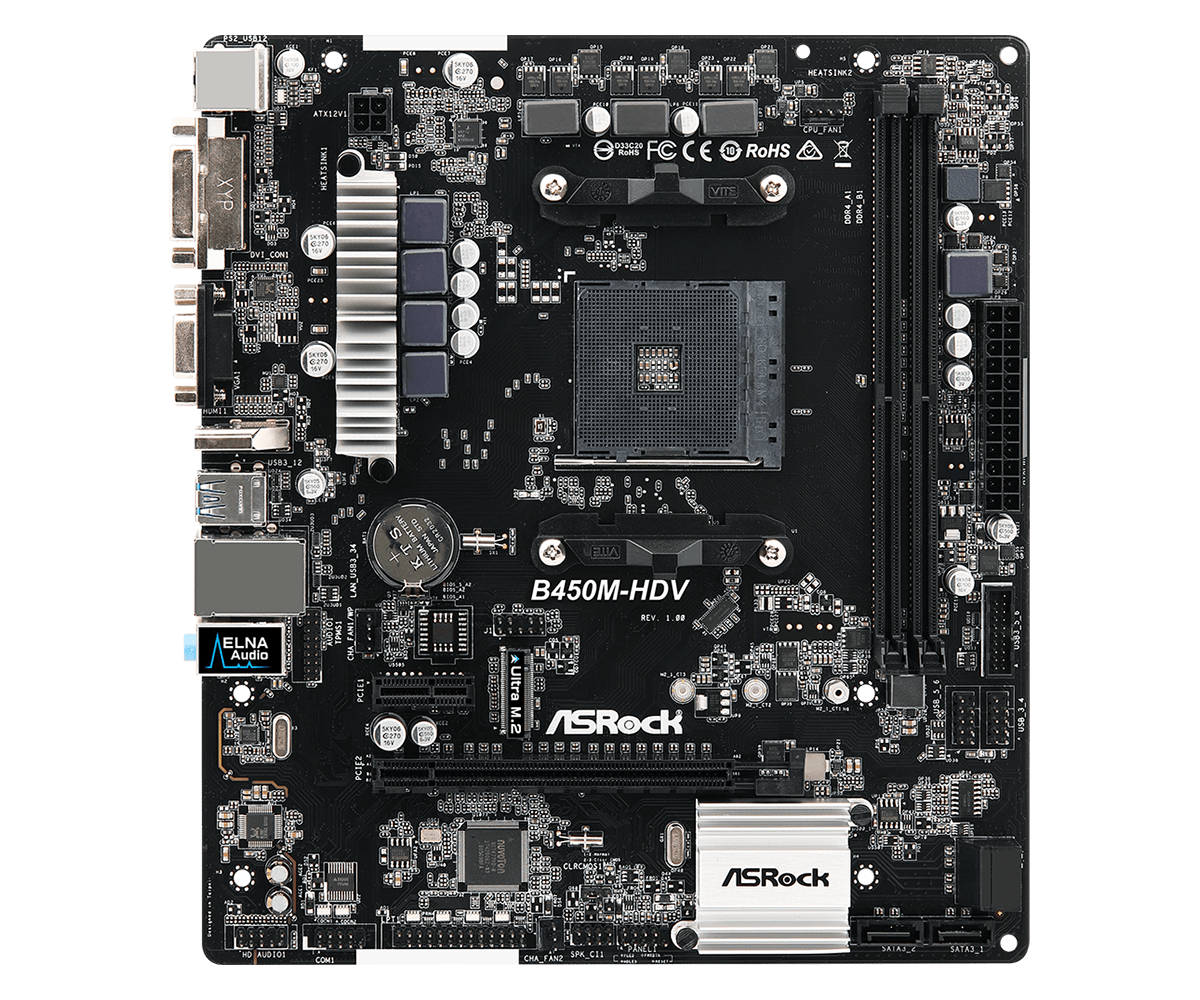

ASROCK B450M HDV AMD AM4 MOTHERBOARD - Image 2

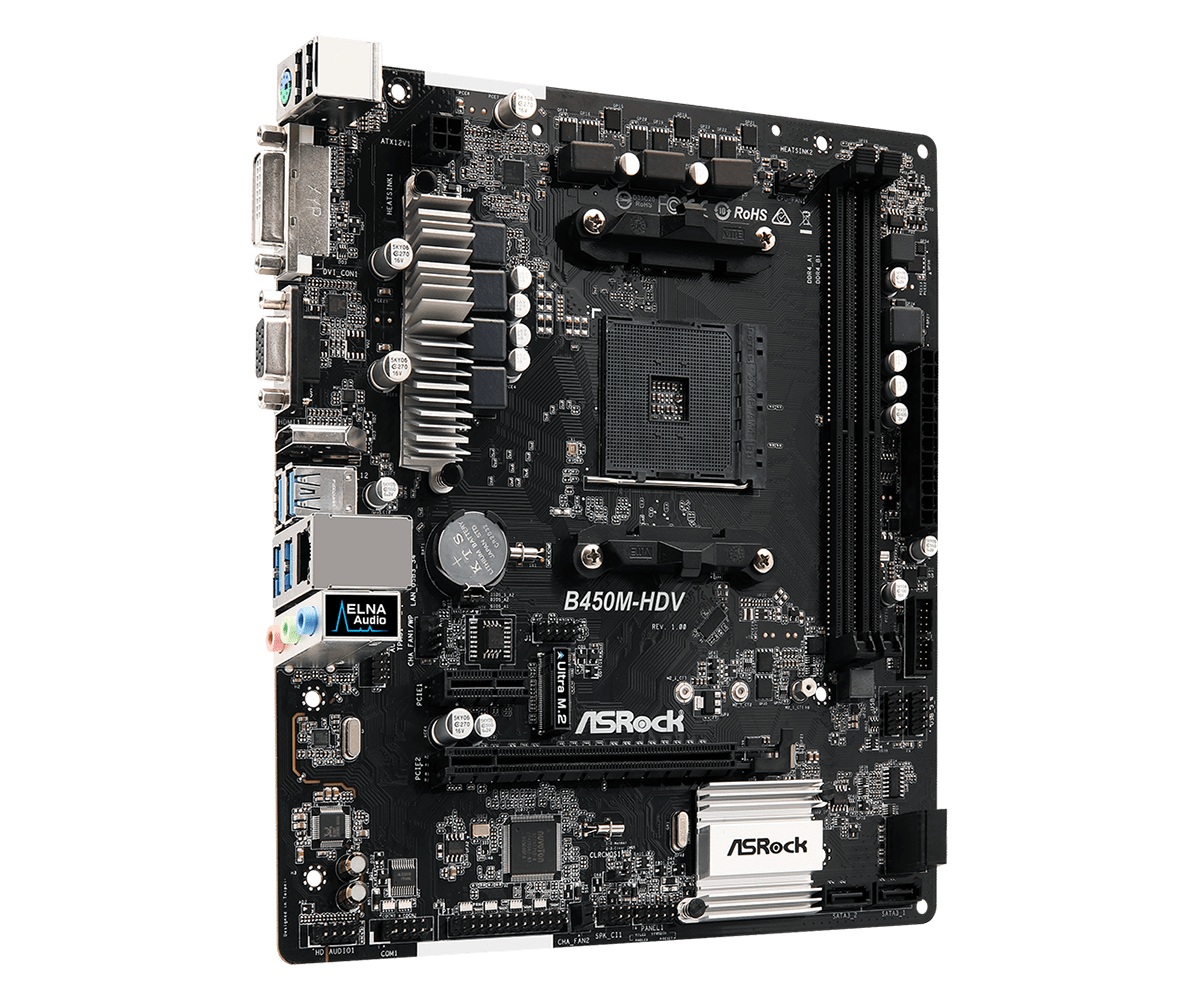

ASROCK B450M HDV AMD AM4 MOTHERBOARD - Image 3

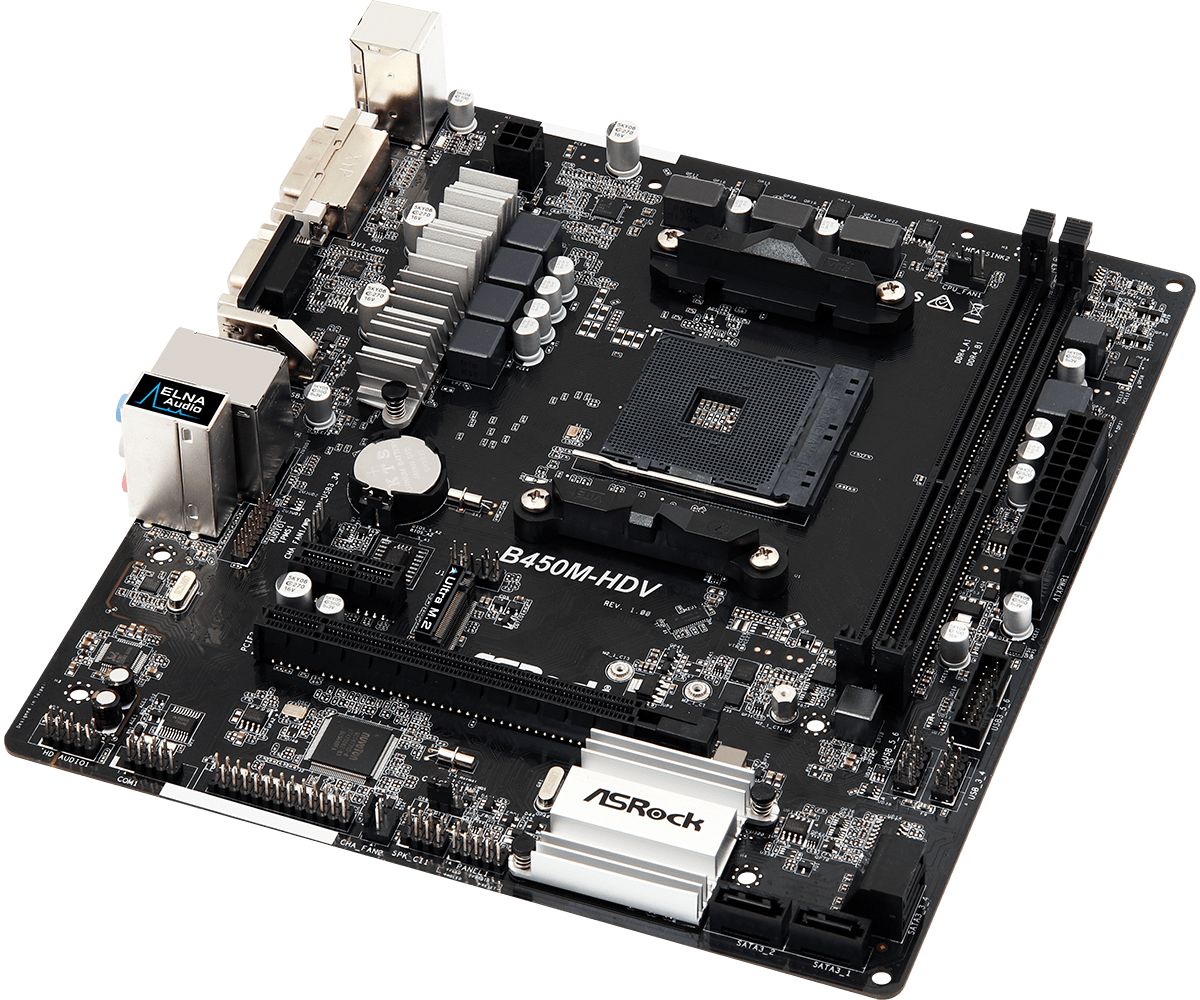

ASROCK B450M HDV AMD AM4 MOTHERBOARD - Image 4

ASROCK B450M HDV AMD AM4 MOTHERBOARD

Compare

CPU: Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series processors up to 105W; Chipset: AMD Promontory B450; Memory: Dual-channel DDR4, 2 DIMM slots, up to 64GB, supports XMP and speeds up to 3200+ MHz.

Storage: 4 SATA3 6Gb/s connectors (RAID 0/1/10), 1 Ultra M.2 socket (PCIe Gen3 x4 or x2); Expansion: 1 PCIe 3.0 x16 slot, 1 PCIe 2.0 x1 slot.

Graphics: Integrated AMD Radeon Vega graphics (via APU) with HDMI, DVI-D, D-Sub outputs, 4K UHD playback; Audio: 7.1‑channel HD Audio (Realtek ALC887) with ELNA caps and surge protection; LAN: Gigabit LAN (Realtek RTL8111H) with Wake‑on‑LAN and ESD/Lightning protection.

Specifications

Unique Feature ASRock Super Alloy: – High Density Glass Fabric PCB – Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU Supports AMD AM4 Socket Ryzen„ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors Digi Power design Supports CPU up to 105W
Chipset AMD Promontory B450
Memory Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports various memory speeds based on CPU/APU model (3200+/2933/2667/2400/2133 MHz) Max capacity: 64GB Supports XMP memory modules 15? Gold Contact in DIMM Slots
BIOS 128Mb AMI UEFI Legal BIOS with GUI support Supports Plug and Play, ACPI 5.1 compliance, DRAM Voltage multi-adjustment
Graphics Integrated AMD Radeon„ Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Supports Triple Monitor, Auto Lip Sync, 4K UHD Playback (HDMI) Three output options: D-Sub, DVI-D, HDMI
Audio 7.1 CH HD Audio (Realtek ALC887), ELNA Audio Caps, Surge Protection
LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet
Slots 1 x PCI Express 3.0 x16 Slot 1 x PCI Express 2.0 x1 Slot *Supports NVMe SSD as boot disks
Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID 0, 1, 10 1 x Ultra M.2 Socket (PCIe Gen3 x4 or x2 depending on CPU)
Connector 1 x Print Port Header, 1 x COM Port Header, 1 x TPM Header 1 x CPU Fan Connector (4-pin), 1 x Chassis Fan Connector (3-pin), 1 x Chassis/Water Pump Fan Connector (4-pin, Smart Fan Speed Control) 1 x 24 pin ATX Power Connector, 1 x 4 pin 12V Power Connector 1 x USB 3.1 Gen1 Header, 2 x USB 2.0 Headers
Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port 2 x USB 2.0 Ports, 4 x USB 3.1 Gen1 Ports 1 x RJ-45 LAN Port, HD Audio Jacks
Software and UEFI ASRock A-Tuning, ASRock Full HD UEFI, ASRock Instant Flash, ASRock Easy RAID Installer
Accessories Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables, 1 x Screw for M.2 Socket
Hardware Monitor Temperature Sensing, Fan Tachometer, Quiet Fan, Fan Multi-Speed Control, CASE OPEN detection, Voltage monitoring
Form Factor Micro ATX Form Factor: 9.1-in x 8.1-in, Solid Capacitor design
OS Microsoft Windows 10 64-bit / 11 64-bit (except Summit Ridge CPUs)
Certifications FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)

Key Features

  • CPU Support: AMD AM4 socket for Ryzen 2000, 3000, 4000 G‑Series, 5000 and 5000 G‑Series processors (up to 105 W)
  • Memory: Dual‑channel DDR4, 2 DIMM slots, up to 64 GB, supports memory speeds up to 3200 + MHz (based on CPU/APU) with XMP
  • Storage: 4 × SATA3 6 Gb/s ports (RAID 0/1/10) + 1 × Ultra M.2 slot (PCIe Gen3 x4 or x2 depending on CPU)
  • Expansion Slots: 1 × PCIe 3.0 x16, 1 × PCIe 2.0 x1
  • Networking: Gigabit LAN (Realtek RTL8111H) with Wake‑On‑LAN, Lightning/ESD protection, Energy Efficient Ethernet
  • Audio & Rear I/O: 7.1‑channel HD Audio (Realtek ALC887, ELNA caps), HDMI/DVI‑D/D‑Sub video outputs, 4× USB 3.1 Gen1, 2× USB 2.0, PS/2 port
  • Form Factor & Build: Micro‑ATX (9.1″ × 8.1″), Super Alloy PCB with Full Spike Protection, 128 Mb AMI UEFI BIOS with GUI
SKU: 101155 Category:
Unique Feature ASRock Super Alloy: – High Density Glass Fabric PCB – Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU Supports AMD AM4 Socket Ryzen„ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors Digi Power design Supports CPU up to 105W
Chipset AMD Promontory B450
Memory Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports various memory speeds based on CPU/APU model (3200+/2933/2667/2400/2133 MHz) Max capacity: 64GB Supports XMP memory modules 15? Gold Contact in DIMM Slots
BIOS 128Mb AMI UEFI Legal BIOS with GUI support Supports Plug and Play, ACPI 5.1 compliance, DRAM Voltage multi-adjustment
Graphics Integrated AMD Radeon„ Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Supports Triple Monitor, Auto Lip Sync, 4K UHD Playback (HDMI) Three output options: D-Sub, DVI-D, HDMI
Audio 7.1 CH HD Audio (Realtek ALC887), ELNA Audio Caps, Surge Protection
LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet
Slots 1 x PCI Express 3.0 x16 Slot 1 x PCI Express 2.0 x1 Slot *Supports NVMe SSD as boot disks
Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID 0, 1, 10 1 x Ultra M.2 Socket (PCIe Gen3 x4 or x2 depending on CPU)
Connector 1 x Print Port Header, 1 x COM Port Header, 1 x TPM Header 1 x CPU Fan Connector (4-pin), 1 x Chassis Fan Connector (3-pin), 1 x Chassis/Water Pump Fan Connector (4-pin, Smart Fan Speed Control) 1 x 24 pin ATX Power Connector, 1 x 4 pin 12V Power Connector 1 x USB 3.1 Gen1 Header, 2 x USB 2.0 Headers
Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port 2 x USB 2.0 Ports, 4 x USB 3.1 Gen1 Ports 1 x RJ-45 LAN Port, HD Audio Jacks
Software and UEFI ASRock A-Tuning, ASRock Full HD UEFI, ASRock Instant Flash, ASRock Easy RAID Installer
Accessories Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables, 1 x Screw for M.2 Socket
Hardware Monitor Temperature Sensing, Fan Tachometer, Quiet Fan, Fan Multi-Speed Control, CASE OPEN detection, Voltage monitoring
Form Factor Micro ATX Form Factor: 9.1-in x 8.1-in, Solid Capacitor design
OS Microsoft Windows 10 64-bit / 11 64-bit (except Summit Ridge CPUs)
Certifications FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
