Specifications
| Platform | INTEL |
| Socket | LGA1151 |
| CPU Type | 7th Gen,6th Gen, Pentium |
| Chipset | Q270 |
| Memory Speed | up to 2400 |
| Max Memory Support | 32 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots |
| Expansion Slots | – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) – 12 x PCI Express 3.0 x1 Slots |

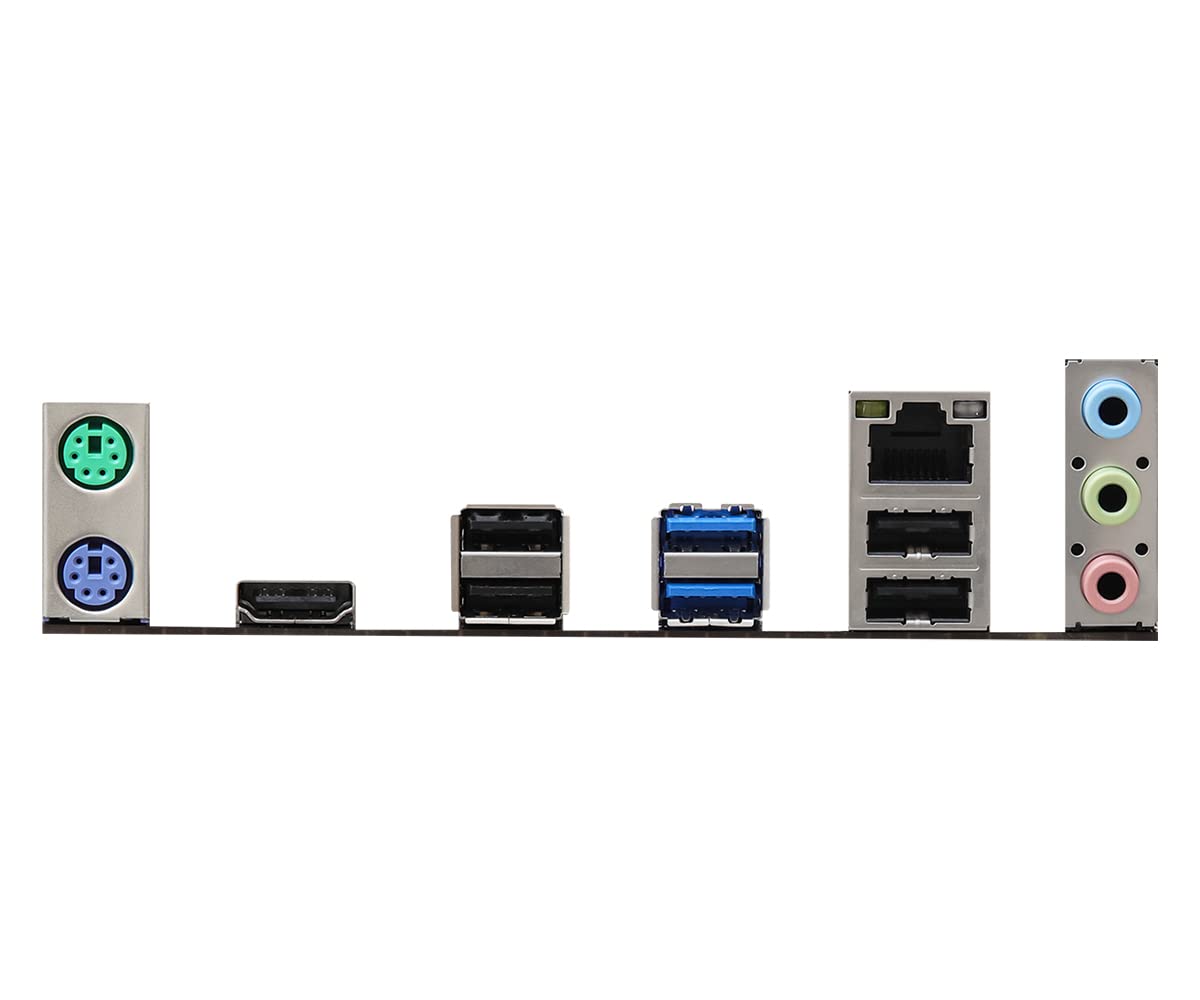

| Back Panel I/O Ports | – 1 x PS/2 Mouse Port – 1 x PS/2 Keyboard Port – 1 x HDMI Port – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | – 1 x System Panel Header – 1 x TPM Header – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 2 x PCIe Power Connectors – 1 x SATA Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Power Button – 1 x Reset Button |
| Form Factor | ATX |
| Warranty | 3 Years |
Key Features
- LGA1151 socket supports 7th/6th Gen Intel Core and Pentium processors
- Intel Q270 chipset delivers stable, business‑class performance
- DDR4 memory up to 2400 MHz, max 32 GB in dual‑channel configuration
- ECC UDIMM support (non‑ECC mode) with Intel XMP 2.0 and 15µ gold‑plated DIMM contacts
- Expansion: 1× PCIe 3.0 x16 slot + 12× PCIe 3.0 x1 slots
- Rich I/O: HDMI, 4× USB 2.0, 2× USB 3.2 Gen1, PS/2 keyboard/mouse, Gigabit LAN with LED indicators
- Comprehensive fan/system headers: CPU fan, 2× smart‑controlled chassis fans, TPM, COM, chassis intrusion, power/reset buttons
- ATX form factor backed by a 3‑year warranty
