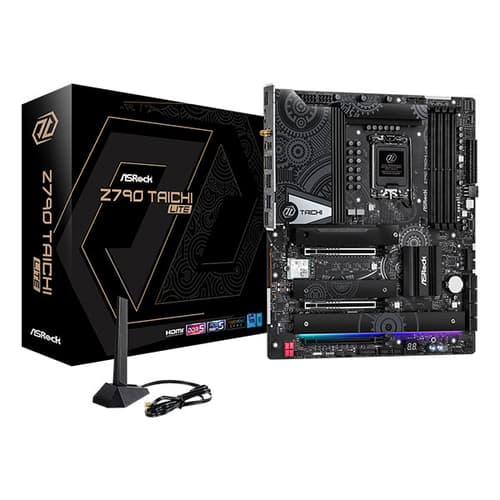

ASROCK Z790 TAICHI LITE (WI-FI) DDR5 MOTHERBOARD

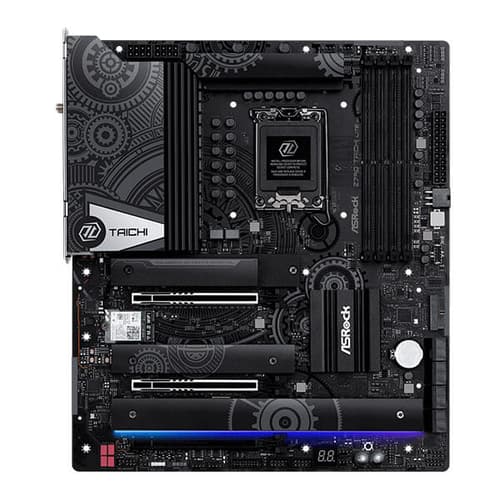

ASROCK Z790 TAICHI LITE (WI-FI) DDR5 MOTHERBOARD - Image 2

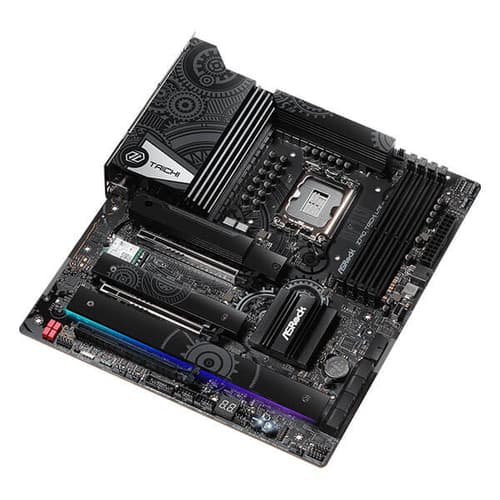

ASROCK Z790 TAICHI LITE (WI-FI) DDR5 MOTHERBOARD - Image 3

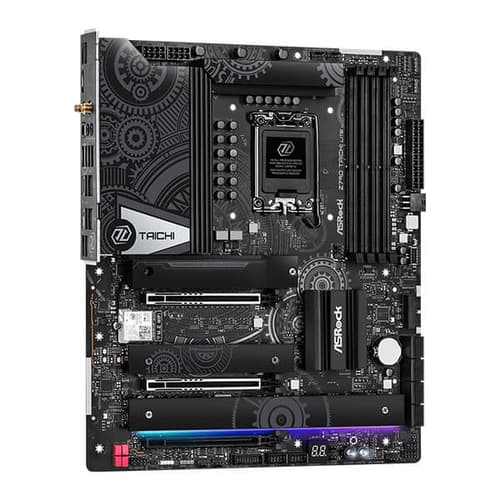

ASROCK Z790 TAICHI LITE (WI-FI) DDR5 MOTHERBOARD - Image 4
ASROCK Z790 TAICHI LITE (WI-FI) DDR5 MOTHERBOARD - Image 5

ASROCK Z790 TAICHI LITE (WI-FI) DDR5 MOTHERBOARD

Compare

Chipset & CPU: Intel Z790 supports 12th‑, 13th‑ and 14th‑gen Intel Core processors (LGA1700) with Intel Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost and Adaptive Boost.

Memory & Expansion: Four DDR5 DIMM slots, up to 256 GB, DDR5‑7200+ (OC) support, dual‑channel architecture, and PCIe 5.0 slots for graphics and M.2 devices.

Connectivity: PCIe Gen5, USB4, two Thunderbolt 4 Type‑C ports (40 Gb/s), Killer 2.5 Gb LAN, Killer Wi‑Fi 6E, and HDMI 2.1 with up to 4K 60 Hz (or 8K 60 Hz via Thunderbolt).

Audio: Realtek ALC4082 codec with 5.1 CH HD audio, ESS SABRE9218 DAC and WIMA capacitors.

Specifications

Unique Features PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 USB4 Thunderbolt„ 4 Type-C Ports (40 Gb/s)
Superb Productivity 24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor Flexible Integrated I/O Shield Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module Killer DoubleShot„ Pro Front Panel Type-C 60W Fast Charging (20V/3A) ASRock Lightning Gaming Ports
EZ Update ASRock Auto Driver Installer
CPU Support Supports 14th, 13th & 12th Gen Intel Core„ Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Supports ASRock Hyper BCLK Engine
Chipset Intel Z790
Memory Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 2 x Intel Thunderbolt„ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz** *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Supports two 4K displays or one 8K display.
Audio 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Front Outputs) ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Impedance Sensing on Rear Out port Nahimic Audio
LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) Supports Killer LAN Software 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
Wireless LAN 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2×2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO Supports Killer LAN Software Supports Killer DoubleShot„ Pro *A 6GHz compatible router is required for 6E functionality.
Slots 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire„ 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2) *If M2_1 is occupied, PCIE1 will downgrade to x8 mode. If PCIE2 is occupied, M2_1 will be disabled. If PCIE3 is occupied, SATA3_0~3 will be disabled.
Storage 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode** 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 8 x SATA3 6.0 Gb/s Connectors** *Supports Intel Volume Management Device (VMD). **If PCIE3 is occupied, SATA3_0~3 will be disabled.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB Ports 2 x USB4 Thunderbolt„ 4 Type-C (Rear) 1 x USB 3.2 Gen2x2 Type-C (Front) 2 x USB 3.2 Gen2 Type-A (Rear) 10 x USB 3.2 Gen1 (6 Rear, 4 Front) 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection
Connectors 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)****** 1 x Clear CMOS Button 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP_3A supports the fan power up to 3A (36W). *****CHA_FAN1~6/WP support the fan power up to 2A (24W). ******Supports USB PD 3.0 up to 20V@3A (60W) fast charging.

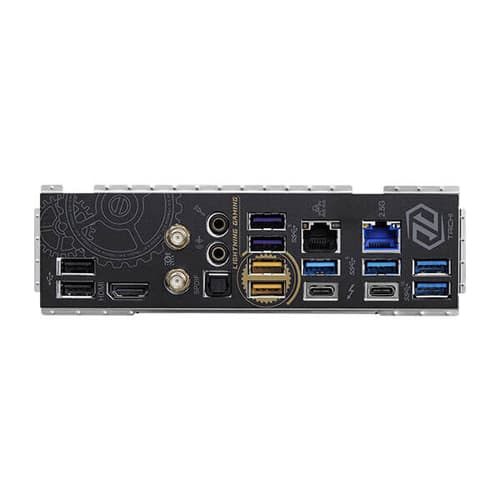

Rear Panel I/O 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Thunderbolt„ 4 Type-C Ports (40 Gb/s) 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 6 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) *Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
Software and UEFI ASRock Motherboard Utility (A-Tuning) Killer Control Center ASRock Polychrome SYNC* UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer
Accessories 1 x User Manual 4 x SATA Data Cables 1 x Wireless Dongle USB Bracket 1 x ASRock WiFi 2.4/5/6 GHz Antenna 4 x Screws for M.2 Sockets
Form Factor EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
OS Support Microsoft Windows 10 64-bit / 11 64-bit
Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) CEC Tier II ready

Key Features

  • Intel Z790 Chipset: Supports 12th, 13th & 14th Gen Intel Core processors (LGA1700) and Intel Hybrid Technology.
  • DDR5 Memory: Dual Channel DDR5 with 4 DIMM slots supporting up to 256GB capacity and speeds up to 7200+ MHz (OC).
  • High-Speed Storage: 5x M.2 slots including 1x PCIe Gen5 x4 (128 Gb/s) and 4x PCIe Gen4 x4 slots.
  • Ultra-Fast Connectivity: Killer Wi-Fi 6E (802.11ax) and Killer 2.5G LAN with DoubleShot Pro technology.
  • Thunderbolt 4: 2x USB4 Type-C ports supporting 40 Gb/s transfer speeds and up to 8K 60Hz display output.
  • Premium Audio: Features the ESS SABRE9218 DAC for 130dB SNR and Nahimic Audio.
  • Robust Power Delivery: 24+1+2 Power Phase design with 105A SPS for stable CPU performance.
SKU: 1090722 Category:
Unique Features PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 USB4 Thunderbolt„ 4 Type-C Ports (40 Gb/s)
Superb Productivity 24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor Flexible Integrated I/O Shield Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module Killer DoubleShot„ Pro Front Panel Type-C 60W Fast Charging (20V/3A) ASRock Lightning Gaming Ports
EZ Update ASRock Auto Driver Installer
CPU Support Supports 14th, 13th & 12th Gen Intel Core„ Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Supports ASRock Hyper BCLK Engine
Chipset Intel Z790
Memory Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 2 x Intel Thunderbolt„ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz** *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Supports two 4K displays or one 8K display.
Audio 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Front Outputs) ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Impedance Sensing on Rear Out port Nahimic Audio
LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) Supports Killer LAN Software 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
Wireless LAN 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2×2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO Supports Killer LAN Software Supports Killer DoubleShot„ Pro *A 6GHz compatible router is required for 6E functionality.
Slots 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire„ 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2) *If M2_1 is occupied, PCIE1 will downgrade to x8 mode. If PCIE2 is occupied, M2_1 will be disabled. If PCIE3 is occupied, SATA3_0~3 will be disabled.
Storage 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode** 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 8 x SATA3 6.0 Gb/s Connectors** *Supports Intel Volume Management Device (VMD). **If PCIE3 is occupied, SATA3_0~3 will be disabled.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB Ports 2 x USB4 Thunderbolt„ 4 Type-C (Rear) 1 x USB 3.2 Gen2x2 Type-C (Front) 2 x USB 3.2 Gen2 Type-A (Rear) 10 x USB 3.2 Gen1 (6 Rear, 4 Front) 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection
Connectors 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)****** 1 x Clear CMOS Button 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP_3A supports the fan power up to 3A (36W). *****CHA_FAN1~6/WP support the fan power up to 2A (24W). ******Supports USB PD 3.0 up to 20V@3A (60W) fast charging.
Rear Panel I/O 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Thunderbolt„ 4 Type-C Ports (40 Gb/s) 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 6 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) *Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
Software and UEFI ASRock Motherboard Utility (A-Tuning) Killer Control Center ASRock Polychrome SYNC* UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer
Accessories 1 x User Manual 4 x SATA Data Cables 1 x Wireless Dongle USB Bracket 1 x ASRock WiFi 2.4/5/6 GHz Antenna 4 x Screws for M.2 Sockets
Form Factor EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
OS Support Microsoft Windows 10 64-bit / 11 64-bit
Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) CEC Tier II ready
