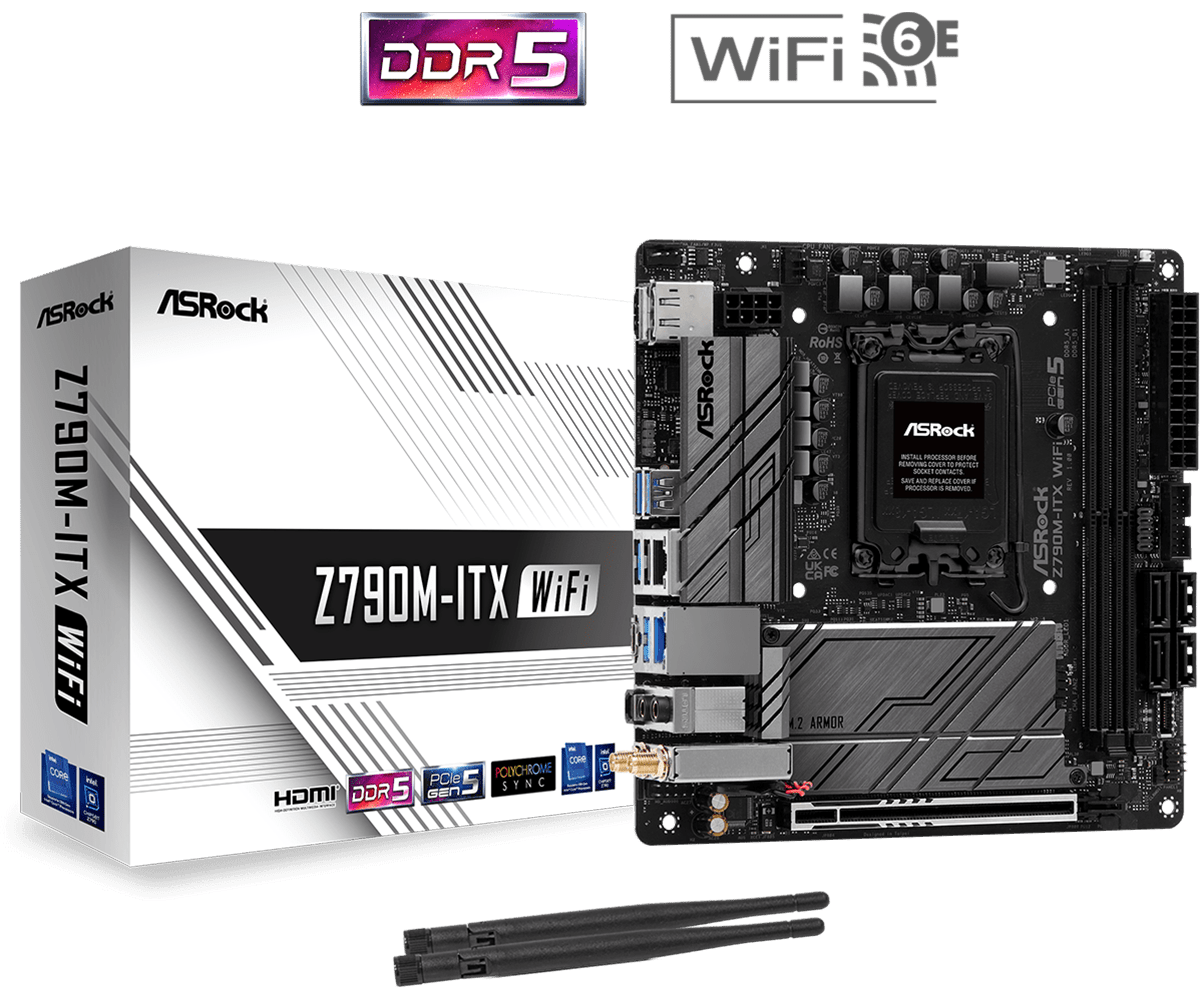

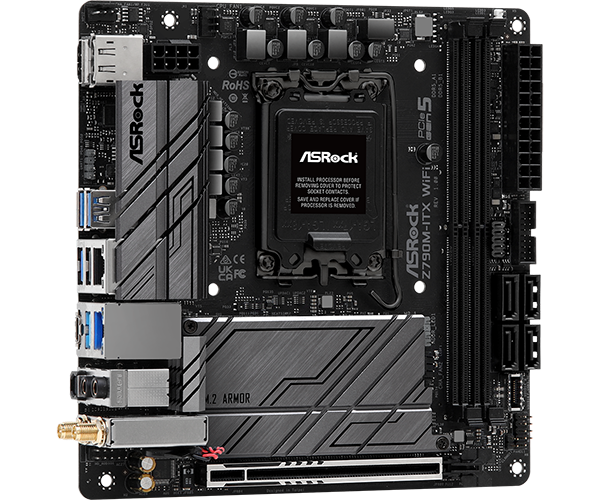

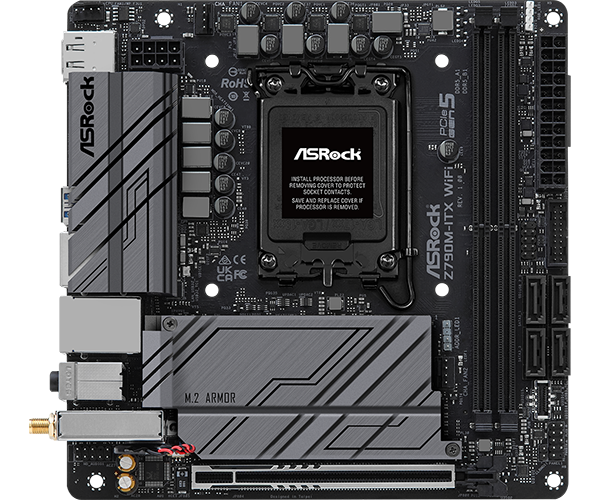

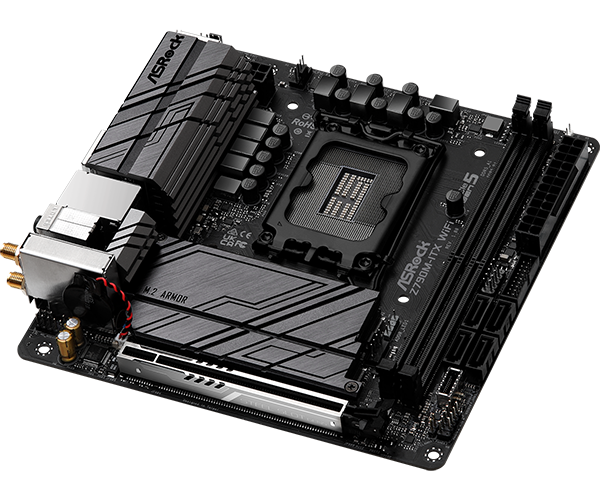

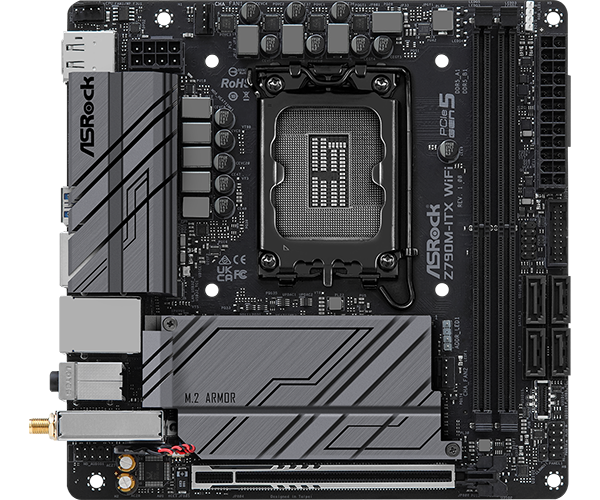

ASROCK Z790M-ITX WIFI DDR5 MOTHERBOARD
ASROCK Z790M-ITX WIFI DDR5 MOTHERBOARD - Image 2
ASROCK Z790M-ITX WIFI DDR5 MOTHERBOARD - Image 3
ASROCK Z790M-ITX WIFI DDR5 MOTHERBOARD - Image 4
ASROCK Z790M-ITX WIFI DDR5 MOTHERBOARD - Image 5
ASROCK Z790M-ITX WIFI DDR5 MOTHERBOARD - Image 6

ASROCK Z790M-ITX WIFI DDR5 MOTHERBOARD

Compare

CPU Support: Compatible with 12th, 13th and 14th Gen Intel Core processors (LGA1700) and Intel Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost and Adaptive Boost.

Chipset & Memory: Intel Z790 chipset; 2 DDR5 DIMM slots supporting up to 128 GB, DDR5‑5600 natively and up to 7000 MHz (OC), XMP 3.0.

Connectivity & I/O: PCIe Gen5 x16, 2.5 Gb Ethernet, 802.11ax Wi‑Fi 6E, HDMI 2.1, DisplayPort 1.4, eDP 1.4 and 7.1‑channel Realtek ALC897 audio.

Specifications

Unique Feature PCIe Gen5 (Graphics) Dual Channel DDR5
Superb Productivity 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity 2.5G LAN 802.11ax Wi-Fi 6E Module
EZ Update ASRock Auto Driver Installer
CPU Supports 14th, 13th & 12th Gen Intel Core„ Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset Intel Z790
Memory Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)* Max. capacity of system memory: 128GB Supports Intel Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Graphics Intel Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel I226V) 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
Wireless LAN 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2×2 with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. A 6GHz compatible router is required for 6E functionality.
Slots 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports PCIe riser cards to extend one x16 slot to two x8 slots. Supports NVMe SSD as boot disks.
Storage 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* 4 x SATA3 6.0 Gb/s Connectors *Supports Intel Volume Management Device (VMD). Supports NVMe SSD as boot disks.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 5.
USB 1 x USB 3.2 Gen2x2 Type-C (Rear) 1 x USB 3.2 Gen2x2 Type-C (Front) 4 x USB 3.2 Gen2 Type-A (Rear) 2 x USB 3.2 Gen1 (Front) 3 x USB 2.0 (1 Rear, 2 Front) *All USB ports support ESD Protection.
Connector 1 x eDP Signal Connector 1 x RGB LED Header* 1 x Addressable LED Header** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 2 x Chassis Fan Connectors (4-pin)**** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)***** *Supports in total up to 12V/3A, 36W LED Strip. **Supports in total up to 5V/3A, 15W LED Strip. ***CPU_FAN1/WP supports the fan power up to 2A (24W). ****CHA_FAN1~2 support the fan power up to 1A (12W). *****Actual speed depends on USB devices and extension cable in the chassis.

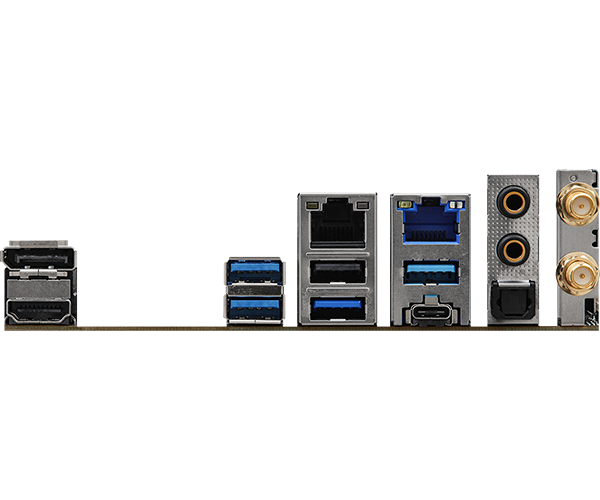

Rear Panel I/O 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 1 x USB 2.0 Port 2 x RJ-45 LAN Ports 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer.
Accessories 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 2 x Screws for M.2 Sockets
Form Factor Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm 8 Layer PCB
OS Microsoft Windows 10 64-bit / 11 64-bit*
Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)

Key Features

  • CPU Support: Compatible with 12th, 13th and 14th Gen Intel Core processors (LGA 1700) and Intel Z790 chipset, including Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost and Adaptive Boost.
  • Robust Power Delivery: 7+1+1 power phase design with 50 A Dr.MOS for VCore/GT and Nichicon 12K Black Caps for high‑quality, stable power.
  • DDR5 Memory: Dual‑channel DDR5 support up to 128 GB, native 5600 MHz (up to 7000+ MHz OC) for ultra‑fast performance.
  • PCIe 5.0 & Storage: One PCIe 5.0 x16 slot for graphics and two Hyper M.2 sockets (PCIe 4.0 x4) plus four SATA III ports, with RAID 0/1/5/10 options.
  • Ultrafast Connectivity: 2.5 Gb Ethernet (Intel I226V), 802.11ax Wi‑Fi 6E with Bluetooth 5.3, and dual‑band 2 × 2 antennas.
  • High‑Speed USB: Front and rear USB 3.2 Gen2x2 Type‑C (20 Gb/s) plus multiple USB 3.2 Gen2 and Gen1 ports with ESD protection.
  • Audio & Video: 7.1 CH HD audio (Realtek ALC897 with Nahimic) and video outputs: HDMI 2.1 (4K 60 Hz), DisplayPort 1.4 (8K 60 Hz/5K 120 Hz) and eDP 1.4 (Full HD 60 Hz).
SKU: 1090724 Category:
Unique Feature PCIe Gen5 (Graphics) Dual Channel DDR5
Superb Productivity 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity 2.5G LAN 802.11ax Wi-Fi 6E Module
EZ Update ASRock Auto Driver Installer
CPU Supports 14th, 13th & 12th Gen Intel Core„ Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset Intel Z790
Memory Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)* Max. capacity of system memory: 128GB Supports Intel Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Graphics Intel Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel I226V) 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
Wireless LAN 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2×2 with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. A 6GHz compatible router is required for 6E functionality.
Slots 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports PCIe riser cards to extend one x16 slot to two x8 slots. Supports NVMe SSD as boot disks.
Storage 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* 4 x SATA3 6.0 Gb/s Connectors *Supports Intel Volume Management Device (VMD). Supports NVMe SSD as boot disks.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 5.
USB 1 x USB 3.2 Gen2x2 Type-C (Rear) 1 x USB 3.2 Gen2x2 Type-C (Front) 4 x USB 3.2 Gen2 Type-A (Rear) 2 x USB 3.2 Gen1 (Front) 3 x USB 2.0 (1 Rear, 2 Front) *All USB ports support ESD Protection.
Connector 1 x eDP Signal Connector 1 x RGB LED Header* 1 x Addressable LED Header** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 2 x Chassis Fan Connectors (4-pin)**** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)***** *Supports in total up to 12V/3A, 36W LED Strip. **Supports in total up to 5V/3A, 15W LED Strip. ***CPU_FAN1/WP supports the fan power up to 2A (24W). ****CHA_FAN1~2 support the fan power up to 1A (12W). *****Actual speed depends on USB devices and extension cable in the chassis.
Rear Panel I/O 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 1 x USB 2.0 Port 2 x RJ-45 LAN Ports 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer.
Accessories 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 2 x Screws for M.2 Sockets
Form Factor Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm 8 Layer PCB
OS Microsoft Windows 10 64-bit / 11 64-bit*
Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
