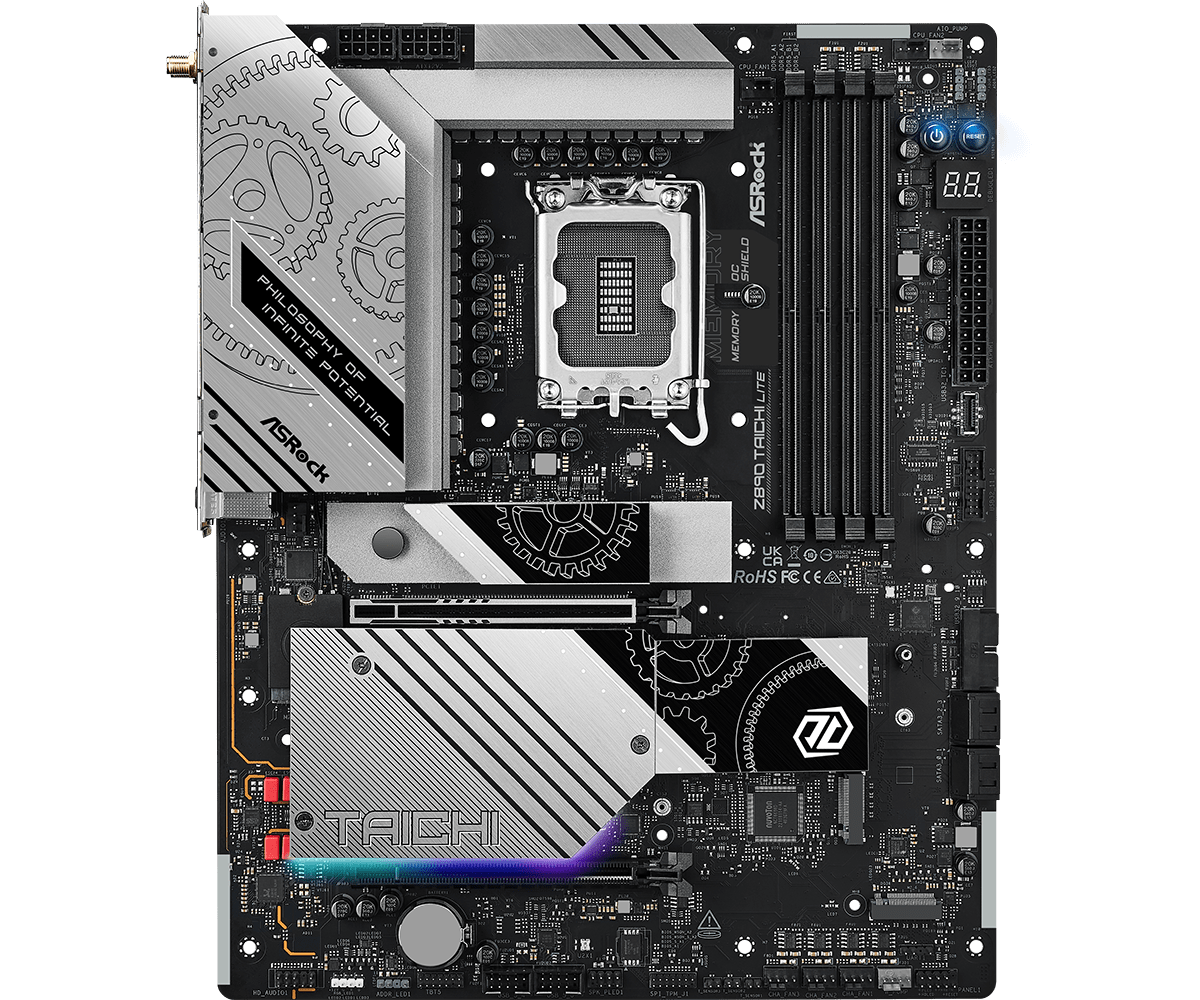

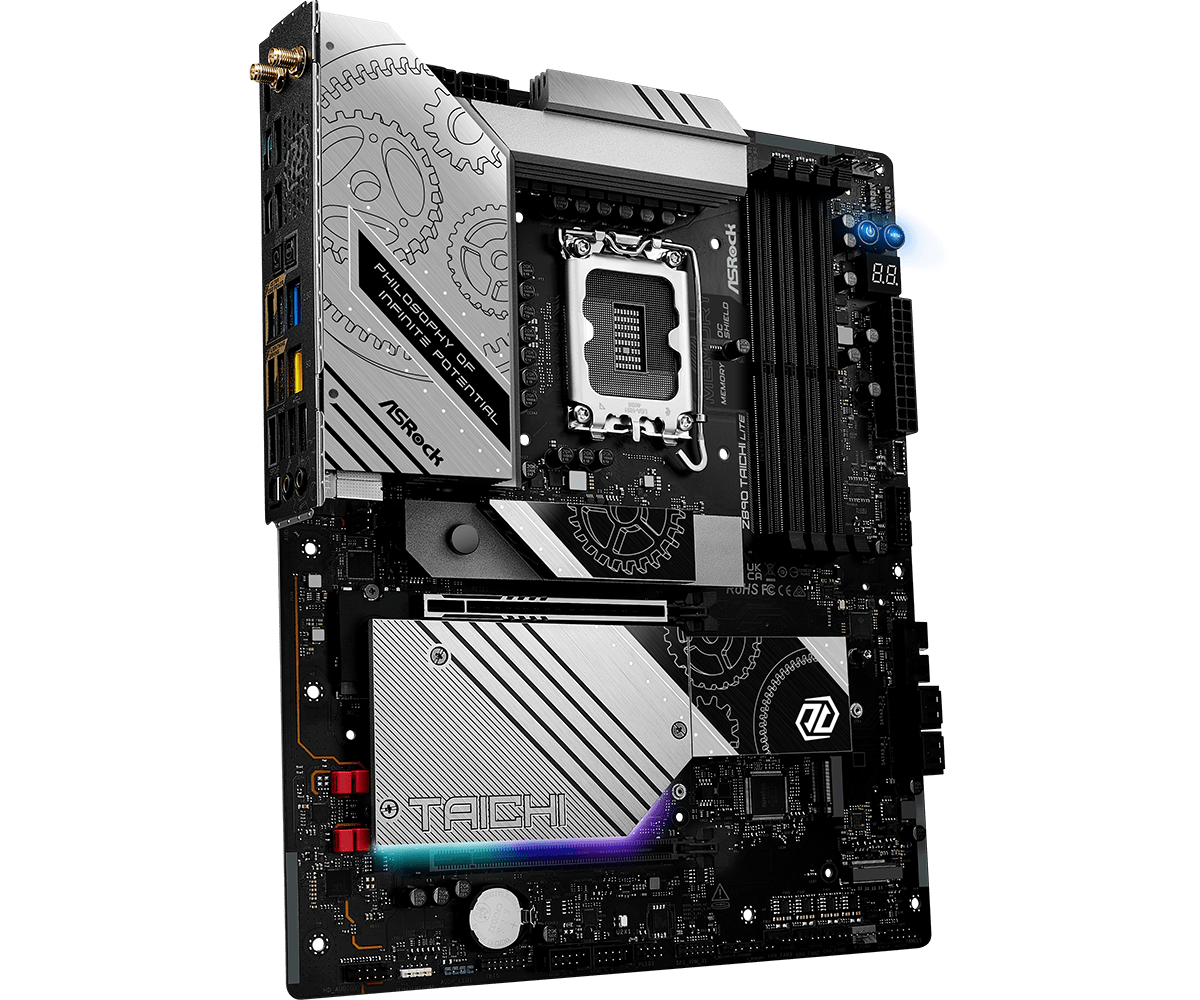

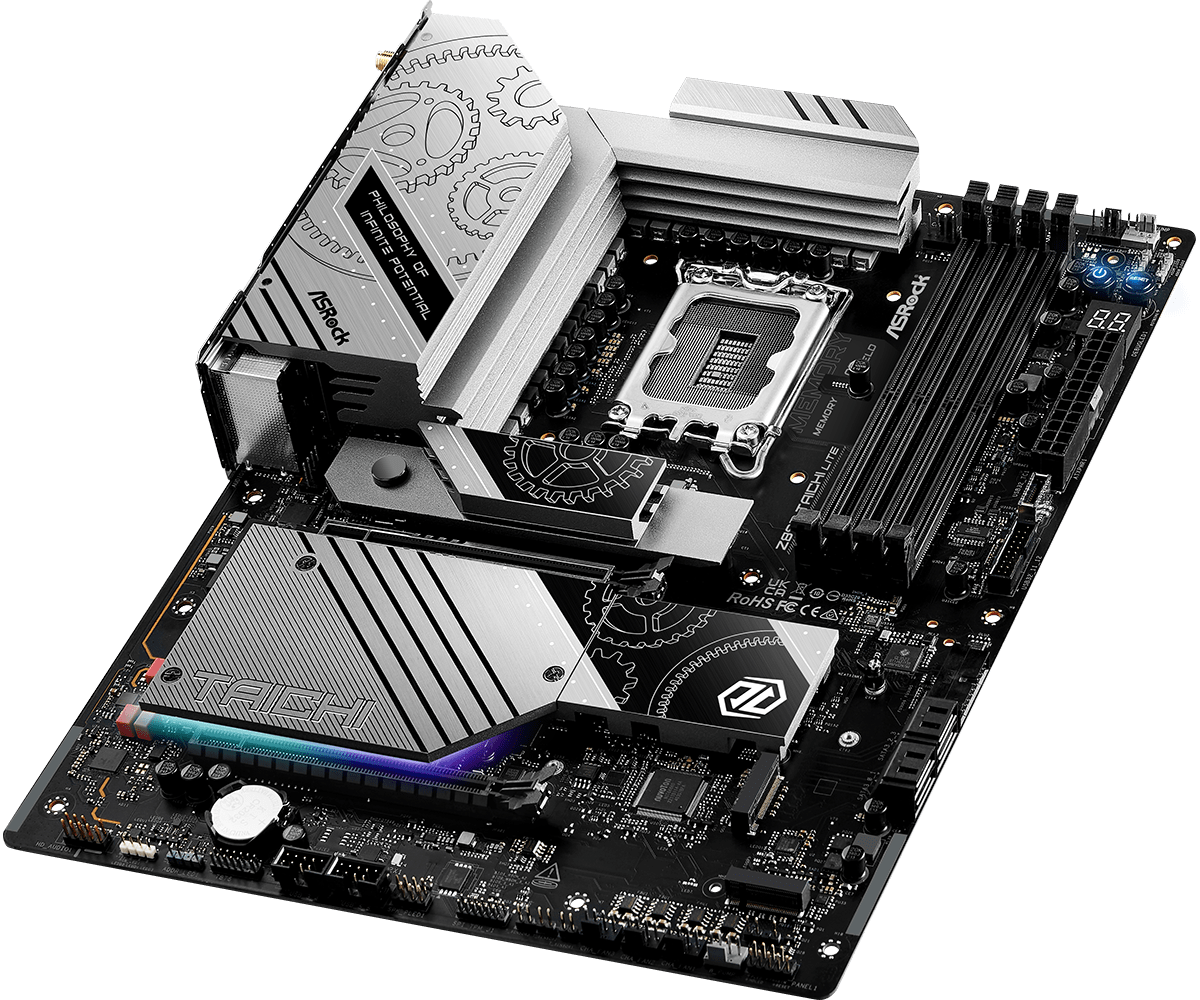

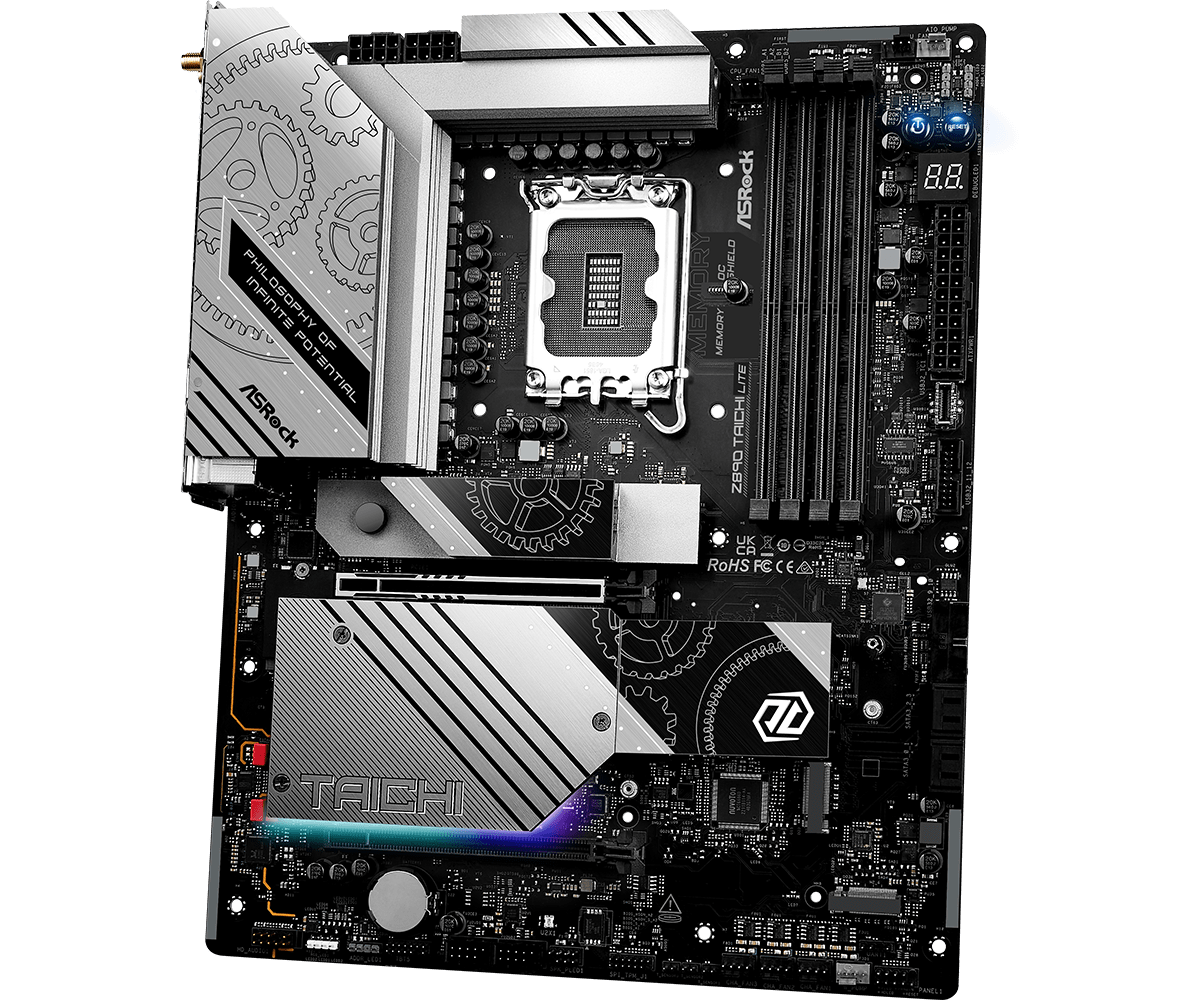

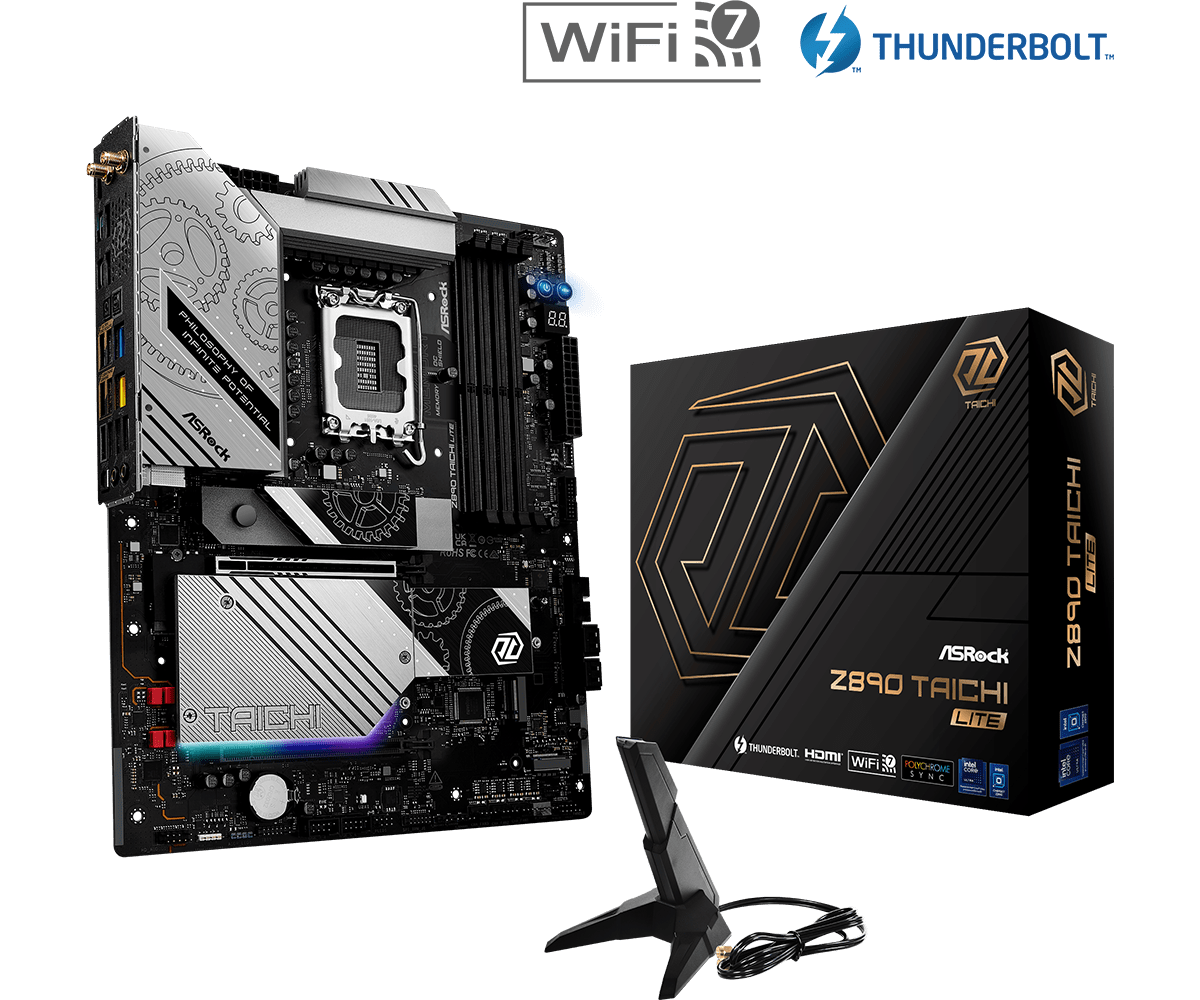

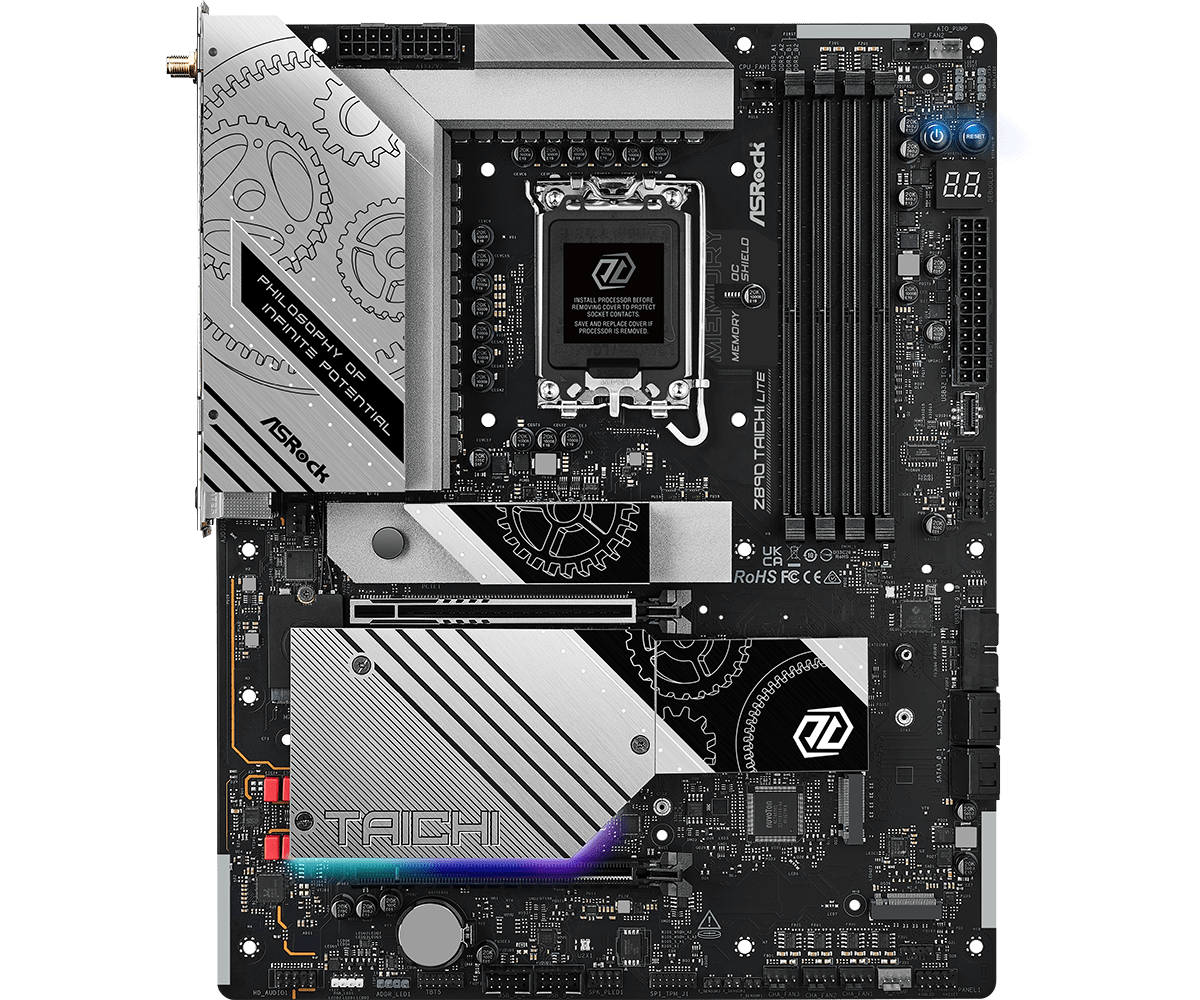

ASROCK Z890 TAICHI LITE MOTHERBOARD


We need to clean marketing fluff, keep technical accuracy, output clean HTML using only

, ,
. Remove promotional language, but keep specs. Need to be concise 2-4 sentences max. Probably we need to combine into paragraphs with strong tags for headings? The original uses strong tags for each section. We can keep those as headings but need to remove fluff like “Unique Feature:”, “Superb Productivity:”, etc. Those are labels; they might be okay as they are not fluff? They are section headings. Could keep them but maybe we can simplify.

We need to output only HTML with allowed tags. Use

for paragraphs, for bold text,
for line breaks.

We need to keep technical specs: PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 Thunderbolt 4 Type-C Ports (40 Gb/s); Server-Grade Low-Loss PCB 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor Memory OC Shield Flexible Integrated I/O Shield 20K Long-lasting Black Caps (high quality and conductive polymer capacitors); 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module ASRock Lightning Gaming Ports; BIOS Flashback Button ASRock Auto Driver Installer; CPU: Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration Supports ASRock Hyper BCLK Engine; Chipset: Intel Z890; Memory: Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 9600+(OC)* Supports Clocked Unbuffered DIMM (CUDIMM) Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0x *1DPC 1R Up to 9600+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.; BIOS: 256Mb AMI UEFI Legal BIOS with GUI support; Graphics: Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports two 4K displays or one 8K display. Only the CPU’s embedded graphics can be displayed through Thunderbolt ports.; Audio: 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio

We need to remove fluff like “high quality and conductive polymer capacitors” maybe okay as it’s descriptive but not fluff? It’s somewhat marketing but maybe okay. The instruction: remove ALL marketing fluff, promotional language, and sales pitches. Phrases like “high quality and conductive polymer capacitors” is somewhat promotional but it’s describing capacitor type; could keep as it’s factual? Might be considered fluff. Safer to remove subjective adjectives like “high quality”. Also “Server-Grade Low-Loss PCB” maybe okay as technical. “Enlarged Heatsink Armor Memory OC Shield Flexible Integrated I/O Shield 20K Long-lasting Black Caps” includes marketing terms like “Enlarged”, “Armor”, “Flexible”, “Long-lasting”. Might be fluff. We should keep only factual specs: maybe just “20+1+2+1+1 Power Phase, 110A SPS for VCore”. Could drop the rest.

Similarly “ASRock Lightning Gaming Ports” is marketing. Could just say “Lightning Gaming Ports”? Might be fluff. Better to remove.

We need to keep technical details: PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 Thunderbolt 4 Type-C Ports (40 Gb/s). That’s fine.

Connectivity: 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module.

EZ Update: BIOS Flashback Button ASRock Auto Driver Installer (maybe keep as is).

CPU: list of supported technologies.

Chipset: Intel Z890.

Memory: details.

BIOS: 256Mb AMI UEFI Legal BIOS with GUI support.

Graphics: details.

Audio: 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio

We might keep audio specs but remove fluff like “WIMA Audio Capacitors” is a brand, okay. “ESS SABRE9219 DAC” is specific. “Individual PCB Layers for R/L Audio Channel Direct Drive Technology” maybe technical. “Nahimic Audio” is software, maybe keep.

We need to keep concise 2-4 sentences max. That’s tough with many specs. Perhaps we can make each paragraph a sentence, using
for line breaks inside paragraph? Actually we can use

for each section, and inside use for label and then specs. That would be many paragraphs (>4). But rule says keep it concise — 2-4 sentences maximum. So we need to compress into maybe 3 sentences total, each sentence can contain multiple clauses separated by commas or semicolons.

We need to output only HTML, no extra text. So we could do something like:

PCIe: Gen5 (Graphics, M.2); Dual Channel DDR5; Thunderbolt 4 Type-C (40 Gb/s).

Power: 20+1+2+1+1 phases, 110A SPS VCore.

Connectivity: 5G LAN, 2.5G LAN, Wi-Fi 7 (802.11be); Lightning Gaming Ports.

… but that’s many paragraphs.

We need max 4 paragraphs (sentences). Could combine all into one paragraph with
line breaks? But each
is not a sentence. The rule says 2-4 sentences maximum, not paragraphs. So we could have one

containing multiple sentences separated by periods. Use
only for line breaks if needed, but we can just use periods.

We need to use for bold text. We can bold labels.

Let’s craft maybe 3 sentences:

Sentence 1: PCIe Gen5 support for graphics and M.2, dual-channel DDR5, and two Thunderbolt 4 Type-C ports at 40 Gb/s.

Sentence 2: Power delivery via 20+1+2+1+1 phases with 110A SPS for VCore; Intel Z890 chipset; supports Intel Core Ultra Series 2 processors with Hybrid Technology, Turbo Boost Max 3.0, TVB, ABT, integrated NPU, and Hyper BCLK Engine.

Sentence 3: Memory: four DDR5 DIMM slots up to 256GB, speeds up to 9600+ MT/s OC; connectivity includes 5G LAN, 2.5G LAN, Wi-Fi 7 (802.11be), BIOS Flashback, and audio with Realtek ALC4082, ESS SABRE9219 DAC, WIMA caps, and Nahimic.

That’s three sentences. Need to ensure we don’t add invented data. All specs are from original.

Check for any fluff: “Lightning Gaming Ports” maybe fluff but it’s a name of a feature; could keep as it’s a specific term. Might be okay.

We need to output HTML: use

for each sentence? Actually we have three sentences; we could put them all in one

separated by spaces, but then it’s one sentence? No, it’s multiple sentences inside one paragraph, that’s okay. The rule about sentences refers to content, not HTML tags. So we can have one

containing three sentences.

We need to use for bold text. We can bold the labels like PCIe:, Power:, Memory:, etc.

Let’s construct:

PCIe: Gen5 support for graphics and M.2; dual-channel DDR5; two Thunderbolt 4 Type-C ports at 40 Gb/s.
Power & Chipset: 20+1+2+1+1 power phases with 110A SPS for VCore; Intel Z890 chipset; supports Intel Core Ultra Series 2 processors with Hybrid Technology, Turbo Boost Max 3.0, TVB, ABT, integrated NPU, and Hyper BCLK Engine.
Memory & Connectivity: Four DDR5 DIMM slots up to 256GB, speeds up to 9600+ MT/s OC; 5G LAN, 2.5G LAN, Wi-Fi 7 (802.11be); BIOS Flashback Button; audio with Realtek ALC4082 codec, ESS SABRE9219 DAC (130dB SNR), WIMA capacitors, and Nahimic.

We used
to separate sections inside paragraph. That’s allowed. We used for labels. No other tags.

Check for any fluff: “supports Intel Core Ultra Series 2 processors with Hybrid Technology, Turbo Boost Max 3.0, TVB, ABT, integrated NPU, and Hyper BCLK Engine” – all are technical. “BIOS Flashback Button” is okay. “audio with Realtek ALC4082 codec, ESS SABRE9219 DAC (130dB SNR), WIMA capacitors, and Nahimic” – WIMA capacitors is a brand but okay. Nahimic is software but it’s a feature.

We kept specs: DDR5 up to 9600+ MT/s OC (original said up to 9600+(OC)*). We said 9600+ MT/s OC, okay.

We omitted some details like memory native speeds, CUDIMM, XMP 3.0, etc. That might be considered removing technical data, which we shouldn’t do. We need to keep technical accuracy, not invent or change any data. Removing data is allowed? The instruction: “Keep technical accuracy — do NOT invent or change any data.” It doesn’t say we must keep all data, but we should not remove relevant specs? It says keep technical accuracy, but we can remove some details as long as we don’t change accuracy. However, removing specs might be considered omitting data, but not changing. The goal is to clean marketing fluff, not to strip technical specs. Better to keep key specs but maybe we can keep a concise version that still includes important technical details: memory slots, capacity, speed support, XMP, CUDIMM, native speeds.

We could include: “Four DDR5 DIMM slots, up to 256GB, supports DDR5 non-ECC un-buffered up to 9600+ MT/s OC, CUDIMM, XMP 3.0, native speeds 5600 MT/s (1DPC1R) etc.” That’s a lot.

We need to keep concise 2-4 sentences. Could embed many details in a sentence using semicolons.

Let’s attempt to include memory details: “Four DDR5 DIMM slots, up to 256GB, supports DDR5 non-ECC un-buffered up to 9600+ MT/s OC, CUDIMM, XMP 3.0; native speeds: 5600 MT/s (1DPC1R), 5600 MT/s (1DPC2R), 4800 MT/s (2DPC1R), 4400 MT/s (2DPC2R).” That’s still long but okay as part of sentence.

We also need to include graphics specs: HDMI 2.1, Thunderbolt 4, resolutions.

We could add graphics in another sentence.

We have to keep within 2-4 sentences. Let’s aim for 4 sentences.

Sentence 1: PCIe and I/O.

Sentence 2: Power, chipset, CPU support.

Sentence 3: Memory details.

Sentence 4: Graphics, BIOS, audio, connectivity.

Let’s craft.

Sentence 1: PCIe/Thunderbolt: Gen5 slots for graphics and M.2; dual-channel DDR5; two Thunderbolt 4 Type-C ports at 40 Gb/s.

Sentence 2: Power & Chipset: 20+1+2+1+1 power phases with 110A SPS for VCore; Intel Z890 chipset; supports Intel Core Ultra Series 2 (LGA1851) with Hybrid Technology, Turbo Boost Max 3.0, TVB, ABT, integrated NPU, and Hyper BCLK Engine.

Sentence 3: Memory: Four DDR5 DIMM slots, up to 256GB; supports DDR5 non-ECC un-buffered up to 9600+ MT/s OC, CUDIMM, XMP 3.0; native speeds: 5600 MT/s (1DPC1R/1DPC2R), 4800 MT/s (2DPC1R), 4400 MT/s (2DPC2R).

Sentence 4: Graphics, BIOS, Audio, Connectivity: Intel Xe LPG graphics; HDMI 2.1 (4K 120Hz); two Thunderbolt 4 (8K 60Hz/5K 120Hz); BIOS: 256Mb AMI UEFI with GUI; LAN: 5G + 2.5G; Wi-Fi 7 (802.11be); Audio: Realtek ALC4082, ESS SABRE9219 DAC (130dB SNR), WIMA capacitors, Nahimic.

Check for any invented data: All specs are from original. We omitted some like “ASRock Lightning Gaming Ports”, “ASRock Auto Driver Installer”, “BIOS Flashback Button”. We included BIOS Flashback? Not in sentence 4; we omitted BIOS Flashback Button. Could include in connectivity: “BIOS Flashback Button”. Let’s add.

Add to sentence 4: “… BIOS: 256Mb AMI UEFI with GUI; BIOS Flashback Button; LAN: 5G + 2.5G; Wi-Fi 7 (802.11be); Audio: …”

Now check for fluff: “Intel Xe LPG graphics” is technical. “HDMI 2.1 (4K 120Hz)” okay. “two Thunderbolt 4 (8K 60Hz/5K 120Hz)” okay. “BIOS: 256Mb AMI UEFI with GUI” okay. “BIOS Flashback Button” okay. “LAN: 5G + 2.5G” okay. “Wi-Fi 7 (802.11be)” okay. “Audio: Realtek ALC4082, ESS SABRE9219 DAC (130dB SNR), WIMA capacitors, Nahimic” okay.

We used for labels, and we used
maybe not needed if we separate sentences with period and space inside one

. We can just have one

with four sentences separated by spaces. That’s fine.

We need to ensure we only use

, ,
. No other tags. We’ll not use
. So final output:

PCIe/Thunderbolt: Gen5 slots for graphics and M.2; dual-channel DDR5; two Thunderbolt 4 Type-C ports at 40 Gb/s.
Power & Chipset: 20+1+2+1+1 power phases with 110A SPS for VCore; Intel Z890 chipset; supports Intel Core Ultra Series 2 (LGA1851) with Hybrid Technology, Turbo Boost Max 3.0, TVB, ABT, integrated NPU, and Hyper BCLK Engine.
Memory: Four DDR5 DIMM slots, up to 256GB; supports DDR5 non-ECC un-buffered up to 9600+ MT/s OC, CUDIMM, XMP 3.0; native speeds: 5600 MT/s (1DPC1R/1DPC2R), 4800 MT/s (2DPC1R), 4400 MT/s (2DPC2R).
Graphics, BIOS, Audio, Connectivity: Intel Xe LPG graphics; HDMI 2.1 (4K 120Hz); two Thunderbolt 4 (8K 60Hz/5K 120Hz); BIOS:

Specifications

Unique Feature PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 Thunderbolt„ 4 Type-C Ports (40 Gb/s)
Superb Productivity Server-Grade Low-Loss PCB 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor Memory OC Shield Flexible Integrated I/O Shield 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module ASRock Lightning Gaming Ports
EZ Update BIOS Flashback Button ASRock Auto Driver Installer
CPU Supports Intel Core„ Ultra Processors (Series 2) (LGA1851RL-ILM) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration Supports ASRock Hyper BCLK Engine
Chipset Intel Z890
Memory Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 9600+(OC)* Supports Clocked Unbuffered DIMM (CUDIMM) Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0x *1DPC 1R Up to 9600+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt„ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports two 4K displays or one 8K display. Only the CPU’s embedded graphics can be displayed through Thunderbolt„ ports.
Audio 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
LAN 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Wireless LAN 802.11be 2×2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO * Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows 11.
Slots 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. If PCIE2 is occupied, M2_4 will be disabled.
Storage 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD). If PCIE2 is occupied, M2_4 will be disabled.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 2 x Thunderbolt„ 4 Type-C (Rear) 1 x USB 3.2 Gen2x2 Type-C (Front) 4 x USB 3.2 Gen2 Type-A (Rear) 8 x USB 3.2 Gen1 (4 Rear, 4 Front) 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
Connector 3 x Thermistor Cable Headers 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W).
Rear Panel I/O 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x Thunderbolt„ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt„ protocol)* 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** 4 x USB 3.2 Gen1 Ports** 2 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging ** USB32_56 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.
Software and UEFI ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock Dragon 2.5G LAN Software* *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables 2 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets
Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS Microsoft Windows 11 64-bit
Certifications FCC CE ErP/EuP ready (ErP/EuP ready power supply is required) CEC Tier II ready

Key Features

  • Supports Intel Core Ultra Processors (Series 2) LGA1851 with Intel Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost, Adaptive Boost, and integrated NPU for AI acceleration.
  • DDR5 memory: 4 DIMM slots, up to 9600+ MHz (OC) native 5600 MHz, max 256 GB capacity, supports XMP 3.0 and CUDIMM modules.
  • PCIe Gen5 connectivity: 1 × PCIe 5.0 x16 slot plus a Blazing M.2 socket (PCIe Gen5x4, 128 Gb/s) for fastest GPUs and storage.
  • Thunderbolt 4: 2 rear Type‑C ports (40 Gb/s) and a front USB 3.2 Gen2x2 Type‑C header, supporting 8K display output and USB‑PD 3.0 up to 15 W charging.
  • Wi‑Fi 7 & high‑speed LAN: 802.11be 2×2 Wi‑Fi 7 with Bluetooth 5.4, plus 5 GbE and 2.5 GbE LAN ports for ultra‑fast wired networking.
  • Robust power delivery: 20+1+2+1+1 power phases, 110A SPS for VCore, enlarged heatsink armor, and 20K long‑lasting black conductive polymer capacitors.
  • Premium audio: Realtek ALC4082 codec, WIMA audio capacitors, ESS SABRE9219 DAC (130 dB SNR), Nahimic enhancement, and direct‑drive headphone amp supporting up to 600 Ω headsets.
