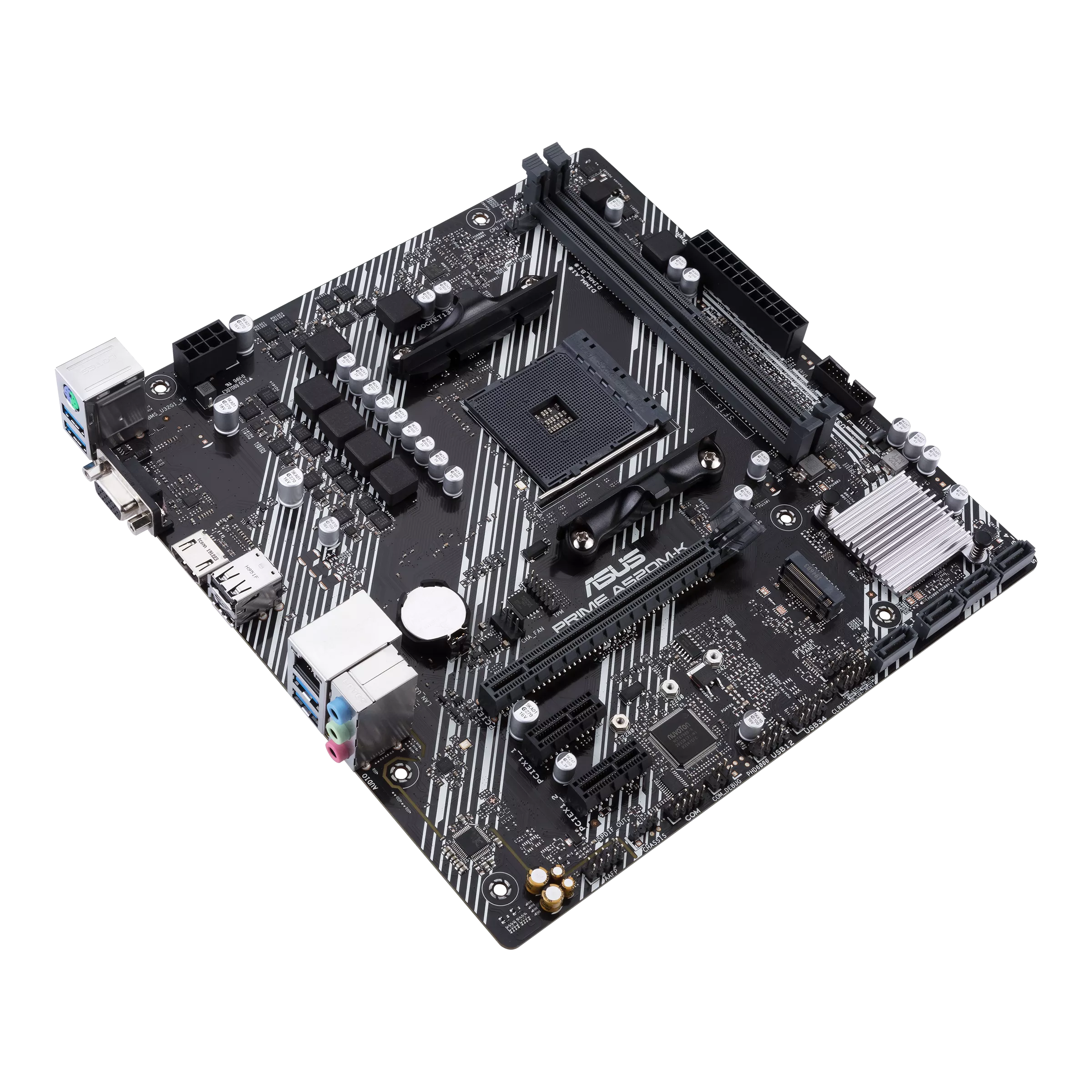

ASUS PRIME A520M-K AM4 DDR4 MOTHERBOARD

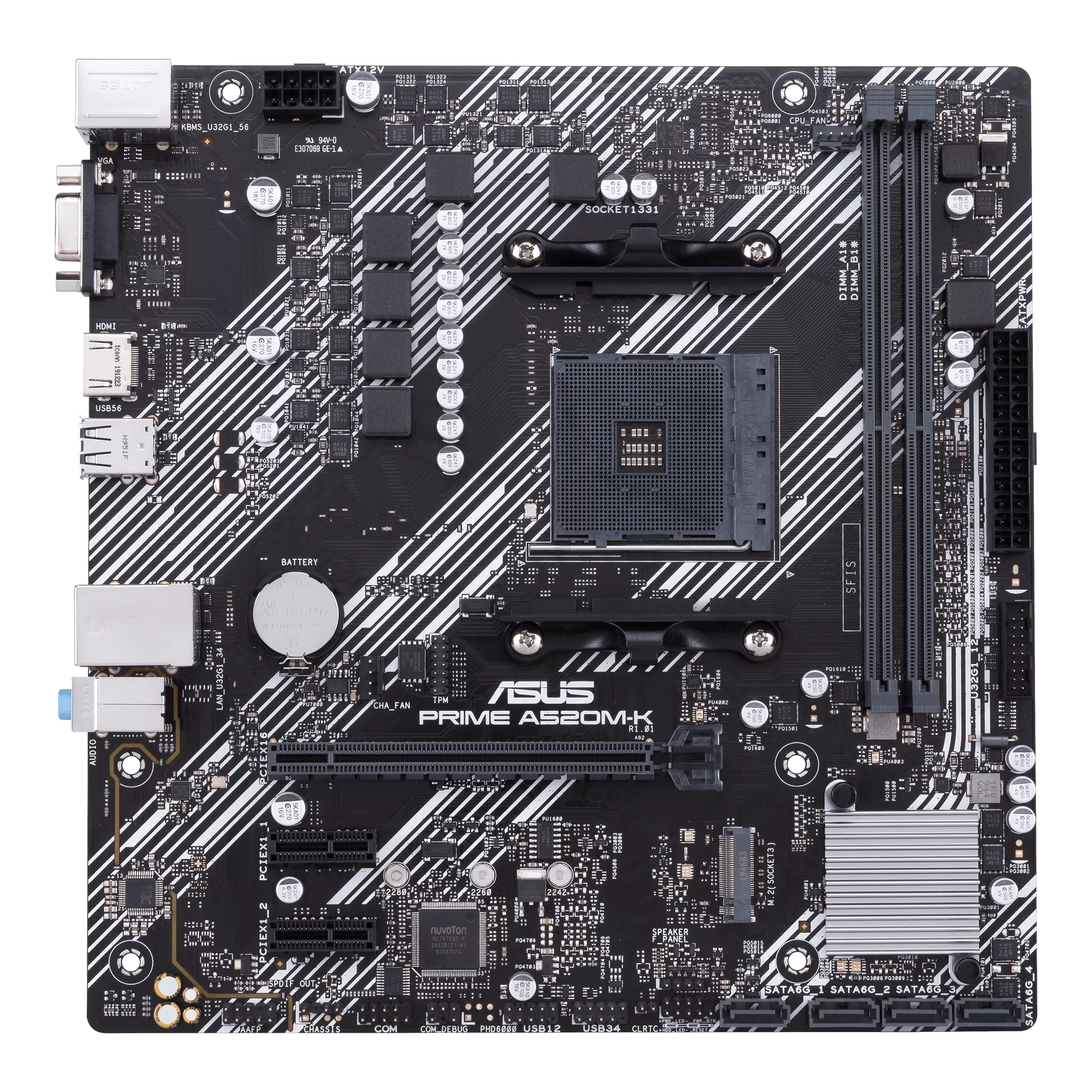

ASUS PRIME A520M-K AM4 DDR4 MOTHERBOARD - Image 2

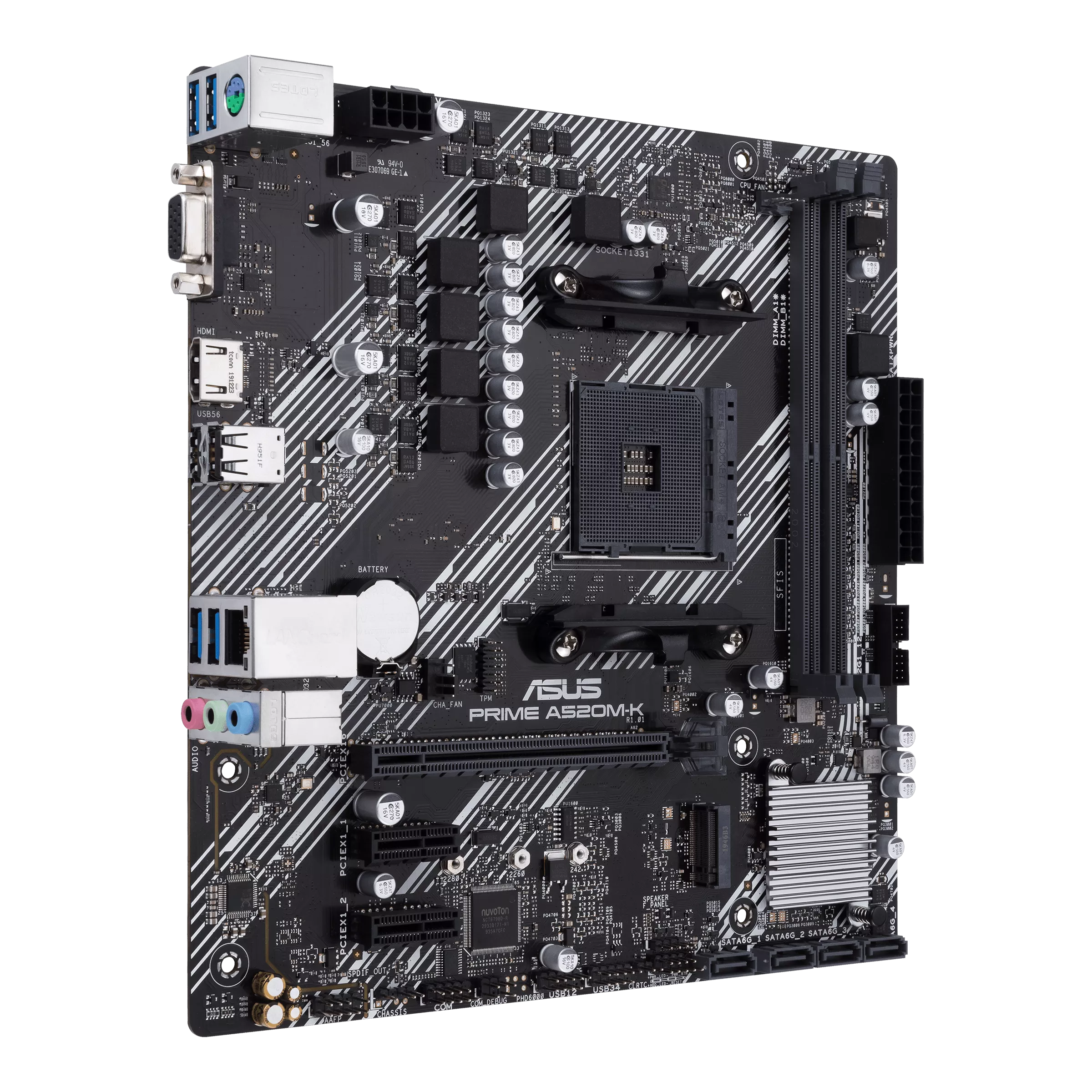

ASUS PRIME A520M-K AM4 DDR4 MOTHERBOARD - Image 3
ASUS PRIME A520M-K AM4 DDR4 MOTHERBOARD - Image 4
ASUS PRIME A520M-K AM4 DDR4 MOTHERBOARD - Image 5

ASUS PRIME A520M-K AM4 DDR4 MOTHERBOARD

Compare

Model: PRIME A520M-K – AMD AM4 socket supporting Ryzen 3000, 4000 G‑Series and 5000 Series CPUs, with AMD A520 chipset.
Memory: 2 DDR4 DIMM slots, up to 64 GB, supporting 2133‑4866 MHz (OC) in dual‑channel.
Expansion & Storage: 1 PCIe 3.0 x16 slot, 2 PCIe 3.0 x1 slots, 1 M.2 (PCIe 3.0 x4/SATA) and 4 SATA 6 Gb/s ports (RAID 0/1/10).
Connectivity: HDMI 2.1 (4K @ 60 Hz), Realtek RTL8111H 1 Gb Ethernet, Realtek ALC887/897 7.1‑channel audio, 4 USB 2.0 and 4 USB 3.2 Gen1 ports rear, plus 2 USB 3.2 Gen1 and 2 USB 2.0 ports front.

Specifications

Model PRIME A520M-K
CPU * Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
Chipset AMD A520
Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.,2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.
Graphic 1 x HDMI 2.1(4K@60HZ)
Expansion Slots AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors , AMD A520 Chipset ,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode)
Storage AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : , Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports , AMD A520 Chipset : ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10
LAN Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard
Audio Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports 4 x USB 2.0 port(s)(4 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),2 x USB 2.0 port(s)(2 x Type-A)
Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert – EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design

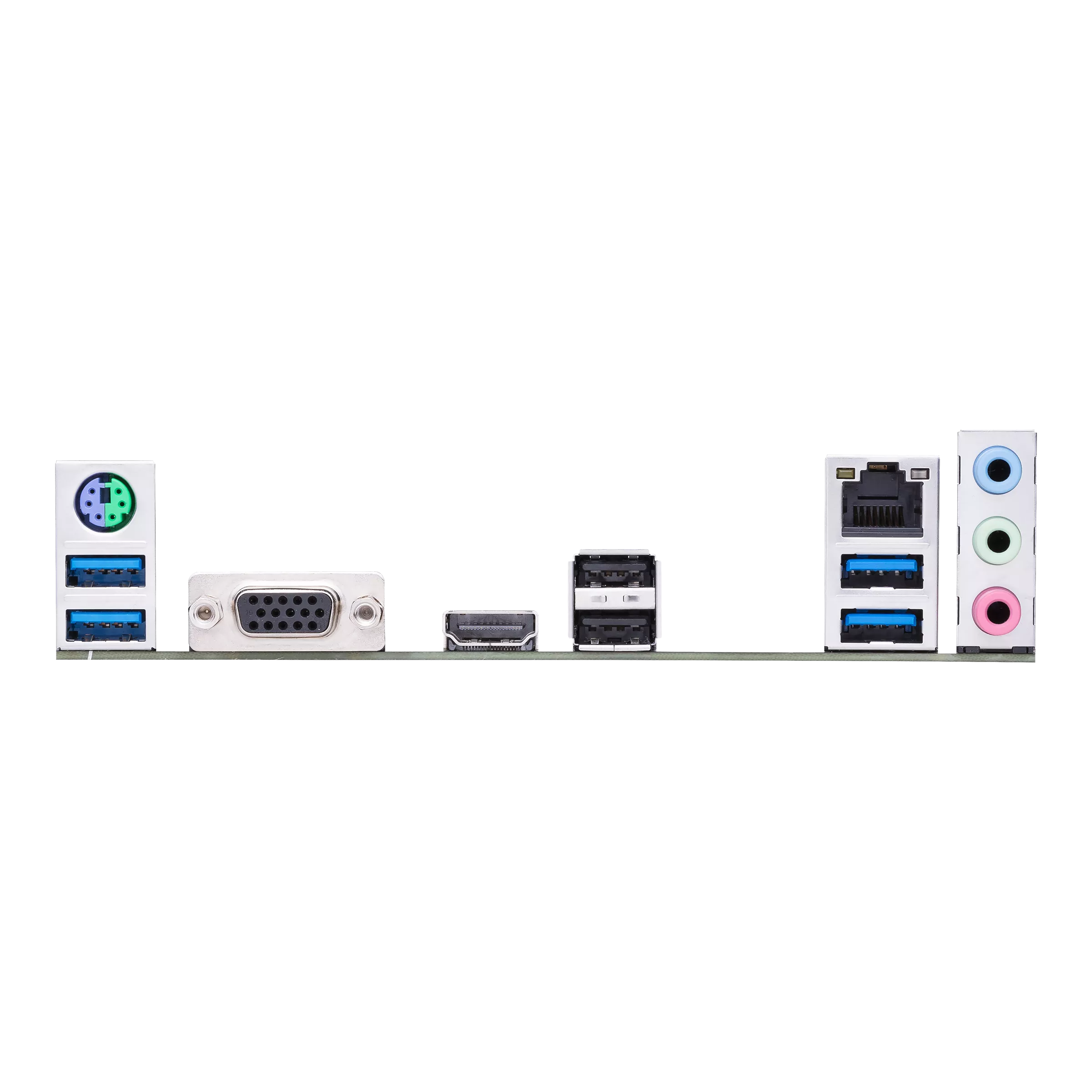

Back I/O Ports 4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s)
Internal I/O Ports 1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x CPU Fan connector(s),1 x Chassis Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x SPI TPM header,4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,1 x Speaker connector
Accessories 1 x ACC Express Activation Key Card,1 x M.2 SSD screw package(s),2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE,WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor mATX Form Factor,8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

Key Features

  • AMD AM4 socket with A520 chipset – supports Ryzen 5000, 5000 G, 4000 G, 3000 and 3000 G series desktop processors.
  • Dual‑channel DDR4 memory – 2 × DIMM slots, up to 64 GB, supporting speeds up to 4866 MHz (OC).
  • Expansion slots – 1 × PCIe 3.0 x16 slot and 2 × PCIe 3.0 x1 slots for graphics cards and add‑in cards.
  • Storage flexibility – 1 × M.2 Socket 3 (PCIe 3.0 x4 / SATA) plus 4 × SATA 6 Gb/s ports with RAID 0/1/10 support.
  • Integrated graphics output – HDMI 2.1 port delivering 4K@60 Hz video.
  • Connectivity suite – Realtek RTL8111H 1 Gb Ethernet, Realtek ALC887 audio codec, 4 × USB 3.2 Gen 1 rear ports and multiple front USB 2.0/3.2 ports.
  • ASUS reliability features – DIGI+ VRM, 5X PROTECTION III, aluminum M.2 heatsink, and comprehensive ASUS Q‑Design components.
SKU: 101165 Category:
Model PRIME A520M-K
CPU * Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
Chipset AMD A520
Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.,2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.
Graphic 1 x HDMI 2.1(4K@60HZ)
Expansion Slots AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors , AMD A520 Chipset ,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode)
Storage AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : , Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports , AMD A520 Chipset : ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10
LAN Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard
Audio Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports 4 x USB 2.0 port(s)(4 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),2 x USB 2.0 port(s)(2 x Type-A)
Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert – EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design
Back I/O Ports 4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s)
Internal I/O Ports 1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x CPU Fan connector(s),1 x Chassis Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x SPI TPM header,4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,1 x Speaker connector
Accessories 1 x ACC Express Activation Key Card,1 x M.2 SSD screw package(s),2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE,WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor mATX Form Factor,8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
