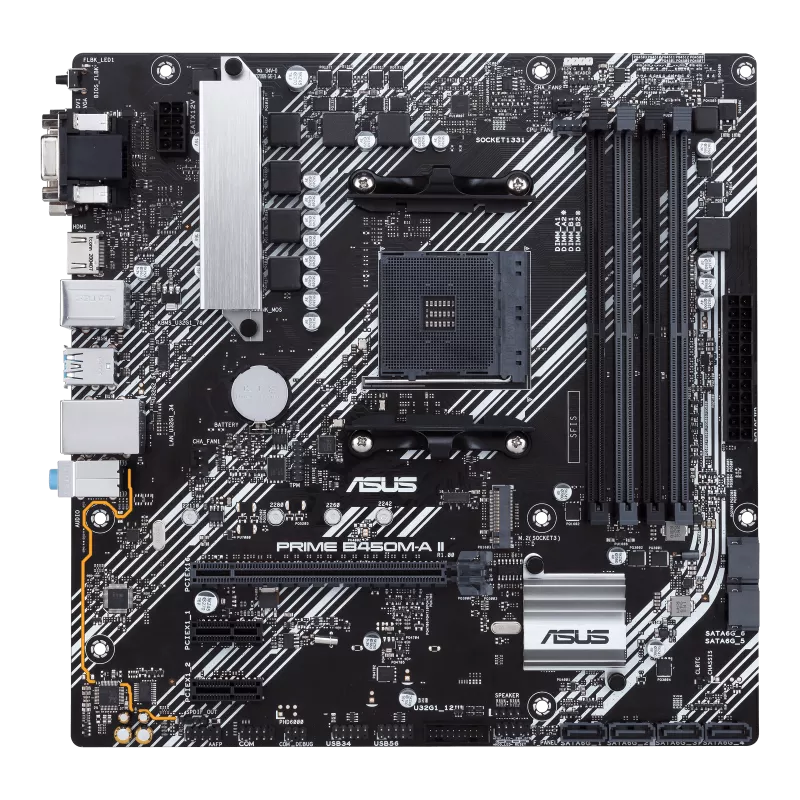

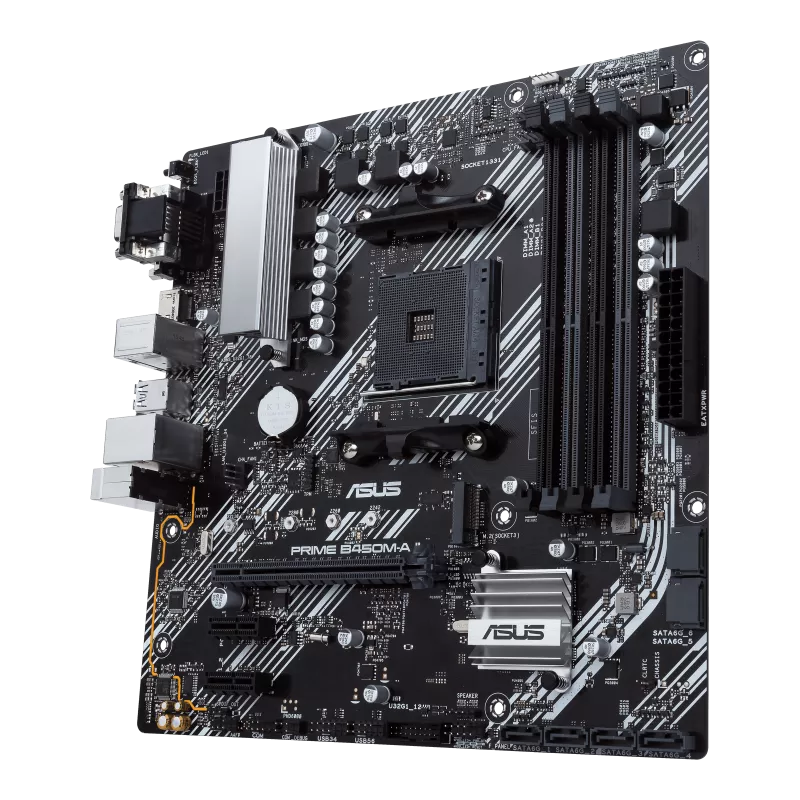

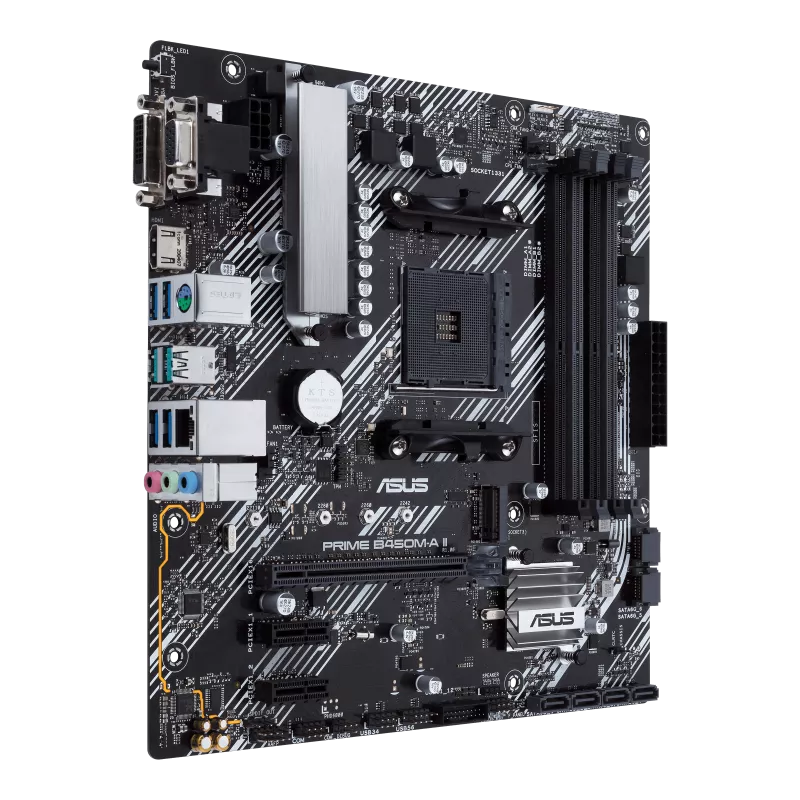

ASUS PRIME B450M-A II AMD AM4 MOTHERBOARD
ASUS PRIME B450M-A II AMD AM4 MOTHERBOARD - Image 2
ASUS PRIME B450M-A II AMD AM4 MOTHERBOARD - Image 3
ASUS PRIME B450M-A II AMD AM4 MOTHERBOARD - Image 4
ASUS PRIME B450M-A II AMD AM4 MOTHERBOARD - Image 5
ASUS PRIME B450M-A II AMD AM4 MOTHERBOARD - Image 6

ASUS PRIME B450M-A II AMD AM4 MOTHERBOARD

Compare

Model: PRIME B450M-A II; CPU Socket: AMD AM4 supporting Ryzen 5000/5000 G/4000 G/3rd/2nd/1st Gen Ryzen and Athlon with Radeon Vega; Chipset: AMD B450.
Memory: 4 x DIMM, up to 128GB DDR4 (up to 4400(O.C)); Graphics: HDMI port, integrated graphics dependent on CPU; Expansion: 1 x PCIe 3.0 x16 (x16), 1 x PCIe 3.0 x16 (x8), 2 x PCIe 2.0 x1.
Storage: 1 x M.2 (SATA/PCIe 3.0 x4), 6 x SATA 6Gb/s, RAID 0/1/10; LAN: Realtek RTL8111H with ASUS LANGuard; Audio: Realtek ALC887/897 7.1‑Codec, jack‑detect, multi‑stream, front‑panel retask, up to 24‑bit/192kHz (8‑channel output needs front‑panel HD audio module); USB: 2 x USB 3.2 Gen 2 (10Gbps) Type‑A, 4 x USB 3.2 Gen 1 Type‑A, 4 x USB 2.0.

Specifications

Model PRIME B450M-A II
CPU * Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors *
Chipset AMD B450
Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *, 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors ,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory frequency supported varies by processor.
Graphic 1 x HDMI port,Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors *,*Graphics specifications may vary between CPU types.
Expansion Slots 3rd/2nd/1st Gen AMD Ryzen Processors ,1 x PCIe 3.0 x16 (x4 mode), AMD B450 chipset ,1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x8 mode), AMD Athlon with Radeon Vega Graphics Processors ,2 x PCIe 2.0 x1
Storage Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports , 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : * 1 , Athlon with Radeon Vega Graphics Processors : * 1 , 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode),1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),2 x SATA 6Gb/s port(s),, AMD B450 chipset : ,Support Raid 0, 1, 10,4 x SATA 6Gb/s port(s),
LAN ASUS LANGuard,Realtek RTL8111H
Audio – Premium audio capacitors,Realtek ALC887/8977.1-Channel High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 1 port(s),4 x USB 2.0 port(s)
Software Features ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync AI Suite 3 – Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ PC Cleaner – EZ update – System Information ASUS CPU-Z AI Charger ASUS EZ Installer DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED AURA Sync – AURA RGB header ASUS Lighting Control

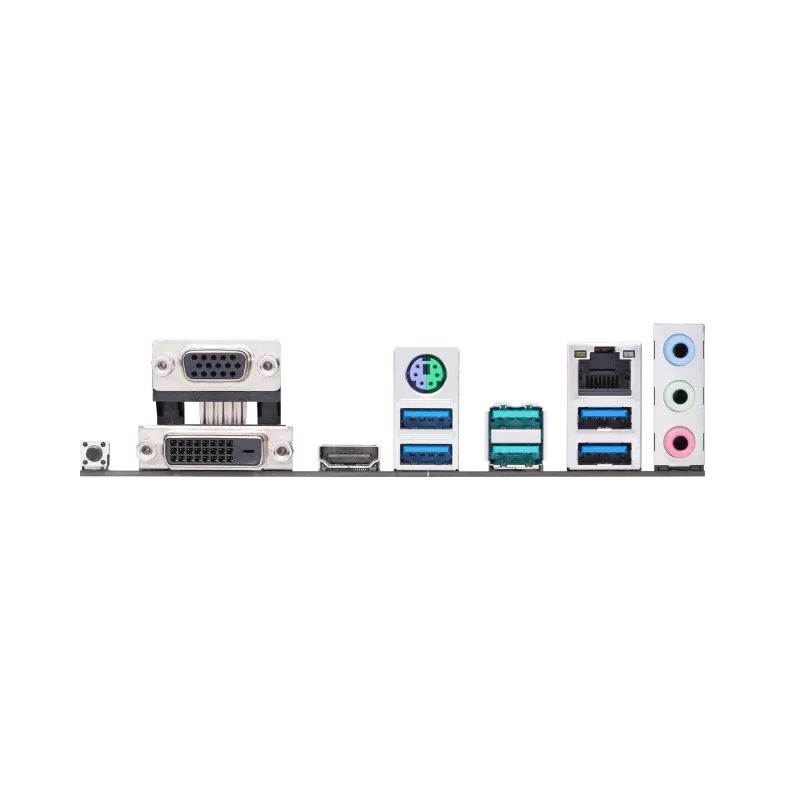

Back I/O Ports 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A),1 x BIOS FlashBack Button(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),3 x Audio jack(s)
Internal I/O Ports 1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin),2 x Chassis Fan connector(s) (2 x 4-pin),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x RGB Header,1 x CPU Fan connector(s) (1 x 4-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x COM port header,1 x Speaker connector

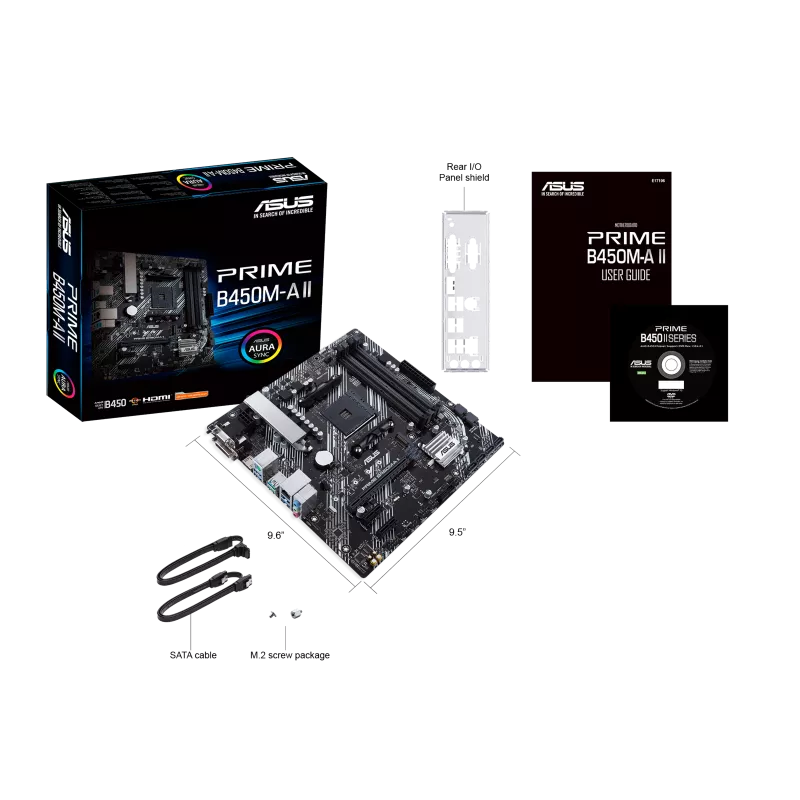

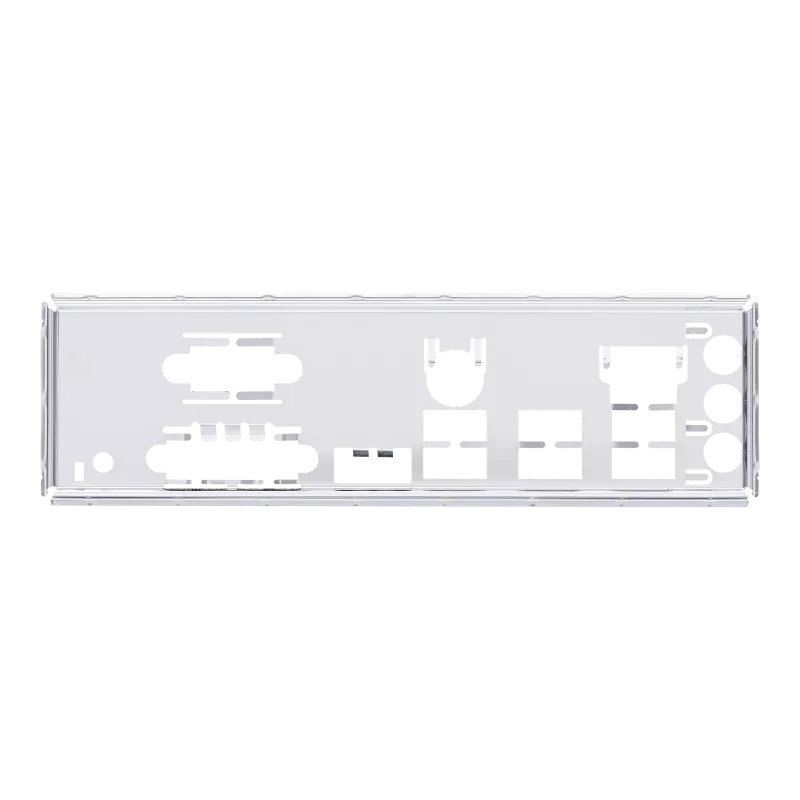

Accessories 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Operating System Windows 7 64-bit * 2 ,Windows 10 64-bit
Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ),mATX Form Factor
Note 1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed. 2*To support Windows 7 64-bit, please install an AMD Ryzen 2nd Generation or Ryzen 1st Generation Processor.

Key Features

  • AMD AM4 Socket – Supports AMD Ryzen 5000/5000 G/4000 G series, 3rd/2nd/1st Gen Ryzen and Athlon with Radeon Vega Graphics.
  • Memory – 4 x DDR4 DIMM slots, up to 128GB, speeds up to 4400(O.C.) MHz (Dual Channel).
  • Expansion Slots – 1 x PCIe 3.0 x16 (configurable x16/x8/x4) + 2 x PCIe 2.0 x1 slots.
  • Storage – 1 x M.2 Socket 3 (SATA & PCIe 3.0 x4) + 6 x SATA 6Gb/s ports (RAID 0,1,10 support).
  • Networking – Realtek RTL8111H Gigabit LAN with ASUS LANGuard protection.
  • Audio – Realtek ALC887/897 7.1‑channel HD Audio, premium capacitors, audio shielding, up to 24‑bit/192kHz playback.
  • USB & Connectivity – 2 x USB 3.2 Gen 2 Type‑A (10Gbps), 4 x USB 3.2 Gen 1 Type‑A, 4 x USB 2.0 ports; plus BIOS FlashBack button and UEFI AMI BIOS.
SKU: 101168 Category:
Model PRIME B450M-A II
CPU * Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors *
Chipset AMD B450
Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *, 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors ,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory frequency supported varies by processor.
Graphic 1 x HDMI port,Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors *,*Graphics specifications may vary between CPU types.
Expansion Slots 3rd/2nd/1st Gen AMD Ryzen Processors ,1 x PCIe 3.0 x16 (x4 mode), AMD B450 chipset ,1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x8 mode), AMD Athlon with Radeon Vega Graphics Processors ,2 x PCIe 2.0 x1
Storage Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports , 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : * 1 , Athlon with Radeon Vega Graphics Processors : * 1 , 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode),1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),2 x SATA 6Gb/s port(s),, AMD B450 chipset : ,Support Raid 0, 1, 10,4 x SATA 6Gb/s port(s),
LAN ASUS LANGuard,Realtek RTL8111H
Audio – Premium audio capacitors,Realtek ALC887/8977.1-Channel High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 1 port(s),4 x USB 2.0 port(s)
Software Features ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync AI Suite 3 – Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ PC Cleaner – EZ update – System Information ASUS CPU-Z AI Charger ASUS EZ Installer DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED AURA Sync – AURA RGB header ASUS Lighting Control
Back I/O Ports 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A),1 x BIOS FlashBack Button(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),3 x Audio jack(s)
Internal I/O Ports 1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin),2 x Chassis Fan connector(s) (2 x 4-pin),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x RGB Header,1 x CPU Fan connector(s) (1 x 4-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x COM port header,1 x Speaker connector
Accessories 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Operating System Windows 7 64-bit * 2 ,Windows 10 64-bit
Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ),mATX Form Factor
Note 1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed. 2*To support Windows 7 64-bit, please install an AMD Ryzen 2nd Generation or Ryzen 1st Generation Processor.
