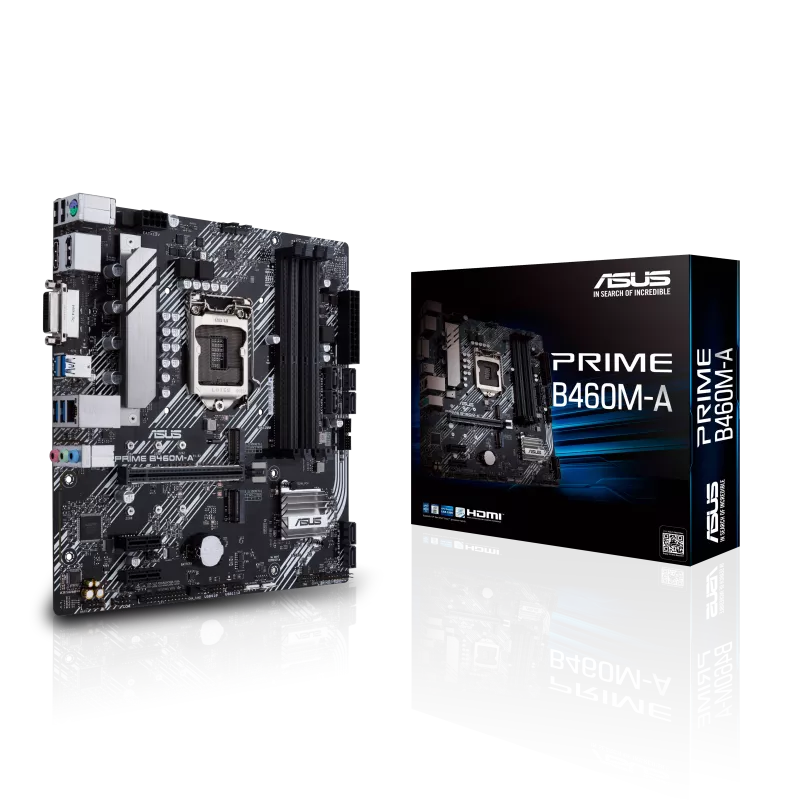

ASUS PRIME B460M-A INTEL LGA1200 MOTHERBOARD
ASUS PRIME B460M-A INTEL LGA1200 MOTHERBOARD - Image 2

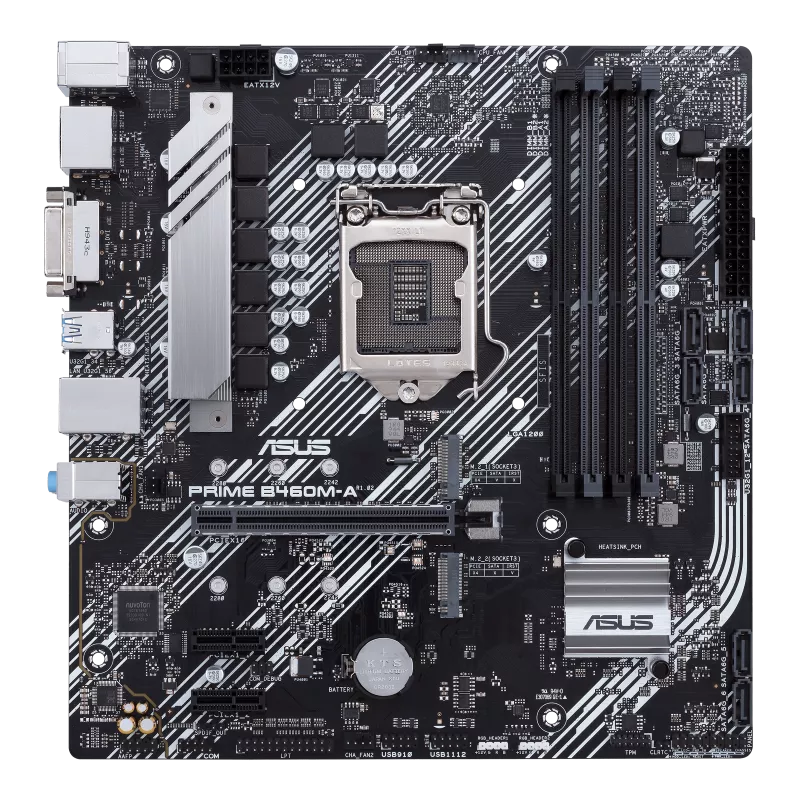

ASUS PRIME B460M-A INTEL LGA1200 MOTHERBOARD - Image 3

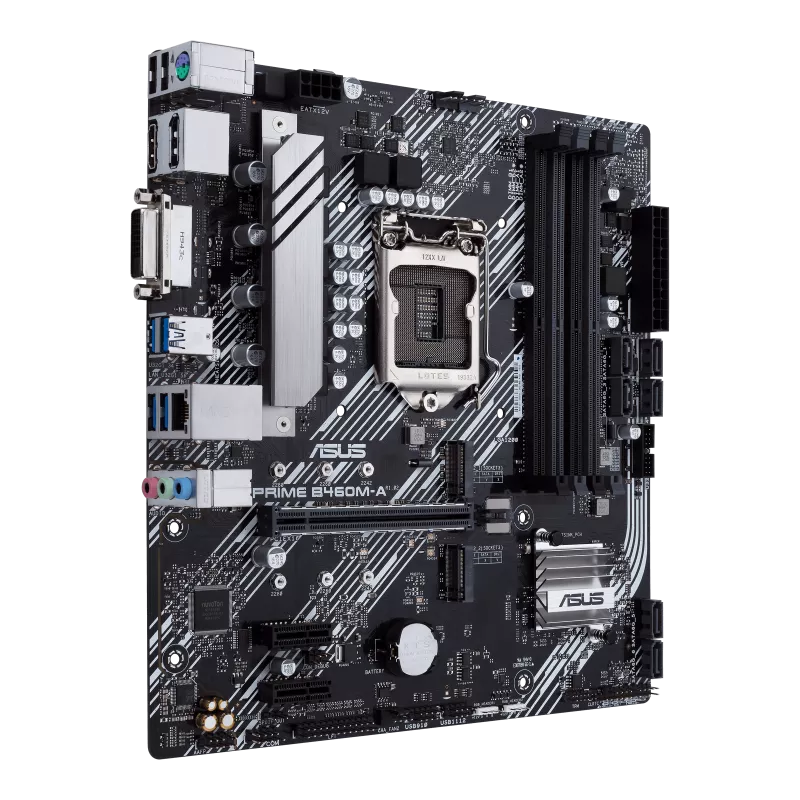

ASUS PRIME B460M-A INTEL LGA1200 MOTHERBOARD - Image 4

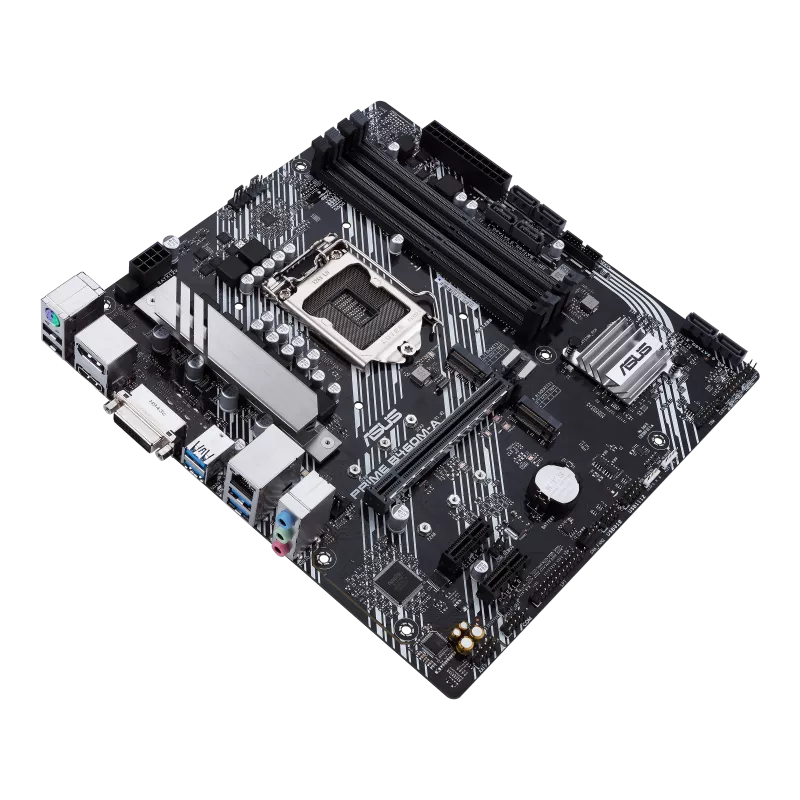

ASUS PRIME B460M-A INTEL LGA1200 MOTHERBOARD - Image 5

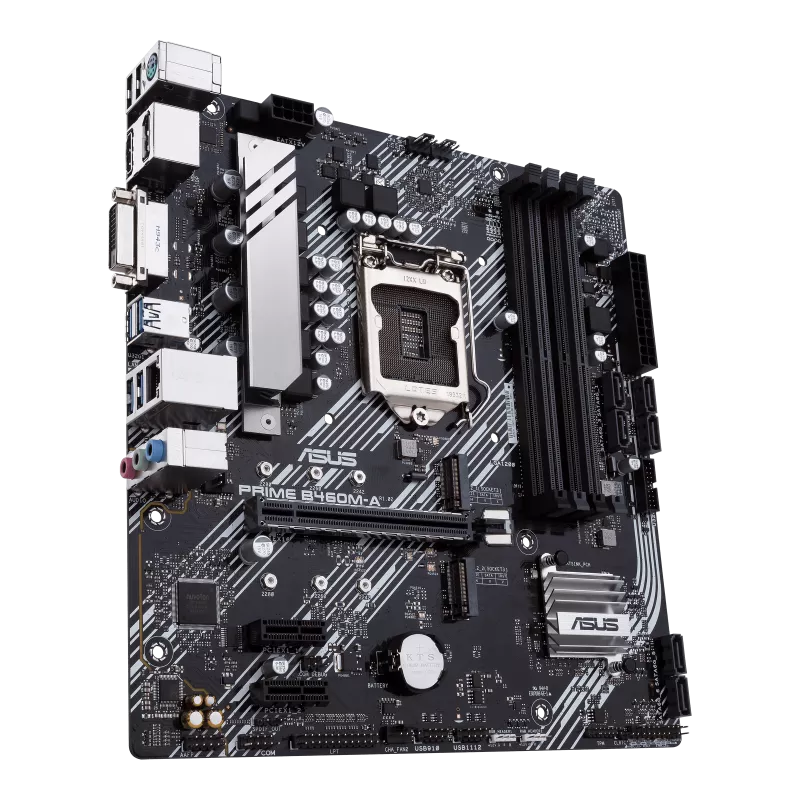

ASUS PRIME B460M-A INTEL LGA1200 MOTHERBOARD - Image 6
ASUS PRIME B460M-A INTEL LGA1200 MOTHERBOARD - Image 7

ASUS PRIME B460M-A INTEL LGA1200 MOTHERBOARD

Compare

Model: ASUS PRIME B460M-A – Intel B460 chipset, LGA1200 socket for 10th Gen Intel Core, Pentium Gold and Celeron processors.

Memory: 4 x DDR4 DIMM, up to 128GB, 2933/2800/2666/2400/2133 MHz, supports Intel XMP; Graphics: Integrated Intel UHD Graphics, HDMI and DisplayPort 1.4 (up to 4096×2304@60Hz).

Expansion: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1; Storage: 2 x M.2 (PCIe 3.0 x4 & SATA), 6 x SATA 6Gb/s, RAID 0/1/5/10; LAN: Realtek RTL8111H Gigabit; Audio: Realtek ALC887 7.1‑channel HD Audio with audio shielding and premium capacitors; USB: 6 x USB 3.2 Gen 1 (5Gbps) Type‑A, 4 x USB 2.0 Type‑A.

Specifications

Model PRIME B460M-A
CPU * Refer to www.asus.com for CPU support list.,Intel Socket 1200for 10 th Gen Intel Core , Pentium Gold and Celeron Processors *,Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**,**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.,Supports Intel 14nm CPU
Chipset Intel B460
Memory * 10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,OptiMem,Supports Intel Extreme Memory Profile (XMP)
Graphic **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.,1 x HDMI port,1 x DisplayPort 1.4,*Graphics specifications may vary between CPU types.,Integrated Graphics Processor- Intel UHD Graphics support
Expansion Slots Intel B460 Chipset , Intel 10th Gen Processors ,1 x PCIe 3.0/2.0 x16 (x16 mode),2 x PCIe 3.0/2.0 x1
Storage Intel B460 Chipset : , Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports ,1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode),6 x SATA 6Gb/s port(s),Support Raid 0, 1, 5, 10,Intel Rapid Storage Technology supports,Intel Optane Memory Ready
LAN Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Audio – Supports : Jack-detection, up to 24-Bit/192kHz playback,Realtek ALC8877.1-Channel High Definition Audio CODEC *,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s),4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),2 x USB 2.0 port(s)(2 x Type-A),4 x USB 2.0 port(s)
Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS Safeslot – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM ASUS Sync – Standard RGB header(s)

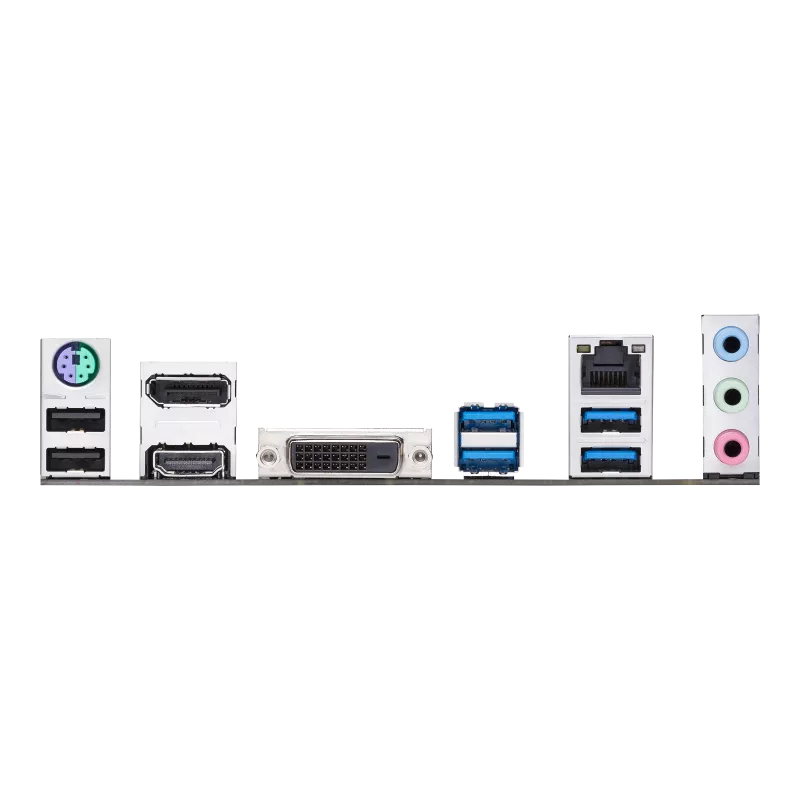

Back I/O Ports 4 x USB 3.2 Gen 1 Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s)
Internal I/O Ports 1 x COM port header,1 x AAFP connector,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),2 x Chassis Fan connector(s) (2 x 4-pin),2 x M.2 Socket 3,1 x CPU Fan connector(s) (1 x 4-pin),1 x CPU OPT Fan connector(s) (1 x 4-pin),1 x AAFP connector,2 x Aura RGB Strip Header(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x LPT header,6 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x System panel(s) (Chassis intrusion header is inbuilt),1 x Clear CMOS jumper(s),1 x COM port header

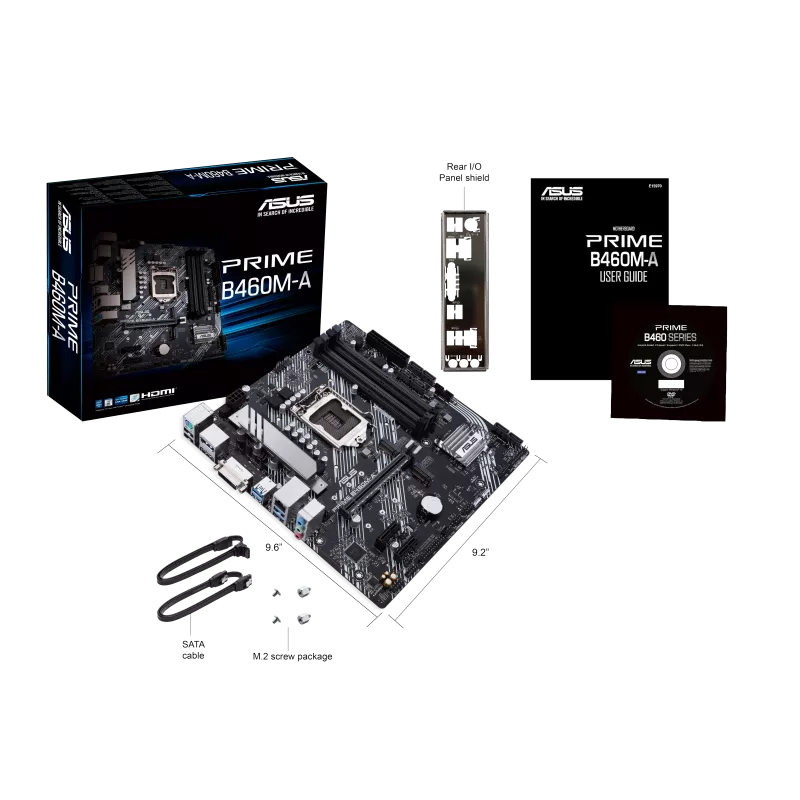

Accessories 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x M.2 Screw Package,1 x Supporting DVD,2 x SATA 6Gb/s cable(s)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE,WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm ),mATX Form Factor
Note *M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. *NVME RAID is supported with M.2_2 and PCIe X16.PCIe x16´s device needs to use Intel brand.

Key Features

  • CPU Support: Intel Socket 1200 for 10th Gen Core, Pentium Gold and Celeron processors; supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 (CPU‑dependent).
  • Memory: 4 x DDR4 DIMM slots, up to 128GB, DDR4 2933/2800/2666/2400/2133 MHz (non‑ECC, un‑buffered) with Intel XMP and OptiMem.
  • Expansion Slots: 1 x PCIe 3.0/2.0 x16 (x16 mode) + 2 x PCIe 3.0/2.0 x1 slots.
  • Storage: Dual M.2 slots (PCIe 3.0 x4 & SATA/PCIe) + 6 x SATA 6Gb/s ports; RAID 0/1/5/10 support; Intel Optane Memory Ready.
  • Networking: Realtek RTL8111H Gigabit LAN with LANGuard protection.
  • Audio: Realtek ALC887 7.1‑channel HD Audio, 24‑bit/192kHz playback, premium Japanese capacitors, audio shielding.
  • USB & I/O: 6 x USB 3.2 Gen 1 (5Gbps) Type‑A ports, 6 x USB 2.0 ports, PS/2 keyboard/mouse combo, HDMI, DisplayPort, DVI‑D.
  • ASUS 5X Protection III: Hardware‑level safeguards including overvoltage, overcurrent, DRAM overcurrent, stainless‑steel back I/O, and SafeSlot for PCIe.
SKU: 101259 Category:
Model PRIME B460M-A
CPU * Refer to www.asus.com for CPU support list.,Intel Socket 1200for 10 th Gen Intel Core , Pentium Gold and Celeron Processors *,Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**,**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.,Supports Intel 14nm CPU
Chipset Intel B460
Memory * 10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,OptiMem,Supports Intel Extreme Memory Profile (XMP)
Graphic **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.,1 x HDMI port,1 x DisplayPort 1.4,*Graphics specifications may vary between CPU types.,Integrated Graphics Processor- Intel UHD Graphics support
Expansion Slots Intel B460 Chipset , Intel 10th Gen Processors ,1 x PCIe 3.0/2.0 x16 (x16 mode),2 x PCIe 3.0/2.0 x1
Storage Intel B460 Chipset : , Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports ,1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode),6 x SATA 6Gb/s port(s),Support Raid 0, 1, 5, 10,Intel Rapid Storage Technology supports,Intel Optane Memory Ready
LAN Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Audio – Supports : Jack-detection, up to 24-Bit/192kHz playback,Realtek ALC8877.1-Channel High Definition Audio CODEC *,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s),4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),2 x USB 2.0 port(s)(2 x Type-A),4 x USB 2.0 port(s)
Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS Safeslot – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM ASUS Sync – Standard RGB header(s)
Back I/O Ports 4 x USB 3.2 Gen 1 Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s)
Internal I/O Ports 1 x COM port header,1 x AAFP connector,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),2 x Chassis Fan connector(s) (2 x 4-pin),2 x M.2 Socket 3,1 x CPU Fan connector(s) (1 x 4-pin),1 x CPU OPT Fan connector(s) (1 x 4-pin),1 x AAFP connector,2 x Aura RGB Strip Header(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x LPT header,6 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x System panel(s) (Chassis intrusion header is inbuilt),1 x Clear CMOS jumper(s),1 x COM port header
Accessories 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x M.2 Screw Package,1 x Supporting DVD,2 x SATA 6Gb/s cable(s)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE,WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm ),mATX Form Factor
Note *M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. *NVME RAID is supported with M.2_2 and PCIe X16.PCIe x16´s device needs to use Intel brand.
