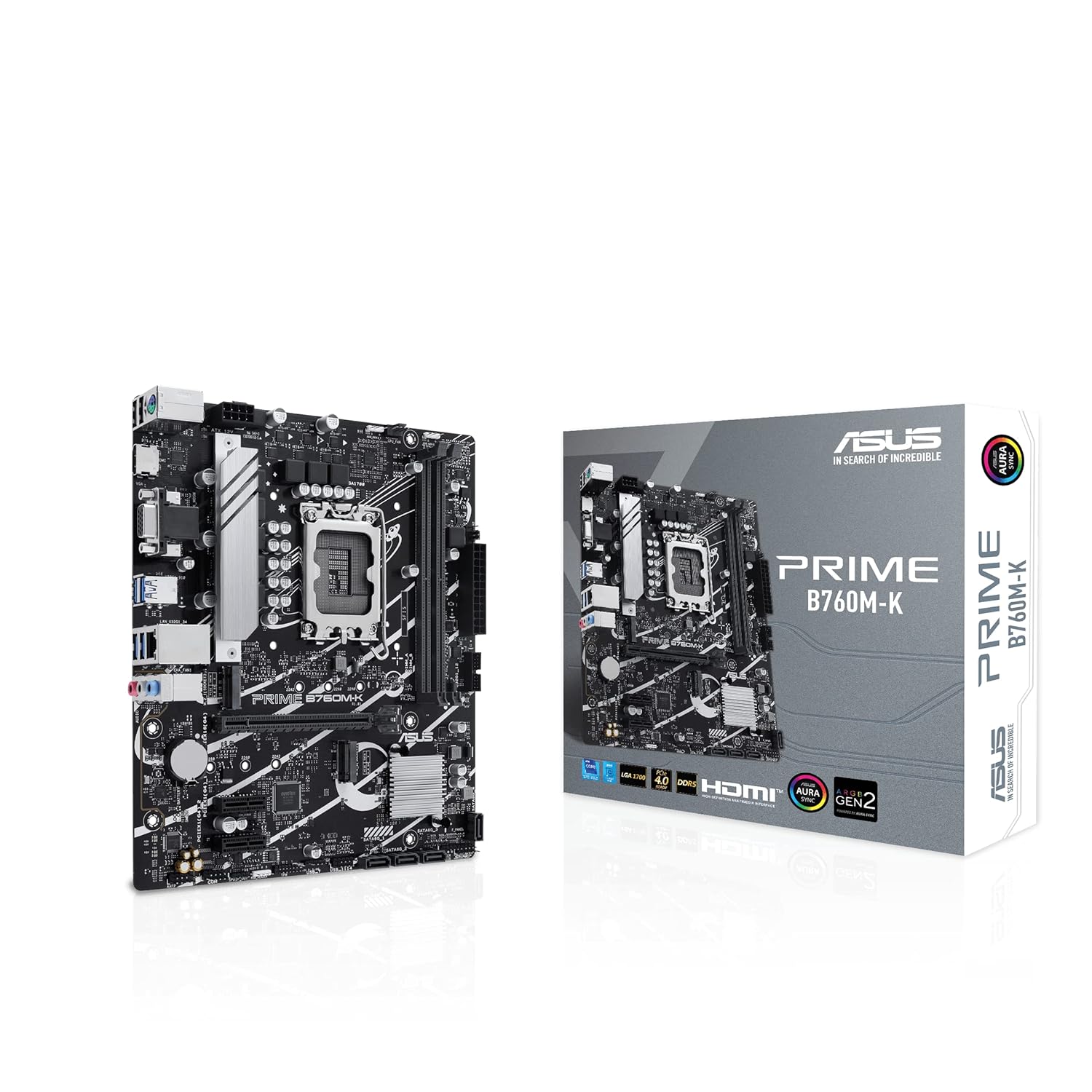

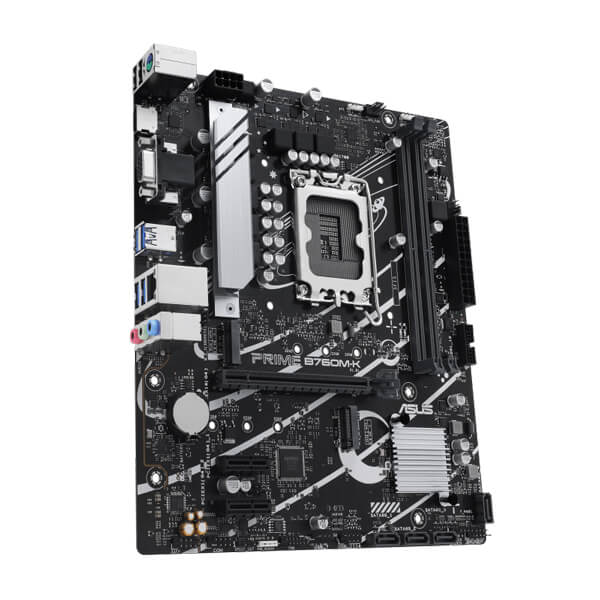

ASUS PRIME B760M-K, AN INTEL B760 LGA 1700 MATX MOTHERBOARD

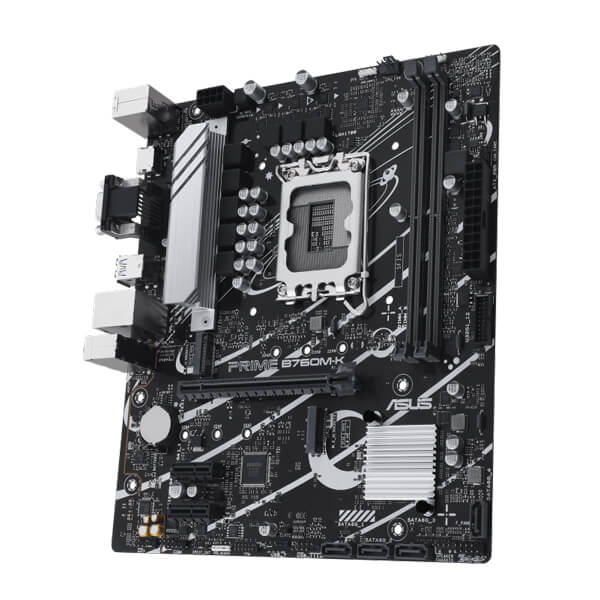

ASUS PRIME B760M-K, AN INTEL B760 LGA 1700 MATX MOTHERBOARD - Image 2

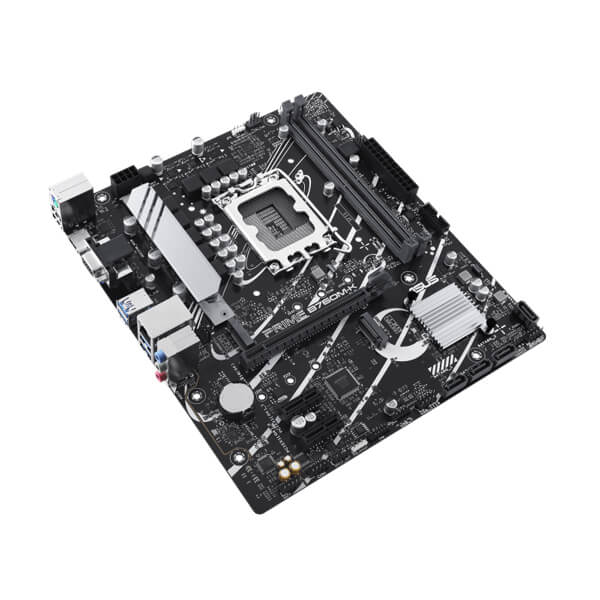

ASUS PRIME B760M-K, AN INTEL B760 LGA 1700 MATX MOTHERBOARD - Image 3

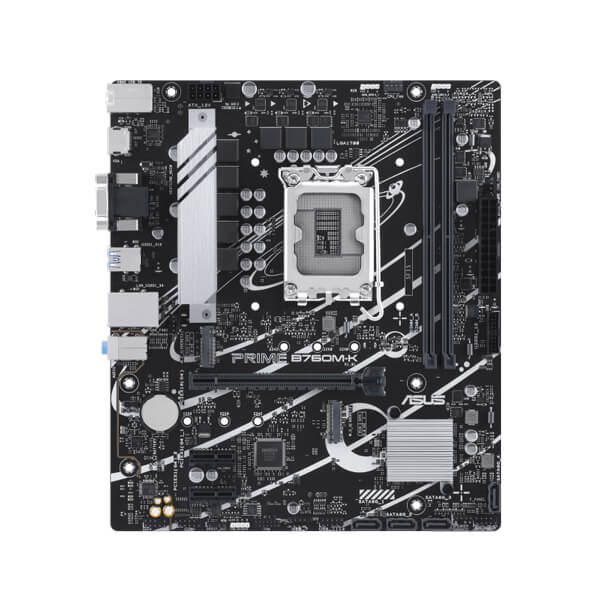

ASUS PRIME B760M-K, AN INTEL B760 LGA 1700 MATX MOTHERBOARD - Image 4
ASUS PRIME B760M-K, AN INTEL B760 LGA 1700 MATX MOTHERBOARD - Image 5
ASUS PRIME B760M-K, AN INTEL B760 LGA 1700 MATX MOTHERBOARD - Image 6

ASUS PRIME B760M-K, AN INTEL B760 LGA 1700 MATX MOTHERBOARD

Compare

Platform: INTEL
Socket: LGA1700
CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset: B760
Memory Speed: up to 8000 MT/s
Max Memory Support: 96 GB
Supported Memory Type: DDR5
Channel Supported: Dual Channel
Memory Feature: Supports Intel Extreme Memory Profile (XMP).
Graphics Port: 1 x VGA port, 1 x HDMI port

Specifications

Platform INTEL
Socket LGA1700
CPU Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset B760
Memory Speed up to 8000
Max Memory Support 96 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit brand website. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics Port 1 x VGA port, 1 x HDMI ports
Expansion Slots Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connector Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Form Factor Micro-ATX
Warranty 3 Years

Key Features

  • Supports 12th, 13th, and 14th Gen Intel Core processors (LGA1700 socket)
  • Intel B760 chipset with DDR5 memory up to 8000 MT/s, max 96 GB (dual‑channel)
  • Expansion: 1 × PCIe 4.0 x16 slot + 2 × PCIe 4.0 x1 slots
  • Storage: 2 × M.2 slots (Key M) + 4 × SATA 6Gb/s ports
  • Connectivity: Realtek 2.5Gb Ethernet, HDMI & VGA ports, multiple USB 3.2 Gen 1 (5G) and USB 2.0 ports
  • Cooling & features: CPU fan header, 2 chassis fan headers, Addressable Gen 2 & Aura RGB headers
  • Compact Micro‑ATX form factor with a 3‑year warranty
SKU: 1094169 Category:
Platform INTEL
Socket LGA1700
CPU Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset B760
Memory Speed up to 8000
Max Memory Support 96 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit brand website. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics Port 1 x VGA port, 1 x HDMI ports
Expansion Slots Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connector Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Form Factor Micro-ATX
Warranty 3 Years
