Specifications

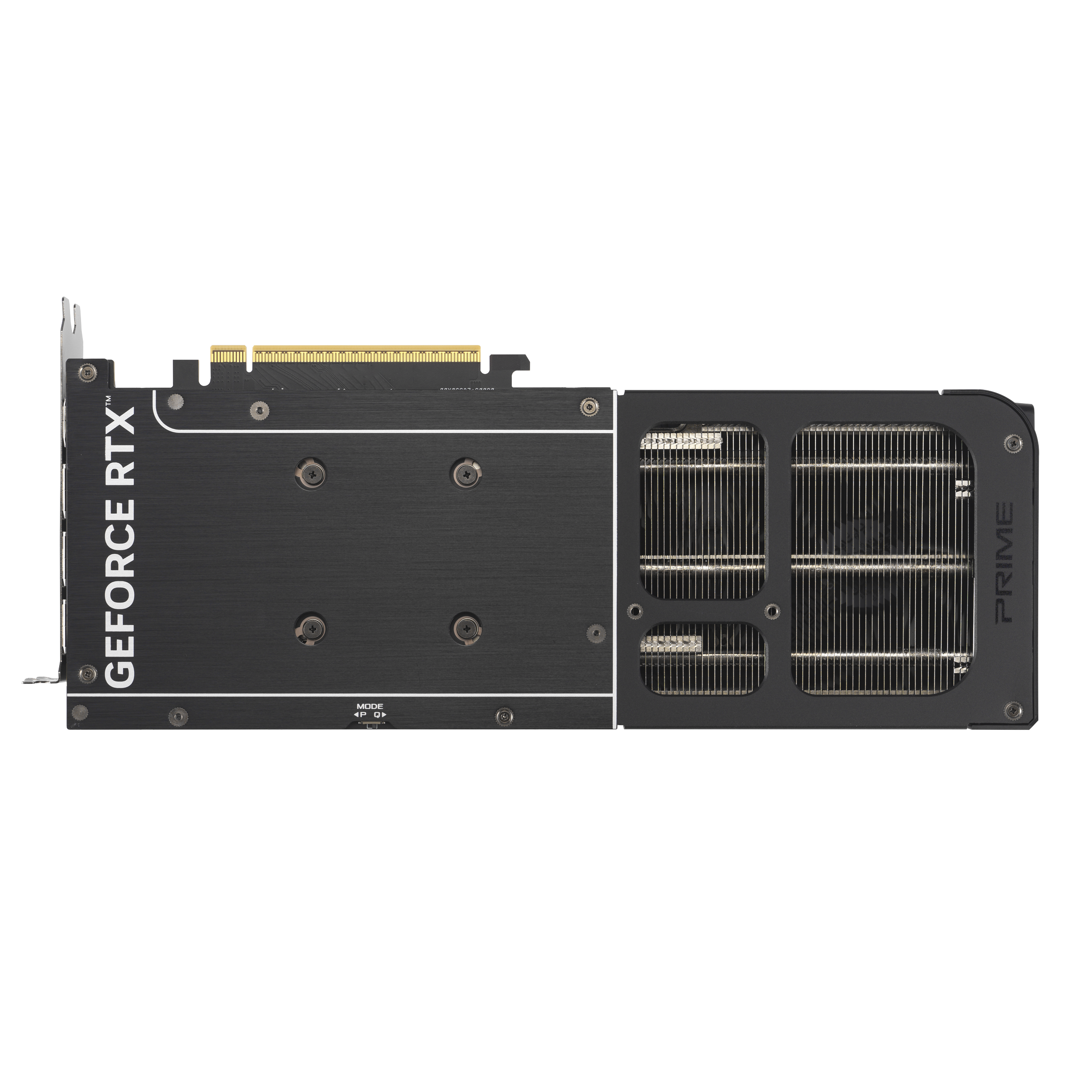

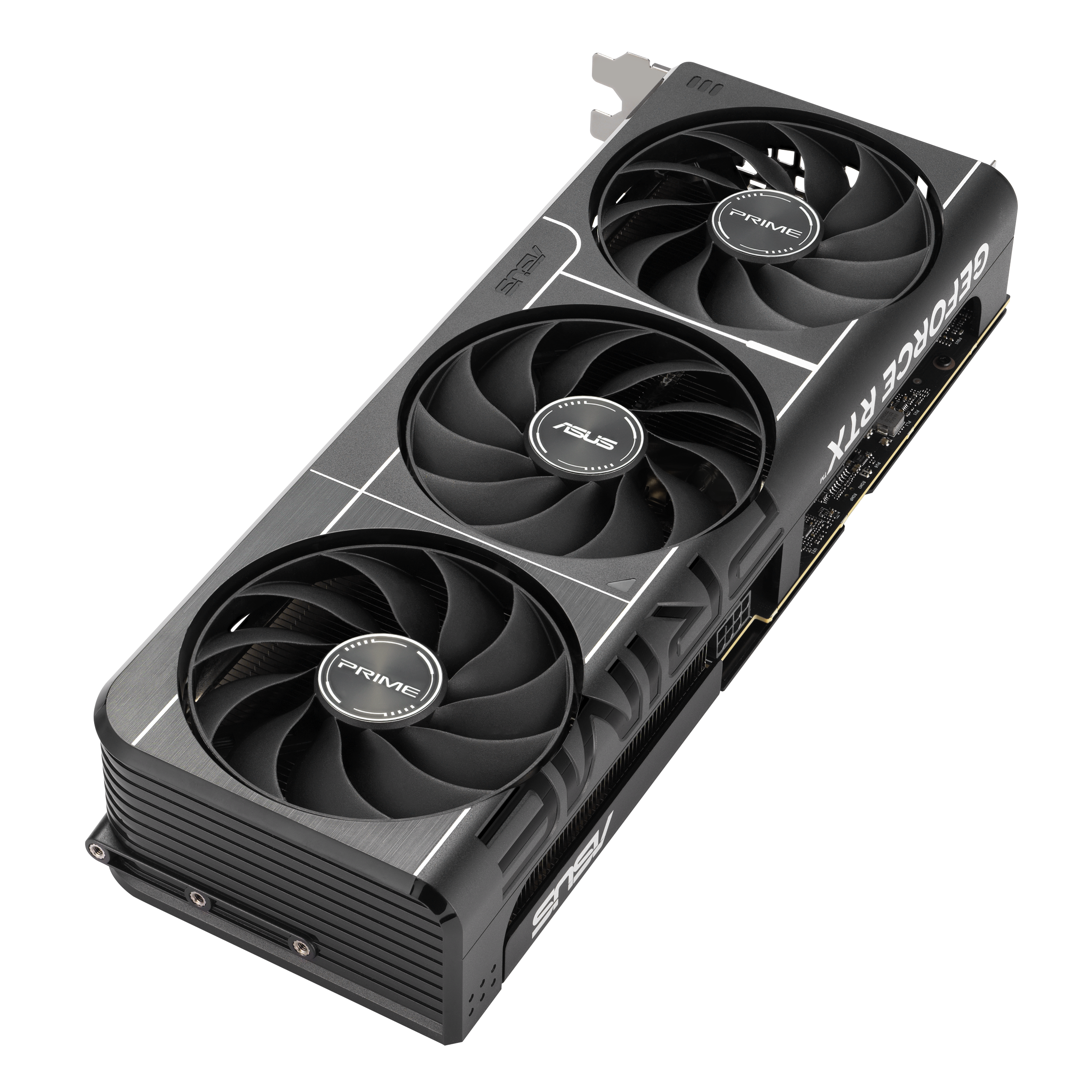

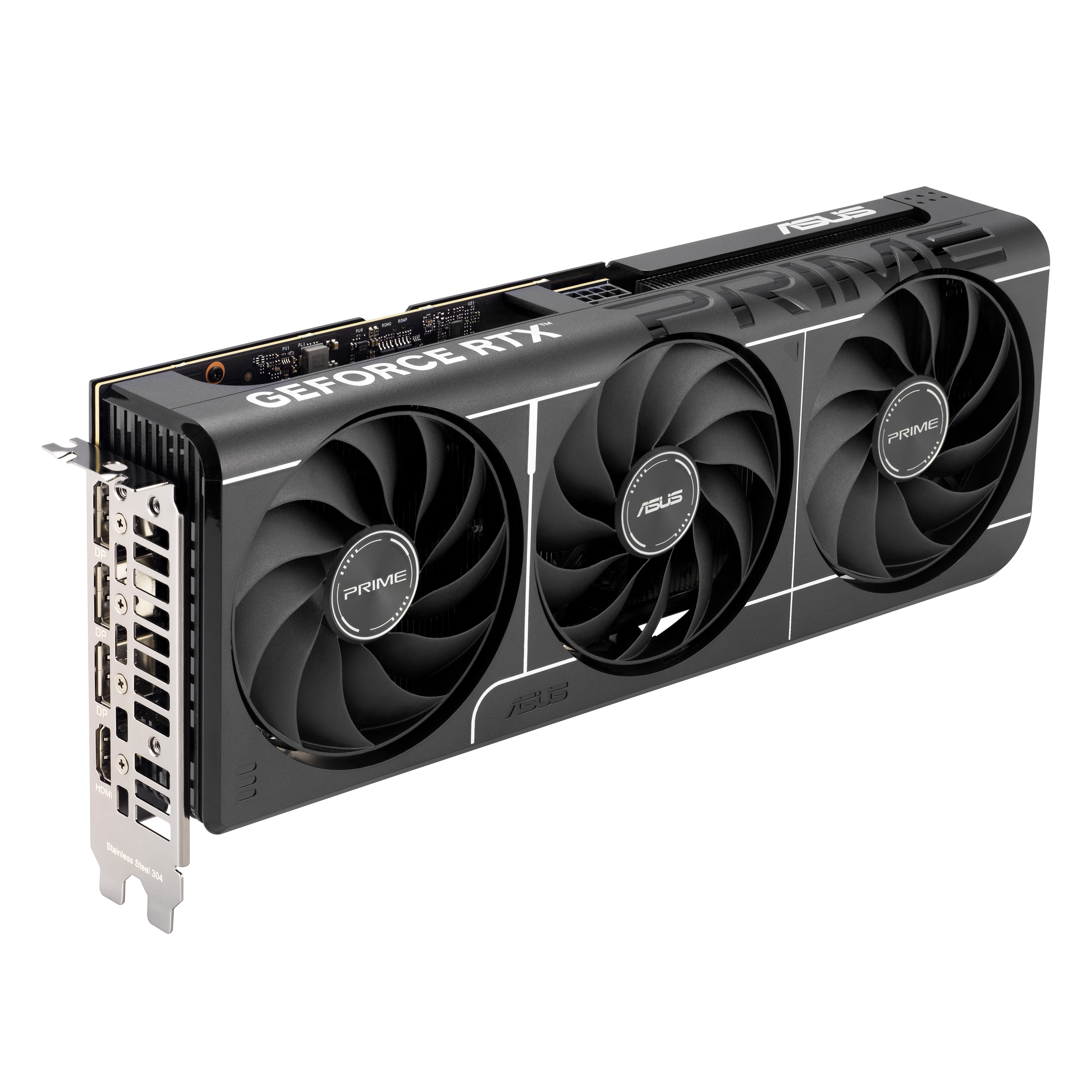

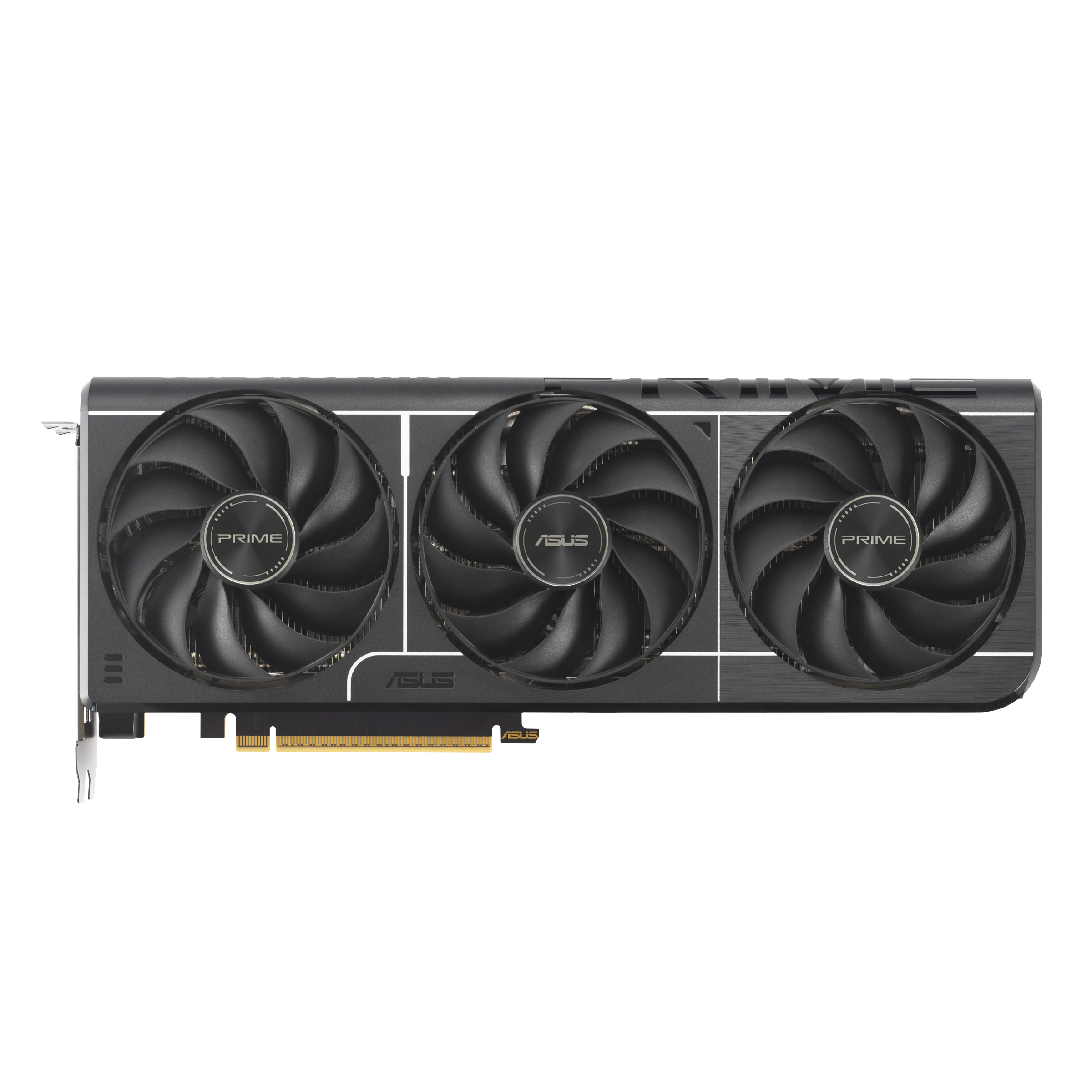

| Model name | PRIME-RTX5060TI-8G |
| Graphics Engine | NVIDIA® GeForce RTX™ 5060 Ti |
| CUDA cores | 4608 |
| OpenGL® | OpenGL® 4.6 |
| Engine Clock | OC mode: 2602MHz Default mode: 2572MHz (Boost Clock) |
| Memory Interface | 128 bit |
| Video Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| AI Performance | 758 |
| Power Connector | 1 x 8-pin |
| I/O | 1 x Native HDMI 2.1b 3 x Native DisplayPort 2.1b |
| HDCP Compliant | HDCP 2.3 |
| Digital Max. Resolution | 7680 x 4320 |
| Maximum Display Support | 4 |
| NVLink/ Crossfire Support | N/A |
| Recommended PSU | 550W |
| Bus Standard | PCIE 5.0 |
| Package Contents | 1 x Speedsetup Manual 1 x ASUS Velcro Hook & Loop 1 x Thank You Card |
| Software Bundled | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Slot | 2.5 slot |
| Card Size (mm/inch) | 304 x 120 x 50 mm |
| Color Box (mm) | 405 x 233 x 88.5 mm |
| Single Card (KG) | 0.898kg |
| Product Weight (with packing) (KG) | 1.485kg |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. |
| Regulation | ■S-AT2-001 GreenASUS Hazardous Substances Free(HSF) Technical Standard(Global RoHs,China RoHS,EU REACH,J-MOSS) ■WEEE |
| Certifications | ■ FCC ■ CE ■ C-TICK ■ BSMI ■ KCC ■ VCCI |
| Warranty | 3 Years |
Key Features
- NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores
- 8GB GDDR7 memory with 28 Gbps speed
- Boost clock up to 2602 MHz (OC mode)
- Supports 4K/8K resolution with 1x HDMI 2.1b and 3x DisplayPort 2.1b
- PCIe 5.0 interface
- 2.5 slot form factor
- 3-year warranty
