Specifications

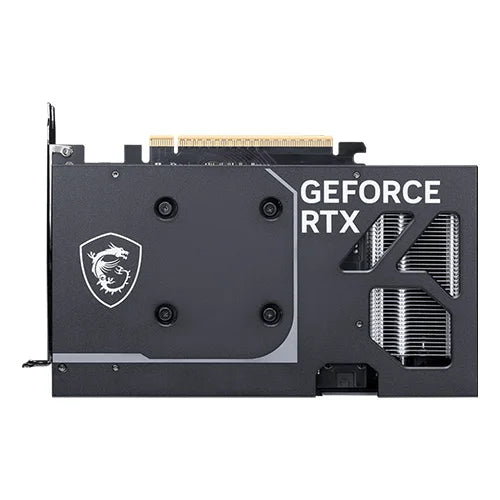

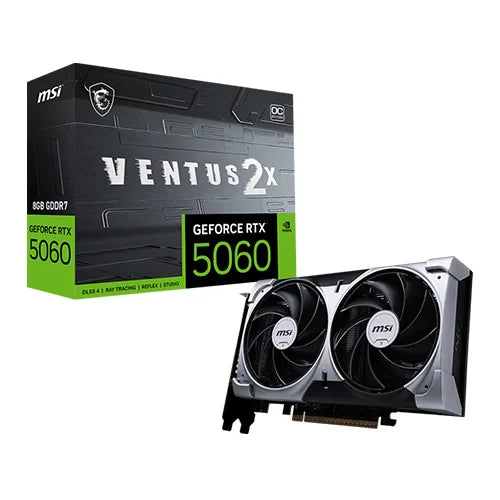

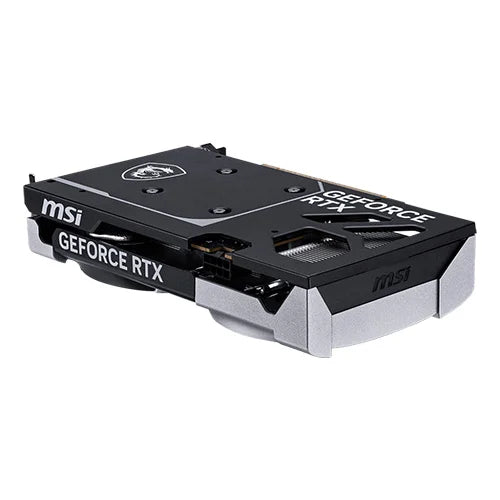

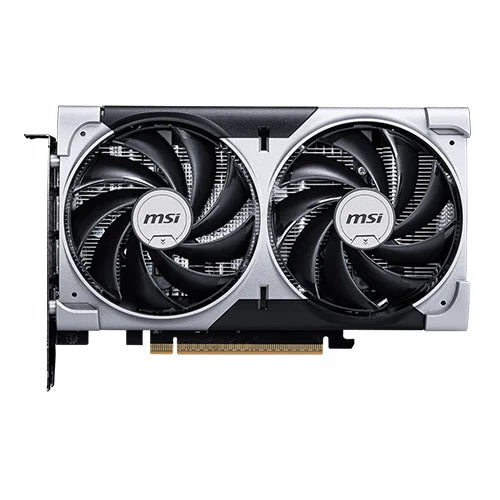

| Marketing Name | GeForce RTX 5060 8G VENTUS 2X OC WHITE |
| Model Name | G5060-8V2C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme: 2535 MHz (via MSI Center), Boost: 2527 MHz |
| CUDA® Cores | 3840 |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |

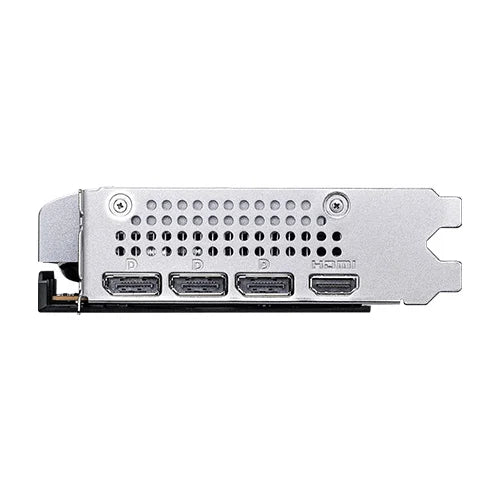

| Output | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| HDCP Support | Yes |
| Power Consumption | 145 W |
| Power Connectors | 1 × 8-pin |
| Recommended PSU | 550 W |
| Card Dimensions | 197 × 120 × 41 mm |
| Weight (Card / Package) | 511 g / 829 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 × 4320 |
Key Features
- NVIDIA GeForce RTX 5060 GPU with 3840 CUDA cores
- Boost clock up to 2527 MHz (Extreme 2535 MHz via MSI Center)
- 8GB GDDR7 memory at 28 Gbps over a 128‑bit bus
- PCI Express Gen 5 x16 interface (operates at x8)
- 3× DisplayPort 2.1b + 1× HDMI 2.1b – supports up to 4 monitors and 8K (7680×4320) resolution
- Low power draw of 145 W with a single 8‑pin connector; recommended 550 W PSU
- DirectX 12 Ultimate, OpenGL 4.6, G‑SYNC® support, HDCP compliant
