Specifications
| Marketing Name | GeForce RTX™ 5070 12G SHADOW 2X OC |
| Model Name | G5070-12S2C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2557 MHz (MSI Center) | Boost: 2542 MHz |
| CUDA® Cores | 6144 Units |
| Memory Speed | 28 Gbps |
| Memory | 12GB GDDR7 |
| Memory Bus | 192-bit |

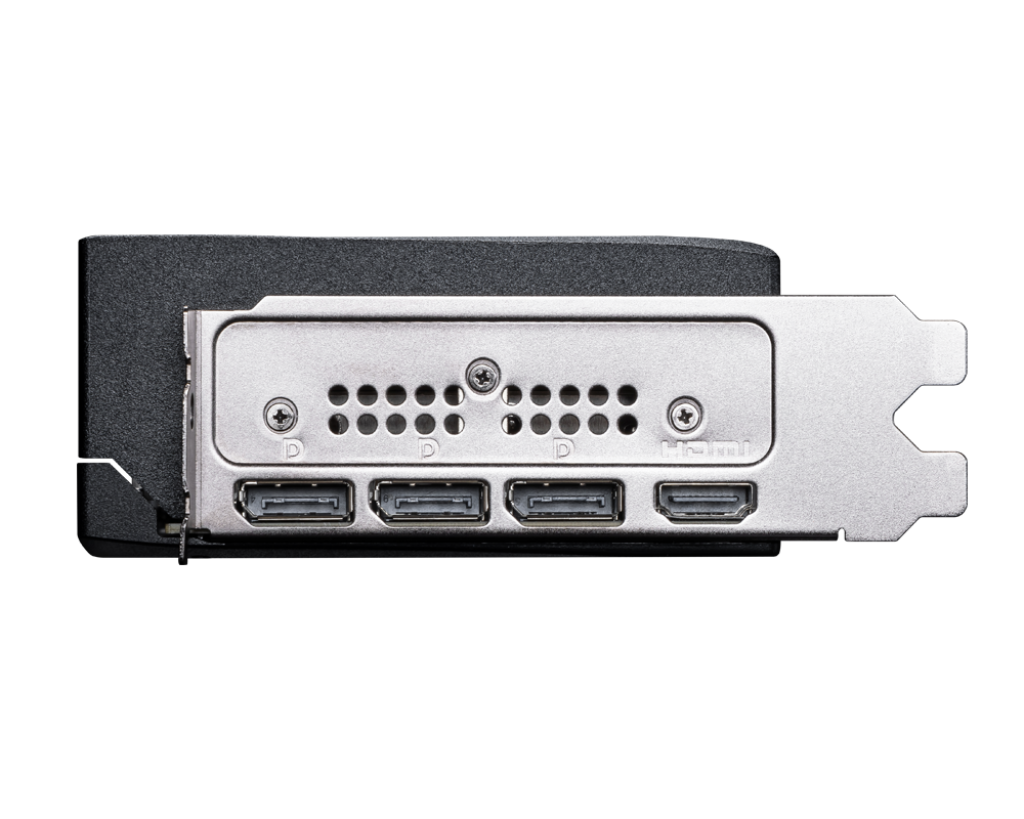

| Output Ports | 3x DisplayPort 2.1b | 1x HDMI 2.1b (Supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 250W |
| Power Connectors | 1x 16-pin |
| Recommended PSU | 650W |
| Card Dimensions (mm) | 231 x 126 x 50 mm |
| Weight (Card / Package) | 724g / 1107g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
Key Features
- NVIDIA GeForce RTX™ 5070 GPU with 6144 CUDA cores
- Boost clock up to 2542 MHz (Extreme Performance 2557 MHz via MSI Center)
- 12GB GDDR7 memory at 28 Gbps over a 192‑bit bus
- PCI Express® Gen 5 interface for maximum bandwidth
- Triple DisplayPort 2.1b + HDMI 2.1b outputs (supports 8K 120Hz or 4K 480Hz with DSC)
- 250W power draw, 1×16‑pin connector, recommended 650W PSU
- Compact size: 231 × 126 × 50 mm, 724 g weight
- Multi‑display support: up to 4 monitors, G‑SYNC, DirectX 12 Ultimate, OpenGL 4.6
