Specifications
| CPU | Intelà Socket LGA1700 for 12th Gen Intelà Coreô, Pentiumà Gold and Celeronà Processors* |
| Chipset | Intelà Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MT/s Non-ECC, Un-buffered Memory* |
| Graphics | 1 x DisplayPort** |
| Expansion Slots | Intelà 12th Gen Processors* |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Ethernet | 1 x Intelà 1Gb Ethernet |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| USB | Rear USB (Total 8 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback |

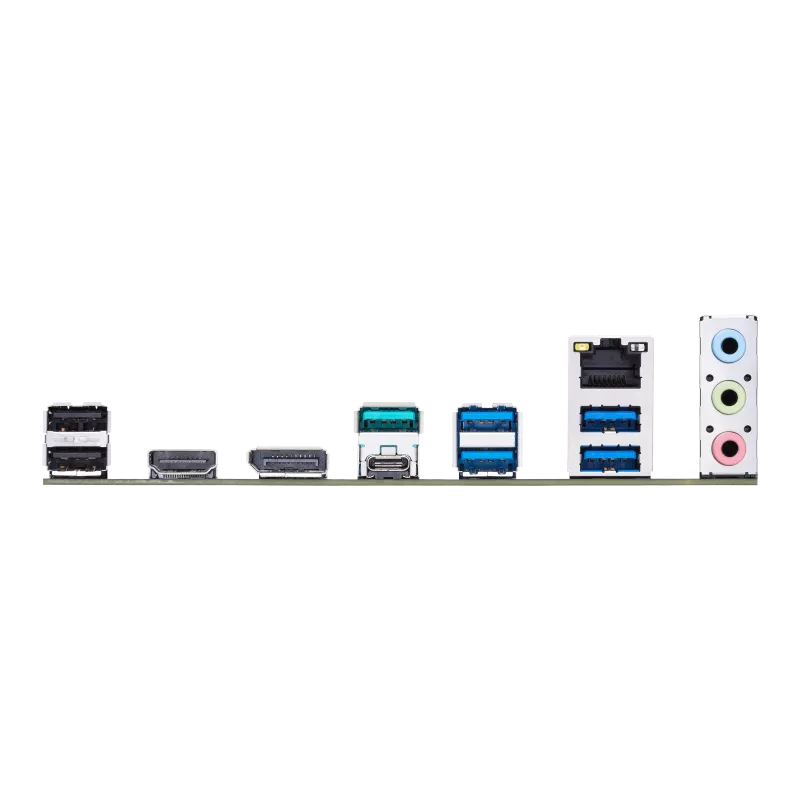

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-CÃ) |
| Internal I/O Connectors | Fan and cooling related |
| Special Features | ASUS 5X PROTECTION III |
| Software Features | ASUS Exclusive Software |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

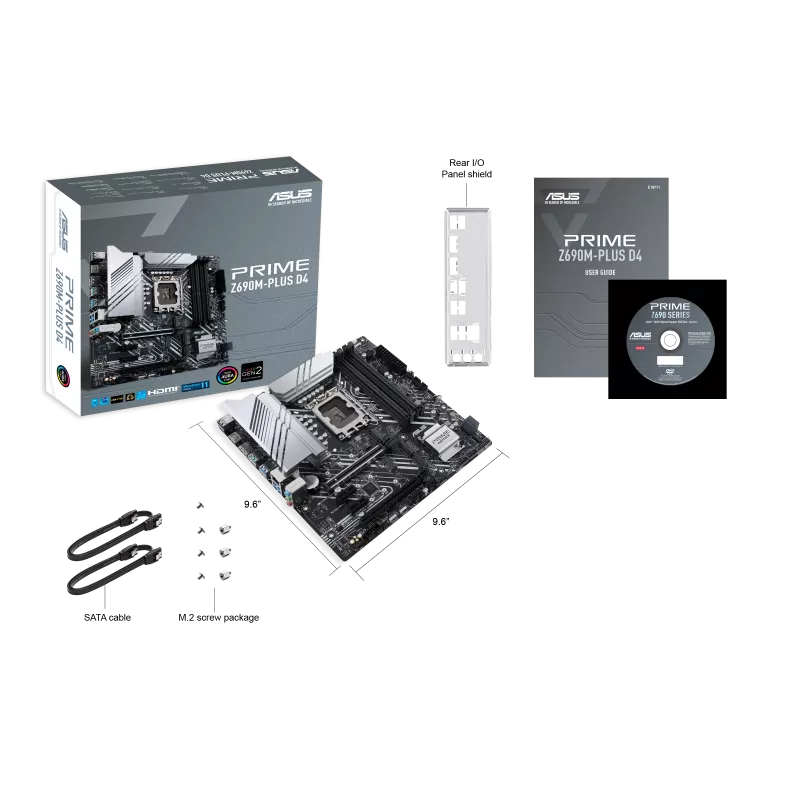

| Accessories | Cables |
| Operating System | Windowsà 11 64-bit, Windowsà 10 64-bit |
| Form Factor | mATX Form Factor |
| Product (mm)_ L*W*H | 244mm*244mm*40mm |
| Color Box (mm)_ L*W*H | 275mm*266.5mm*67.5mm |
| Motherboard only | 0.8251 Kg |
| Full package | 0.9736 Kg |
Key Features
- Supports 12th Gen Intel Core, Pentium Gold and Celeron processors via LGA1700 socket
- Intel Z690 chipset for enhanced performance and overclocking
- 4 DDR4 DIMM slots, up to 128GB memory, speeds up to 5333 MT/s (OC)
- Triple M.2 slots and four SATA 6Gb/s ports for flexible storage
- 1 Gigabit Ethernet port plus rear USB 8 ports including 1 USB 3.2 Gen 2×2 Type-C
- Realtek 7.1 Surround Sound HD Audio codec (24‑bit/192 kHz)
- Compact mATX form factor (244 × 244 mm) with ASUS 5X Protection III
