Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870E |
| Memory Speed | up to 8000+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | ECC and Non-ECC Un-buffered DIMM Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |

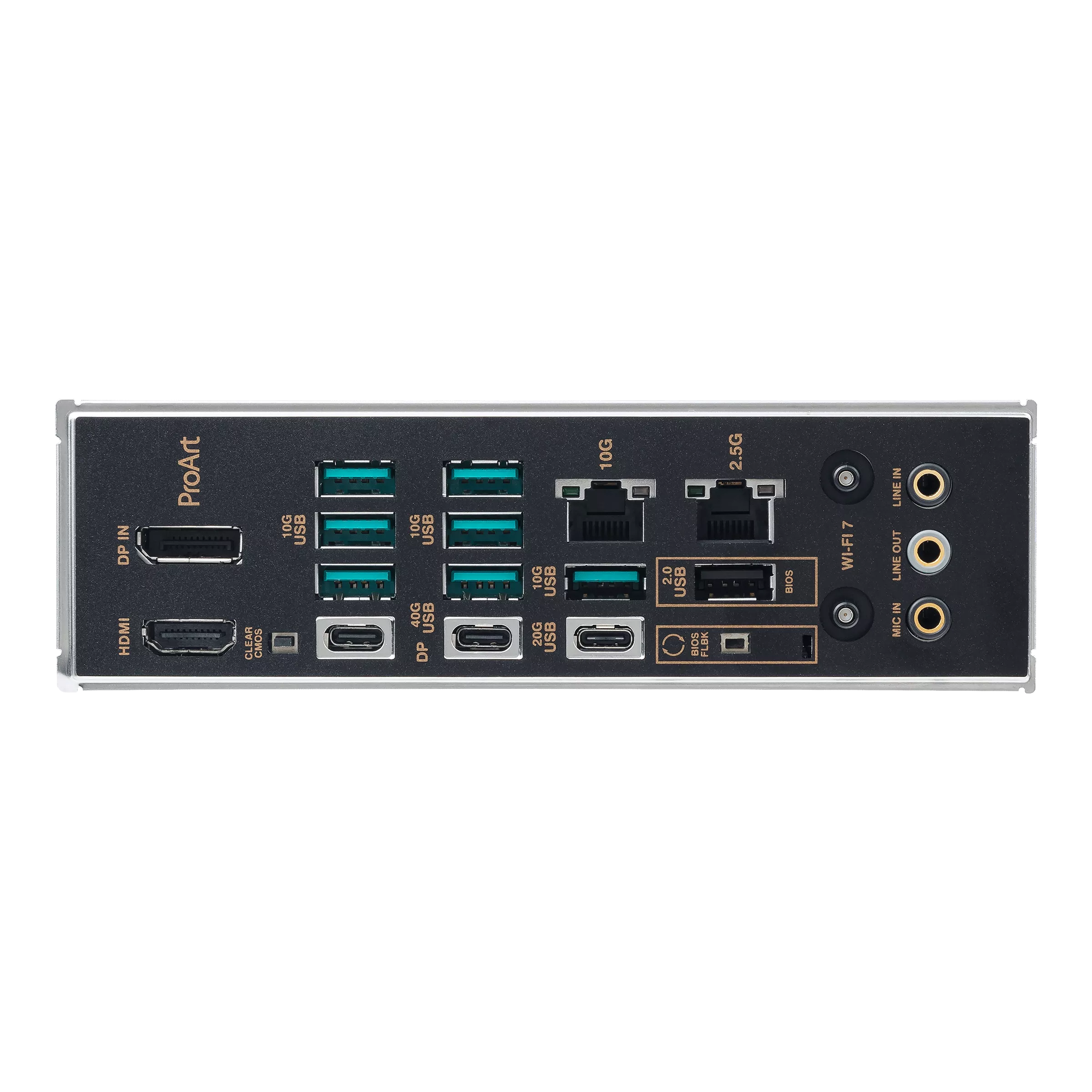

| Graphics Port | 1 x HDMI,2 x USB4 |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) AMD Ryzen 8500 & 8300 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site. ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each. *** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4. |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Form Factor | ATX |
| Warranty | 3 Years |
Key Features
- AM5 Socket & X870E Chipset: Designed for AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
- DDR5 Memory: Supports up to 8000+ MHz speeds and 256 GB capacity with EXPO and AEMP profiles.
- WiFi 7 & Bluetooth 5.4: Next-generation wireless connectivity for seamless networking.
- PCIe 5.0 Expansion: Features 2 x PCIe 5.0 x16 slots with Q-Release Slim for high-speed graphics cards.
- High-Speed I/O: Includes 4 x M.2 slots, 4 x SATA 6Gb/s ports, and a USB 20Gbps Type-C port.
- Warranty: ATX Form Factor with a 3-Year Warranty.
