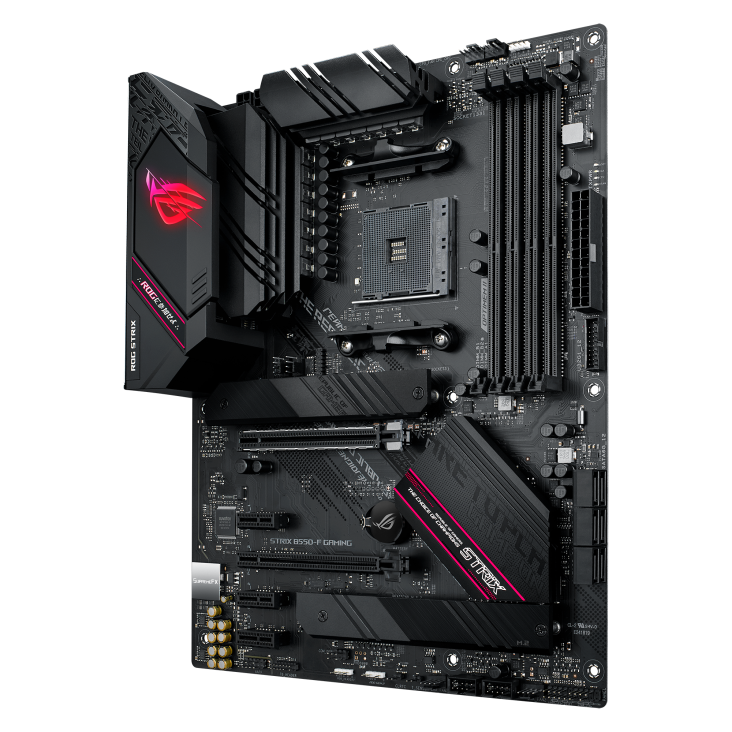

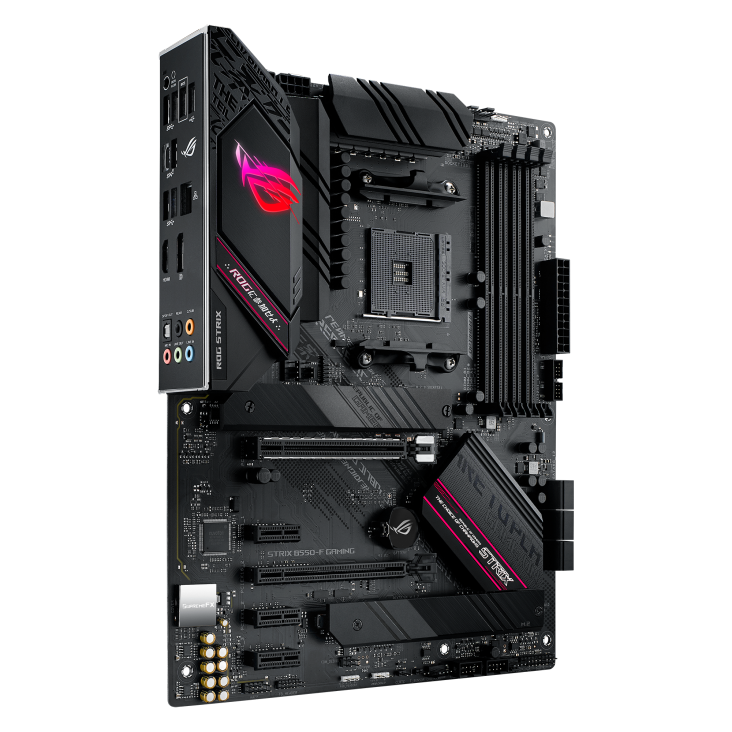

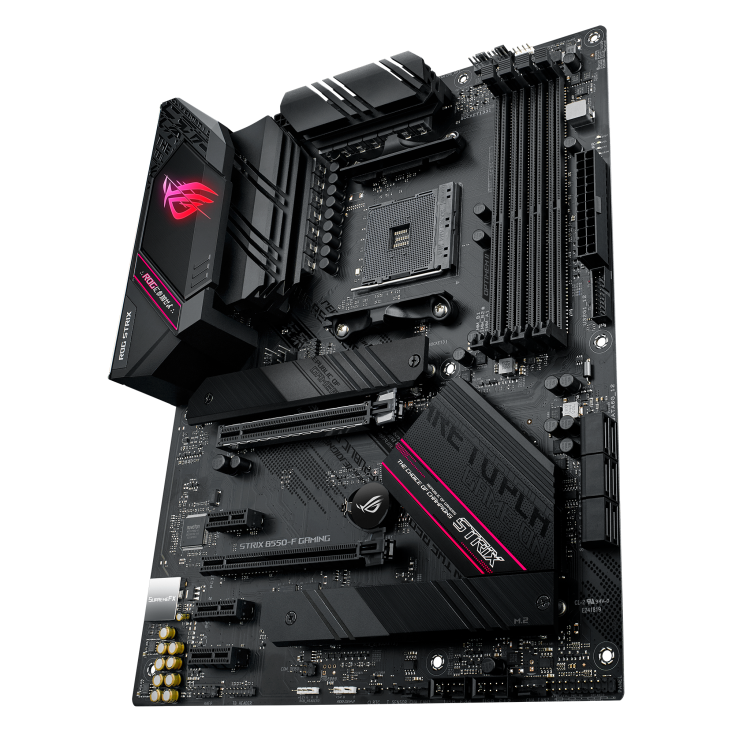

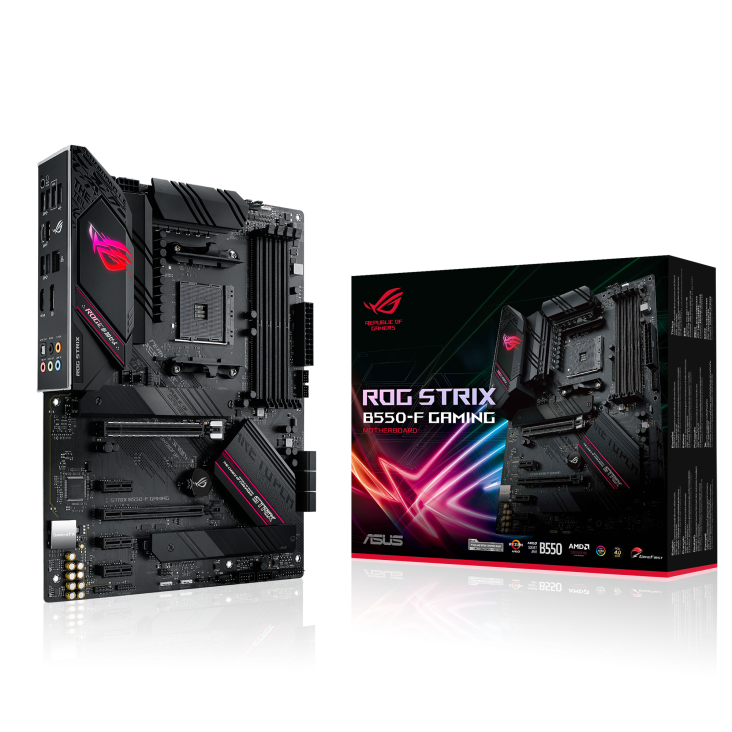

ASUS ROG STRIX B550-F GAMING AMD AM4 MOTHERBOARD
ASUS ROG STRIX B550-F GAMING AMD AM4 MOTHERBOARD - Image 2
ASUS ROG STRIX B550-F GAMING AMD AM4 MOTHERBOARD - Image 3
ASUS ROG STRIX B550-F GAMING AMD AM4 MOTHERBOARD - Image 4
ASUS ROG STRIX B550-F GAMING AMD AM4 MOTHERBOARD - Image 5
ASUS ROG STRIX B550-F GAMING AMD AM4 MOTHERBOARD - Image 6

ASUS ROG STRIX B550-F GAMING AMD AM4 MOTHERBOARD

Compare

“`html

CPU: AMD AM4 Socket, supports 3rd Gen AMD Ryzen processors

Chipset: AMD B550

Memory: 4 x DIMM, max. 128GB, DDR4 up to 4600(O.C)/4400(O.C)/4133(O.C)/4000(O.C)/3866(O.C)/3600(O.C)/3466(O.C)/3200/3000/2800/2666/2400/2133 MHz for Ryzen processors. Supports ECC memory (varies by CPU).

Graphics: Integrated GPU with 1 x DisplayPort 1.2 and 1 x HDMI 2.1 (4K@60Hz). Specifications vary by CPU.

Multi-GPU: Supports AMD 2-Way CrossFireX

Expansion Slots: 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1

Storage: 2 x M.2 slots (SATA & PCIe 4.0/3.0 x4), 6 x SATA 6Gb/s ports with RAID 0/1/10 support

LAN: Intel I225-V 2.5Gb Ethernet (ASUS LANGuard)

Audio: ROG SupremeFX 8-channel HD audio (S1220A codec), dual OP amplifiers, 120 dB SNR playback, 113 dB SNR recording. Features: SupremeFX Shielding, gold-plated jacks, optical S/PDIF, Japanese capacitors. 32-bit/192kHz not supported with 8-channel audio.

USB Ports: 8 rear ports (2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0), 6 front ports (2 x USB 3.2 Gen 1, 4 x USB 2.0)

“`

Specifications

CPU AMD AM4 Socket 3rd Gen AMD Ryzenô Processors
Chipset AMD B550
Memory 3rd Gen AMD Ryzenô Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Next Generation AMD Ryzen PRO Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture OptiMem II ECC Memory (ECC mode) support varies by CPU.
Graphic Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types.
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology
Expansion Slots 3rd Gen AMD Ryzenô Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1
Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzenô Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
LAN IntelÆ I225-V 2.5Gb Ethernet ASUS LANGuard
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A РDual OP Amplifiers РImpedance sense for front and rear headphone outputs РSupports : Jack-detection, Multi-streaming, Front Panel Jack-retasking РHigh quality 120 dB SNR stereo playback output and 113 dB SNR recording input РSupports up to 32-Bit/192kHz playback * Audio Feature : РSupremeFX Shielding̫ Technology РGold-plated jacks РOptical S/PDIF in port(s) at back panel РAudio Shielding РPremium Japanese audio capacitors РAudio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C Æ ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Software Features ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTSÆ Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Features Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3: – PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO – EZ update WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
ASUS Special Features Aura Sync РStandard RGB header(s) РAddressable Gen 2 RGB header(s) ASUS Q-Design РASUS Q-DIMM РASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) РASUS Q-Slot ASUS Thermal Solution РAluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack̫ button -BIOS FlashBack̫ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield РSafeSlot

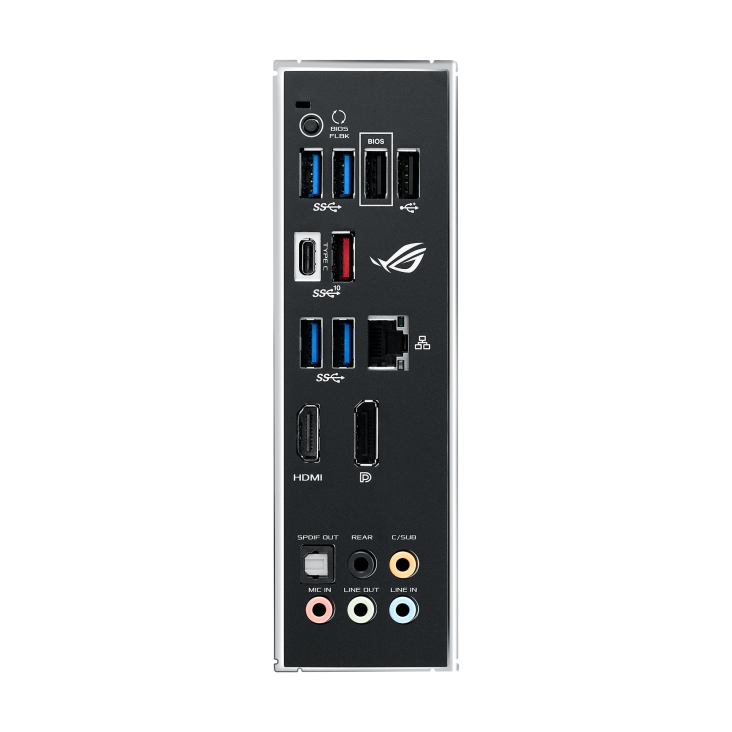

Back I/O Ports 1 x IntelÆ I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C Æ ) 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x BIOS FlashBack ô Button(s) 5 x Gold-plated audio jacks ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)

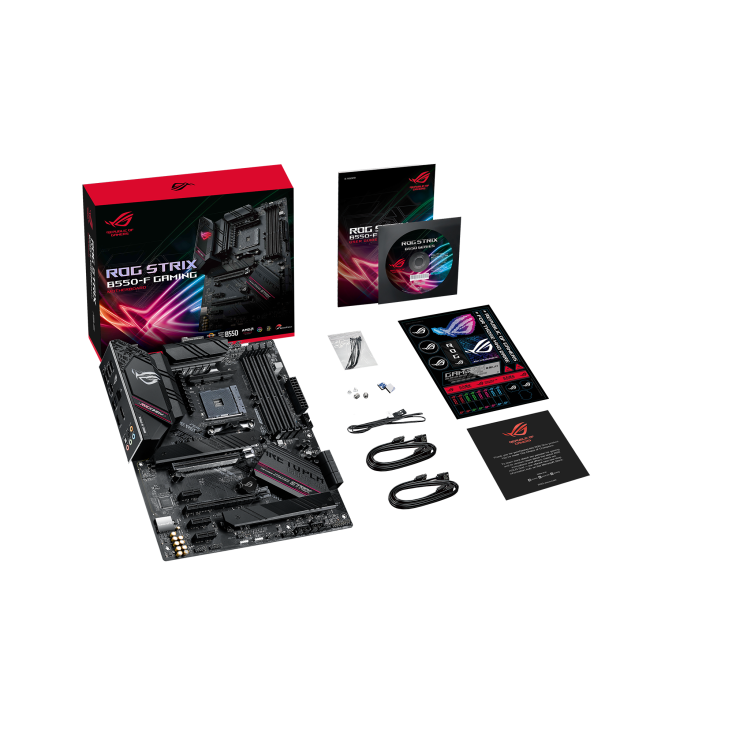

Accessories User’s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System WindowsÆ 10 64-bit
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3 * When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled

Key Features

  • AMD AM4 Socket – Supports 3rd Gen AMD Ryzen processors (future‑proof)
  • AMD B550 Chipset with PCIe 4.0 x16 slot for next‑gen GPUs and storage
  • Memory – 4× DDR4 DIMMs, up to 128 GB, speeds up to 4600 MHz (O.C.)
  • Storage – Dual M.2 slots (PCIe 4.0 x4 & PCIe 3.0 x4) + 6× SATA 6Gb/s, RAID 0/1/10 support
  • Networking – Intel I225‑V 2.5Gb Ethernet with ASUS LANGuard
  • Audio – ROG SupremeFX S1220A codec, 120 dB SNR, dual op‑amps, Japanese capacitors, Optical S/PDIF
  • USB Connectivity – Rear: 2× USB 3.2 Gen 2 (Type‑A + Type‑C), 4× USB 3.2 Gen 1, 2× USB 2.0; Front: 2× USB 3.2 Gen 1, 4× USB 2.0
  • ASUS Extras – Aura Sync RGB, Q‑Design (Q‑DIMM, Q‑LED, Q‑Slot), BIOS FlashBack button, SafeSlot, ProCool power connectors, pre‑mounted I/O shield
SKU: 103460 Category:
CPU AMD AM4 Socket 3rd Gen AMD Ryzenô Processors
Chipset AMD B550
Memory 3rd Gen AMD Ryzenô Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Next Generation AMD Ryzen PRO Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture OptiMem II ECC Memory (ECC mode) support varies by CPU.
Graphic Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types.
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology
Expansion Slots 3rd Gen AMD Ryzenô Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1
Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzenô Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
LAN IntelÆ I225-V 2.5Gb Ethernet ASUS LANGuard
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A РDual OP Amplifiers РImpedance sense for front and rear headphone outputs РSupports : Jack-detection, Multi-streaming, Front Panel Jack-retasking РHigh quality 120 dB SNR stereo playback output and 113 dB SNR recording input РSupports up to 32-Bit/192kHz playback * Audio Feature : РSupremeFX Shielding̫ Technology РGold-plated jacks РOptical S/PDIF in port(s) at back panel РAudio Shielding РPremium Japanese audio capacitors РAudio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C Æ ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Software Features ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTSÆ Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Features Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3: – PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO – EZ update WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
ASUS Special Features Aura Sync РStandard RGB header(s) РAddressable Gen 2 RGB header(s) ASUS Q-Design РASUS Q-DIMM РASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) РASUS Q-Slot ASUS Thermal Solution РAluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack̫ button -BIOS FlashBack̫ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield РSafeSlot
Back I/O Ports 1 x IntelÆ I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C Æ ) 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x BIOS FlashBack ô Button(s) 5 x Gold-plated audio jacks ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
Accessories User’s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System WindowsÆ 10 64-bit
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3 * When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled
