Specifications

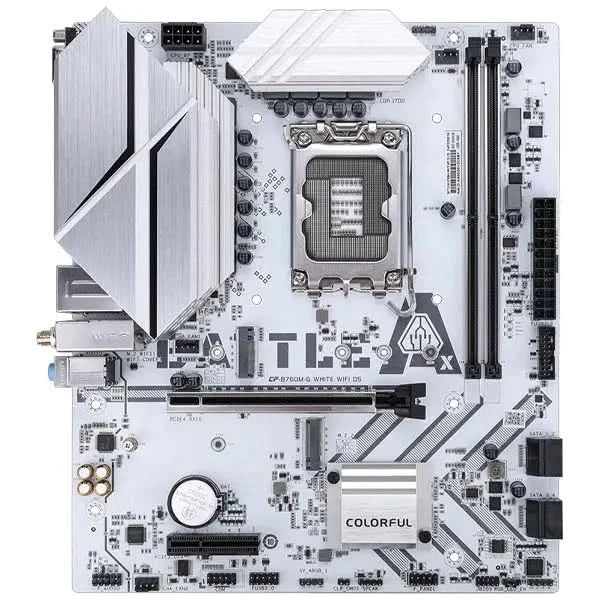

| Model | BATTLE-AX B760M-G WHITE WIFI D5 V20A |
| Product Series | BATTLE-AX series |
| Chipset | Intel B760 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) – Support DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory – Intel is supported ® Extreme Memory Profile (XMP) memory technology – supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays with SATA hard disk devices – M.2_1 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) – M.2_2 slot: supports 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
| Board I/O | Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×2.5G network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -2×System fan pins -1×Water cooling pump pin -1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces -2×5V 3-pin ARGB pins -1×12V 4-pin RGB pin – 1×Front audio pin – 1×Front panel pin – 1×Speaker pin – 1×Serial port pin – 1×Clear CMOS jumper – 1×BIOS burner pin – 1×RGB lighting control jumper |
| Expansion Slots | 1 PCIe 5.0 x16 slot 1 PCIe 3.0 x4 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8125BG 2.5Gbit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels |
| Configuration | M-ATX 245mm x 210mm |
Key Features
- Intel B760 chipset with support for 12th, 13th and 14th‑generation LGA 1700 processors.
- Dual DDR5 slots supporting up to 96 GB (48 GB per slot) and DDR5‑7200 (OC) with XMP memory profiles.
- PCIe 5.0 x16 graphics slot plus an additional PCIe 3.0 x4 slot for expansion cards.
- High‑speed networking featuring a 2.5 Gb Ethernet controller (RTL8125BG) and Wi‑Fi 6 (AX101) with Bluetooth 5.2.
- Flexible storage options with 2 × PCIe 4.0 x4 M.2 slots (CPU & PCH channels) and 4 × SATA 6 Gb/s ports, supporting RAID 0/1/5/10.
- Comprehensive I/O including 4 × USB 3.2 Gen 1 Type‑A, 2 × USB 2.0, HDMI 2.0 (4K 60 Hz), VGA, PS/2 and 3‑channel 5.1 audio.
- Robust cooling support with 1 CPU fan header, 2 system fan headers, 1 water‑pump header, plus ARGB (5V) and RGB (12V) pins.
- 128 MB UEFI BIOS with multi‑language support, hardware monitoring and power‑management features (S3, S4, network wake‑up, scheduled start).
