Specifications

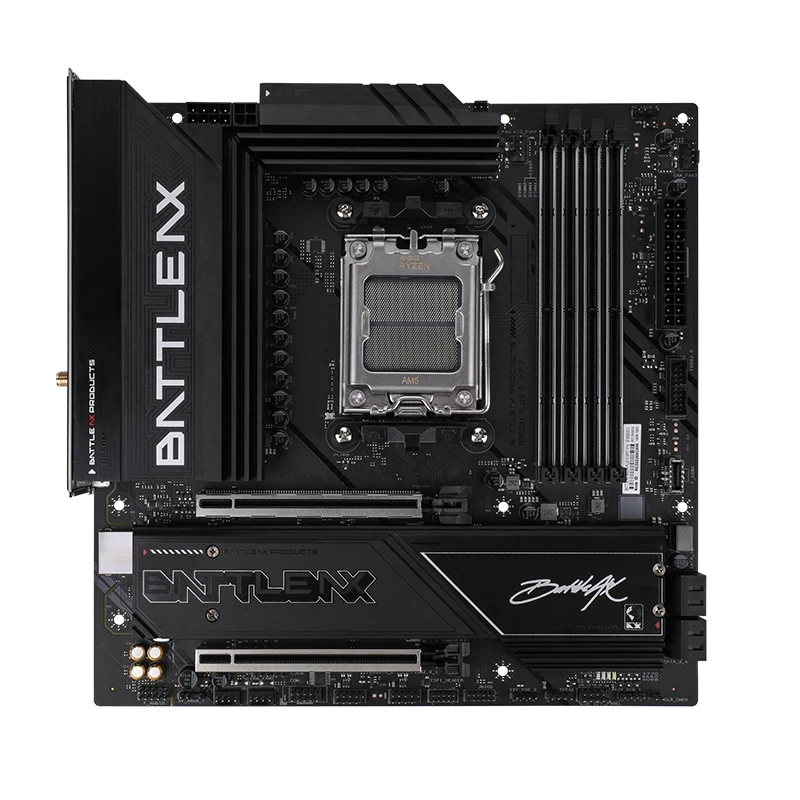

| Model | BATTLE-AX B850M-PLUS S WIFI7 V14 |
| Product Series | BATTLE-AX series |
| Chipset | AMD B850 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) – Support DDR5-8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory – Support Extreme Memory Profile (XMP) memory technology – Support EXtended Profiles for Overclocking (EXPO) memory technology – Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 10 disk arrays with SATA or M.2 NVMe hard disk devices -M.2_1 slot: supports 2242/2280 specification M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) -M.2_2 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) (*Whether PCIe 5.0 is supported depends on the CPU of the motherboard) |
| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 10Gbps Type-A interface -1×USB 3.2 Gen 1 5Gbps Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 1.4 interface, supporting up to 4K 30Hz resolution -1×5G network interface -2×Wi-Fi 7 antenna interfaces -1× BIOS update button -3×Audio interfaces (audio input/audio output/microphone) On board : -1×CPU fan pin -3×System fan pins -1×Water cooling pump pin -2×USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A port -1 USB 3.2 Gen 1 Type-C slot can be expanded 1 USB 3.2 Gen 1 Type-C port -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specification) |
| BIOS | 256M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8126-CG 5Gbit network card, MT7925 WiFi 7 wireless network card, Bluetooth 5.4 – Wi-Fi functionality may vary depending on the operating system. – For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. – For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor’s website. – Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region. – Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer’s website for the latest instructions. |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX 244mm x 244mm |
Key Features
- AMD B850 chipset supporting Ryzen 7000/8000/9000 series processors in the AM5 socket.
- Four DDR5 DIMM slots for up to 192 GB memory, supporting DDR5‑8000 (OC) and XMP/EXPO profiles.
- Dual M.2 slots (PCIe 5.0 x4 & PCIe 4.0 x4) plus four SATA 6 Gb/s ports with RAID 0/1/10 capability.
- Integrated 5 Gb Ethernet (RTL8126‑CG) and Wi‑Fi 7 (MT7925) with Bluetooth 5.4.
- Expansion slots: 1 × PCIe 5.0 x16 and 1 × PCIe 4.0 x4 for high‑performance graphics and add‑in cards.
- Comprehensive rear I/O: USB 3.2 Gen 2 10 Gbps Type‑A, two USB 3.2 Gen 1 Type‑A, USB 3.2 Gen 1 Type‑C, four USB 2.0, DisplayPort 1.2 (4K 60 Hz), HDMI 1.4 (4K 30 Hz), 5 G network, Wi‑Fi 7 antenna connectors.
- Advanced cooling support with 1 CPU fan header, 3 system fan headers, water‑pump header, and ARGB/RGB pins, plus full hardware monitoring.
- 256 MB UEFI BIOS with multi‑language support and a dedicated BIOS‑Flash button.
