Specifications
| Model | BATTLE-AX B860M-GHA WIFI V20 |
| Product Series | BATTLE-AX Series |
| Chipset | Intel B860 |
| Processor Support | Intel® Core™ Ultra processors (LGA 1851 socket) |
| Memory | 2×DDR5 slots, up to 96GB (48GB per slot), DDR5-7600(OC) & XMP support |
| Storage | 3×M.2 slots (PCIe 5.0 x4 & PCIe 4.0 x4), 4×SATA 6Gb/s, RAID 0/1/5/10 |
| Expansion Slots | 1×PCIe 5.0 x16, 1×PCIe 4.0 x4 |

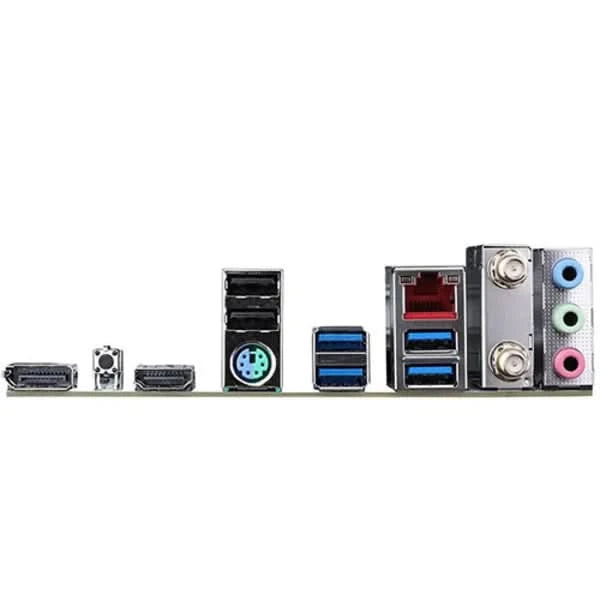

| Board I/O | 2×USB 2.0, 4×USB 3.2 Gen1, DP 1.4 (8K@60Hz), HDMI 2.0 (4K@60Hz), 2.5G LAN, Wi-Fi 6 |
| Onboard Headers | CPU/System fan pins, ARGB/RGB headers, USB headers, water pump pin |
| BIOS | 128M UEFI, multi-language support |
| Power Management | S3/S4 wake-up, network S5 wake-up, USB wake-up, timing boot |
| Hardware Monitor | CPU/system fan |
| Warranty | 3 Years |
Key Features
- Intel B860 Chipset – designed for Intel® Core™ Ultra processors (LGA 1851 socket)
- DDR5 Memory – 2× slots, up to 96 GB (48 GB per slot), DDR5‑7600(OC) with XMP support
- Triple M.2 Storage – 3× M.2 slots (PCIe 5.0 x4 & PCIe 4.0 x4) plus 4× SATA 6Gb/s, RAID 0/1/5/10
- High‑Speed Connectivity – 2.5G LAN + Wi‑Fi 6, plus USB 3.2 Gen1 and USB 2.0 ports
- PCIe Expansion – 1× PCIe 5.0 x16 slot and 1× PCIe 4.0 x4 slot for GPUs and add‑in cards
- Versatile Video Output – DisplayPort 1.4 (8K@60Hz) and HDMI 2.0 (4K@60Hz)
- Robust BIOS & Features – 128M UEFI BIOS, multi‑language, S3/S4 wake‑up, USB/network wake‑up, timing boot
- 3‑Year Warranty – peace of mind with long‑term coverage
