Specifications

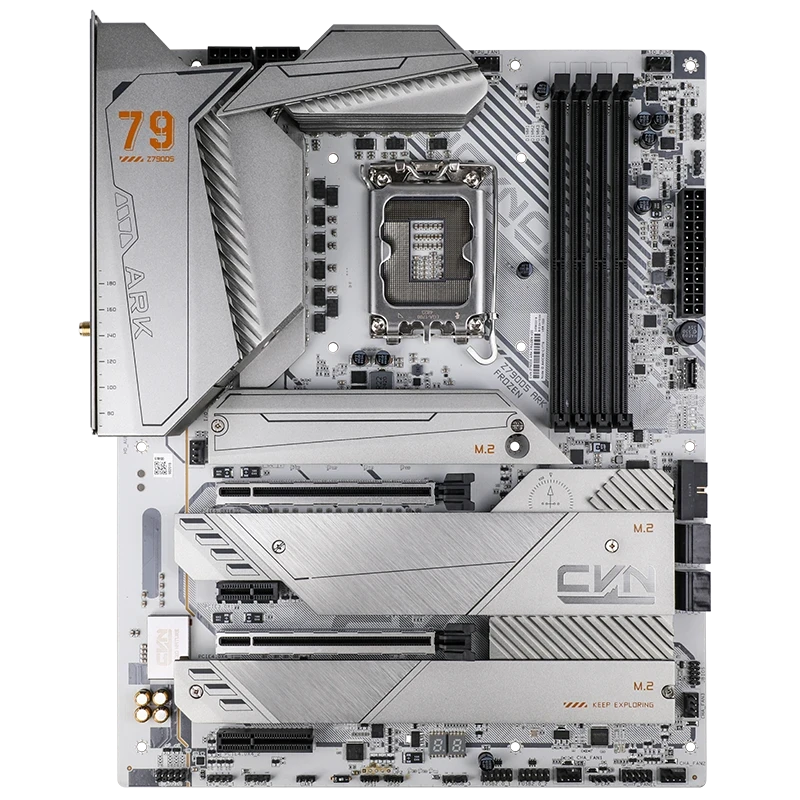

| Model | CVN Z790D5 ARK FROZEN V20 |
| Product Series | CVN Series |
| Chipset | Intel Z790 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) – Support DDR5-7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory – Intel is supported ® Extreme Memory Profile (XMP) memory technology – supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 4 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices – M.2_1 slot: support 2242/2260/2280/22110 specification M 2 SSD (PCIe 4.0 x4, CPU channel) – M.2_2 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) – M.2_3 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) – M.2_4 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, PCH channel) |
| Board I/O | Rear I/O: – 1×USB 3.2 Gen 2×2 Type-C interface – 3×USB 3.2 Gen 2 Type-A interfaces – 2×USB 3.2 Gen 1 Type-A interfaces – 4×USB 2.0 interfaces – 1×DP 1.4 interface, Supports up to 8K 60Hz resolution – 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution – 1×2.5G network interface – 5×Audio interfaces – 1×S/PDIF audio interface – 2×Wi-Fi 6E antenna interfaces – 1×BIOS update button – 1×CMOS clearing key On board: – 2×USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces – 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces – 1×USB 3.2 Gen 2 Type-C slot can expand 1 USB 3.2 Gen 2 Type-C interface (support PD3.0 @30W) – 2×CPU fan pins – 3×System fan pins – 1×Water cooling pump pin – 3×5V 3-pin ARGB pins – 2×12V 4-pin RGB pins – 1×Front audio pin – 1×Front panel pin – 1×Speaker pin – 1×BIOS burner pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supporting PCIe 4.0 x4 specification) 1×PCIe 4.0 x4 slot 1×PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN, AX211/AX210 WiFi 6E wireless network card, Bluetooth 5.3 |
| Audio | Realtek ALC1220 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | ATX 305 x 244 mm |
Key Features
- Intel Z790 chipset with support for 12th, 13th and 14th‑gen LGA 1700 CPUs.
- Four DDR5 DIMM slots supporting up to 192 GB total memory and speeds up to DDR5‑7800 (OC).
- Four M.2 slots (PCIe 4.0 ×4) and four SATA 6 Gb/s ports, enabling RAID 0/1/5/10 configurations.
- Rear I/O includes USB 3.2 Gen 2×2 Type‑C, three USB 3.2 Gen 2 Type‑A, two USB 3.2 Gen 1 Type‑A and four USB 2.0 ports.
- High‑speed networking with 2.5 Gb Ethernet (RTL8125BG), Wi‑Fi 6E (AX211/AX210) and Bluetooth 5.3.
- Premium audio via Realtek ALC1220 codec delivering up to 7.1‑channel sound.
- Expansion slots feature a PCIe 5.0 ×16 slot, an additional PCIe 4.0 ×4 slot and a PCIe 3.0 ×1 slot for graphics and add‑on cards.
