Specifications
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B650 |
| Memory Speed | up to 6400 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Graphics Port | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

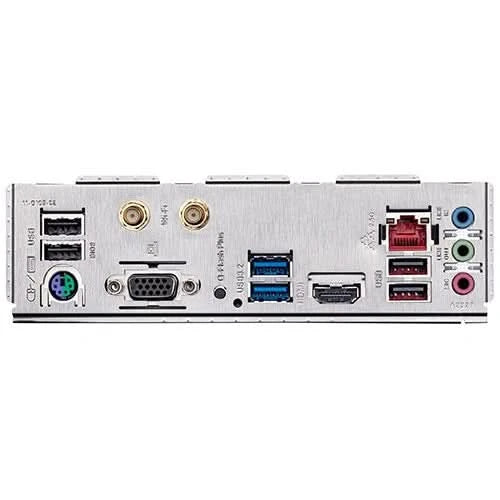

| Back Panel I/O Ports | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port* 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port* 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU. |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Key Features
- Socket AM5 – Supports Ryzen 9000, 8000, 7000 series processors.
- B650 Chipset – Provides robust platform for DDR5 and PCIe 4.0.
- DDR5 Memory – Up to 6400 MT/s, max 128 GB (dual‑channel), EXPO/XMP support.
- PCIe Expansion – 1× PCIe x16 (CPU‑linked, PCIe 4.0 x16/8/4 depending on CPU) + 1× PCIe x1 (chipset, PCIe 3.0).
- Wireless Connectivity – Wi‑Fi 6E and Bluetooth 5.3.
- Versatile I/O – Rear: 4× USB 2.0, 2× USB 3.2 Gen 1, HDMI 2.1 (4K@60 Hz), D‑Sub, RJ‑45, audio; plus M.2 slot, 4× SATA 6Gb/s.
- Micro‑ATX Form Factor – Compact size for smaller builds.
- 3‑Year Warranty – Peace of mind with Gigabyte support.
