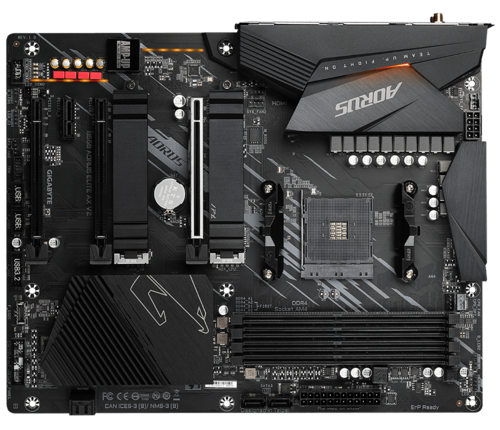

GIGABYTE GA-B550 AORUS ELITE AX V2 AMD AM4 MOTHERBOARD

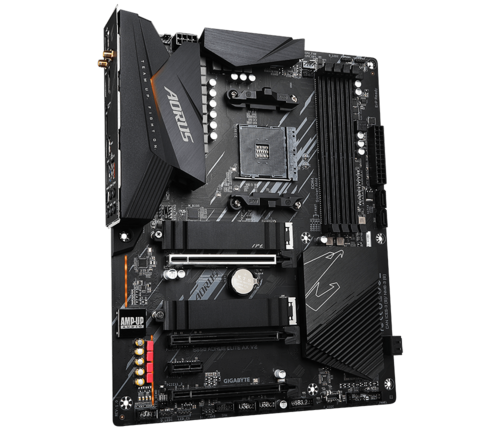

GIGABYTE GA-B550 AORUS ELITE AX V2 AMD AM4 MOTHERBOARD - Image 2

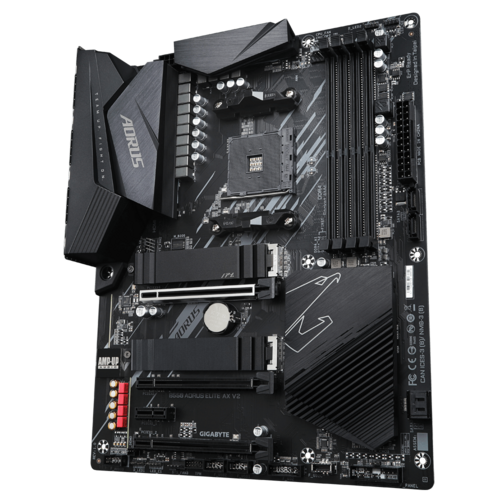

GIGABYTE GA-B550 AORUS ELITE AX V2 AMD AM4 MOTHERBOARD - Image 3
GIGABYTE GA-B550 AORUS ELITE AX V2 AMD AM4 MOTHERBOARD - Image 4

GIGABYTE GA-B550 AORUS ELITE AX V2 AMD AM4 MOTHERBOARD

Compare

CPU: AMD Socket AM4, compatible with Ryzen 5000, 5000G, 4000G, 3000 and 3000G series. Chipset: AMD B550.

Memory: 4× DDR4 DIMM slots, up to 128 GB, 2133‑4733 MHz (OC), dual‑channel, ECC/Non‑ECC unbuffered, XMP support. Storage: 1× M.2 (CPU) supporting PCIe 4.0/3.0 and SATA, 1× M.2 (chipset) PCIe 3.0/SATA, and 4× SATA 6 Gb/s (RAID 0/1/10). Expansion: 1× PCIe x16 (CPU, PCIe 4.0/3.0), 2× PCIe x16 (chipset, x2 and x1), 1× PCIe x1 (chipset).

Onboard graphics: 1× DisplayPort (5120×2880 @ 60 Hz, DP 1.4) and 1× HDMI (4096×2160 @ 60 Hz, HDMI 2.1), shared memory up to 16 GB. Audio: Realtek ALC1200, 7.1‑channel HD audio with S/PDIF. LAN: Realtek 2.5 GbE. Wireless: Intel Wi‑Fi 6 AX200, Bluetooth 5. USB: Up to 2× USB 3.2 Gen2 Type‑A rear, 1× USB‑C (Gen1) internal, additional USB 3.2 Gen1 and USB 2.0 ports on rear and internal.

Specifications

CPU AMD Socket AM4, supports: – Ryzen 5000 Series / 5000G Series – Ryzen 4000G Series – Ryzen 3000 Series / 3000G Series (Refer to “CPU Support List” for more info.)
Chipset AMD B550
Memory – 4× DDR4 DIMM, up to 128GB – Supports DDR4: 4733(O.C.) to 2133 MHz – Dual channel architecture – Supports ECC/Non-ECC unbuffered DIMMs* – Supports XMP (ECC support varies by CPU)
Onboard Graphics Integrated Graphics Processor: – 1× DisplayPort (5120×2880@60Hz, DP1.4, HDCP 2.3, HDR) – 1× HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) – Max shared memory: 16GB
Audio – Realtek ALC1200 codec – High Definition Audio – 2/4/5.1/7.1-channel – Supports S/PDIF Out
LAN Realtek 2.5GbE LAN (2.5G/1G/100M)
Wireless Intel Wi-Fi 6 AX200 – WiFi a/b/g/n/ac/ax – Dual-Band 2.4/5GHz – Bluetooth 5 – 160MHz, up to 2.4Gbps* *Actual speeds vary by environment
Expansion Slots – 1× PCIe x16 (CPU) • Ryzen 5000/3000: PCIe 4.0 x16 • Ryzen 5000G/4000G/3000G: PCIe 3.0 x16 – 1× PCIe x16 (Chipset): PCIe 3.0 x2 – 1× PCIe x16 (Chipset): PCIe 3.0 x1 – 1× PCIe x1 (Chipset): PCIe 3.0 x1
Storage – 1× M.2 (CPU) 2242/2260/2280/22110 • Ryzen 5000/3000: PCIe 4.0 x4/x2 & SATA • Ryzen 5000G/4000G/3000G: PCIe 3.0 x4/x2 & SATA – 1× M.2 (Chipset) 2242/2260/2280/22110 • PCIe 3.0 x4/x2 & SATA – 4× SATA 6Gb/s (RAID 0/1/10)
USB CPU: – Ryzen 5000/3000: 2× USB 3.2 Gen2 Type-A (red) rear – Ryzen 5000G/4000G/3000G: 2× USB 3.2 Gen1 (red) rear – 2× USB 3.2 Gen1 (rear) Chipset: – 1× USB Type-C (USB 3.2 Gen1, internal) – 1× USB 3.2 Gen1 (rear) – 2× USB 3.2 Gen1 (internal) – 2× USB 2.0 (rear) – 4× USB 2.0 (internal)
Internal I/O 24-pin ATX power 8-pin ATX 12V power 2× M.2 slots 4× SATA 6Gb/s CPU fan Water cooling CPU fan 3× system fan RGB LED strip header 2× Addressable LED headers 2× RGB LED headers Front panel Audio header USB Type-C (Gen1) header USB 3.2 Gen1 header 2× USB 2.0 headers TPM header (2×6 pin) Clear CMOS jumper

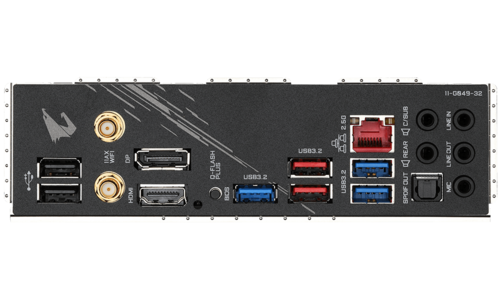

Back Panel – 1× DisplayPort – 1× HDMI – 2× SMA antenna connectors – 2× USB 3.2 Gen2 / Gen1 (red)* *Gen2 only with Ryzen 5000/3000 – 3× USB 3.2 Gen1 – 2× USB 2.0 – 1× RJ-45 LAN – 1× Optical S/PDIF Out – 5× Audio jacks – Q-Flash Plus button
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, Water cooling flow detection, Overheating & fan fail warning, Fan speed control*
BIOS – 256 Mbit AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, – SMBIOS 2.7, ACPI 5.0
Unique Features APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash Plus, Q-Flash
Bundled Software – Norton Internet Security (OEM) – LAN bandwidth management software
Operating System – Windows 11 64-bit – Windows 10 64-bit
Form Factor ATX (30.5 cm × 24.4 cm)

Key Features

  • Supports AMD Socket AM4 processors: Ryzen 5000/5000G/4000G/3000/3000G series (B550 chipset)
  • 4× DDR4 DIMM slots, up to 128GB memory, speeds up to 4733(O.C.) MHz, dual channel, ECC/Non-ECC, XMP support
  • PCIe 4.0 x16 slot (CPU) for Ryzen 5000/3000; PCIe 3.0 x16 for APUs, plus additional PCIe 3.0 x16/x2/x1 slots
  • Dual M.2 slots: one CPU‑linked (PCIe 4.0 x4/x2 & SATA for Ryzen 5000/3000, PCIe 3.0 for APUs) and one chipset‑linked (PCIe 3.0 x4/x2 & SATA)
  • 4× SATA 6Gb/s ports with RAID 0/1/10 support
  • USB connectivity: 2× rear USB 3.2 Gen2 Type‑A (red) with Ryzen 5000/3000, plus USB Type‑C internal, multiple USB 3.2 Gen1 and USB 2.0 ports
  • Networking: Realtek 2.5GbE LAN + Intel Wi‑Fi 6 AX200 (Wi‑Fi 6, Bluetooth 5) with dual‑band 2.4/5 GHz
  • Audio & video: Realtek ALC1200 codec (7.1‑channel HD Audio, S/PDIF Out), DisplayPort 1.4 (5120×2880@60Hz) and HDMI 2.1 (4096×2160@60Hz)
SKU: 101197 Category:
CPU AMD Socket AM4, supports: – Ryzen 5000 Series / 5000G Series – Ryzen 4000G Series – Ryzen 3000 Series / 3000G Series (Refer to “CPU Support List” for more info.)
Chipset AMD B550
Memory – 4× DDR4 DIMM, up to 128GB – Supports DDR4: 4733(O.C.) to 2133 MHz – Dual channel architecture – Supports ECC/Non-ECC unbuffered DIMMs* – Supports XMP (ECC support varies by CPU)
Onboard Graphics Integrated Graphics Processor: – 1× DisplayPort (5120×2880@60Hz, DP1.4, HDCP 2.3, HDR) – 1× HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) – Max shared memory: 16GB
Audio – Realtek ALC1200 codec – High Definition Audio – 2/4/5.1/7.1-channel – Supports S/PDIF Out
LAN Realtek 2.5GbE LAN (2.5G/1G/100M)
Wireless Intel Wi-Fi 6 AX200 – WiFi a/b/g/n/ac/ax – Dual-Band 2.4/5GHz – Bluetooth 5 – 160MHz, up to 2.4Gbps* *Actual speeds vary by environment
Expansion Slots – 1× PCIe x16 (CPU) • Ryzen 5000/3000: PCIe 4.0 x16 • Ryzen 5000G/4000G/3000G: PCIe 3.0 x16 – 1× PCIe x16 (Chipset): PCIe 3.0 x2 – 1× PCIe x16 (Chipset): PCIe 3.0 x1 – 1× PCIe x1 (Chipset): PCIe 3.0 x1
Storage – 1× M.2 (CPU) 2242/2260/2280/22110 • Ryzen 5000/3000: PCIe 4.0 x4/x2 & SATA • Ryzen 5000G/4000G/3000G: PCIe 3.0 x4/x2 & SATA – 1× M.2 (Chipset) 2242/2260/2280/22110 • PCIe 3.0 x4/x2 & SATA – 4× SATA 6Gb/s (RAID 0/1/10)
USB CPU: – Ryzen 5000/3000: 2× USB 3.2 Gen2 Type-A (red) rear – Ryzen 5000G/4000G/3000G: 2× USB 3.2 Gen1 (red) rear – 2× USB 3.2 Gen1 (rear) Chipset: – 1× USB Type-C (USB 3.2 Gen1, internal) – 1× USB 3.2 Gen1 (rear) – 2× USB 3.2 Gen1 (internal) – 2× USB 2.0 (rear) – 4× USB 2.0 (internal)
Internal I/O 24-pin ATX power 8-pin ATX 12V power 2× M.2 slots 4× SATA 6Gb/s CPU fan Water cooling CPU fan 3× system fan RGB LED strip header 2× Addressable LED headers 2× RGB LED headers Front panel Audio header USB Type-C (Gen1) header USB 3.2 Gen1 header 2× USB 2.0 headers TPM header (2×6 pin) Clear CMOS jumper
Back Panel – 1× DisplayPort – 1× HDMI – 2× SMA antenna connectors – 2× USB 3.2 Gen2 / Gen1 (red)* *Gen2 only with Ryzen 5000/3000 – 3× USB 3.2 Gen1 – 2× USB 2.0 – 1× RJ-45 LAN – 1× Optical S/PDIF Out – 5× Audio jacks – Q-Flash Plus button
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, Water cooling flow detection, Overheating & fan fail warning, Fan speed control*
BIOS – 256 Mbit AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, – SMBIOS 2.7, ACPI 5.0
Unique Features APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash Plus, Q-Flash
Bundled Software – Norton Internet Security (OEM) – LAN bandwidth management software
Operating System – Windows 11 64-bit – Windows 10 64-bit
Form Factor ATX (30.5 cm × 24.4 cm)
