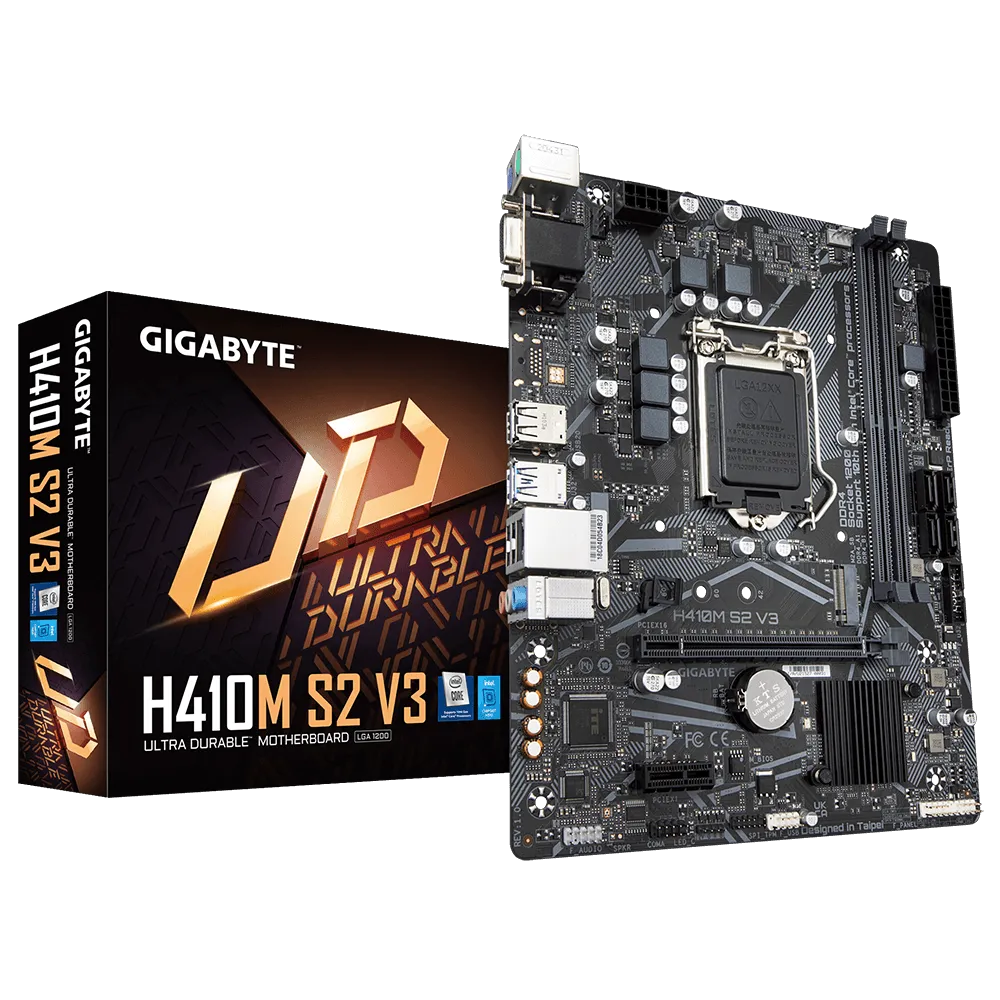

GIGABYTE GA-H410M-S2 V3 INTEL LGA1200 MOTHERBOARD
GIGABYTE GA-H410M-S2 V3 INTEL LGA1200 MOTHERBOARD - Image 2

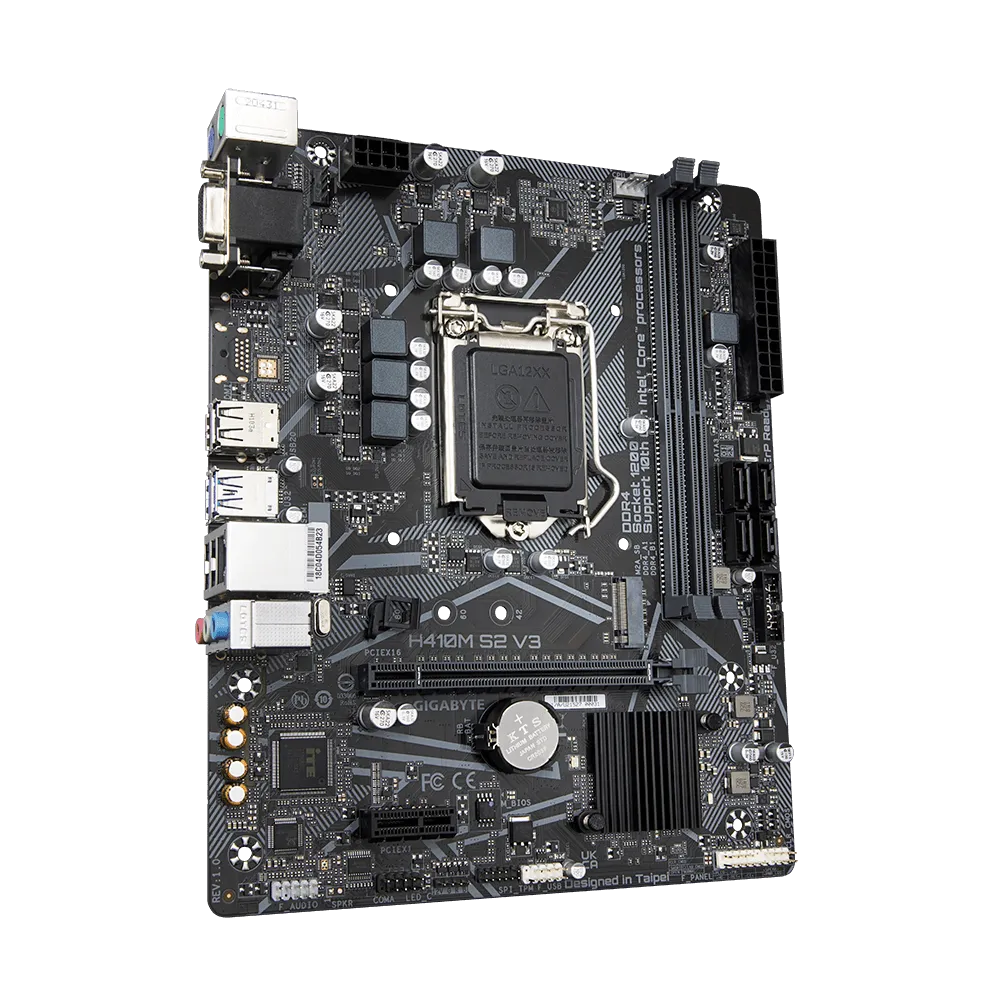

GIGABYTE GA-H410M-S2 V3 INTEL LGA1200 MOTHERBOARD - Image 3

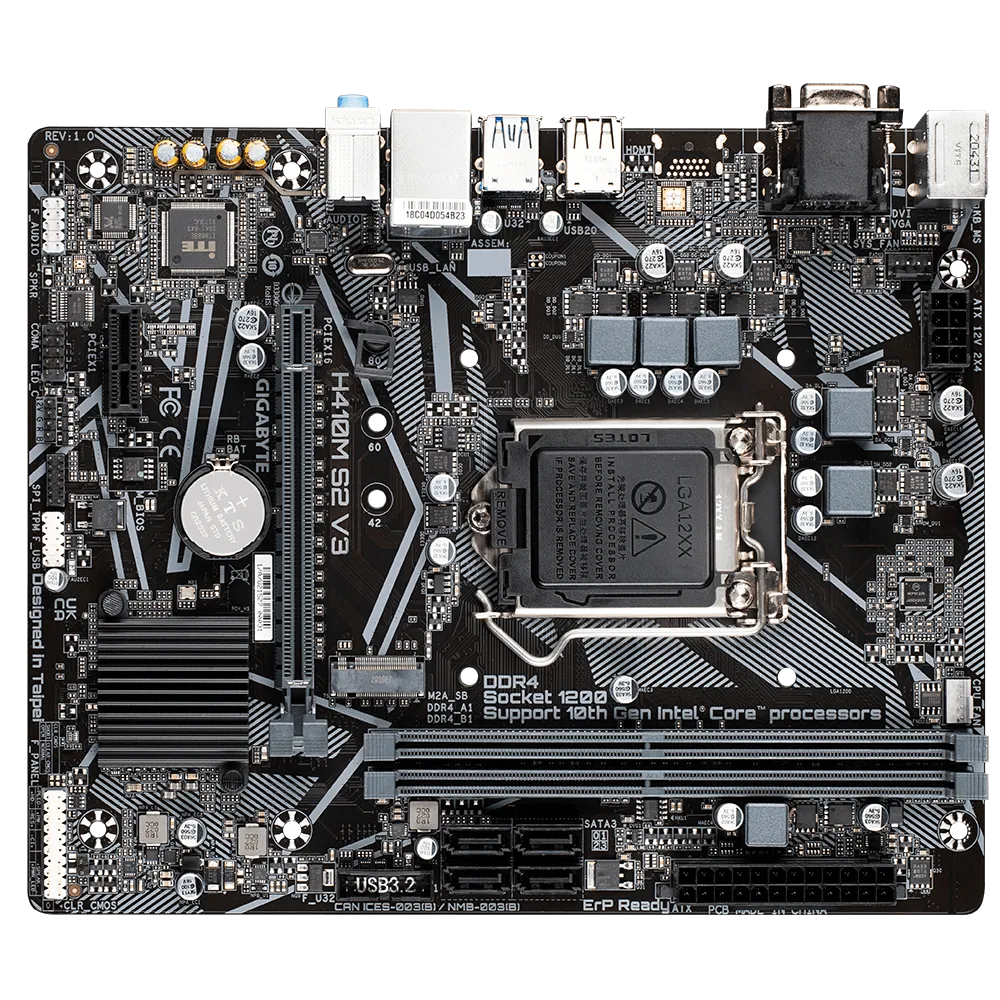

GIGABYTE GA-H410M-S2 V3 INTEL LGA1200 MOTHERBOARD - Image 4

GIGABYTE GA-H410M-S2 V3 INTEL LGA1200 MOTHERBOARD

Compare

CPU: Supports 10th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron LGA1200 processors. Chipset: Intel H510 Express. Memory: 2x DDR4 DIMM, up to 64 GB, supports DDR4 2933/2666/2400/2133 MHz (varies by CPU), dual channel, ECC/non-ECC unbuffered, XMP.
Graphics: Intel HD Graphics via D-Sub, max 1920×1200@60Hz, up to 512 MB shared memory. Audio: Realtek HD Audio codec, 2/4/5.1/7.1-channel. LAN: Gigabit Ethernet (1 Gbps/100

Specifications

CPU Support for 10th Generation IntelÆCoreô i9 processors/IntelÆCoreô i7 processors/ IntelÆCoreô i5 processors/IntelÆCoreô i3 processors/IntelÆPentiumÆprocessors/ IntelÆCeleronÆprocessors in the LGA1200 package L3 cache varies with CPU (Please refer to “CPU Support List” for more information.)
Chipset IntelÆH510 Express Chipset
Memory IntelÆCoreô i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules IntelÆCoreô i5/i3/PentiumÆ/CeleronÆprocessors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-IntelÆHD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz Maximum shared memory of 512 MB (Graphics specifications may vary depending on CPU support.)
Audio RealtekÆAudio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN Gigabit Ethernet Chip (1 Gbps/100 Mbps)
Expansion Slots 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors
USB Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

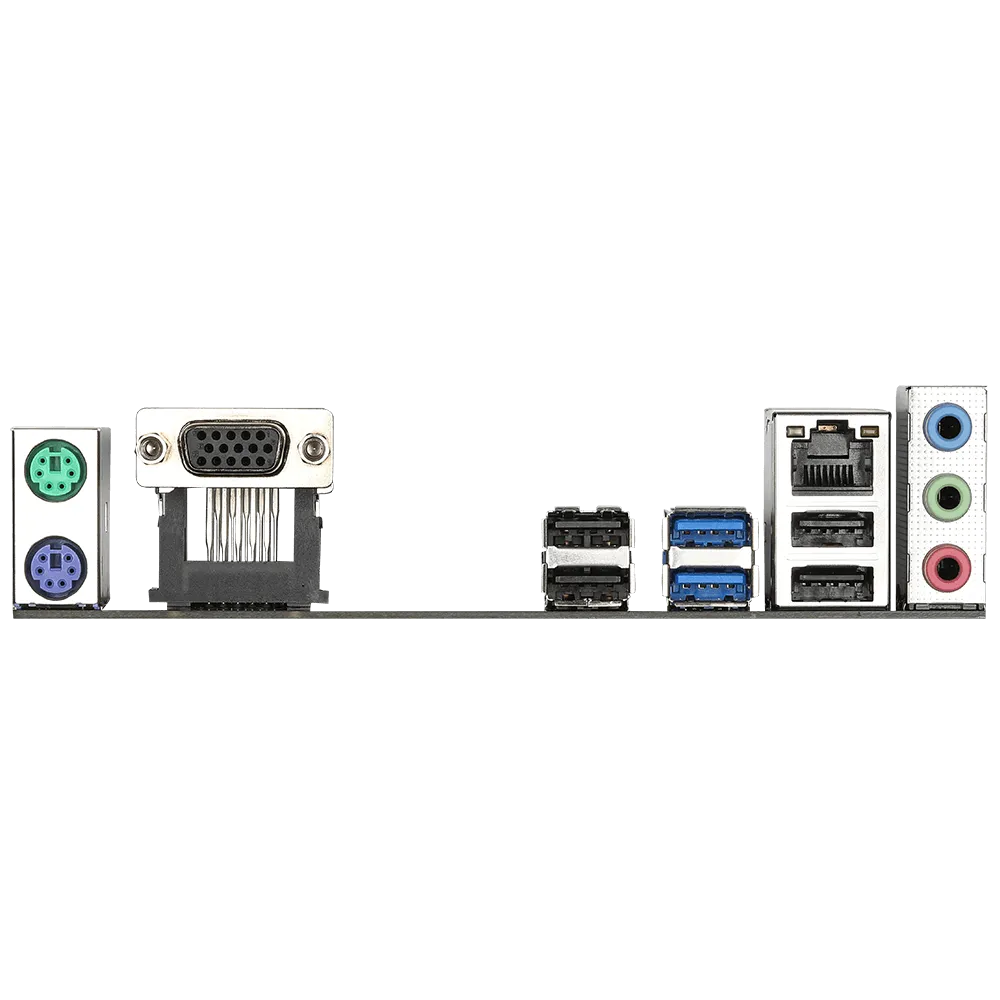

Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller iTEÆI/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software NortonÆInternet Security (OEM version) RealtekÆ8118 Gaming LAN Bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

Key Features

  • CPU Support: 10th Generation Intel Core i9/i7/i5/i3/Pentium/Celeron processors (LGA1200)
  • Chipset: Intel H510 Express Chipset
  • Memory: Dual-channel DDR4, up to 64 GB (2 × DIMM, 32 GB per module) – speeds up to 2933 MHz
  • Storage: 1 × M.2 PCIe x4/x2 slot + 4 × SATA 6Gb/s connectors
  • Connectivity: Gigabit Ethernet (1 Gbps), 6 × USB 3.2 Gen 1 ports (2 rear, 2 internal) and 6 × USB 2.0/1.1 ports (4 rear, 2 internal)
  • Expansion: 1 × PCIe x16 slot (PCIe 3.0) and 1 × PCIe x1 slot
  • Graphics & Audio: Integrated Intel HD Graphics (D‑Sub, max 1920×1200@60 Hz) + Realtek HD Audio (7.1‑channel)
  • Form Factor & BIOS: Micro ATX (22.6 cm × 18.5 cm), UEFI BIOS with Q‑Flash and APP Center support
SKU: 104646 Category:
CPU Support for 10th Generation IntelÆCoreô i9 processors/IntelÆCoreô i7 processors/ IntelÆCoreô i5 processors/IntelÆCoreô i3 processors/IntelÆPentiumÆprocessors/ IntelÆCeleronÆprocessors in the LGA1200 package L3 cache varies with CPU (Please refer to “CPU Support List” for more information.)
Chipset IntelÆH510 Express Chipset
Memory IntelÆCoreô i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules IntelÆCoreô i5/i3/PentiumÆ/CeleronÆprocessors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-IntelÆHD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz Maximum shared memory of 512 MB (Graphics specifications may vary depending on CPU support.)
Audio RealtekÆAudio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN Gigabit Ethernet Chip (1 Gbps/100 Mbps)
Expansion Slots 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors
USB Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller iTEÆI/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software NortonÆInternet Security (OEM version) RealtekÆ8118 Gaming LAN Bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
