Motherboard

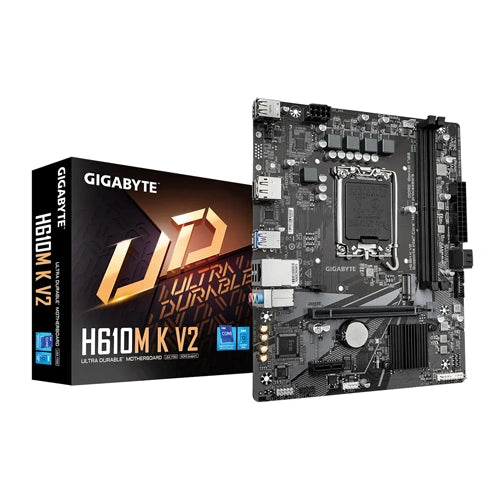

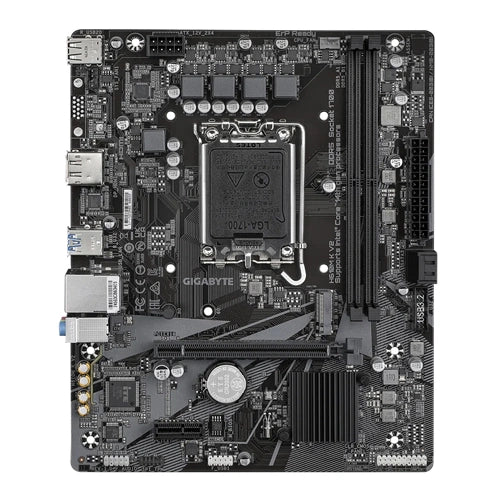

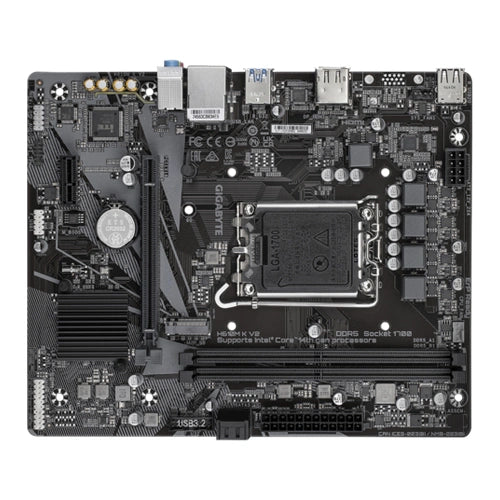

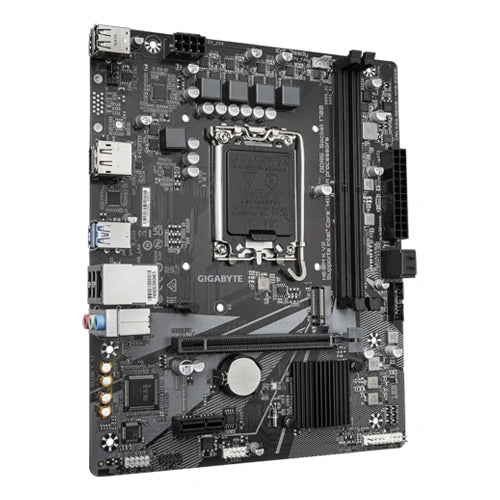

GIGABYTE GA-H610M-K V2 DDR5

Compare

Platform: INTEL; Socket: LGA1700; CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium, Celeron; Chipset: H610.

Memory: DDR5, up to 5600 MT/s, Dual Channel, max 128 GB; supports ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode), non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, and XMP modules.

Graphics: 1 x HDMI, 1 x DisplayPort.

Specifications

Platform	INTEL
Socket	LGA1700
Cpu Type	14th Gen,13th Gen,12th Gen,Pentium,Celeron
Chipset	H610
Memory Speed	up to 5600
Max Memory Support	128 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics Port	1 x HDMI,1 x DisplayPort
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Back Panel I/O Ports	1 x HDMI port 1 x DisplayPort 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper
Form Factor	Micro-ATX
Warranty	3 Years

Key Features

CPU Support: Intel 14th, 13th, 12th Gen, Pentium & Celeron (LGA1700)
Memory: DDR5 up to 5600 MT/s, dual‑channel, max 128 GB (XMP & ECC unbuffered support)
Expansion: 1 × PCIe 4.0 x16 slot + 1 × PCIe 3.0 x1 slot
Storage: M.2 Socket 3 (NVMe) + 2 × SATA 6Gb/s connectors
Rear I/O: HDMI, DisplayPort, 2 × USB 3.2 Gen 1, 4 × USB 2.0, Gigabit LAN, 3‑audio jacks
Form & Warranty: Micro‑ATX, 3‑year limited warranty

SKU: 1095363 Category: Motherboard

Platform	INTEL
Socket	LGA1700
Cpu Type	14th Gen,13th Gen,12th Gen,Pentium,Celeron
Chipset	H610
Memory Speed	up to 5600
Max Memory Support	128 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics Port	1 x HDMI,1 x DisplayPort
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Back Panel I/O Ports	1 x HDMI port 1 x DisplayPort 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper
Form Factor	Micro-ATX
Warranty	3 Years
