Specifications
| Platform | INTEL |
| Socket | LGA1200 |
| CPU Type | 11th Gen,10th Gen, Pentium |
| Chipset | H510 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x HDMI |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |

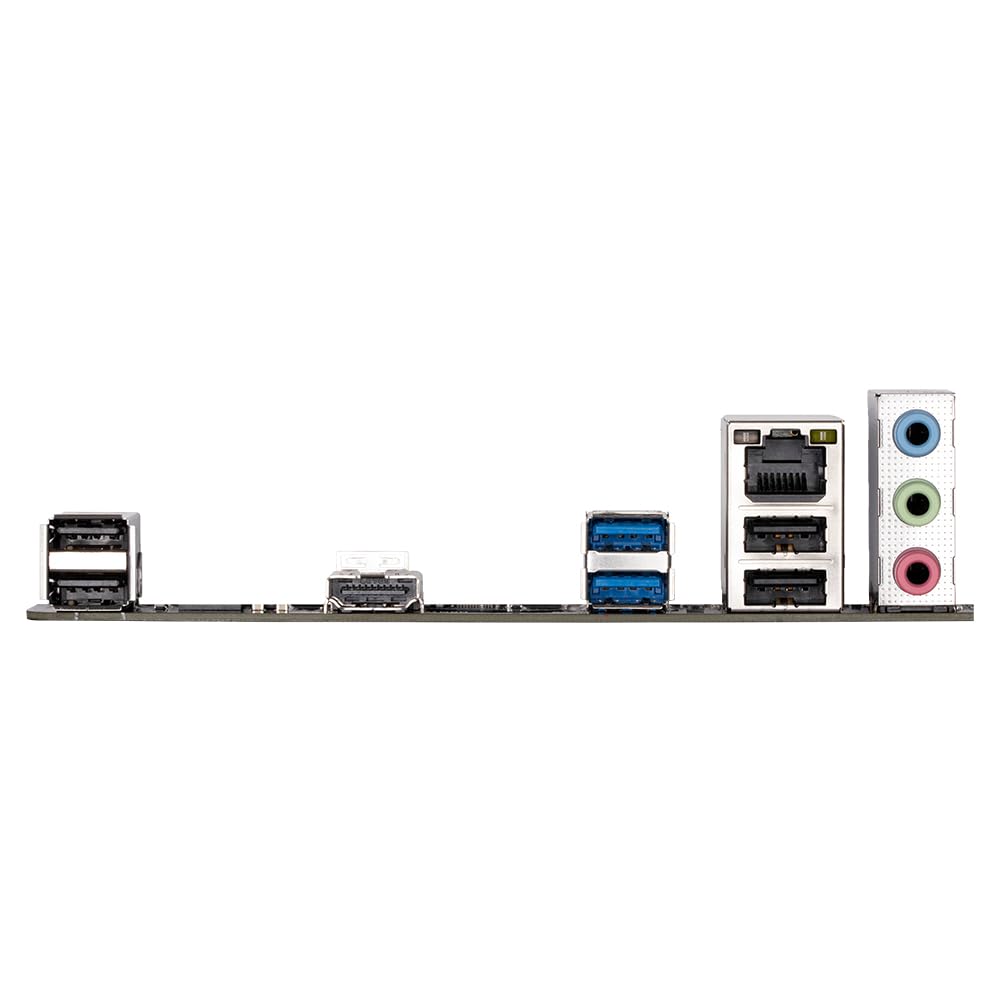

| Back Panel I/O Ports | 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Key Features
- Socket LGA1200 – Supports 11th and 10th Gen Intel Core, Pentium, and Celeron processors
- H510 Chipset – Reliable platform for mainstream builds
- DDR4 Memory – Up to 3200 MHz, 64 GB max (dual‑channel) with XMP support
- Graphics & Display – HDMI 1.4 port for integrated graphics output
- Expansion Slots – 1× PCIe 3.0 x16 (GPU) + 1× PCIe 3.0 x1
- Storage & Connectivity – M.2 Socket 3, 2× SATA 6Gb/s, USB 3.2 Gen 1 (2 rear + header), USB 2.0 (4 rear + header)
- Reliability Features – RGB LED strip header, CPU & system fan headers, Clear CMOS jumper
- Form Factor & Warranty – Micro‑ATX layout, backed by a 3‑year manufacturer warranty
