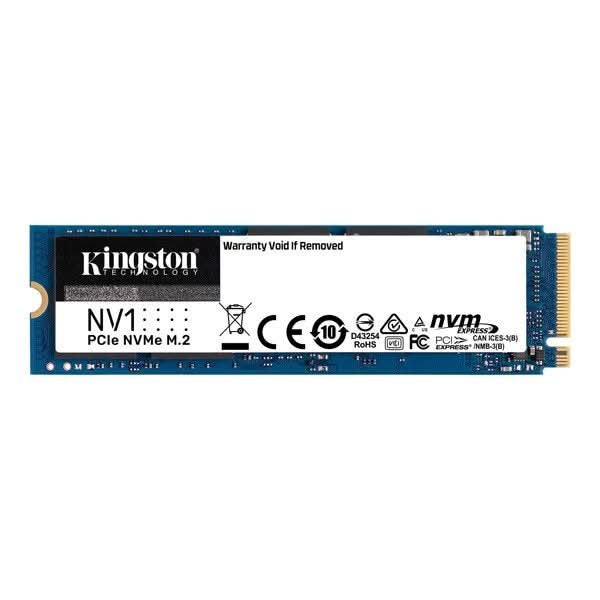

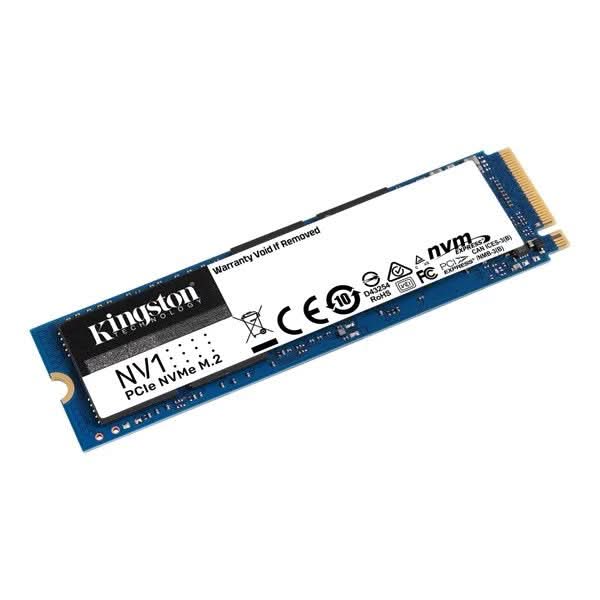

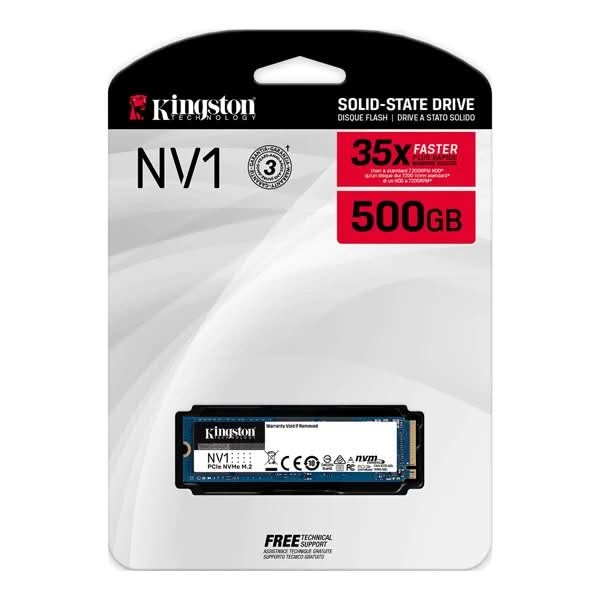

KINGSTON SSD 500GB NVME M.2 NV1

Interface: NVMe PCIe Gen 3.0 × 4, Capacity: 500 GB, Sequential Read/Write: 2100/1700 MB/s, Endurance: 120 TBW.

Power Consumption: 5 mW idle, 205 mW average, up to 1.1 W read, 3.3 W write; Operating Temperature: 0 °C–70 °C; Dimensions: 22 × 80 × 2.1 mm; Weight: 7 g.

Specifications

Product Number	SNVS-500G
Interface	NVMe™ PCIe Gen 3.0 x 4 Lanes
Capacitiy	500GB
Sequential Read/Write	2100/1700MB/s
Endurance	120TBW
Power Consumption	5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
Storage Temperature	-40°C~85°C
Operating Temperature	0°C~70°C
Dimensions	22mm x 80mm x 2.1mm
Weight	7g
Vibration Operating	2.17G (7-800 Hz)
Vibration Non-operating	20G (20-1000Hz)
Warranty	3 Years

Key Features

Capacity: 500GB
Interface: NVMe™ PCIe Gen 3.0 x4 Lanes
Sequential Read/Write: up to 2100MB/s read / 1700MB/s write
Endurance: 120TBW
Power Consumption: 5mW idle, 205mW average, 1.1W max read, 3.3W max write
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Dimensions: 22mm x 80mm x 2.1mm (M.2 2280)
Weight: 7g
Warranty: 3 years

SKU: 103716 Category: INTERNAL SSD

Product Number	SNVS-500G
Interface	NVMe™ PCIe Gen 3.0 x 4 Lanes
Capacitiy	500GB
Sequential Read/Write	2100/1700MB/s
Endurance	120TBW
Power Consumption	5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
Storage Temperature	-40°C~85°C
Operating Temperature	0°C~70°C
Dimensions	22mm x 80mm x 2.1mm
Weight	7g
Vibration Operating	2.17G (7-800 Hz)
Vibration Non-operating	20G (20-1000Hz)
Warranty	3 Years
