Specifications
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000, Ryzen 8000, Ryzen 7000 |
| Chipset | B650 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Graphics Port | 1x HDMI,1x DisplayPort,1x VGA |
| Expansion Slots | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |

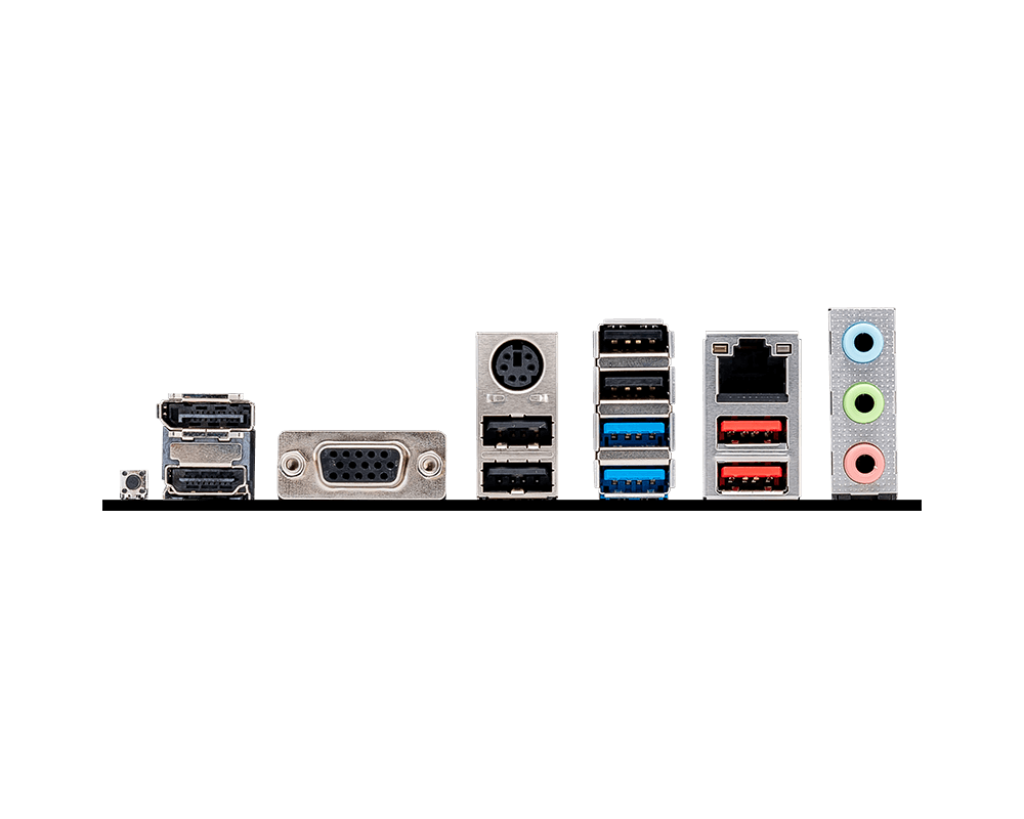

| Back Panel I/O Ports | DisplayPort VGA Keyboard / Mouse USB 2.0 2.5G LAN Audio connectors Flash BIOS Button HDMI USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Key Features
- AM5 Socket – Supports AMD Ryzen 9000, 8000 & 7000 series processors
- B650 Chipset – PCIe 4.0 support for GPU and storage
- DDR5 Memory – Up to 7200+ MT/s, max 256 GB (dual‑channel)
- Expansion Slots – 1× PCIe x16 (Gen4 from CPU), 2× PCIe x1
- Rich I/O – HDMI, DisplayPort, VGA, 2.5 G LAN, USB 3.2 Gen2 10 Gbps Type‑A, USB 3.2 Gen1 5 Gbps Type‑A, USB 2.0, Flash BIOS Button
- Cooling & RGB – 1× CPU fan, 1× pump fan, 3× system fan headers, 2× Addressable RGB V2, 2× RGB headers
- Micro‑ATX Form Factor – Compact size for small builds
- 3‑Year Warranty – Peace of mind
