Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | B760 |
| Memory Speed | up to 6800 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Graphics Port | 1 x DisplayPort, 1 x HDMI |
| Expansion Slots | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

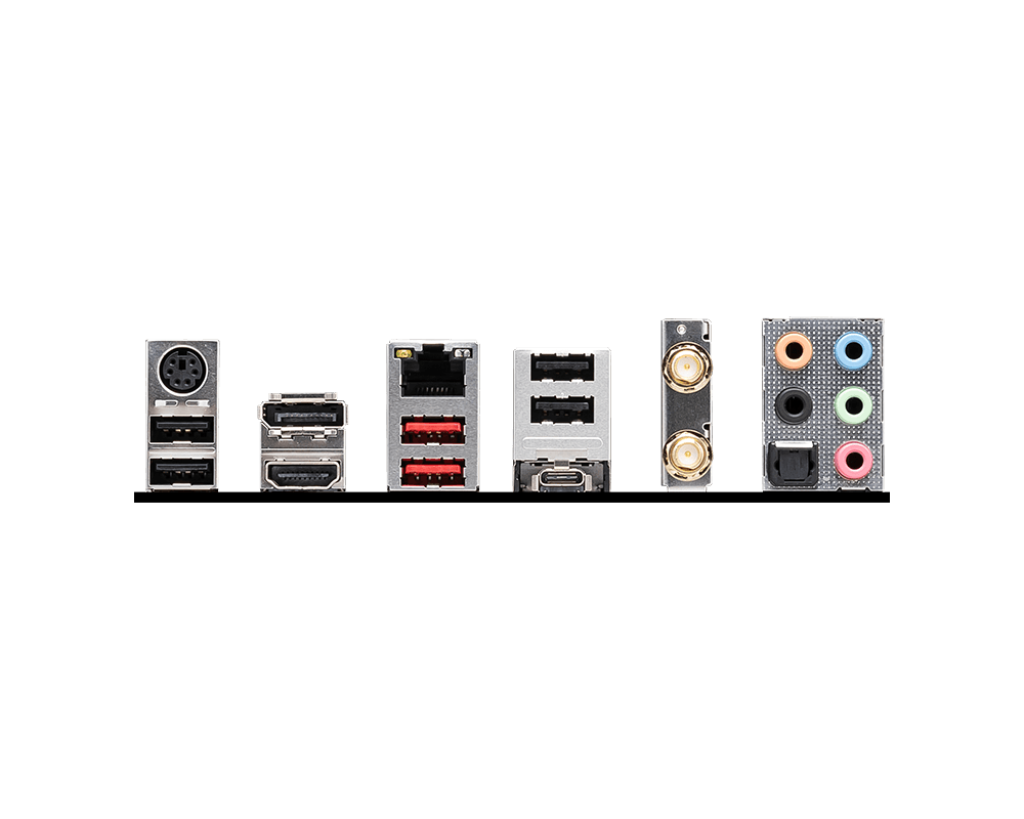

| Back Panel I/O Ports | Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
Key Features
- CPU Support: Compatible with 14th, 13th, 12th Gen Intel Core, Pentium Gold & Celeron processors (LGA1700)
- Chipset: Intel B760 chipset
- Memory: DDR5, dual‑channel, up to 6800 MT/s, max 256 GB, XMP 3.0 support
- Wireless: Wi‑Fi 6E and Bluetooth 5.3
- Expansion: PCIe 4.0 x16 (CPU), PCIe 4.0 x4 (chipset), plus additional PCIe 3.0 x1 slots
- I/O Ports: 2.5G LAN, HDMI, DisplayPort, USB 3.2 Gen 2 Type‑C (10 Gbps), USB 3.2 Gen 2 Type‑A (10 Gbps), USB 2.0, S/PDIF‑OUT
- Form Factor & Warranty: ATX, 3‑year warranty
