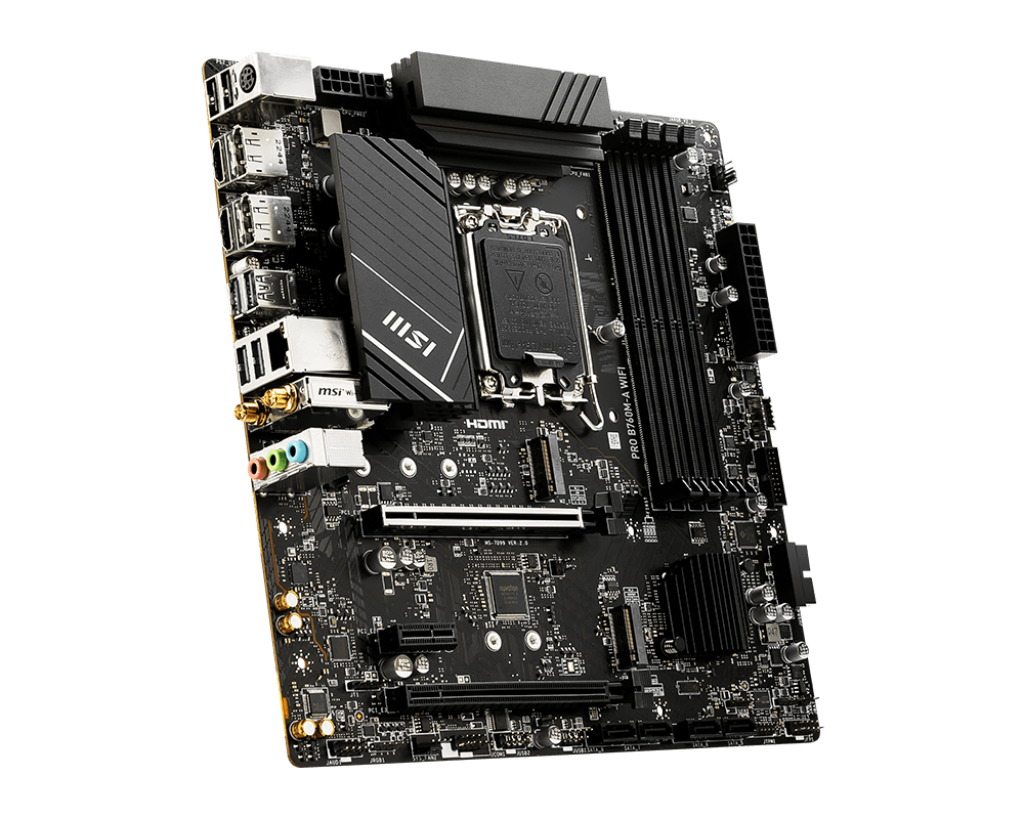

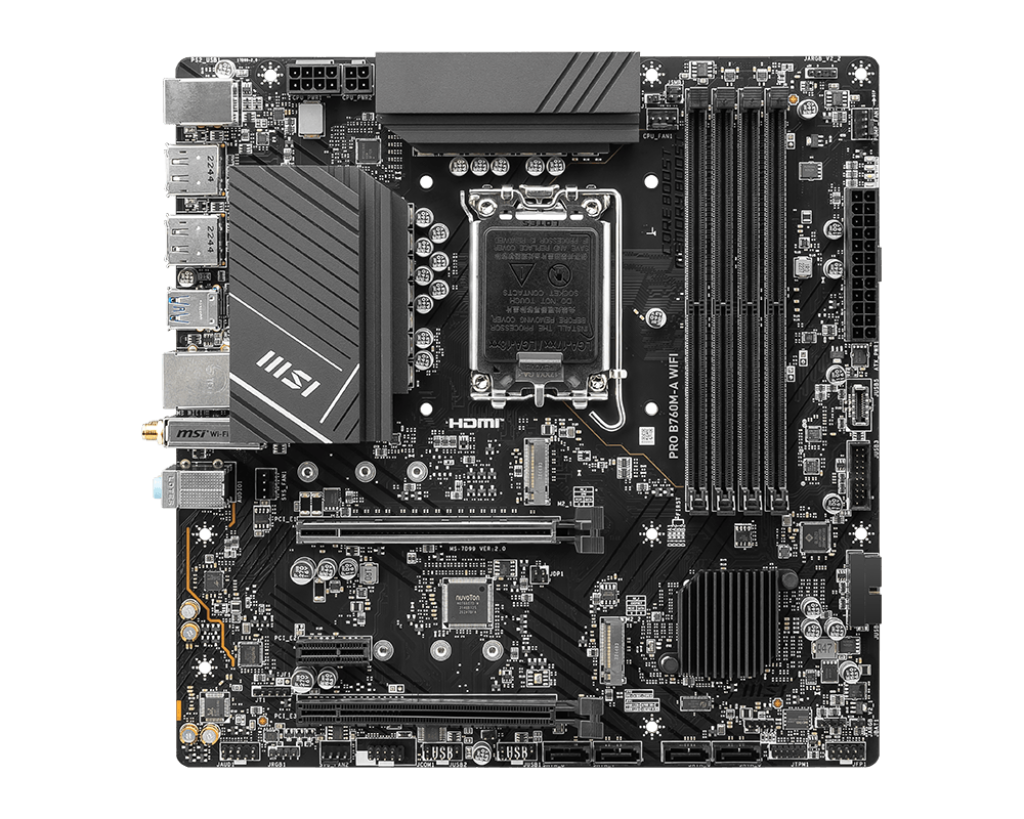

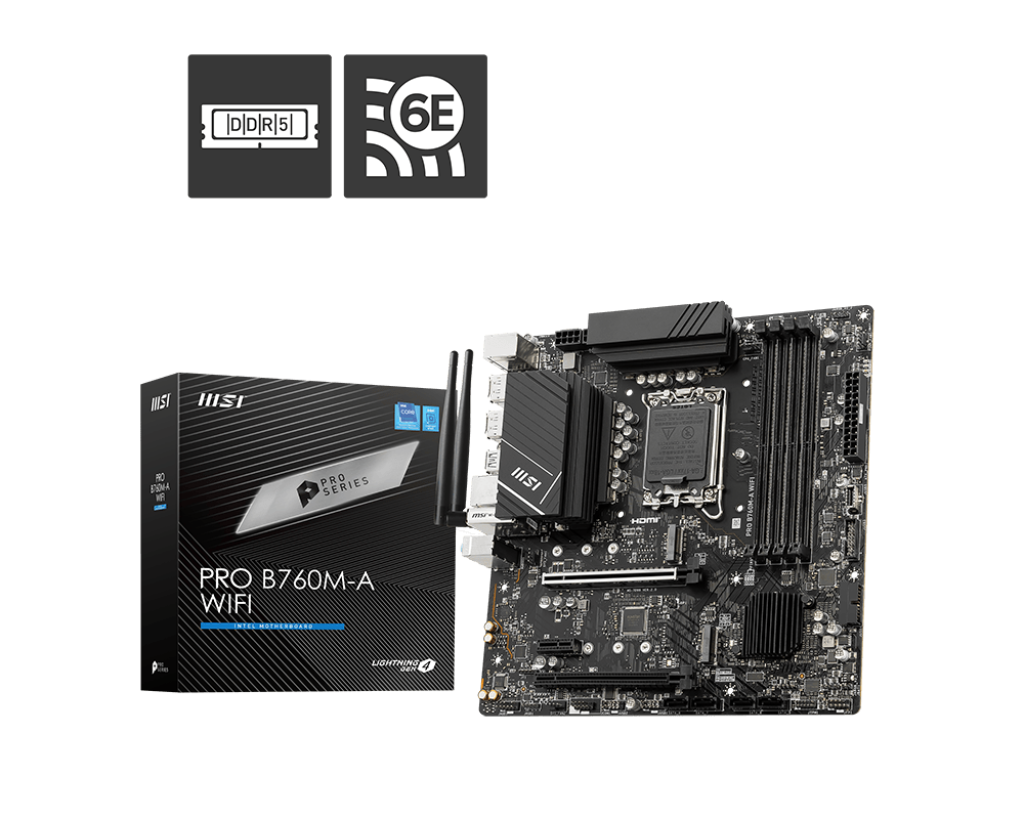

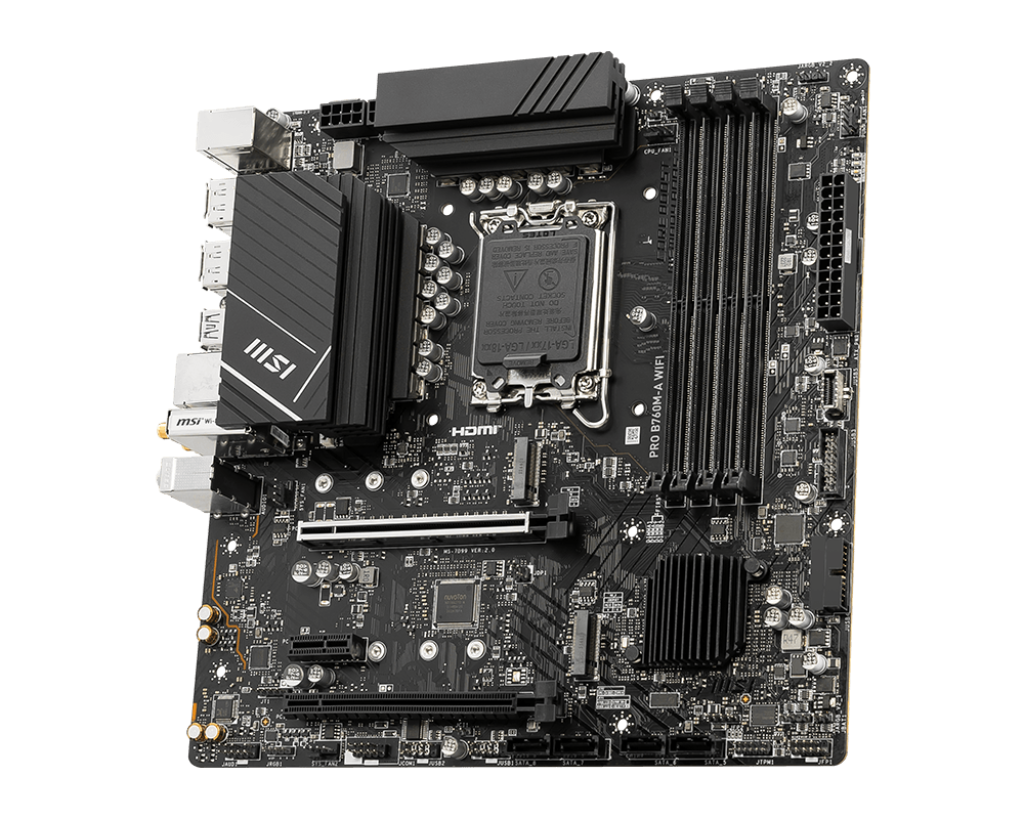

MSI B760M-A PRO WIFI DDR5 INTEL LGA1700 MOTHERBOARD

Platform: Intel LGA1700 (12th‑13th‑14th Gen, Pentium Gold, Celeron)
Chipset: B760
Graphics: 2 HDMI, 2 DisplayPort

Memory: Supports up to 256 GB DDR5 at 6800+ MT/s, dual‑channel, Intel XMP 3.0, non‑ECC

Platform	INTEL
Socket	LGA1700
CPU Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	B760
Memory Speed	up to 6800+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Graphics Port	2x HDMI, 2x DisplayPort
Expansion Slots	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Wireless Networking	WiFi 6E,Bluetooth 5.3

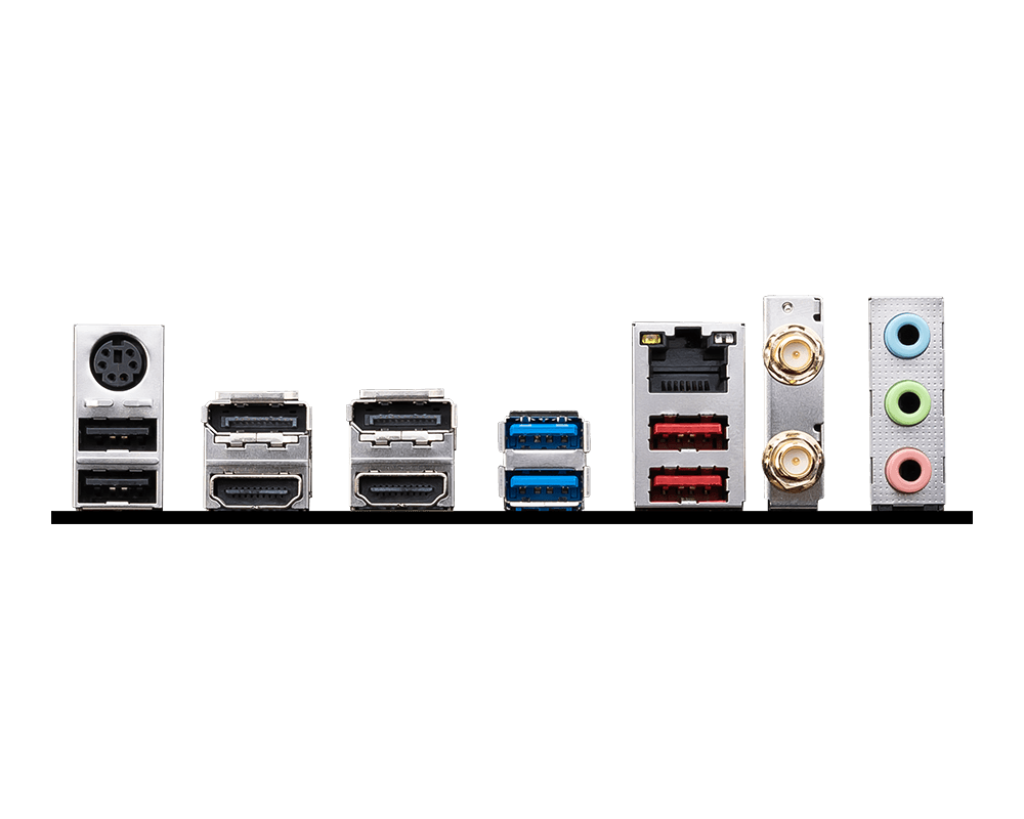

Back Panel I/O Ports	Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI USB 3.2 Gen 2 10Gbps (Type-A)
Internal I/O Connector	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
Form Factor	Micro-ATX
Warranty	3 Years

Supports Intel 14th, 13th, 12th Gen, Pentium Gold & Celeron LGA1700 processors
Intel B760 chipset with DDR5 memory support up to 6800+ MT/s and max 256 GB (dual‑channel)
Integrated Wi‑Fi 6E and Bluetooth 5.3 plus 2.5 Gbps LAN for fast networking
Versatile graphics output: 2× HDMI and 2× DisplayPort
Expansion: PCIe 4.0 x16 (CPU), PCIe 4.0 x4 (chipset), PCIe 3.0 x1 (chipset) slots
Rich USB connectivity: USB 3.2 Gen 2 10 Gbps Type‑A, USB 3.2 Gen 1 5 Gbps Type‑A, USB 3.2 Gen 1 5 Gbps Type‑C
Micro‑ATX form factor with a 3‑year warranty

SKU: 1084570 Category: Motherboard

Platform	INTEL
Socket	LGA1700
CPU Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	B760
Memory Speed	up to 6800+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Graphics Port	2x HDMI, 2x DisplayPort
Expansion Slots	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Wireless Networking	WiFi 6E,Bluetooth 5.3
Back Panel I/O Ports	Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI USB 3.2 Gen 2 10Gbps (Type-A)
Internal I/O Connector	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
Form Factor	Micro-ATX
Warranty	3 Years
