Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B850 |
| Memory Speed | up to 8200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Website |
| Graphics Port | 1 x HDMI,1x DisplayPort |
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

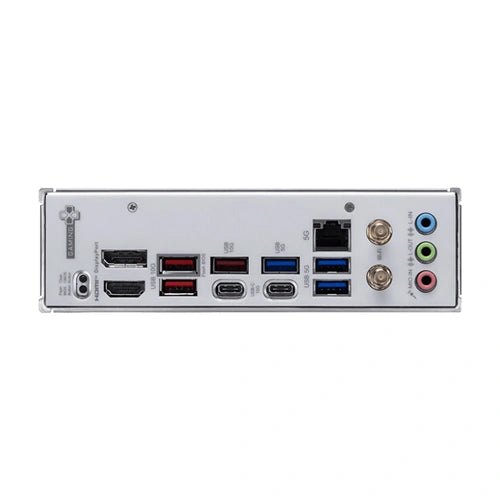

| Back Panel I/O Ports | Clear CMOS Button DisplayPort 1.4 USB 10Gbps (Type-A) USB 5Gbps (Type-A) 5G LAN Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 5Gbps (Type-A) |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Key Features
- AM5 Socket: Supports AMD Ryzen 9000, 8000 and 7000 series processors
- B850 Chipset & DDR5: DDR5 memory up to 8200+ MT/s, max 256 GB (dual‑channel)
- PCIe Expansion: One PCIe 5.0 x16 slot (CPU‑linked) plus PCIe 4.0 x4 and PCIe 3.0 x1 slots
- Wireless Connectivity: Wi‑Fi 7 and Bluetooth 5.4 built‑in
- Versatile I/O: HDMI, DisplayPort 1.4, USB 10Gbps (Type‑A & Type‑C), USB 5Gbps, 2.5 G LAN
- Micro‑ATX Layout: Comprehensive fan headers (CPU, combo, 3× system) and RGB/addressable LED connectors
- Reliability & Convenience: 3‑year warranty, Flash BIOS button and Clear CMOS button
