MSI B860I MPG EDGE TI WIFI LGA1851 MINI-ITX MOTHERBOARD

Platform: Intel
Socket: LGA1851
CPU Type: Core Ultra
Chipset: B860

Memory: DDR5, Dual Channel, up to 8600+, max 128 GB

Graphics Port: 1x HDMI, 1x Type-C DisplayPort

Platform	INTEL
Socket	LGA1851
CPU Type	Core Ultra
Chipset	B860
Memory Speed	up to 8600+
Max Memory Support	128 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM The DIMM slots on this motherboard have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Website.
Graphics Port	1x HDMI,1x Type-C DisplayPort
Expansion Slots	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Wireless Networking	WiFi 7,Bluetooth 5.4

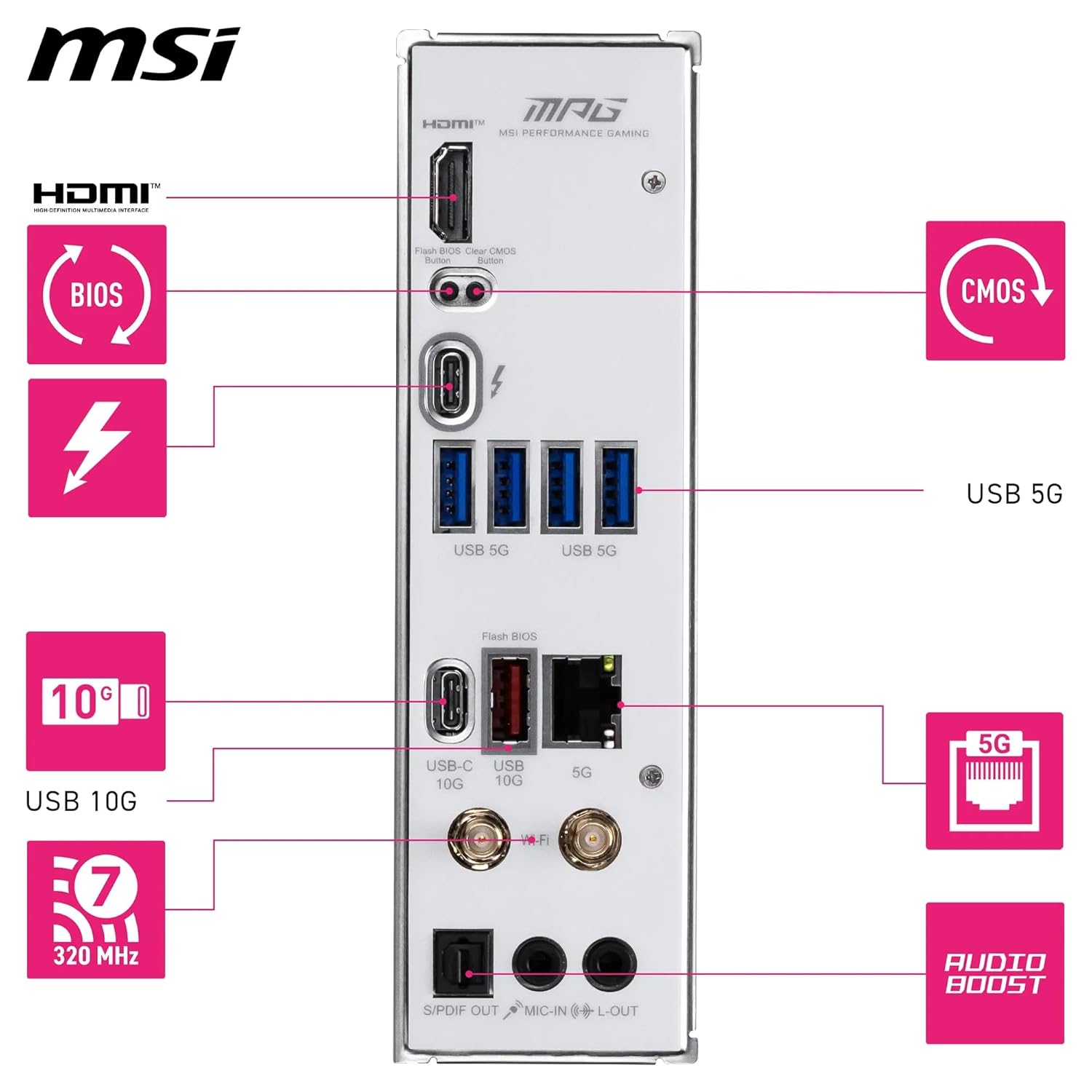

Back Panel I/O Ports	Clear CMOS Button USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI Flash BIOS Button Thunderbolt 4 USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF Out
Internal I/O Connector	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Form Factor	Mini-ITX
Warranty	3 Years

Socket & Chipset: LGA1851 socket with Intel B860 chipset, supporting Core Ultra processors.
Memory: DDR5 support up to 8600+ MT/s, max 128 GB (dual‑channel), XMP 3.0 & overclocking, CUDIMM ready.
Expansion Slot: One PCIe 5.0 x16 slot (CPU‑linked) for latest GPUs and storage.
Wireless: Wi‑Fi 7 and Bluetooth 5.4 for high‑speed wireless connectivity.
Thunderbolt & USB: Thunderbolt 4 (USB 10Gbps Type‑C) plus additional USB 10Gbps Type‑C, USB 10Gbps Type‑A, USB 5Gbps Type‑A, and USB 2.0 ports.
Video Output: HDMI and USB‑Type‑C DisplayPort for flexible display options.
Form Factor & Warranty: Mini‑ITX design backed by a 3‑year warranty.

SKU: 1095321 Category: Motherboard

Platform	INTEL
Socket	LGA1851
CPU Type	Core Ultra
Chipset	B860
Memory Speed	up to 8600+
Max Memory Support	128 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM The DIMM slots on this motherboard have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Website.
Graphics Port	1x HDMI,1x Type-C DisplayPort
Expansion Slots	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Wireless Networking	WiFi 7,Bluetooth 5.4
Back Panel I/O Ports	Clear CMOS Button USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI Flash BIOS Button Thunderbolt 4 USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF Out
Internal I/O Connector	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Form Factor	Mini-ITX
Warranty	3 Years
