Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Chipset | B860 |
| Memory Speed | up to 8800+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page Brand Website |
| Graphics Port | 1x HDMI,1x DisplayPort,1x Type-C DisplayPort |
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

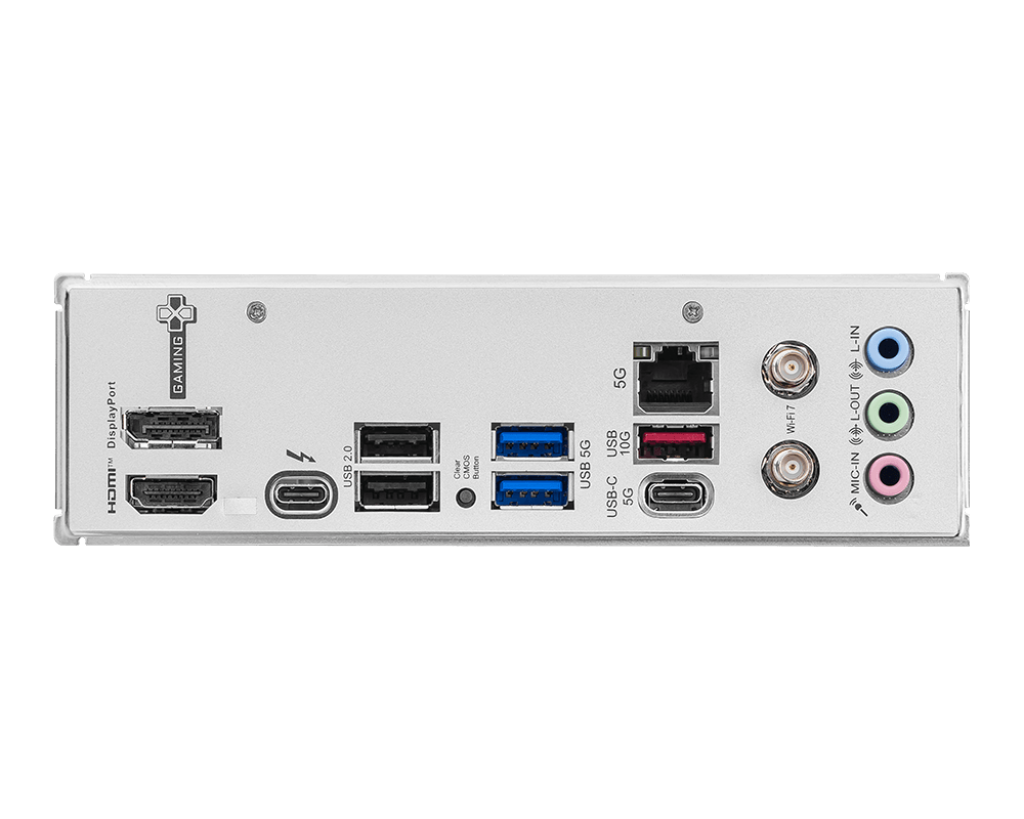

| Back Panel I/O Ports | Display Port Clear CMOS Button 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 2.0 USB 5Gbps (Type-A) USB 5Gbps (Type-C) USB 10Gbps (Type-A) |
| Internal I/O Connector | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Key Features
- Socket LGA1851 – Supports Intel Core Ultra processors
- Intel B860 Chipset – Optimized for latest Intel platforms
- DDR5 Memory – Up to 8800+ MT/s, 256 GB max (dual‑channel)
- Wi‑Fi 7 & Bluetooth 5.4 – High‑speed wireless connectivity
- Thunderbolt 4 (40 Gbps) Type‑C – Fast data transfer and display
- PCIe 5.0 x16 Slot – Full bandwidth for next‑gen GPUs/storage
- Micro‑ATX Form Factor – Compact size fits smaller builds
- 3‑Year Warranty – Peace of mind
