Specifications

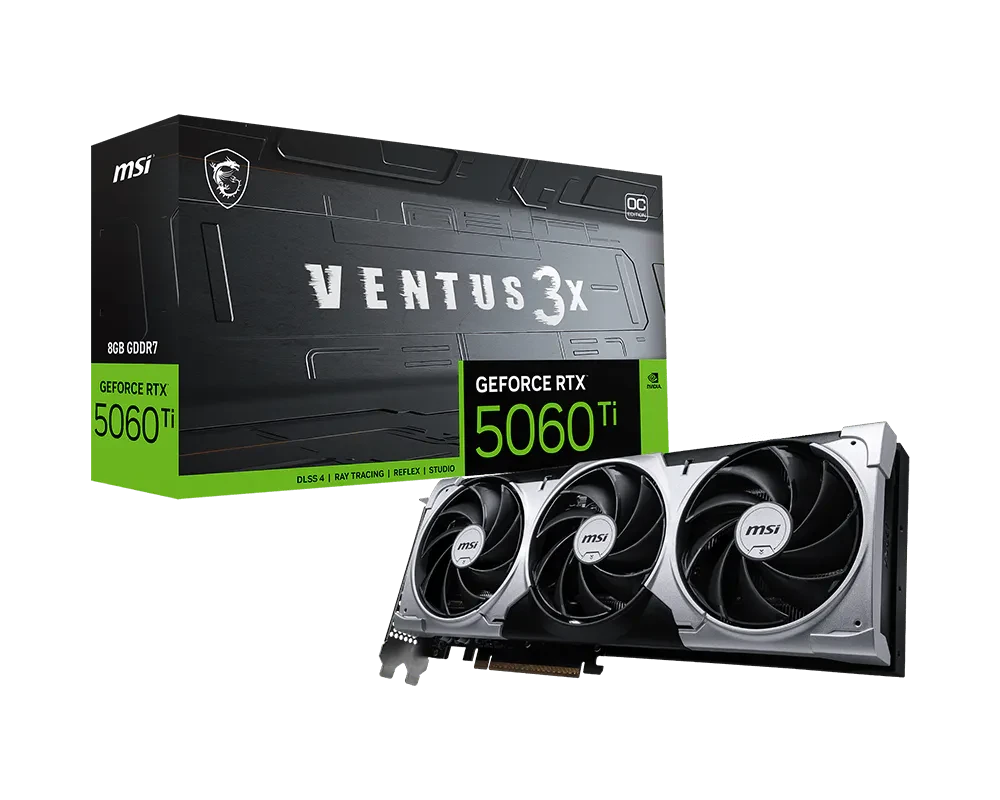

| M arketing Name | G eForce RTX™ 5060 Ti 8G VENTUS 3X OC |
| M emory | 8GB GDDR7 |

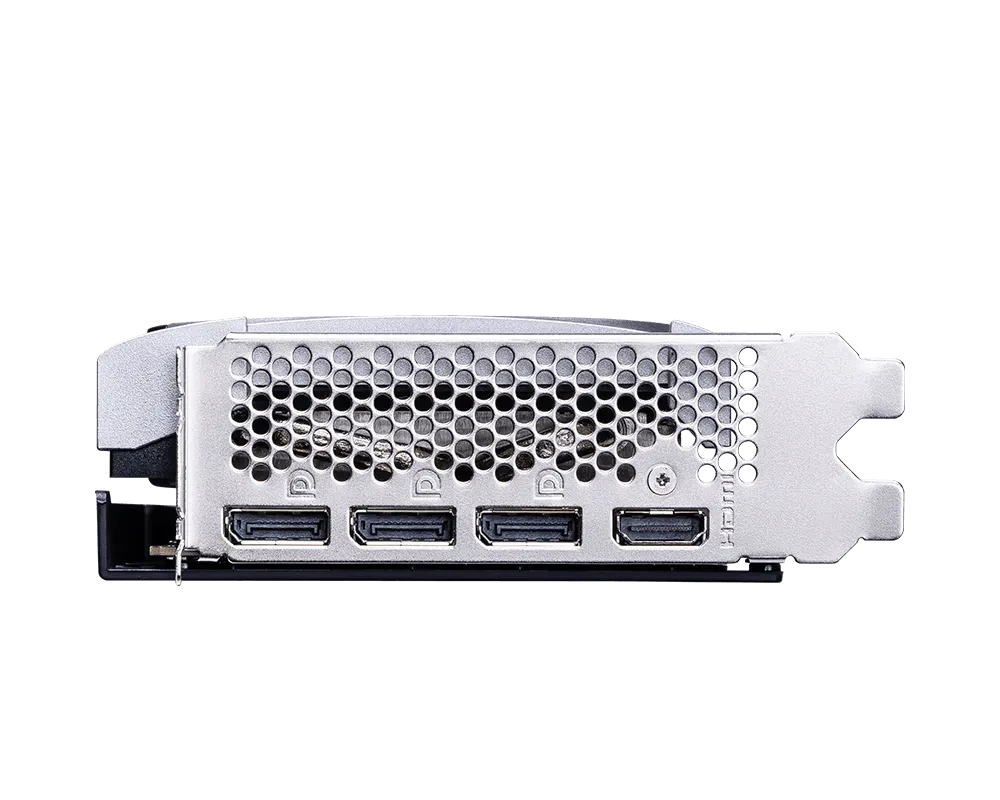

| O utput | D isplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| I nterface | P CI Express® Gen 5 x16 (uses x8) |
| C ore Clock Speed (MHz) | E xtreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
| M emory Interface | 1 28-bit |
| M emory Clock Speed (MHz) | 2 8 Gbps |
| M aximum Displays | 4 |
| O penGL Version Support | 4.6 |
| D irectX Version Support | 1 2 Ultimate |
| P ower consumption (W) | 1 80 W |
| R ecommended PSU (W) | 6 00 W |
| P ower Connectors | 8 -pin x 1 |
| C ard Dimension(mm) | 3 04 x 121 x 44 mm |
Key Features
- 8GB GDDR7 Memory with 28 Gbps memory clock for high bandwidth.
- Boost Clock up to 2617 MHz (Extreme Performance) for fast gaming performance.
- PCI Express® Gen 5 x16 interface (operates at x8) for future‑proof bandwidth.
- Triple DisplayPort 2.1b + HDMI 2.1b outputs supporting up to 4K 480Hz or 8K 120Hz with DSC.
- Supports up to 4 simultaneous displays for multi‑monitor setups.
- Efficient 180 W power draw with a single 8‑pin power connector; recommends 600 W PSU.
- Compact dimensions: 304 mm × 121 mm × 44 mm, fitting most small‑form‑factor builds.
