Specifications
| Marketing Name | GeForce RTX™ 5070 Ti 16G MLG EDITION OC |
| Model Name | G507T-16MEC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 Ti |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2580 MHz (MSI Center) / Boost: 2572 MHz (GAMING & SILENT Mode) |
| CUDA® Cores | 8960 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |

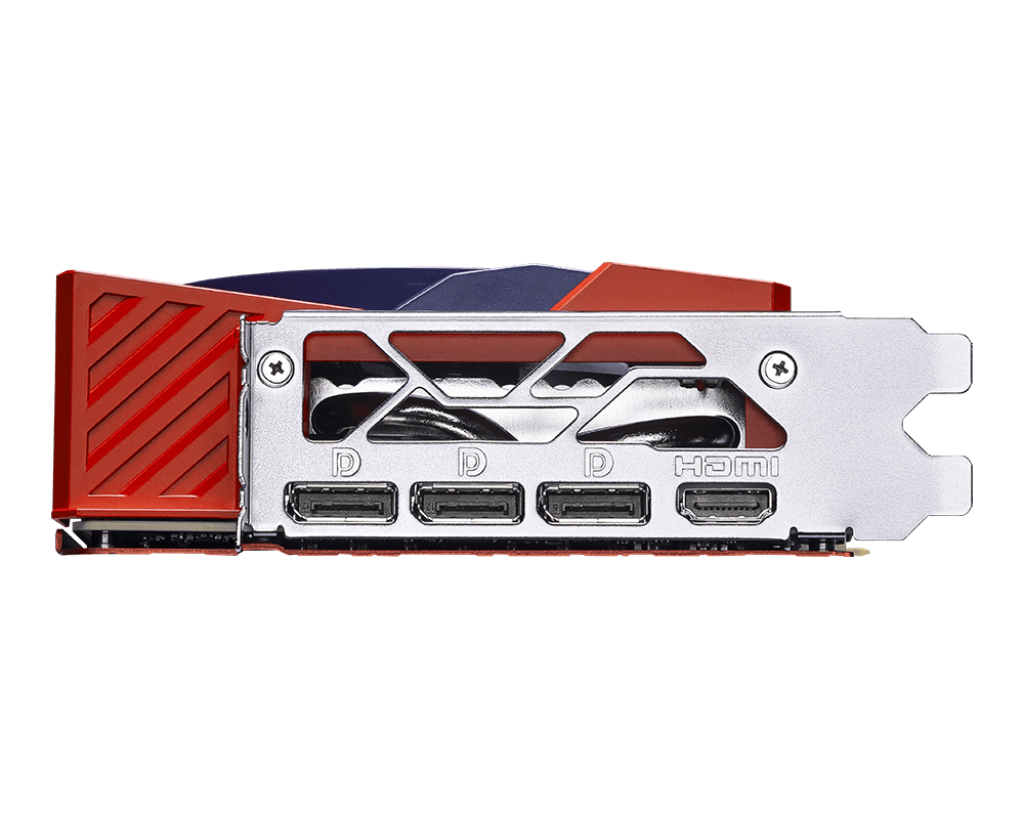

| Output | DisplayPort x 3 (v2.1b), HDMI™ x 1 (HDMI 2.1b: up to 4K 480Hz / 8K 120Hz with DSC, VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 300 W |
| Power Connectors | 16-pin x 1 (ATX 3.1 PSU recommended) |
| Recommended PSU | 750 W |
| Card Dimensions (mm) | 338 x 140 x 50 mm |
| Weight (Card / Package) | 1282 g / 2100 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
Key Features
- GPU: NVIDIA® GeForce RTX™ 5070 Ti with 8960 CUDA® cores
- Clock Speeds: Extreme Performance up to 2580 MHz (MSI Center) / Boost 2572 MHz (Gaming & Silent)
- Memory: 16 GB GDDR7, 28 Gbps speed, 256‑bit bus
- Interface: PCI Express® Gen 5 x16
- Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b (up to 8K 120Hz / 4K 480Hz with DSC, VRR, HDR)
- Power: 300 W TDP, 1× 16‑pin power connector, recommended 750 W PSU
- Additional: G‑SYNC® compatible, DirectX 12 Ultimate, OpenGL 4.6, max resolution 7680×4320
