Specifications
| Socket | 1200 |
| Chipset | Intel H510 Chipset |
| Memory Channel | Dual |
| DIMM Slots | 2 |
| Max Memory (GB) | 64 |
| PCI-E x16 | 1 |
| PCI-E Gen | Gen4 |
| PCI-E x1 | 1 |
| SATAIII | 4 |
| M.2 Slot | 2 |
| TPM (header) | 1 |
| USB 3.2 ports (Front) | 2 (Gen 1, Type A) |
| USB 3.2 ports (Rear) | 2 (Gen 1, Type A) |
| USB 2.0 ports (Front) | 2 |
| USB 2.0 ports (Rear) | 4 |
| Serial ports (Front) | 1 |
| Audio ports (Rear) | Realtek ALC892 / ALC897 Codec |
| VGA | 1 |
| HDMI | 1 |
| DirectX | 12 |
| CPU Support | Support for Windows 10 64-bit |
| Form Factor | Micro-ATX |
Key Features
- Socket: LGA 1200
- Chipset: Intel H510
- Memory: Dual-channel support, 2 DIMM slots, up to 64 GB
- Expansion: 1 PCIe x16 (Gen4) + 1 PCIe x1 slot
- Storage: 2 M.2 slots + 4 SATA III ports

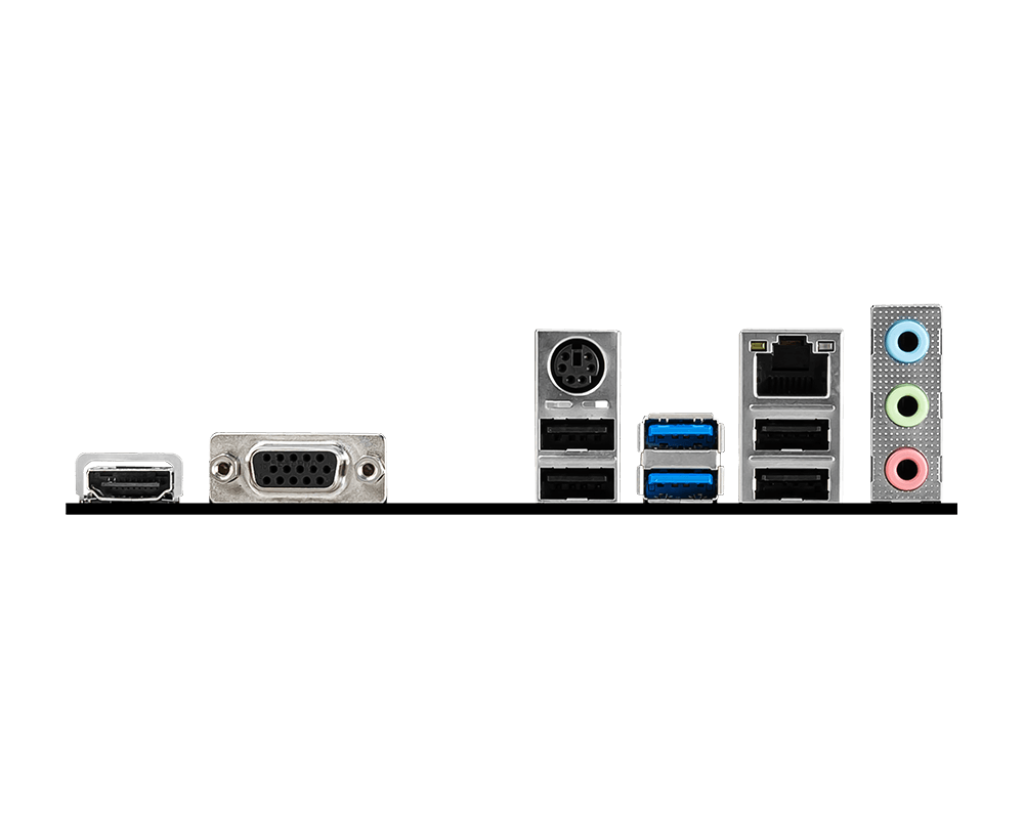

- Connectivity: HDMI & VGA outputs, USB 3.2 Gen1 (2 front, 2 rear), USB 2.0 (2 front, 4 rear), Realtek ALC892/ALC897 audio, TPM header
- Form Factor: Micro-ATX
