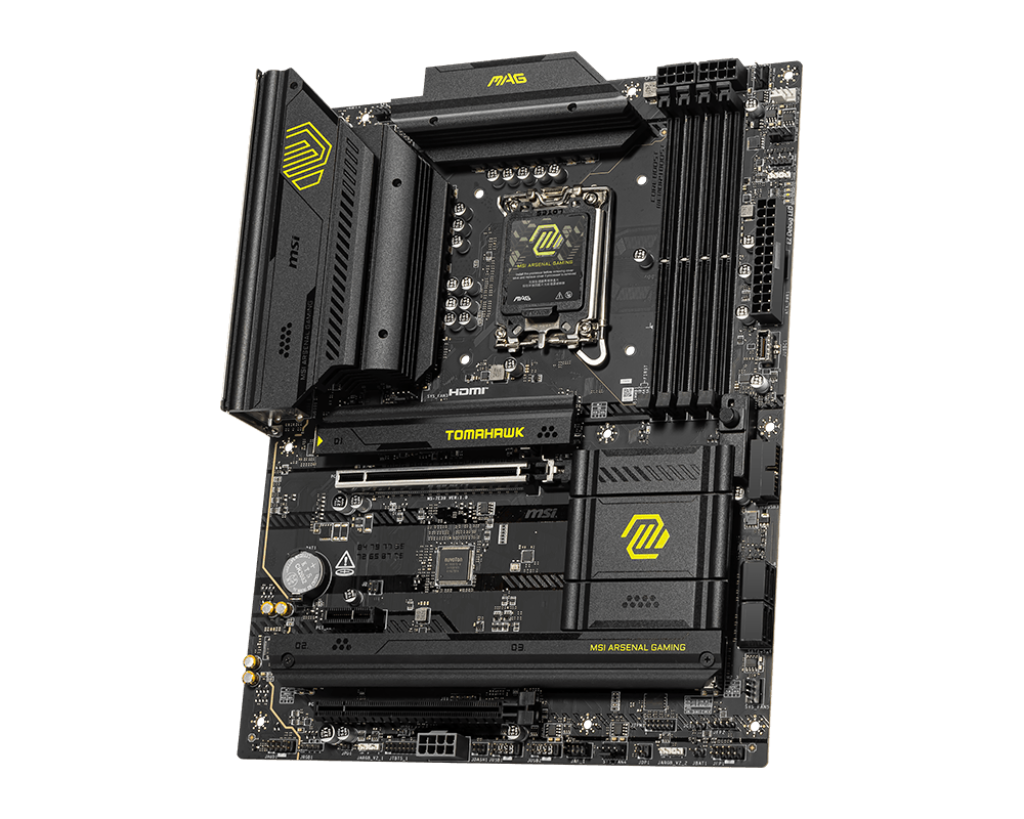

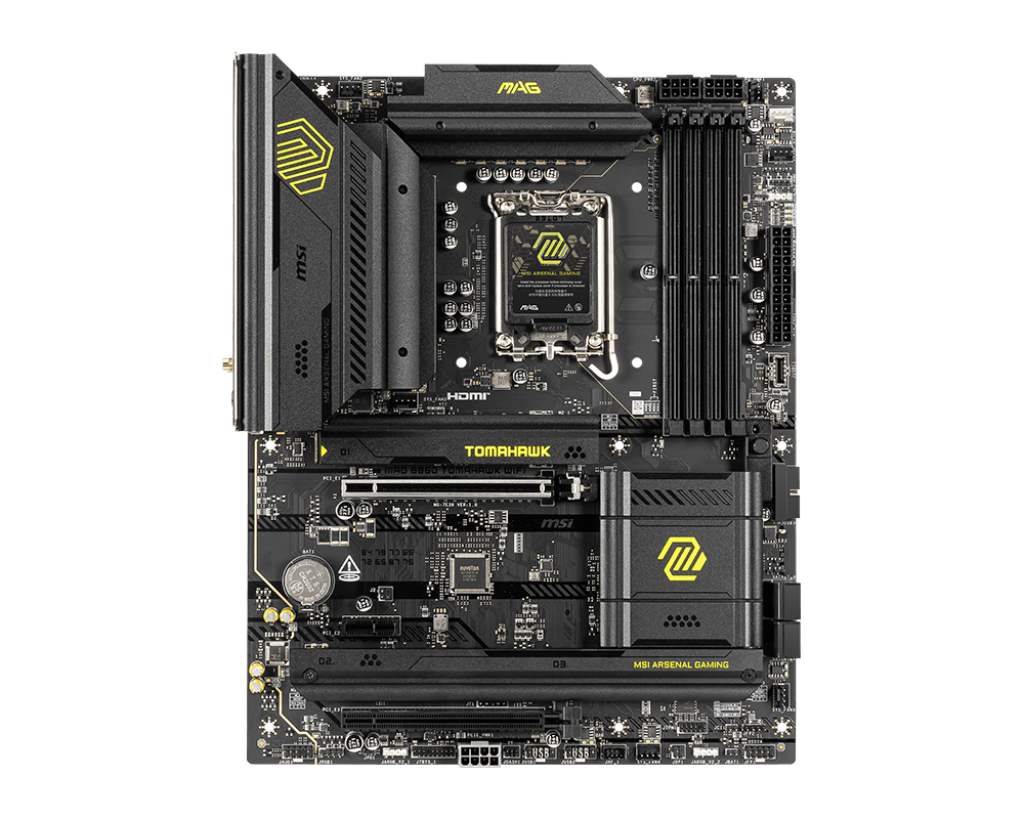

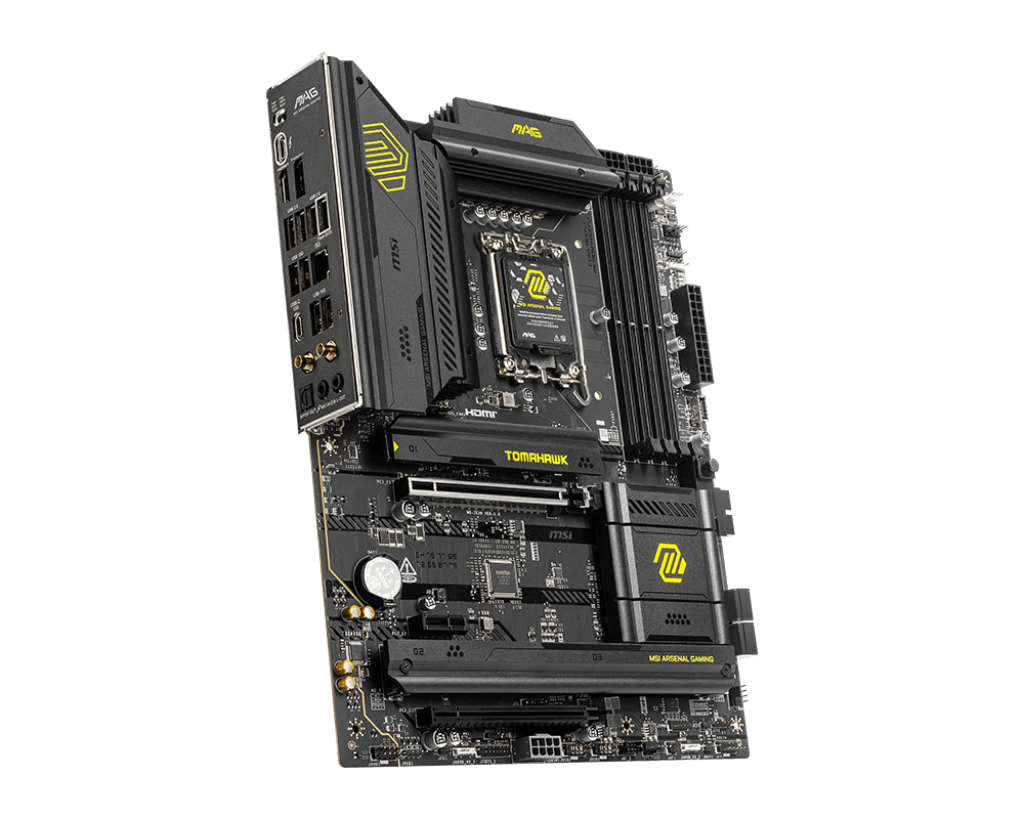

MSI MAG B860 TOMAHAWK WIFI MOTHERBOARD

Compare

Platform: INTEL
Socket: LGA1851
CPU Type: Core Ultra
Chipset: B860
Memory Speed: up to 9200+
Max Memory Support: 256 GB
Supported Memory Type: DDR5
Channel Supported: Dual Channel
Memory Feature: Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; DIMM slots have single-sided latches; Memory compatibility and supported speeds can vary depending on CPU and memory configuration – refer to the Memory Compatibility List on the product’s Support page.
Graphics Port: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort

Specifications

Platform	INTEL
Socket	LGA1851
CPU Type	Core Ultra
Chipset	B860
Memory Speed	up to 9200+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand website.
Graphics Port	1x HDMI,1x DisplayPort,1x Type-C DisplayPort
Expansion Slots	2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) *PCI_E3 slot will run at x2 speed when installing PCIe device in PCI_E2 slot.
Wireless Networking	WiFi 7,Bluetooth 5.4

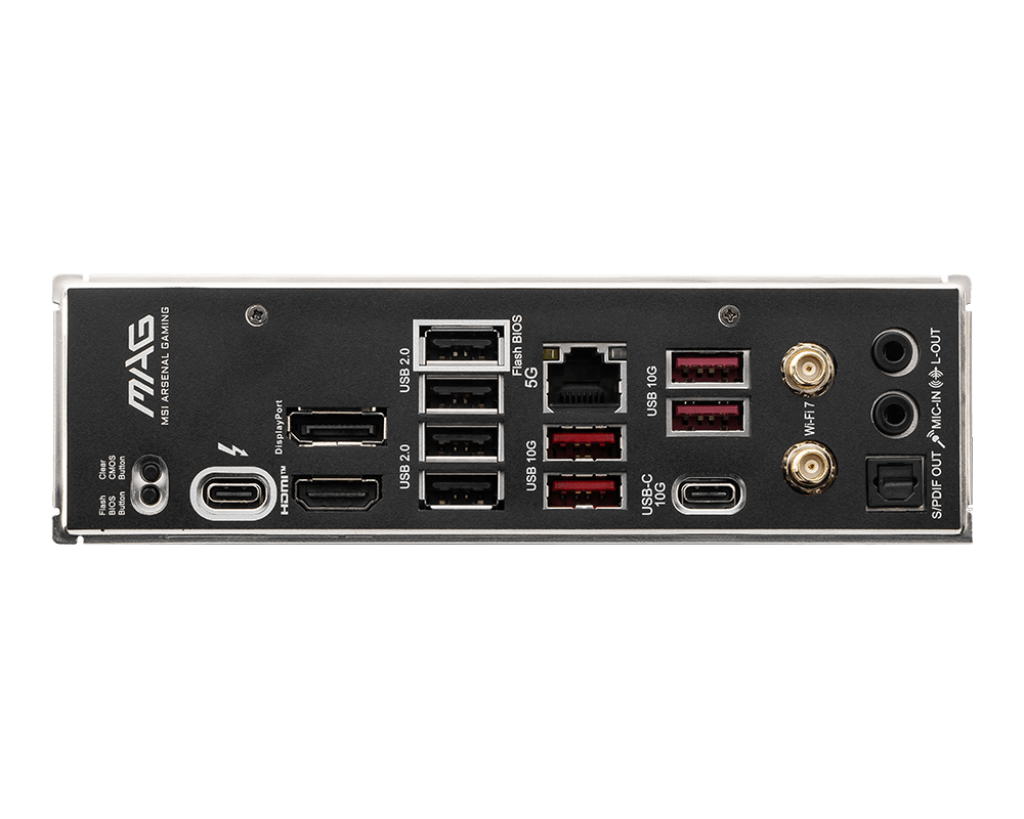

Back Panel I/O Ports	Clear CMOS Button DisplayPort USB 2.0 (Flash BIOS Port) 5G LAN USB 10Gbps Type-A Audio Connectors Flash BIOS Button Thunderbolt™ 4 40Gbps (Type-C) HDMI™ USB 2.0 USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth S/PDIF-OUT
Internal I/O Connector	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Form Factor	ATX
Warranty	3 Years

Key Features

Socket & CPU Support: Intel LGA1851 socket for latest Core Ultra processors.
Memory: DDR5 support up to 9200+ MT/s, max 256 GB, dual‑channel, XMP 3.0 and memory overclocking.
PCIe Expansion: One PCIe 5.0 x16 slot (CPU), one PCIe 4.0 x4 slot (chipset) plus a PCIe x1 slot for versatile GPU/storage configurations.
Wireless: Wi‑Fi 7 and Bluetooth 5.4 for high‑speed, low‑latency connectivity.
I/O Panel: Thunderbolt 4 40Gbps (Type‑C), 5G LAN, USB 10Gbps Type‑A/C, HDMI, DisplayPort, USB‑C DisplayPort, and audio connectors.
Form Factor & Warranty: ATX layout with a 3‑year manufacturer warranty.

SKU: 1092095 Category: Motherboard
