Specifications
| Model | MEG Z790 GODLIKE |
| Chipset | INTEL Z790 |
| CPU Support | Supports 12th/13th Gen Intelà Coreô Processors, Pentiumà Gold and Celeronà Processors |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Onboard Thunderbolt | Thunderbolt chip JHL8540 |
| Expansion Slot | 2x PCI-E x16 slot |
| Multi-GPU | Supports AMD MULTI-GPU |
| Storage | 7x M.2 slot |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Front) |
| LAN | Marvellà AQC113CS-B1-C 10Gbps LAN |
| Wireless / Bluetooth | Intelà Wi-Fi 6E |
| Audio | Realtekà ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| LED Feature | 1x EZ LED Control switch |

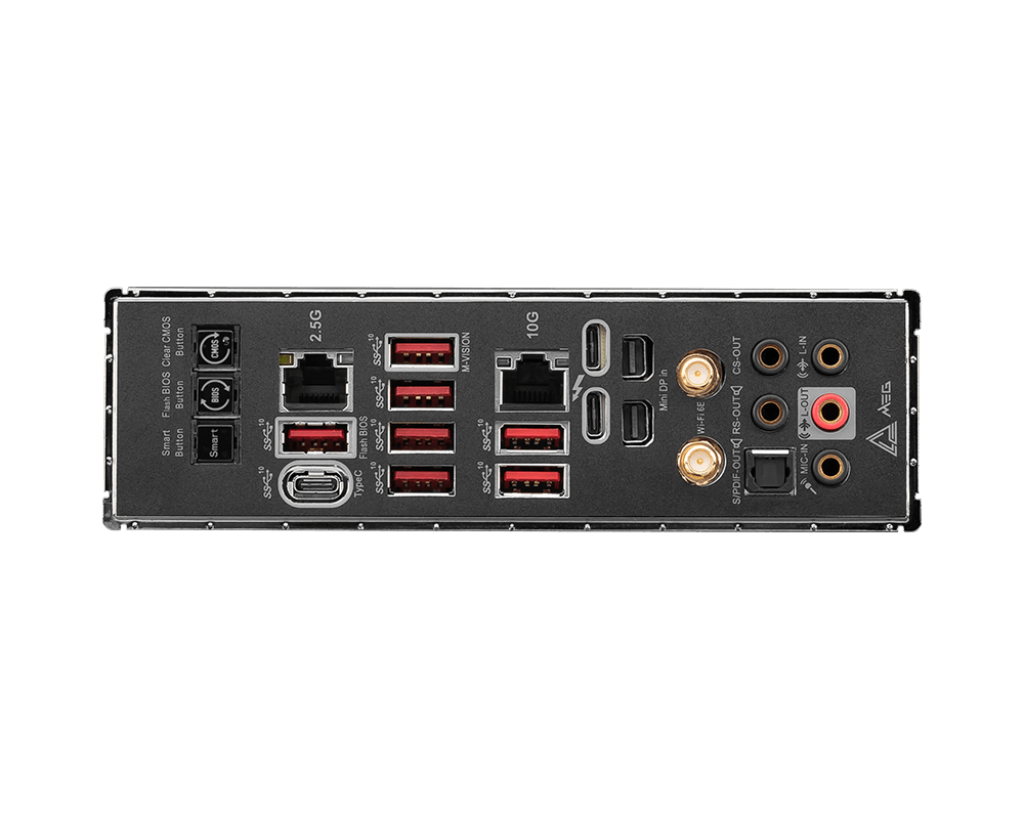

| Back Panel Ports | Clear CMOS Button |
| Operating System | Support for Windowsà 11 64-bit, Windowsà 10 64-bit |
| PCB Dimension | E-ATX |
| Warranty | 3 Years |
Key Features
- Intel Z790 Chipset – Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors
- DDR5 Memory – 4× UDIMM slots, up to 128 GB capacity
- Extensive Storage – 7× M.2 slots with RAID 0, 1, 5 and 10 support for SATA devices
- On‑board Thunderbolt – JHL8540 Thunderbolt controller
- High‑Speed Networking – Marvell AQC113CS‑B1‑C 10 Gbps LAN + Intel Wi‑Fi 6E
- Premium Audio – Realtek ALC4082 codec + ESS ES9280AQ DAC/HPA combo
- Robust Expansion & Warranty – 2× PCI‑e x16 slots, AMD Multi‑GPU support, E‑ATX form factor, 3‑year warranty
