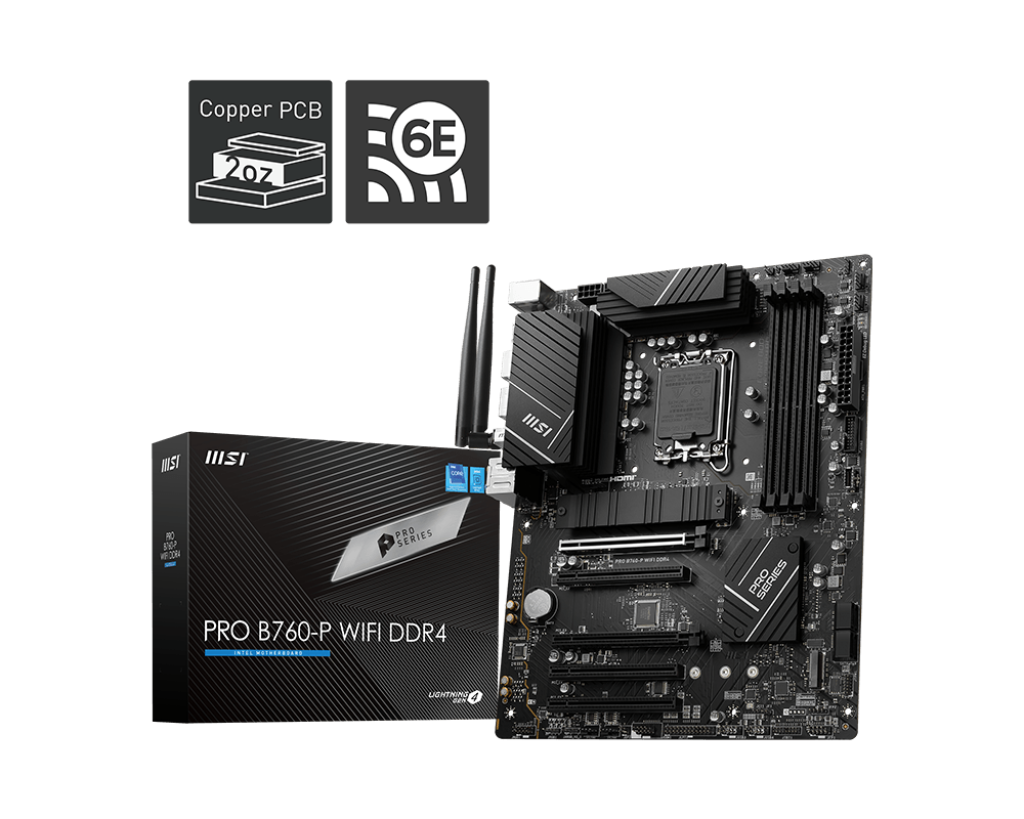

MSI PRO B760-P WIFI DDR4 MOTHERBOARD

MSI PRO B760-P WIFI DDR4 MOTHERBOARD

Compare

Chipset: Intel B760; supports Intel LGA 1700 12th‑, 13th‑ and 14th‑Gen Core, Pentium Gold and Celeron processors.

Memory: Four DDR4 slots, up to 128 GB, dual‑channel, non‑ECC, XMP, frequencies up to 5333 MHz (OC) and JEDEC down to 2133 MHz.

Graphics: HDMI 2.1 and DisplayPort 1.4 (4K 60 Hz, CPU dependent); PCI‑E slots: one × PCIe 4.0 x16, one × PCIe 4.0 x4, three × PCIe 3.0 x1; Audio: Realtek ALC897 7.1‑channel with S/PDIF; Storage: two M.2 (PCIe 4.0) and four SATA 6 Gb/s ports, RAID 0/1/5/10 supported.

USB: Four USB 2.0 rear, four USB 2.0 front, two USB 3.2 Gen 1 × A front, one USB 3.2 Gen 1 × C front, two USB 3.2 Gen 2 × A rear, one USB 3.2 Gen 2 × C rear; LAN: Realtek RTL8125BG 2.5 GbE.

Specifications

Chipset INTEL B760
CPU Support Intel Core„ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Memory 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: € 1DPC 1R Max speed up to 5333+ MHz € 1DPC 2R Max speed up to 4800+ MHz € 2DPC 1R Max speed up to 4400+ MHz € 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics 1x HDMI„ Support HDMI„ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
LAN Realtek RTL8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country€™s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI„ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info ATX 243.84mmx304.8mm
Warranty 3 Years

Key Features

  • Intel B760 Chipset & LGA 1700 Support – Compatible with 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors.
  • DDR4 Memory Capacity & Speed – Four DIMM slots for up to 128 GB DDR4, overclockable to 5333 MHz (single‑rank) and 4800 MHz (dual‑rank) with XMP support.
  • Dual PCIe 4.0 M.2 Slots – One CPU‑linked M.2 slot and one chipset‑linked slot, both supporting PCIe 4.0 x4 for high‑speed NVMe SSDs.
  • High‑Speed Connectivity – 2.5 Gb Ethernet (Realtek RTL8125BG), Intel Wi‑Fi 6E (up to 2.4 Gbps) with Bluetooth 5.3, plus USB 3.2 Gen 2 10 Gbps Type‑A and Type‑C ports.
  • Comprehensive USB Layout – Front: 4 × USB 2.0, 2 × USB 5 Gbps Type‑A, 1 × USB 5 Gbps Type‑C; Rear: 2 × USB 10 Gbps Type‑A, 1 × USB 10 Gbps Type‑C, 4 × USB 2.0.
  • Realtek ALC897 7.1‑Channel Audio with S/PDIF output for high‑definition sound.
  • Reliability & Warranty – ATX form factor with 4 × EZ Debug LEDs for troubleshooting and a 3‑year manufacturer warranty.
SKU: MSI-010 Category:
Chipset INTEL B760
CPU Support Intel Core„ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Memory 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: € 1DPC 1R Max speed up to 5333+ MHz € 1DPC 2R Max speed up to 4800+ MHz € 2DPC 1R Max speed up to 4400+ MHz € 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics 1x HDMI„ Support HDMI„ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
LAN Realtek RTL8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country€™s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI„ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info ATX 243.84mmx304.8mm
Warranty 3 Years
