Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen, Pentium, Celeron |
| Chipset | H610 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports non-ECC, un-buffered memory |
| Graphics Port | 1x HDMI |
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |

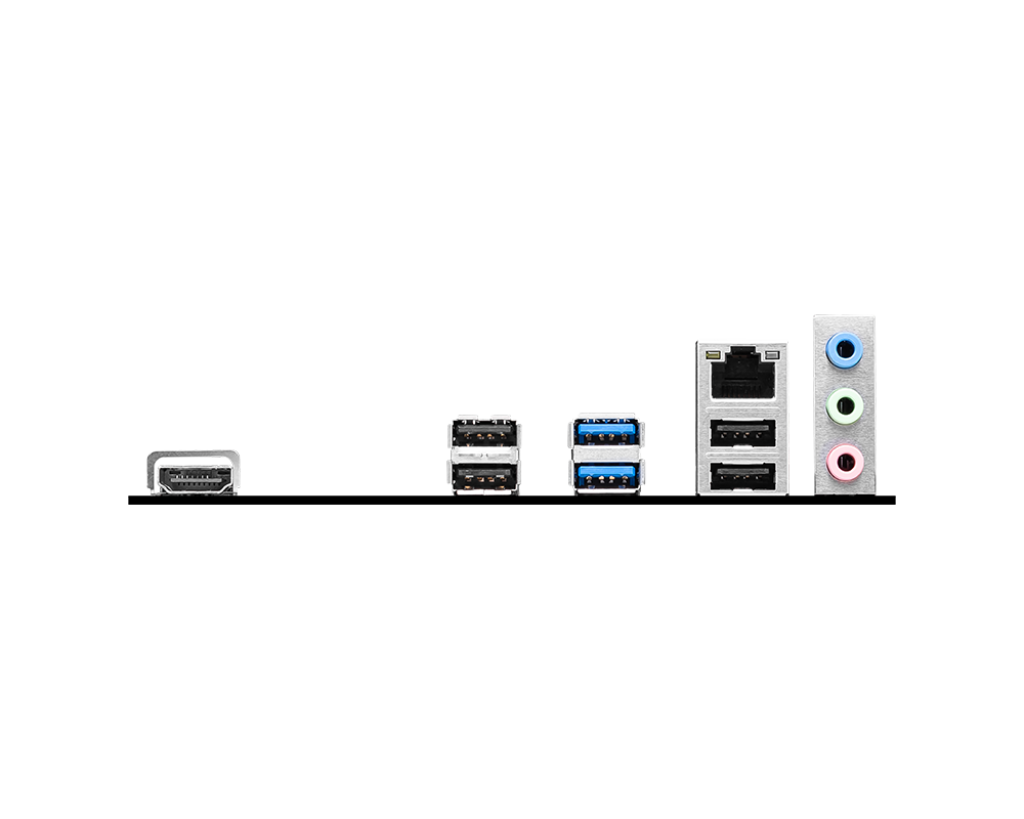

| Back Panel I/O Ports | HDMI USB 2.0 USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Key Features
- Socket LGA1700 – Supports 14th, 13th, 12th Gen Intel Core, Pentium & Celeron processors
- Intel H610 Chipset – Reliable platform for everyday computing
- DDR4 Memory – Up to 3200 MHz, 2 × DIMM slots, max 64 GB, dual‑channel, non‑ECC un‑buffered
- Expansion Slots – 1× PCIe x16 (CPU‑linked, PCIe 4.0 x16) + 1× PCIe x1 (chipset‑linked, PCIe 3.0 x1)
- Integrated Graphics & Rear I/O – HDMI output, USB 5Gbps Type‑A, USB 2.0 ports, Gigabit LAN, audio connectors
- Internal Connectivity – CPU & system fan headers, front‑panel, chassis intrusion, COM port, TPM 2.0 header, 4× USB 2.0 internal
- Micro‑ATX Form Factor & Warranty – Compact 24.4 × 24.4 cm board with a 3‑year manufacturer warranty
