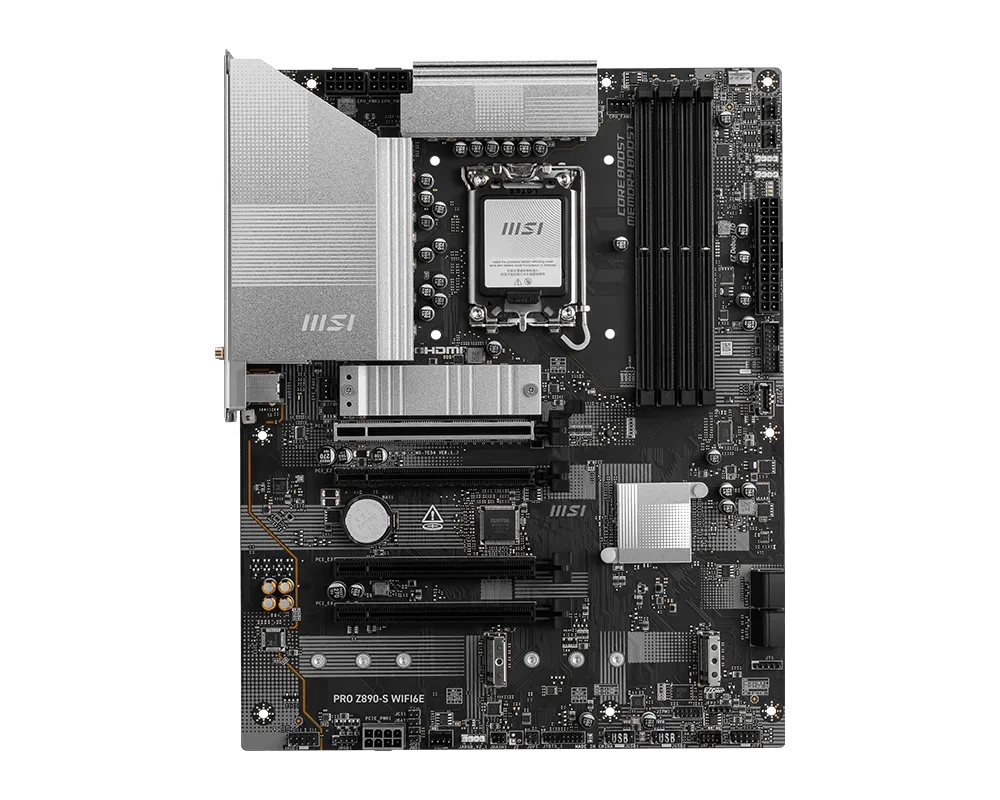

MSI PRO Z890-S WIFI6E MOTHERBOARD

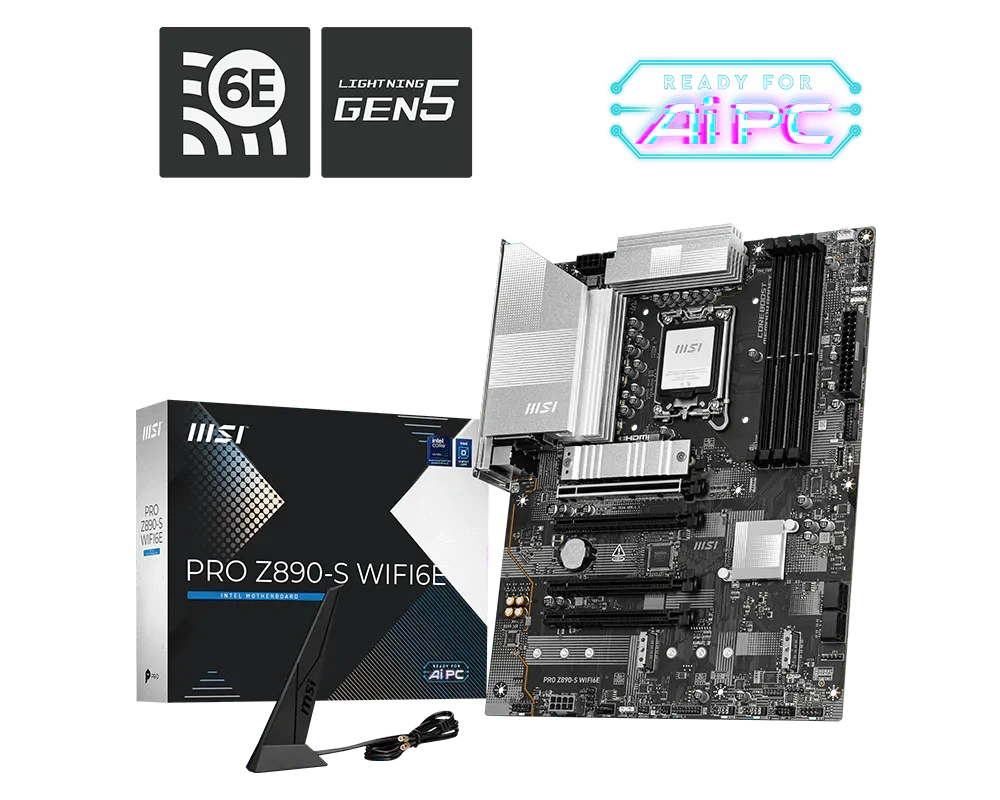

MSI PRO Z890-S WIFI6E MOTHERBOARD - Image 2

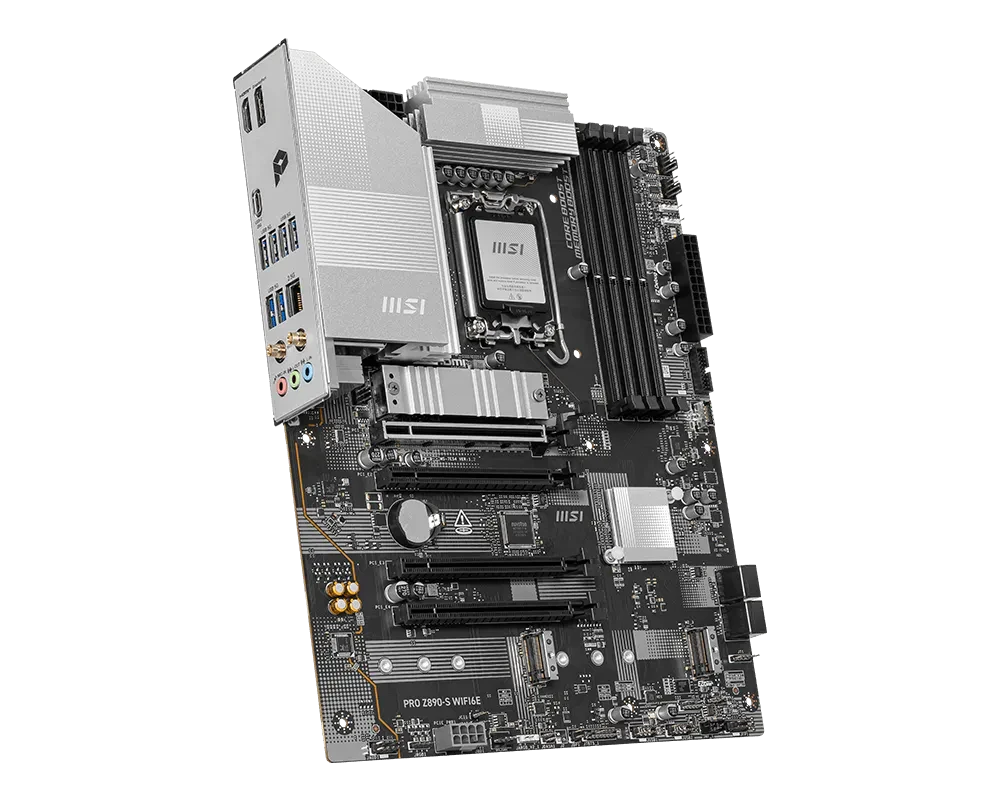

MSI PRO Z890-S WIFI6E MOTHERBOARD - Image 3
MSI PRO Z890-S WIFI6E MOTHERBOARD - Image 4

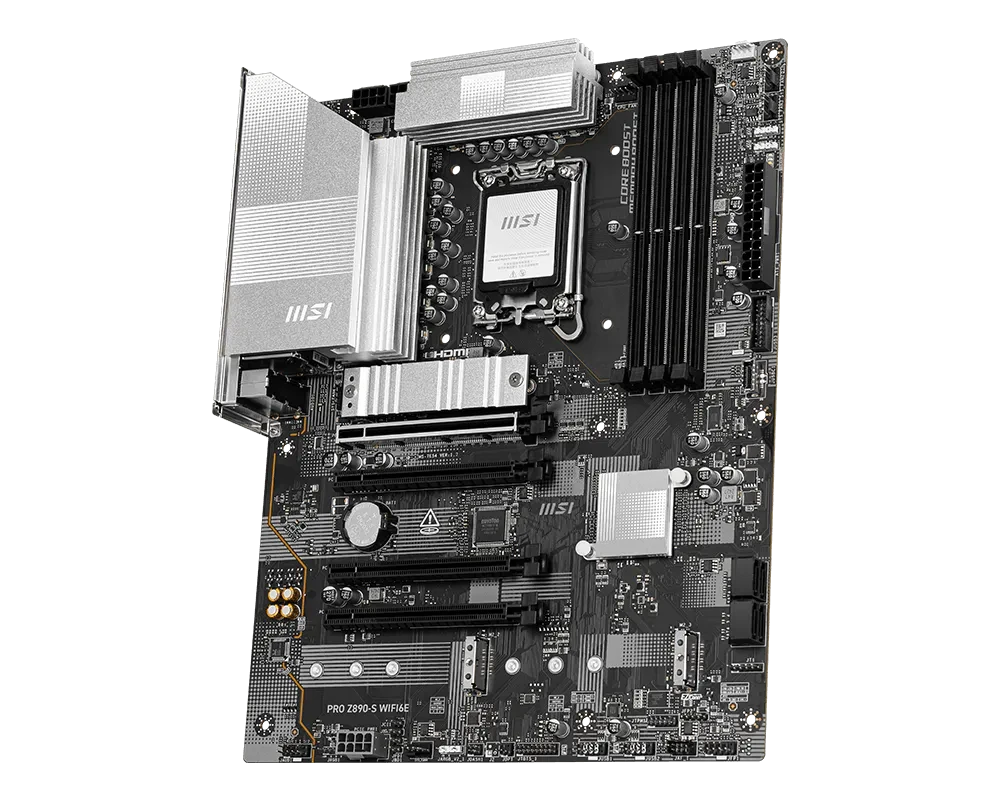

MSI PRO Z890-S WIFI6E MOTHERBOARD - Image 5

MSI PRO Z890-S WIFI6E MOTHERBOARD

Compare

Model Name: PRO Z890-S WIFI6E
CPU Support: Support Intel® Core™ Ultra Processors (Series 2)
CPU Socket: LGA 1851
Chipset: Intel® Z890 Chipset
Expansion Slots: 1x PCIe 5.0 x16 slot 2x PCIe 4.0 x4 slots 1x PCIe 3.0 x1 slot
Display Interface: Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics
Memory Support: 4 DIMMs, Dual Channel DDR5 – 8800+ MT/s (OC)
Storage: 1x M.2 Gen5 x4 128Gbps slot, 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports

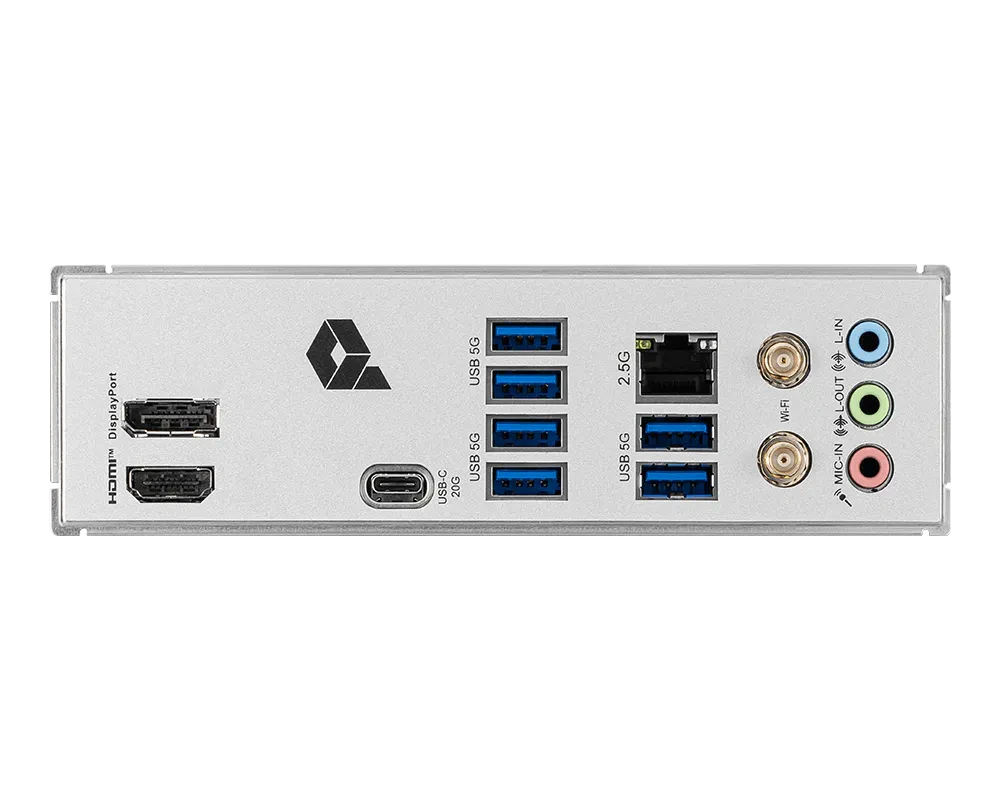

USB ports: 2 x USB 20Gbps (2 Type-C), 8 x USB 5Gbps (8 Type-A), 4 x USB 2.0
LAN: Realtek® RTL8125D 2.5G LAN

Specifications

Model Name PRO Z890-S WIFI6E
CPU Support Support Intel® Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel® Z890 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot 2x PCIe 4.0 x4 slots 1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 – 8800+ MT/s (OC)
Storage 1x M.2 Gen5 x4 128Gbps slot, 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports
USB ports 2 x USB 20Gbps (2 Type-C), 8 x USB 5Gbps (8 Type-A), 4 x USB 2.0
LAN Realtek® RTL8125D 2.5G LAN
WiFi / BT Wi-Fi 6E module, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost

Key Features

  • CPU Support: Intel® Core™ Ultra Processors (Series 2) with LGA 1851 socket
  • Chipset: Intel® Z890 for enhanced performance and overclocking
  • Expansion Slots: 1x PCIe 5.0 x16, 2x PCIe 4.0 x4, 1x PCIe 3.0 x1
  • Memory: 4 DIMMs, Dual Channel DDR5 up to 8800+ MT/s (OC)
  • Storage: 1x M.2 Gen5 x4 (128Gbps), 2x M.2 Gen4 x4 (64Gbps), 4x SATA 6Gbps
  • USB & LAN: 2x USB 20Gbps Type‑C, 8x USB 5Gbps Type‑A, 4x USB 2.0, plus 2.5G LAN
  • Wireless & Audio: Wi‑Fi 6E, Bluetooth 5.3, 8‑Channel (7.1) HD Audio with Audio Boost
SKU: MSI PRO Z890-S Category:
Model Name PRO Z890-S WIFI6E
CPU Support Support Intel® Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel® Z890 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot 2x PCIe 4.0 x4 slots 1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 – 8800+ MT/s (OC)
Storage 1x M.2 Gen5 x4 128Gbps slot, 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports
USB ports 2 x USB 20Gbps (2 Type-C), 8 x USB 5Gbps (8 Type-A), 4 x USB 2.0
LAN Realtek® RTL8125D 2.5G LAN
WiFi / BT Wi-Fi 6E module, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
