Specifications

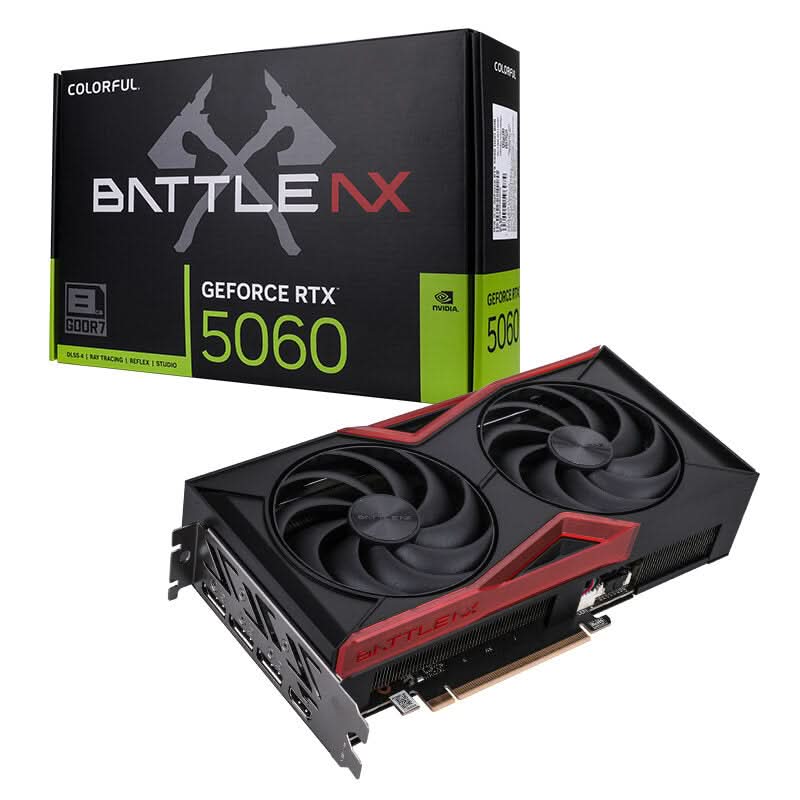

| Model | Colorful GeForce RTX 5060 Battle AX DUO 8GB-V |
| Chip Series | GeForce® RTX 5060 |
| Product Series | Colorful Series |
| CUDA Cores | 3840 |
| Core Clock | Base：2280Mhz；Boost:2497Mhz |
| Memory Clock | 28Gbps |
| Memory Size | 8GB |
| Memory Bus Width | 128bit |
| Memory Type | GDDR7 |
| Memory Bandwidth | 448GB/s |
| Power Connector | 8pin |
| TDP | 145W |
| Display Ports | 3*DP2.1b+HDMI2.1b |
| Fans Type | FAN |
| Auto Stop Technology | Y |
| Power Suggest | 550W |
| DirectX | DirectX 12 Ultimate/OpenGL 4.6 |
| NV technology Support | DLSS 4/Reflex/Studio |
| Product Size | 231*120*48.9mm |
| Product Weight | 0.76kg (N.W) |
| Warranty | 3 Years |
Key Features
- 3840 CUDA cores delivering strong rasterization and ray‑tracing performance.
- Core clock: 2280 MHz base, up to 2497 MHz boost for high frame rates.
- 8 GB GDDR7 memory with 28 Gbps speed, 128‑bit bus and 448 GB/s bandwidth.
- Display connectivity: 3 × DisplayPort 2.1b and HDMI 2.1b ports.
- Power efficiency: 145 W TDP, 8‑pin power connector, recommended 550 W PSU, Auto Stop Technology.
- Advanced graphics features: DirectX 12 Ultimate, DLSS 4, Reflex and Studio support.
- Compact design: 231 mm × 120 mm × 48.9 mm, 0.76 kg weight, backed by a 3‑year warranty.
