Specifications

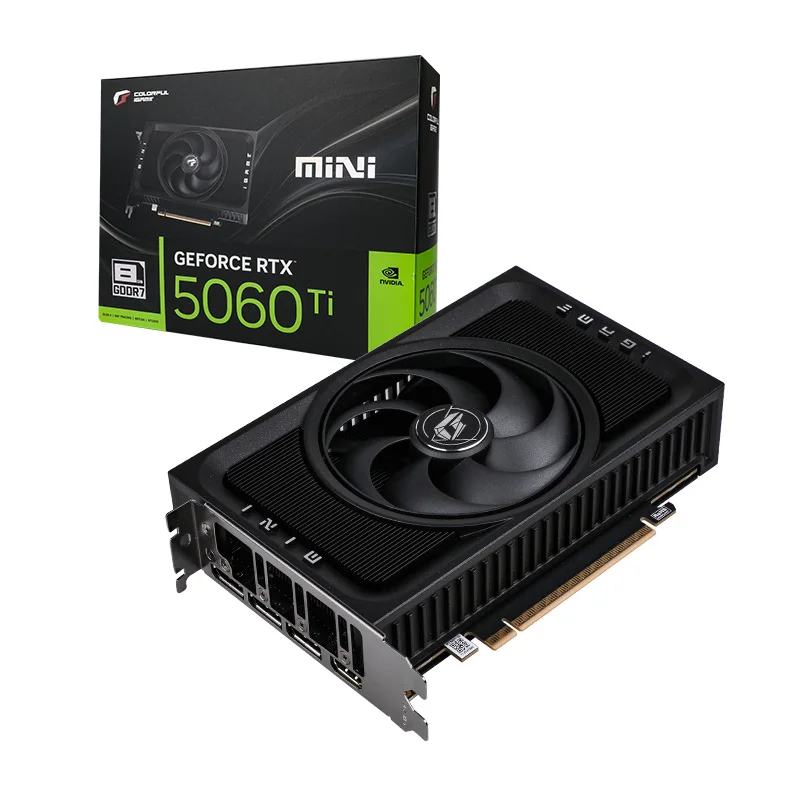

| Model | iGame GeForce RTX 5060 Ti Mini OC 8GB-V |
| Chip Series | GeForce RTX 5060 Ti |
| Product Series | iGame Series |
| CUDA Cores | 4608 |
| Core Clock | Base：2407Mhz；Boost:2632Mhz |
| Memory Clock | 28Gbps |
| Memory Size | 8GB |
| Memory Bus Width | 128bit |
| Memory Type | GDDR7 |
| Memory Bandwidth | 448GB/s |
| Power Connector | 8pin |
| TDP | 180W |
| Display Ports | 3*DP2.1b+HDMI2.1b |
| Fans Type | FAN |
| Auto Stop Technology | Y |
| Power Suggest | 600W |
| DirectX | DirectX 12 Ultimate/OpenGL 4.6 |
| NV technology Support | DLSS 4/Reflex/Studio |
| Product Size | 180*123*39.8mm |
| Product Weight | 0.85KG(N.W) |
Key Features
- CUDA Cores: 4608 cores for high parallel processing performance.
- Boost Clock Speed: Up to 2632 MHz (Base 2407 MHz) for fast frame rates.
- Memory: 8 GB GDDR7 with 28 Gbps memory clock and 448 GB/s bandwidth on a 128‑bit bus.
- Compact Design: Mini form factor measuring 180 × 123 × 39.8 mm, ideal for small‑case builds.
- Cooling System: Dual‑fan setup with Auto Stop Technology for silent operation when idle.
- Power Requirements: 180 W TDP, powered by a single 8‑pin connector; recommended 600 W PSU.
- Display Connectivity: Triple DisplayPort 2.1b and HDMI 2.1b outputs for high‑resolution, high‑refresh monitors.
