Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | Z790 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Wireless Networking | Wi-Fi 6E, BLUETOOTH 5.3 |

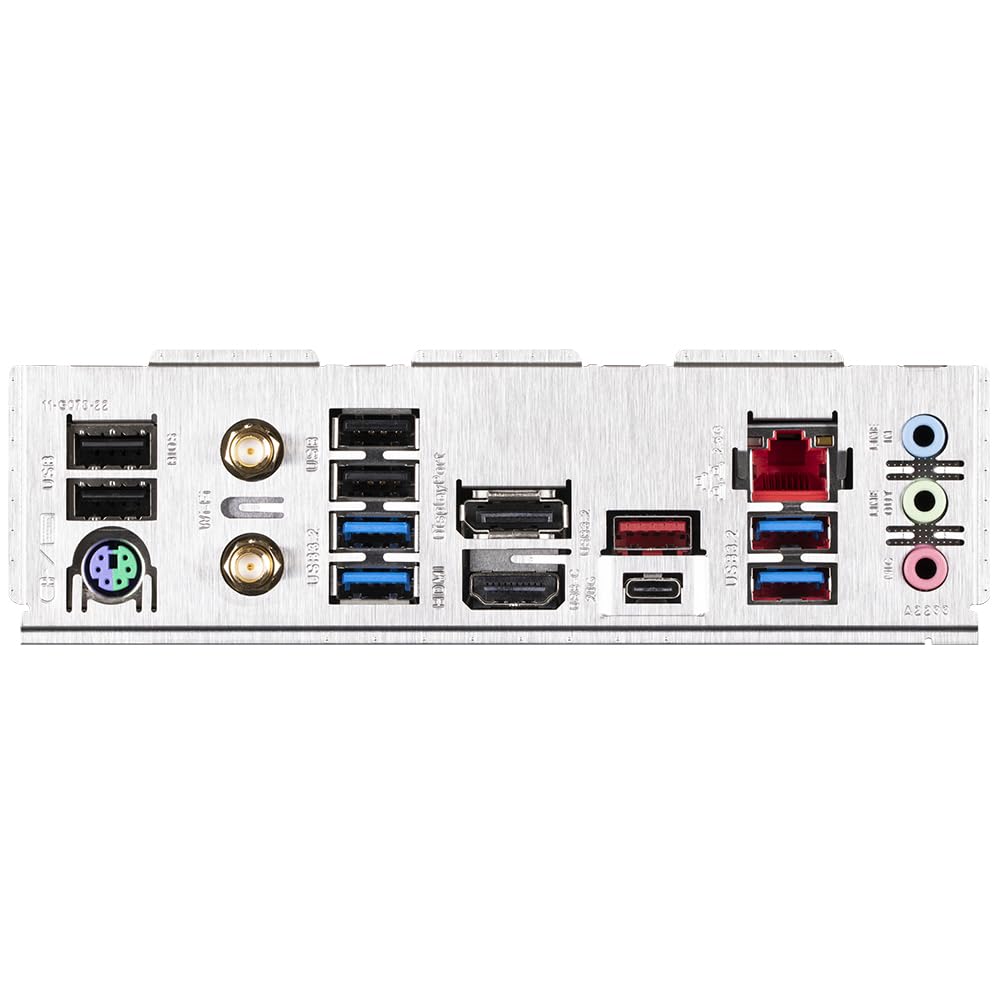

| Back Panel I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
Key Features
- CPU Support: Compatible with 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors (LGA1700)
- Chipset: Intel Z790 for high-performance overclocking and advanced features
- Memory: DDR5 support up to 7600 MT/s, max 256 GB (dual-channel), with ECC un-buffered and XMP support
- PCIe Expansion: One PCIe 5.0 x16 slot, plus PCIe 4.0 x4 and PCIe 3.0 x1 slots for flexible GPU/storage configurations
- Wireless: Integrated Wi‑Fi 6E and Bluetooth 5.3 for fast, low‑latency networking
- USB & I/O: USB Type‑C 3.2 Gen 2×2 port, USB 3.2 Gen 2 Type‑A, plus multiple USB 3.2 Gen 1 and USB 2.0 ports
- Storage: Three M.2 Socket 3 slots and six SATA 6Gb/s connectors for ample NVMe and SATA storage
- Warranty & Build: ATX form factor, Q‑Flash Plus button, and a 3‑year manufacturer warranty
