GRAPHICS CARD

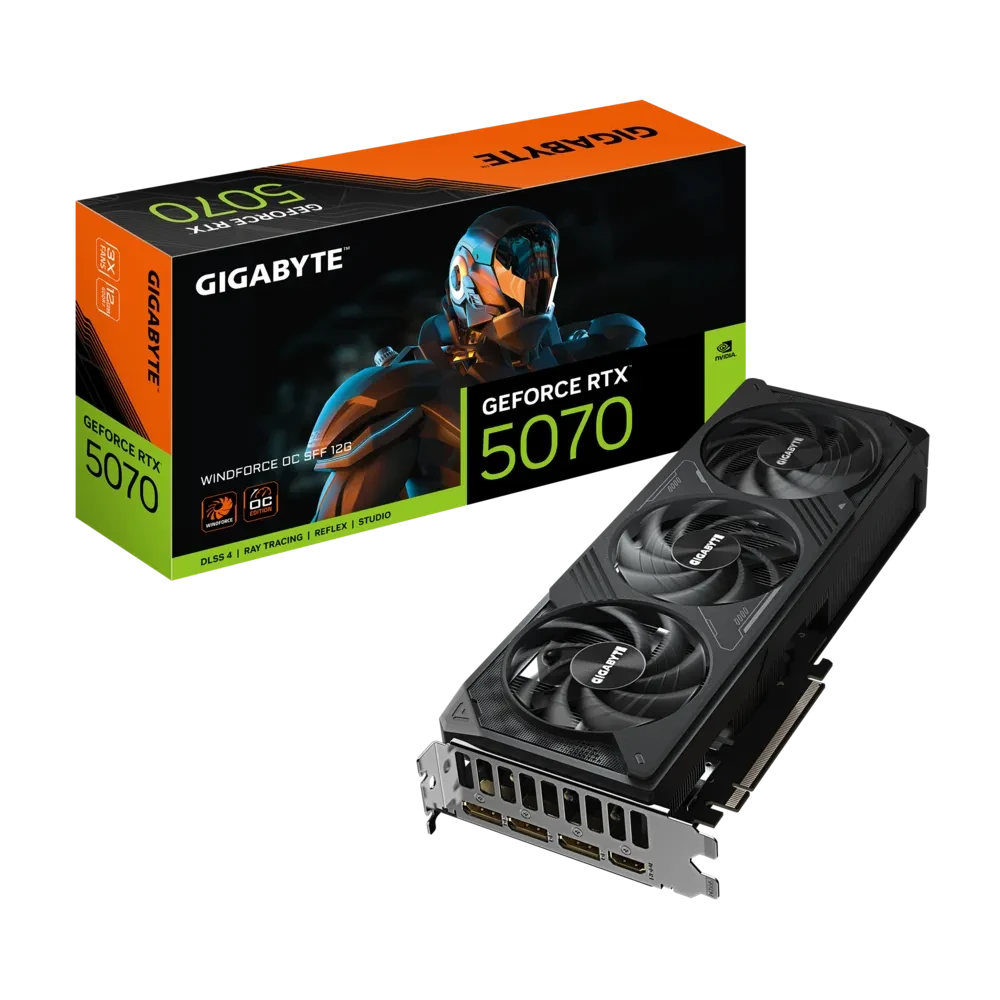

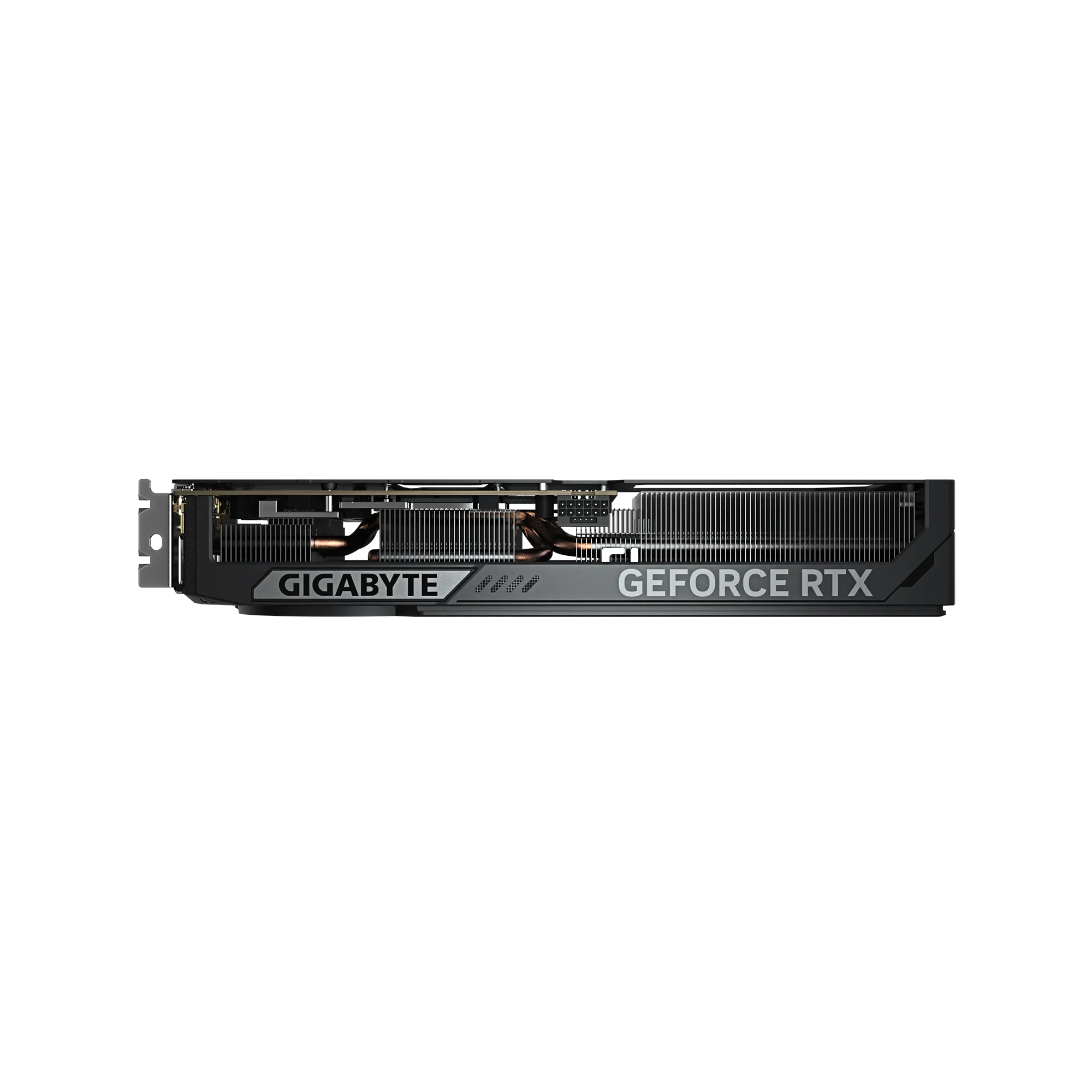

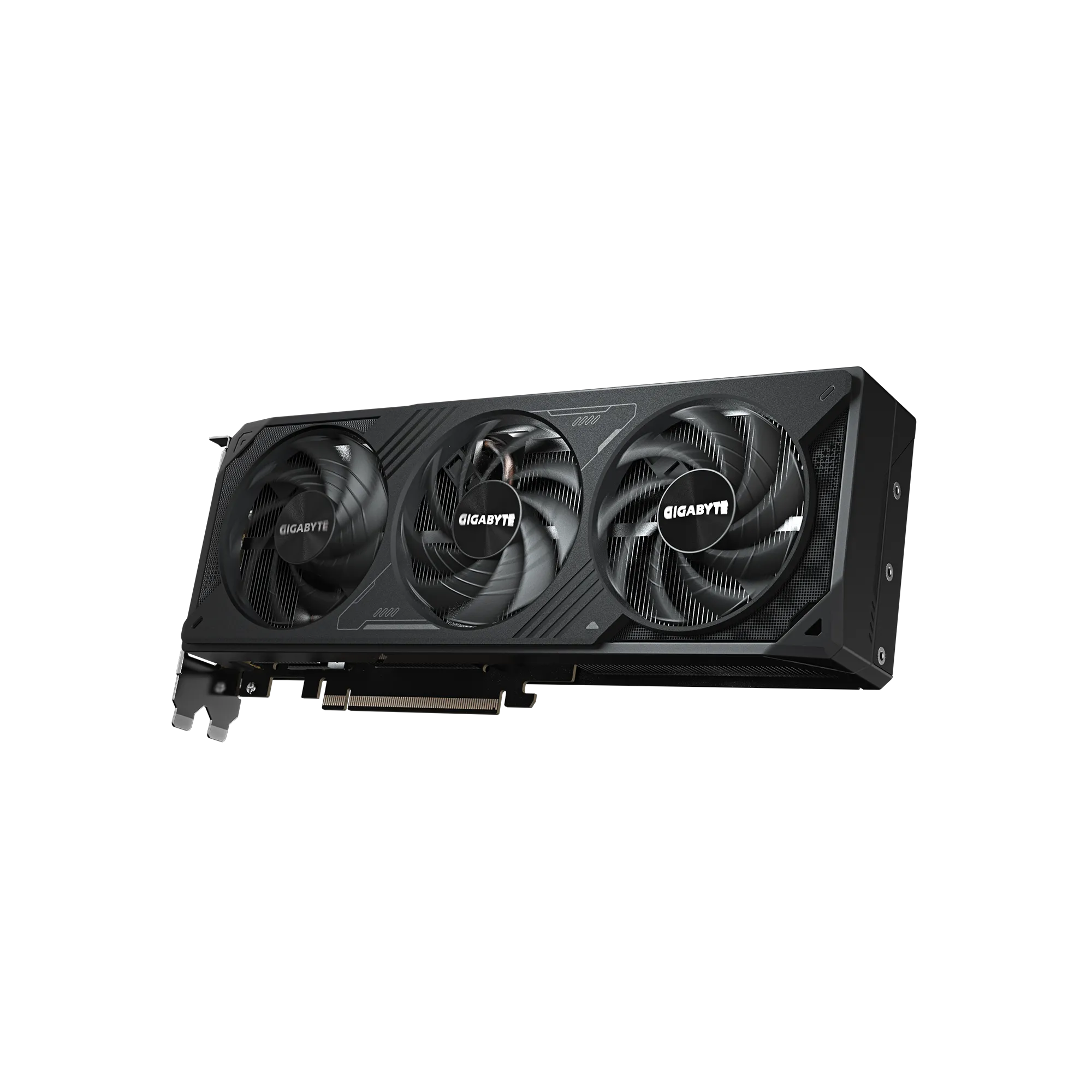

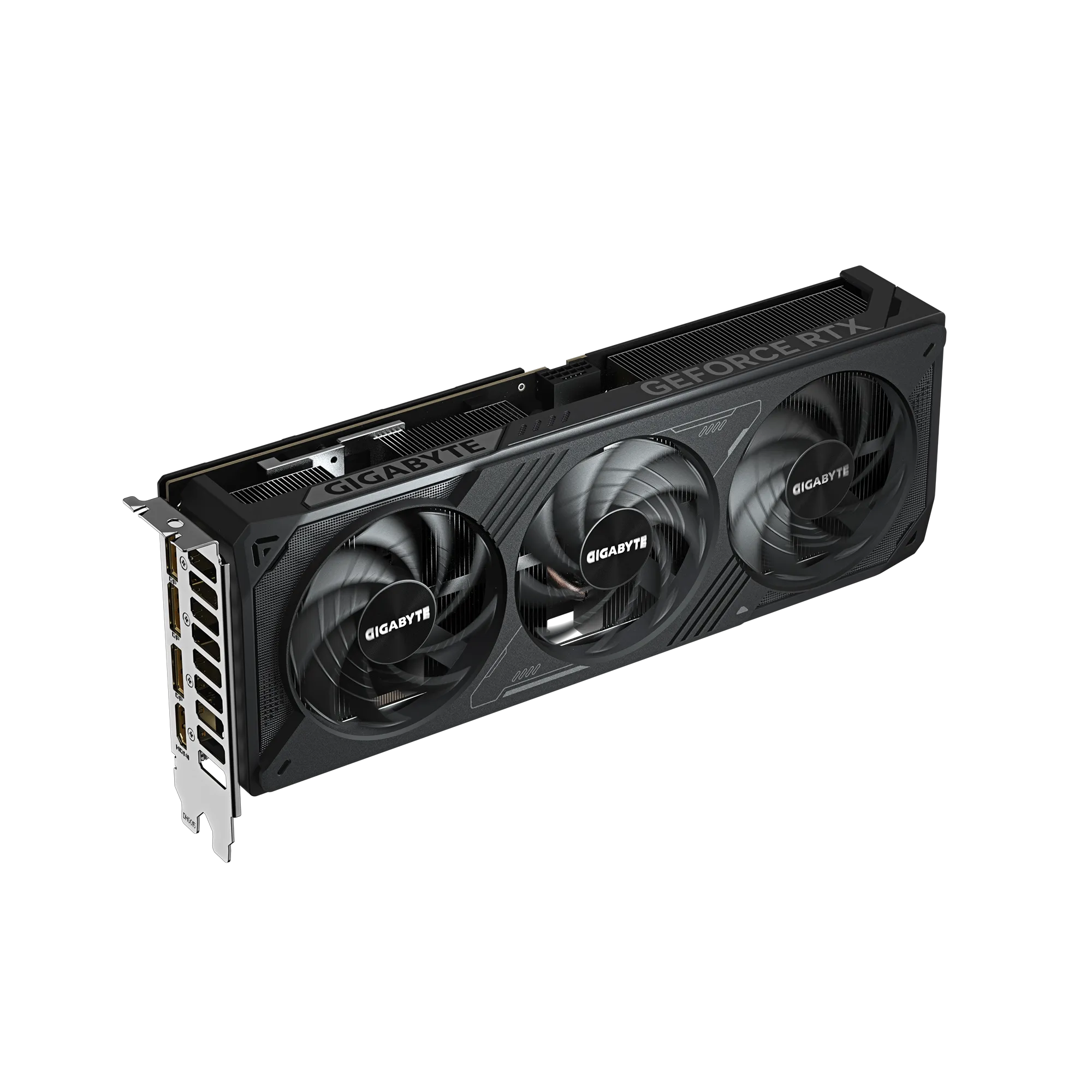

GIGABYTE GEFORCE RTX 5070 WINDFORCE OC 12GB GDDR7

Compare

Graphics Processing: GeForce RTX™ 5070
Core Clock: 2542 MHz (Reference: 2512 MHz)
CUDA Cores: 6144
Memory Clock: 28 Gbps
Memory Size: 12 GB
Memory Type: GDDR7
Memory Bus: 192‑bit
Card Bus: PCI‑E 5.0
Digital Max Resolution: 7680 × 4320
Multi‑View: 4

Specifications

Graphics Processing	GeForce RTX™ 5070
Core Clock	2542 MHz (Reference card: 2512 MHz)
CUDA Cores	6144
Memory Clock	28 Gbps
Memory Size	12 GB
Memory Type	GDDR7
Memory Bus	192-bit
Card Bus	PCI-E 5.0
Digital Max Resolution	7680 x 4320
Multi-View	4
Card Size	282 x 110 x 50 mm
PCB Form	ATX
DirectX	DirectX 12 API
OpenGL	OpenGL 4.6
Recommended PSU	750W
Power Connectors	1 x 16-pin
Output Ports	3 x DisplayPort 2.1b \| 1 x HDMI 2.1b
Accessories	– Quick guide \| – 1x 12V-2×6 to 2x PCIe 8-pin adapter
Warranty	3 Years

Key Features

GPU Architecture: NVIDIA GeForce RTX 5070 with 6144 CUDA cores
Boost Clock: 2542 MHz (reference 2512 MHz)
Memory: 12 GB GDDR7 running at 28 Gbps on a 192‑bit bus
PCIe Interface: PCI‑Express 5.0 x16 for maximum bandwidth
Display Outputs: 3 × DisplayPort 2.1b and 1 × HDMI 2.1b supporting up to 7680 × 4320 resolution
Power Delivery: Single 16‑pin connector, recommended 750 W PSU (includes 12V‑2×6 to 2×PCIe 8‑pin adapter)
Warranty: 3‑year limited warranty

SKU: 1095199 Category: GRAPHICS CARD

Graphics Processing	GeForce RTX™ 5070
Core Clock	2542 MHz (Reference card: 2512 MHz)
CUDA Cores	6144
Memory Clock	28 Gbps
Memory Size	12 GB
Memory Type	GDDR7
Memory Bus	192-bit
Card Bus	PCI-E 5.0
Digital Max Resolution	7680 x 4320
Multi-View	4
Card Size	282 x 110 x 50 mm
PCB Form	ATX
DirectX	DirectX 12 API
OpenGL	OpenGL 4.6
Recommended PSU	750W
Power Connectors	1 x 16-pin
Output Ports	3 x DisplayPort 2.1b \| 1 x HDMI 2.1b
Accessories	– Quick guide \| – 1x 12V-2×6 to 2x PCIe 8-pin adapter
Warranty	3 Years
