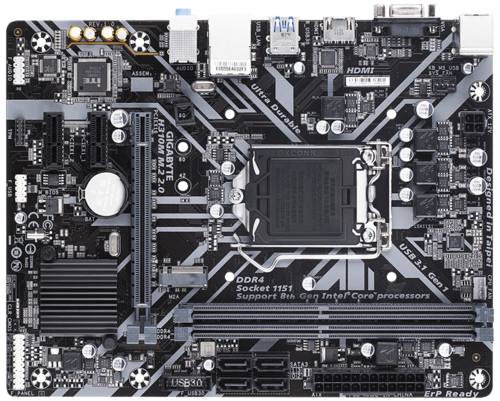

GIGABYTE H310M M.2 2.0 MOTHERBOARD - Image 2

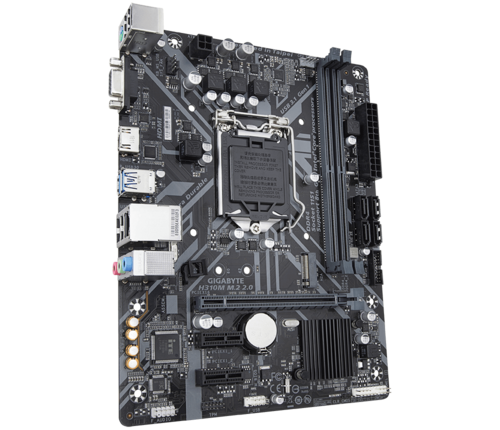

GIGABYTE H310M M.2 2.0 MOTHERBOARD - Image 3

GIGABYTE H310M M.2 2.0 MOTHERBOARD - Image 4

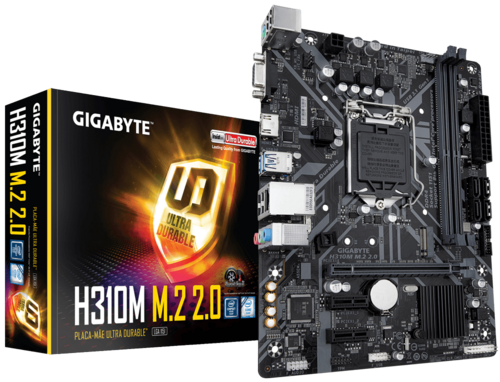

GIGABYTE H310M M.2 2.0 MOTHERBOARD

This motherboard is designed for Intel platforms with an LGA1151 socket, supporting 9th Gen, 8th Gen, Pentium, and Celeron processors. It features the H310 chipset and supports DDR4 memory up to 2666 MHz, with a maximum capacity of 32 GB in dual-channel configuration. Memory features include support for ECC and non-ECC unbuffered DIMMs, as well as XMP modules. Graphics options consist of one D-Sub and one HDMI port.

Specifications

Platform	INTEL
Socket	LGA1151
Cpu Type	9th Gen, 8th Gen, Pentium, Celeron
Chipset	H310
Memory Speed	up to 2666
Max Memory Support	32 GB
Supported Memory Type	DDR4
Channel Supported	Dual Channel
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics Port	1 x D-Sub,1 x HDMI
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

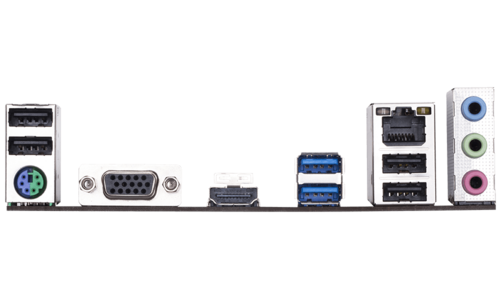

Back Panel I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Form Factor	Micro-ATX

Key Features

Intel LGA1151 Socket: Supports 9th Gen, 8th Gen, Pentium, and Celeron processors for versatile CPU compatibility.
32 GB DDR4 Memory Support: Dual-channel configuration with up to 2666 MHz speed for high-performance memory.
XMP Memory Profile: Enables overclocking and optimized performance for supported memory modules.
Multiple Connectivity Ports: Includes 1x HDMI, 1x D-Sub, 2x USB 3.1 Gen 1, and 4x USB 2.0/1.1 ports for versatile I/O.
PCIe Expansion Slots: 1x PCIe x16 (PCIe 3.0) and 2x PCIe x1 slots for graphics cards and peripherals.
Security Features: TPM header (2×6 pin) for enhanced system security and trusted computing.
Micro-ATX Form Factor: Compact design ideal for small form factor cases and space-saving builds.

SKU: 1086782 Category: Motherboard
