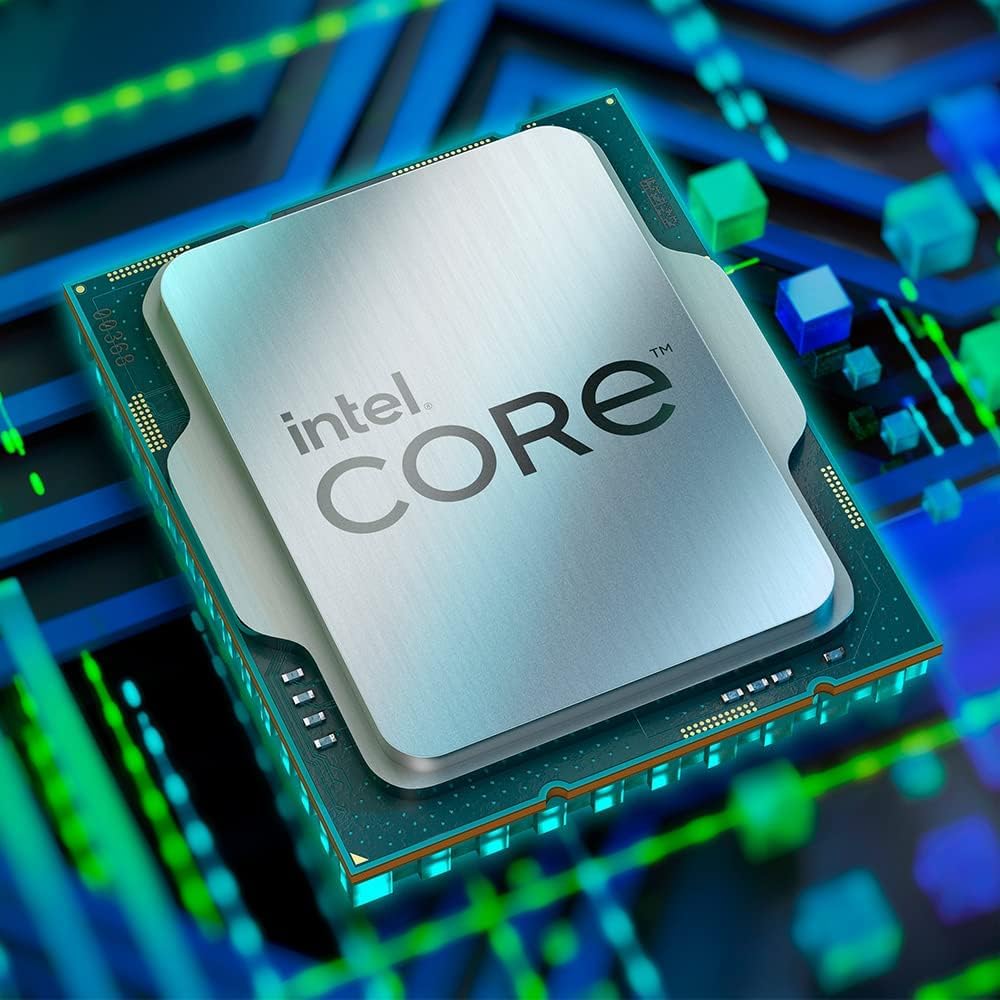

INTEL CORE I9-12900KS 12TH GEN 16 CORE UPTO 2.50 GHZ LGA1700 PROCESSOR


Processor: Intel Core i9-12900KS (12th Gen Alder Lake)
Cores/Threads: 16 cores (8 Performance + 8 Efficient), 24 threads
Lithography: Intel 7
Segment: Desktop (PC/Client/Tablet)
Base Frequency: Up to 2.50 GHz

Specifications

Product Collection 12th Generation Intel® Core™ i9 Processors
Code Name Products formerly Alder Lake
Vertical Segment Desktop
Processor Number i9-12900KS
Lithography Intel 7
Use Conditions PC/Client/Tablet
Total Cores 16
# of Performance-cores 8
# of Efficient-cores 8
Total Threads 24
Max Turbo Frequency 5.50 GHz
Intel® Thermal Velocity Boost Frequency 5.50 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency 5.30 GHz
Efficient-core Max Turbo Frequency 4.00 GHz
Performance-core Base Frequency 3.40 GHz
Efficient-core Base Frequency 2.50 GHz
Performance-core Max Turbo Frequency 5.20 MHz
Total L2 Cache 14 MB
Processor Base Power 150 W
Maximum Turbo Power 241 W
Cache 30 MB Intel® Smart Cache
Embedded Options Available No
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
ECC Memory Supported Yes
Processor Graphics Intel® UHD Graphics 770
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.55 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI) 4096 x 2160 @ 60Hz
Max Resolution (DP) 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported 4
Device ID 0x4680
OpenCL* Support 3.0
Direct Media Interface (DMI) Revision 4.0
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes 20
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2022E
Intel® Thermal Velocity Boost Temperature 50 °C
TJUNCTION 90°C
Package Size 45.0 mm x 37.5 mm
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported Yes
Intel® Speed Shift Technology Yes
Intel® Adaptive Boost Technology Yes
Intel® Thermal Velocity Boost Yes
Intel® Turbo Boost Max Technology 3.0 Yes
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Intel vPro® Platform Eligibility Intel vPro® Enterprise
Intel vPro® Enterprise Platform Eligibility Yes
Intel® Threat Detection Technology (TDT) Yes
Intel® Active Management Technology (AMT) Yes
Intel® Standard Manageability (ISM) Yes
Intel® Standard Manageability (ISM) Yes
Intel® Hardware Shield Eligibility Yes
ntel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® Total Memory Encryption – Multi Key Yes
Intel® Total Memory Encryption Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Warranty 3 Years

Key Features

  • 16 Cores and 24 Threads: 8 Performance-cores and 8 Efficient-cores for enhanced multitasking and performance.
  • Up to 5.50 GHz Max Turbo Frequency: Incredible speed with Intel® Thermal Velocity Boost and Turbo Boost Max Technology 3.0.
  • 30 MB Intel® Smart Cache: Large cache for improved responsiveness.
  • Supports up to 128 GB DDR5/DDR4 Memory: DDR5‑4800 MT/s or DDR4‑3200 MT/s across 2 channels.
  • Intel® UHD Graphics 770: Integrated graphics with 32 Execution Units, 1.55 GHz max dynamic frequency, and support for up to 4 displays.
  • PCI Express 5.0 & 4.0, 20 Lanes: High‑speed connectivity and expansion options.
  • 3‑Year Warranty: Backed by Intel for peace of mind.
