Specifications

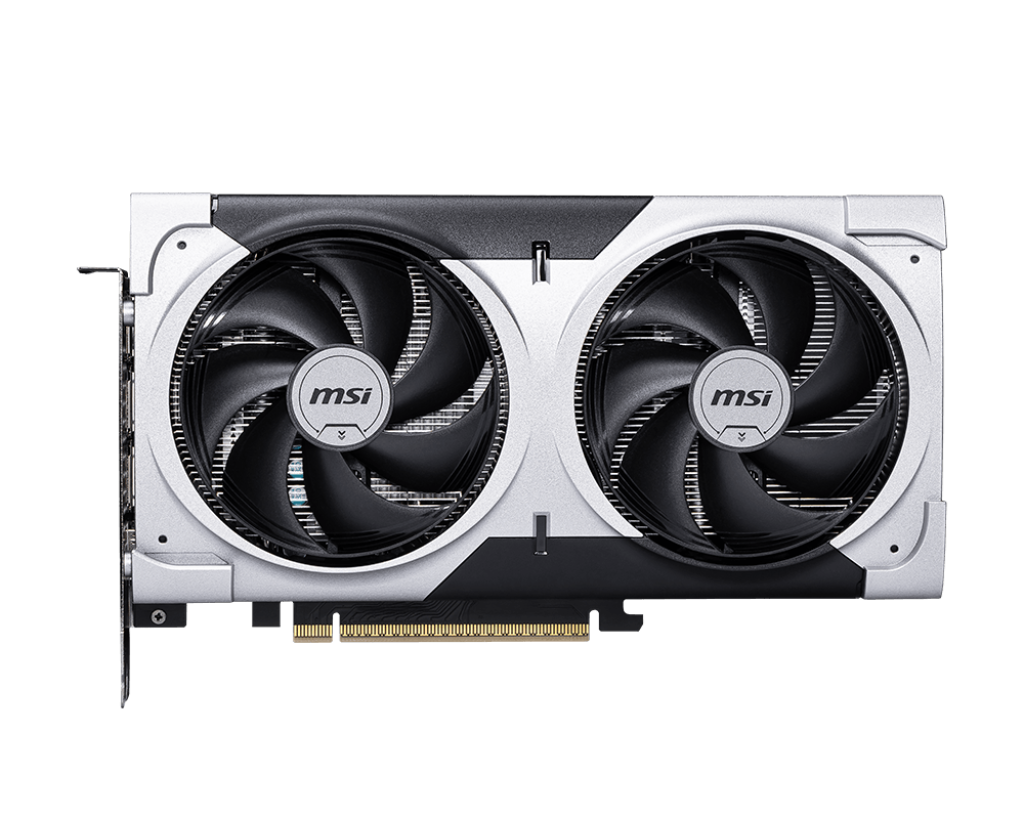

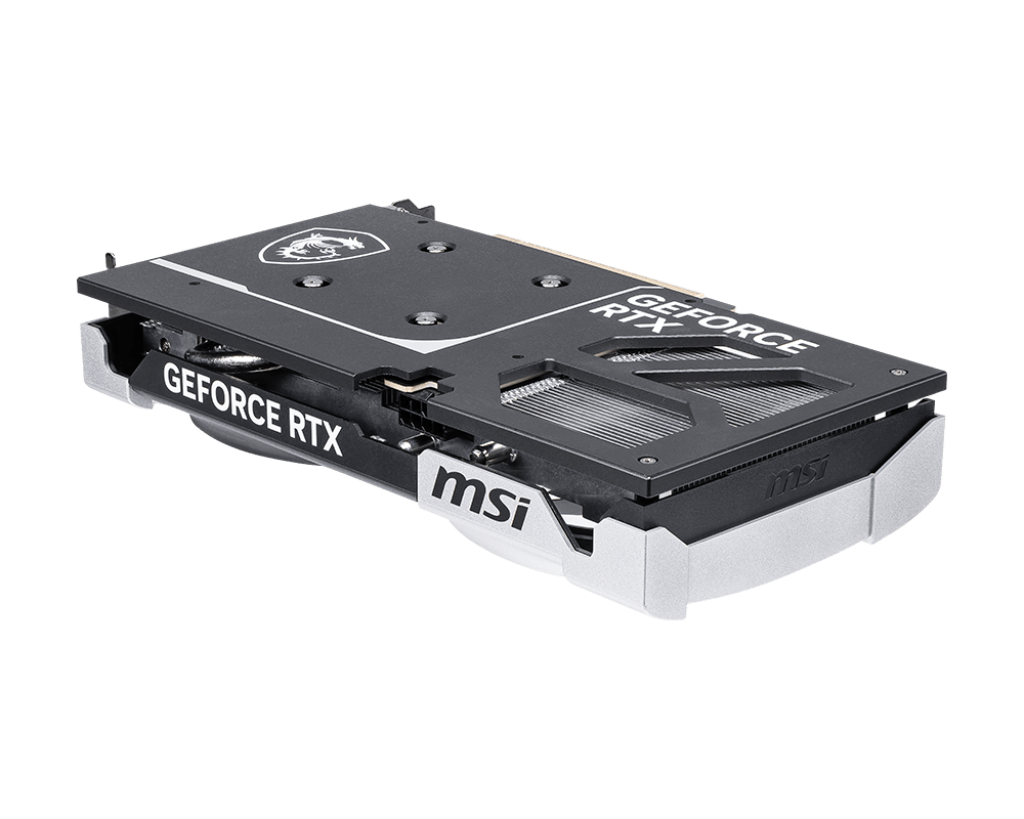

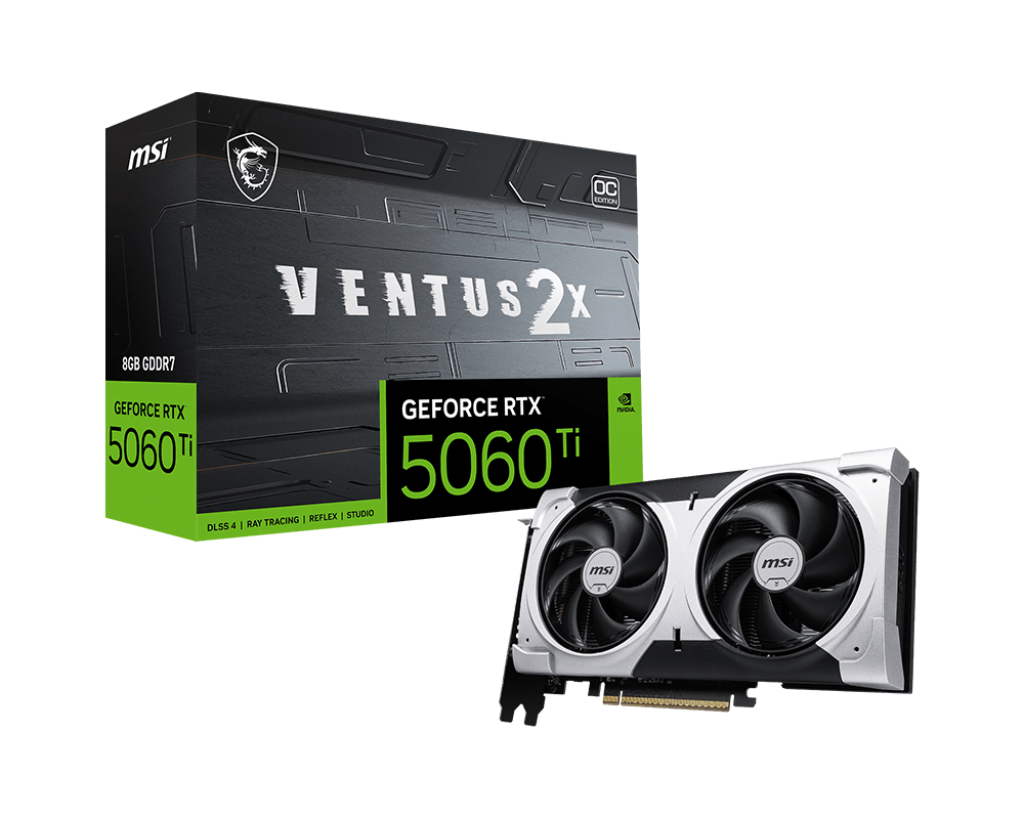

| Marketing Name | GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS |
| Model Name | G506T-8V2CP |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz (MSI Center), Boost: 2602 MHz |
| CUDA® CORES | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Output | DisplayPort x 3 (v2.1b), HDMI™ x 1 |
| HDCP Support | Yes |
| Power Consumption | 180 W |
| Power Connectors | 8-pin x1 |
| Recommended PSU | 600 W |
| Card Dimensions (mm) | 227 x 127 x 41 mm |
| Weight (Card / Package) | 573 g / 834 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
Key Features
- GPU: NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores
- Clock Speeds: Boost up to 2602 MHz (Extreme Performance 2617 MHz via MSI Center)
- Memory: 8GB GDDR7 at 28 Gbps, 128-bit bus
- Interface: PCI Express Gen 5 x16 (operates at x8)
- Display Outputs: 3× DisplayPort 2.1b + 1× HDMI 2.1, up to 4 monitors, 8K (7680×4320) resolution
- G‑SYNC: Supported for tear‑free gaming
- Power: 180 W draw, single 8‑pin connector, recommended 600 W PSU
