Specifications
| Architecture | NVIDIA Ampere Architecture |
| Process Size | 8nm |
| Transistors | 28.3 Billion |
| Die Size | 628.4 mm |
| CUDA Cores | 10752 |
| Tensor Cores | 336 |
| RT Cores | 84 |
| Single Precision Performance | 38.7 TFLOPS |
| RT Core Performance | 75.6 TFLOPS |
| Tensor Performance | 309.7 TFLOPS |
| GPU Memory | 48 GB GDDR6 with ECC |
| Memory Interface | 384-bit |
| Memory Bandwidth | 768 GB/sec |
| Display Connectors | 4x DisplayPort 1.4a |
| NVENC | NVDEC | 1x | 2x (+ AV1 decode) |
| System Interface | PCI Express 4.0 x16 |
| Form Factor | 4.4″ H x 10.5″ L Dual Slot |
| Thermal Solution | Active Fansink |
| Maximum Power Consumption | 300 W NVIDIA Quadro and RTX Power Guidelines |
| Power Connector | 1x 8-pin CPU |
| Max Digital Resolution | 7680 x 4320 x36 bpp at 60 Hz NVIDIA Quadro and RTX Display Resolution Support |
| vGPU Software Support | NVIDIA GRID, NVIDIA Virtual Data Center Workstation, NVIDIA Virtual Compute Server |
| vGPU Profiles Supported | 1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 48 GB |
| NVIDIA 3D Vision and 3D Vision Pro | Support via 3-pin mini DIN |
| Frame Lock | Compatible with NVIDIA Quadro Sync II |

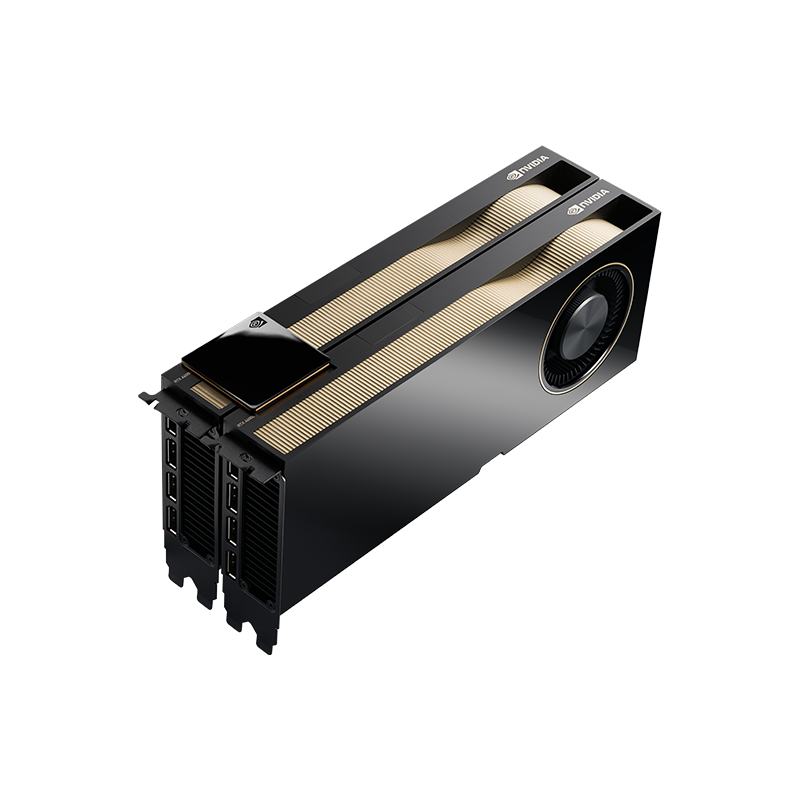

| NVLink | 2-way low profile (2-slot and 3-slot bridges) connects 2x NVIDIA RTX A6000 |
| NVLink Interconnect | 112.5 GB/sec bidirectional |
| Warranty | 3 Years |
Key Features
- 10752 CUDA Cores based on NVIDIA Ampere Architecture
- 336 Tensor Cores delivering up to 309.7 TFLOPS AI performance
- 84 RT Cores providing 75.6 TFLOPS ray‑tracing throughput
- 48 GB GDDR6 memory with ECC over a 384‑bit interface, 768 GB/sec bandwidth
- Four DisplayPort 1.4a outputs supporting up to 7680 x 4320 @ 60 Hz
- PCIe 4.0 x16 interface, 300 W max power, single 8‑pin connector
- NVLink 2‑way low‑profile bridge (112.5 GB/sec bidirectional) for multi‑GPU scaling
- 3‑year limited warranty
