Motherboard

Brand: ASUS Model: 90MB0Z20-M0EAY0.

Model Year: 2018 Product Dimensions: 22.6 x 18.5 x 5 cm; 500 g.

Battery Requirement: 1 A batteries required Memory Slots: 2.

Maximum RAM Capacity: 32 GB.

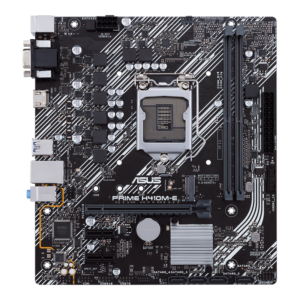

ASUS PRIME H410M-E is an LGA1200 motherboard with Intel H410 chipset, supporting 10th Gen Intel Core, Pentium Gold and Celeron CPUs and Intel Turbo Boost technologies where applicable.

It offers two DDR4 DIMM slots (up to 64 GB, 2133‑2933 MHz), one PCIe 3.0 x16 slot, two PCIe 3.0 x1 slots, a single M.2 (2242/2260/2280) slot and four SATA 6 Gb/s ports.

Connectivity includes Realtek RTL8111H Gigabit LAN, Realtek ALC887/8977.1 audio codec, one HDMI output, and USB ports: four rear (including two USB 3.2 Gen 1) and six front (including two USB 3.2 Gen 1 and two USB 2.0).

CPU: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron processors.

Chipset: Intel H610.

Memory: 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz, Non-ECC, Un-buffered.

Graphics: 1 x DisplayPort.

Expansion Slots: Supports Intel 12th Gen processors.

Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports.

Ethernet: 1 x Realtek 1Gb Ethernet.

USB: 4 x Rear USB ports.

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC.

Audio Features: Audio Shielding.

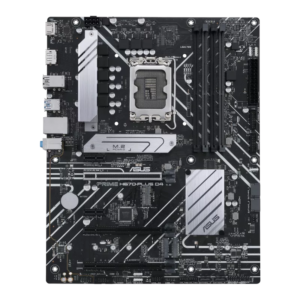

Model: PRIME H670-PLUS D4. CPU & Chipset: Intel LGA1700 socket for 12th/13th Gen Core, Pentium Gold and Celeron processors; Intel H670 chipset. Memory & Graphics: 4 x DDR4 DIMM up to 128 GB (up to 5066 MT/s OC), 1 × DisplayPort 1.4 and 1 × HDMI 2.1 (both 4K@60 Hz). Expansion, Storage & I/O: PCIe slots (1×4.0 x16, 1×4.0 x16 x4, 1×3.0 x16 x4, 2×3.0 x1), 3×M.2 (PCIe 4.0 x4/SATA), 4×SATA 6Gb/s, Realtek 2.5 Gb Ethernet (ASUS LANGuard), M.2 E‑key for Wi‑Fi/BT, USB rear (1×3.2 Gen 2 Type‑C, 2×3.2 Gen 2 Type‑A, 3×3.2 Gen 1 Type‑A, 2×USB 2.0) plus front headers for additional USB.

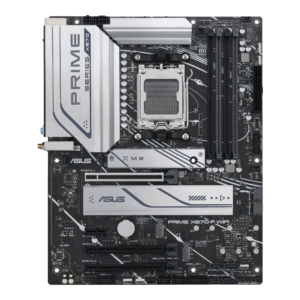

Model: PRIME X670-P WIFI-CSM. CPU: AMD Socket AM5 for Ryzen 9000, 8000, 7000 Series. Chipset: AMD X670.

Memory: 4 x DIMM, max 256GB DDR5, speeds up to 7600+(OC), ECC and non‑ECC unbuffered, dual channel, supports EXPO and OptiMem II. Graphics: 1 x DisplayPort 1.4 (8K@60Hz), 1 x HDMI 2.1 (4K@60Hz). Expansion Slots: PCIe 4.0 x16 slots (configurable per CPU), 1 x PCIe 3.0 x1, plus chipset PCIe 4.0 x16 slots (x4 mode).

Storage: 3 x M.2 slots (PCIe 5.0/4.0 per CPU), 6 x SATA 6Gb/s, supports RAID. Network: 2.5Gb Ethernet, Wi‑Fi 6 (802.11ax) 2×2, Bluetooth 5.2. USB: Rear: 1x USB 3.2 Gen 2×2 Type‑C, 3x USB 3.2 Gen 2 Type‑A, 4x USB 3.2 Gen 1 Type‑A, 2x USB 2.0 Type‑A; Front: 1x USB 3.2 Gen 1 Type‑C header plus headers for additional USB 3.2 Gen 1 and USB 2.0 ports.

Platform: AMD
Socket: AM5
CPU Type: Ryzen 9000, Ryzen 8000, Ryzen 7000
Chipset: X870
Memory Speed: up to 8000+
Max Memory Support: 256 GB
Supported Memory Type: DDR5
Channel Supported: Dual Channel
Memory Feature: Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Graphics Port: 1 x HDMI, 2 x USB4

CPU: IntelÆ Socket LGA1700 for 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors
Chipset: Z690
Memory: 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Graphics: 1 x DisplayPort**
Storage: Supports4xM.2slotsand4xSATA6Gb/sports
USB: Rear USB:Total 8 ports
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Accessories: Cables
Operating System: WindowsÆ11 64-bit,WindowsÆ1064-bit

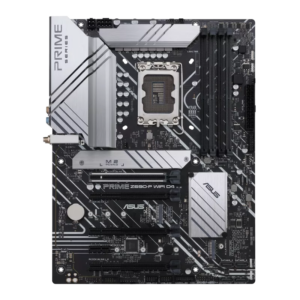

Model: PRIME Z690-P WIFI D4
CPU: Intel Socket LGA1700 supports 12th, 13th, and 14th Gen Core, Pentium Gold and Celeron processors.

Chipset: Intel Z690
Memory: 4 x DIMM, up to 128 GB DDR4, speeds up to 5333 MT/s (OC), dual‑channel, XMP support.

Graphics: 1 × DisplayPort 1.4 (4K@60Hz), 1 × HDMI 2.1 (4K@60Hz)
Expansion Slots: 1 × PCIe 5.0/4.0/3.0 x16, 1 × PCIe 4.0/3.0 x16 (x4 mode), 2 × PCIe 3.0 x16 (x4 mode), 1 × PCIe 3.0 x1.

Storage: 3 × M.2 (PCIe 4.0 x4/SATA), 4 × SATA 6Gb/s
Ethernet: Realtek 2.5 Gb
Wireless & Bluetooth: Wi‑Fi 6 (802.11ax) 2×2, Bluetooth 5.2
USB: Rear: 1 × USB 3.2 Gen 2×2 Type‑C, 1 × USB 3.2 Gen 2 Type‑A, 2 × USB 3.2 Gen 1 Type‑A, 2 × USB 2.0 Type‑A; Front: 1 × USB 3.2 Gen 1 Type‑C header, 2 × USB 3.2 Gen 1 headers (4 ports), 2 × USB 2.0 headers (4 ports).

Brand: ASUS

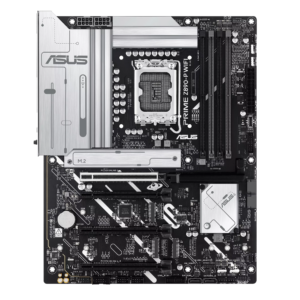

Series: PRIME Z890-P WIFI
Item model number: PRIME Z890-P WIFI
Item Weight: 4.17 pounds
Product Dimensions: 13.9 x 10.8 x 2.8 inches
Color: BLACK
Manufacturer: ASUS
ASIN: B0DGWTQWL3
Country of Origin: China

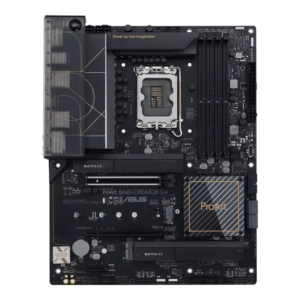

The ASUS ProArt B660‑CREATOR D4 motherboard supports Intel LGA1700 12th‑14th Gen Core, Pentium Gold and Celeron CPUs on the Intel B660 chipset, with four DDR4 DIMM slots up to 128 GB (OC to 5333 MHz) and graphics via HDMI 2.1 (4K@60 Hz), USB‑C DisplayPort 1.4 (up to 8K@60 Hz) and DP‑IN. It provides one PCIe 5.0/4.0/3.0 x16 slot, one PCIe 3.0 x16 slot (x4 mode), one PCIe 3.0 x1 slot, three M.2 slots (PCIe 4.0 x4 on M.2_1 & M.2_3, PCIe 3.0 x4 on M.2_2) and four SATA 6Gb/s ports, plus a 2.5 Gb Realtek and 1 Gb Intel Ethernet controller with ASUS LANGuard. Wireless is via an M.2 Key E slot (Wi‑Fi module sold separately), while USB connectivity includes rear ports (1× USB 3.2 Gen 2 Type‑C, 4× USB 3.2 Gen 1 Type‑A, 4× USB 2.0 Type‑A) and front headers (1× USB 3.2 Gen 2×2 Type‑C with 60 W PD/QC4+, 1× USB 3.2 Gen 1 header for two extra ports, 2× USB 2.0 headers for four extra ports).

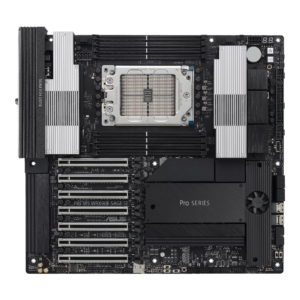

Brand: ASUS. Series: Pro WS WRX90E‑SAGE SE. Manufacturer: Asus Technology Pvt Ltd.

Form factor: ATX (dimensions 38 × 36.4 × 8.41 cm, 835 g) in black. CPU socket: sTR5. Memory: DDR5.

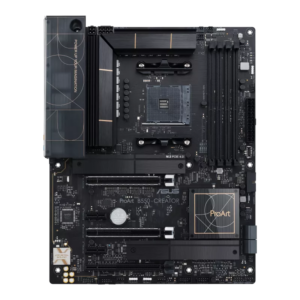

Model: ProArt B550-CREATOR
Ethernet: 2 x Intel 2.5Gb Ethernet
USB: 8 Rear USB ports
Operating System: Windows 10 64-bit
Form Factor: ATX (30.5cm x 24.4cm)
