Specifications

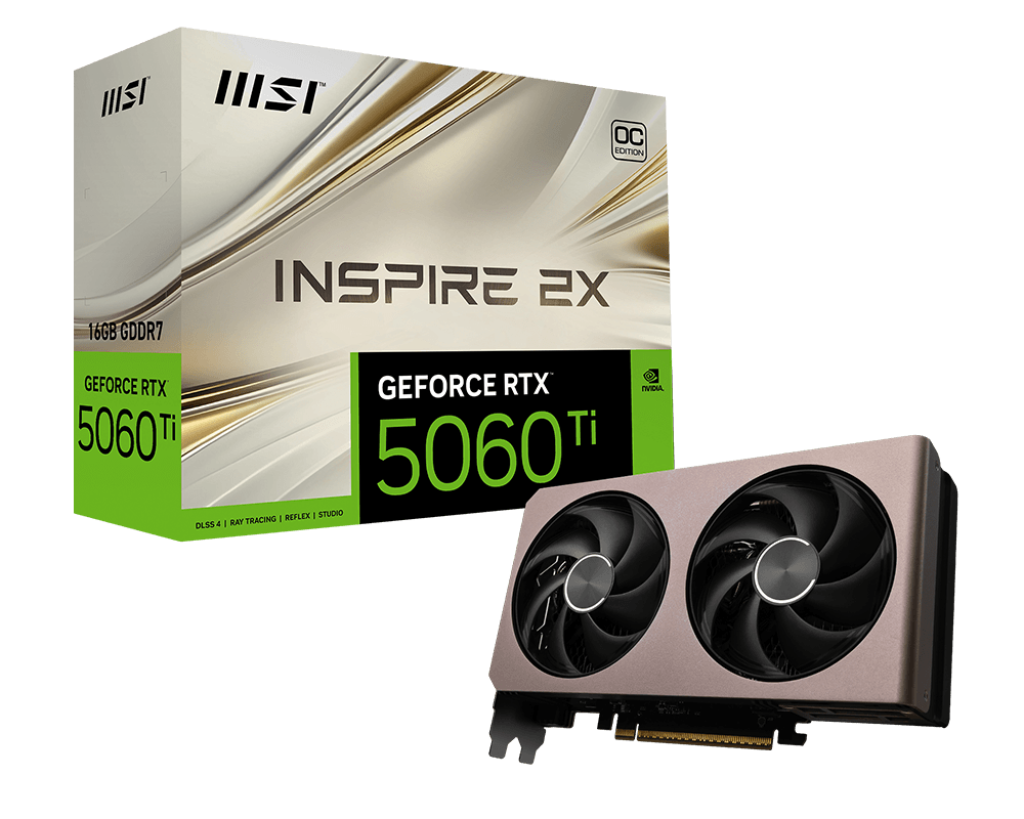

| Marketing Name | GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC |
| Model Name | G506T-16I2C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2632 MHz (MSI Center)Boost: 2617 MHz |
| CUDA® Cores | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Output | 3x DisplayPort (v2.1b)1x HDMI™ (2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 180W |
| Power Connectors | 1x 8-pin |
| Recommended PSU | 600W |
| Card Dimension (mm) | 204 x 117 x 50 mm |
| Weight (Card / Package) | 657g / 927g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
Key Features
- Powered by the NVIDIA® GeForce RTX™ 5060 Ti featuring 4608 CUDA Cores.
- Equipped with 16GB GDDR7 memory running at 28 Gbps.
- Features a Boost Clock of up to 2617 MHz.
- Supports 4K 480Hz or 8K 120Hz gaming via HDMI™ 2.1b and DisplayPort 2.1b.
- Utilizes the PCI Express® Gen 5 x16 interface.
- Requires 180W power with a 1x 8-pin connector (Recommended PSU: 600W).
- Supports DirectX 12 Ultimate and G-SYNC® technology.
