Motherboard

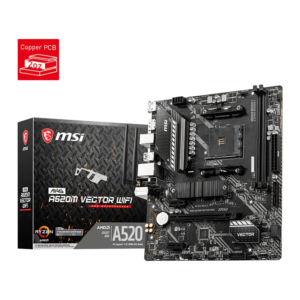

CPU: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors.
Chipset: AMD A520 Chipset.

Memory: 2x DDR4 slots, up to 64GB, DDR4 1866‑4600 MHz (JEDEC & A‑XMP), dual channel, non‑ECC/ECC UDIMM, un‑buffered.
Expansion: 1x PCIe 3.0 x16 (x16 with Ryzen 5000/5000G/4000G/3000, x8 with Ryzen 3000G, x4 with Athlon Radeon Graphics), 2x PCIe 3.0 x1.

Graphics: HDMI 2.1 (4096×2160@60Hz, HDCP 1.4/2.3), DisplayPort 1.4 (same), max shared memory 16GB.
Storage: 4x SATA 6Gb/s, 1x M.2 Key M (PCIe 3.0 x4 & SATA with Ryzen 5000/5000G/4000G/3000/3000G, SATA with Athlon Radeon Vega), supports 2242/2260/2280.
RAID: RAID 0,1,10 for SATA.

USB: 2x USB 3.2 Gen1 (internal), 6x USB 2.0 (2 rear, 4 internal), plus 4x USB 3.2 Gen1 Type‑A rear from AMD processor.
Audio: Realtek ALC892/ALC897 Codec, 7.1‑Channel HD Audio.
LAN: Realtek RTL8111H controller.

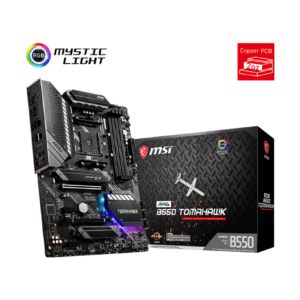

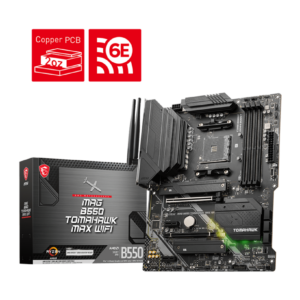

Model: 911-7C91-004, Series: MAG B550 Tomahawk, Form factor: ATX, compatible with AMD AM4 processors including Ryzen 7.

Dimensions: 30.48 × 3.81 × 24.38 cm, Weight: 1.3 kg, Battery: one lithium‑ion cell.

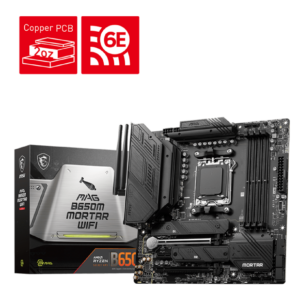

Chipset: AMD B650; supports AMD Ryzen 7000/8000/9000 series AM5 processors, 4 × DDR5 slots up to 256 GB with overclocking to 7600+ MHz.

Expansion & Graphics: 2 × PCIe x16 slots (PCIe 4.0/3.0) and 1 × PCIe x1 slot; onboard video via 1 × HDMI 2.1 (4K 60 Hz) and 1 × DisplayPort 1.4 (8K 60 Hz) on CPUs with integrated graphics.

Audio, Storage & Connectivity: Realtek ALC4080 7.1‑channel audio; 2 × M.2 (PCIe 4.0 x4) and 6 × SATA 6 Gb/s with RAID 0/1/10 support; USB 2.0, 5 Gbps, 10 Gbps, 20 Gbps ports; Realtek RTL8125B 2.5 Gbps LAN.

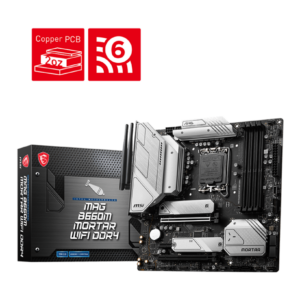

Processor: Supports 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ processors 1
Chipset: IntelÆ B660 Chipset
Memory: 4x DDR4 memory slots, support up to 128GB 1

Expansion Slot: 2x PCIe x16 slots
Multi-GPU: Supports 2-Way AMDÆ CrossFireô Technology
Onboard Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2

Storage: 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1
USB: IntelÆ B660 Chipset
Audio: RealtekÆ ALC1200 Codec

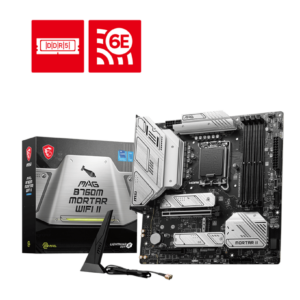

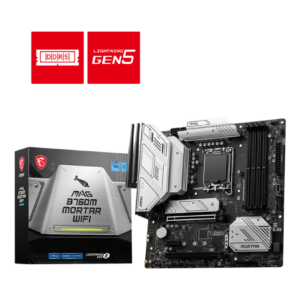

Chipset: Intel B760; supports 12th‑, 13th‑, and 14th‑gen Intel Core, Pentium Gold and Celeron processors (LGA1700).

Memory: Four DDR5 slots, up to 256 GB, DDR5‑5600 to DDR5‑7800 (OC) with XMP; dual‑channel, non‑ECC, unbuffered.

Expansion & storage: 1 PCIe 5.0 x16 slot, 1 PCIe 3.0 x4 slot; 3 M.2 slots (PCIe 4.0 x4, SATA on M.2 3) and 4 SATA 6 Gb/s ports, RAID 0/1/5/10 supported. Connectivity: Realtek ALC897 7.1‑channel audio, Realtek 2.5 Gbps LAN, HDMI 2.1, DisplayPort 1.4, USB: 4 × 2.0 rear, 4 × 2.0 front, 2 × 5 Gbps Type‑A front, 3 × 10 Gbps Type‑A rear, 1 × 10 Gbps Type‑C front, 1 × 20 Gbps Type‑C rear.

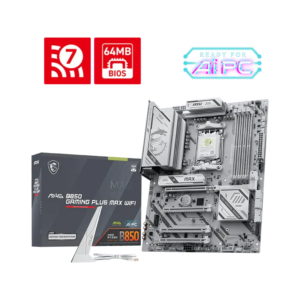

Model Name: MAG B850 GAMING PLUS MAX WIFI
CPU Support: Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Chipset Socket: AMD Socket AM5
Chipset: AMD B850 Chipset
Expansion Slot: 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x4 slot, 2x PCIe 3.0 x1 slots
Display Interface: Supports 4K@60Hz (DisplayPort 1.2 HBR) – Requires Processor Graphics
Memory Support: 4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC)
Storage: 1x M.2 Gen5 x4 128Gbps slot; 1x M.2 Gen4 x4 64Gbps slot; 1x M.2 Gen4 x2 32Gbps slot; 4x SATA 6Gbps ports
USB Ports: 3x USB 10Gbps (2 Type-C + 1 Type-A); 6x USB 5Gbps (1 Type-C + 5 Type-A); 8x USB 2.0
LAN: Realtek 5G LAN

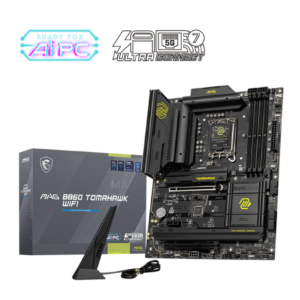

Platform: INTEL
Socket: LGA1851
CPU Type: Core Ultra
Chipset: B860
Memory Speed: up to 9200+
Max Memory Support: 256 GB
Supported Memory Type: DDR5
Channel Supported: Dual Channel
Memory Feature: Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; DIMM slots have single-sided latches; Memory compatibility and supported speeds can vary depending on CPU and memory configuration – refer to the Memory Compatibility List on the product’s Support page.
Graphics Port: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort

MSI MAG X570S Tomahawk Max WiFi is an ATX motherboard for AMD AM4 processors, featuring the X570 chipset and integrated Wi‑Fi.

Dimensions are 30.5 × 24 × 3 cm, weight about 1 kg, and the model number is 7D54‑001R.

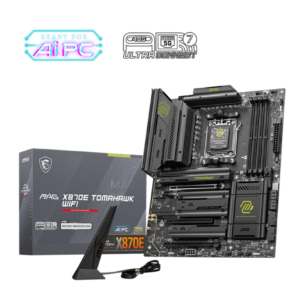

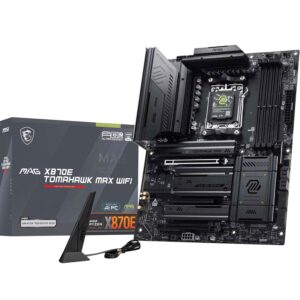

Chipset: AMD X870E
CPU support: AMD Ryzen 7000/8000/9000 series (Socket AM5)
Memory: 4 × DDR5 UDIMM, up to 256 GB, supports 5600‑8200 MT/s (OC) and JEDEC speeds.

PCIe slots: 2 × PCIe 5.0 x16, 1 × PCIe 4.0 x4, 1 × PCIe 3.0 x1
Storage: 3 × M.2 (PCIe 5.0 x4, PCIe 4.0 x4) and 4 × SATA 6 Gb/s
Audio: Realtek ALC897 7.1‑channel
LAN: Realtek 8126 5 GbE.

USB: Rear – 4 × USB 2.0, 2 × USB 3.2 Gen 1, 2 × USB 3.2 Gen 2, 1 × USB 3.2 Gen 2× Type‑C (20 Gbps), 1 × USB 3.2 Gen 2× Type‑C (40 Gbps); Front – 6 × USB 2.0, 4 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2× Type‑C.
Onboard graphics: 1 × HDMI 2.1 (4K 60 Hz) and 1 × USB‑C DisplayPort 1.4 (4K 120 Hz) when using CPUs with integrated graphics.

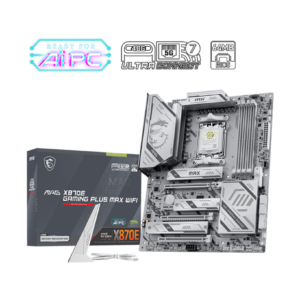

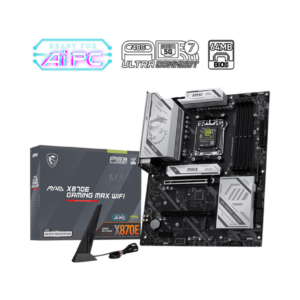

Chipset: AMD X870E; supports AMD Ryzen 7000/8000/9000 Series desktop processors (Socket AM5).

Memory: 4 × DDR5 UDIMM slots, up to 256 GB, speeds up to 8200 MT/s (OC) depending on configuration; supports AMD EXPO and JEDEC profiles.

Expansion: 3 × PCIe x16 slots (PCIe 5.0/4.0/4.0) and 1 × PCIe x1 slot; audio via Realtek ALC897 7.1‑channel; video outputs: 1 × HDMI 2.1 (4K 60 Hz) and 1 × USB‑C DisplayPort 1.4 (4K 120 Hz) when using an APU.

Storage & I/O: 3 × M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4) and 4 × SATA 6 Gb/s; RAID 0/1/10 (SATA) and RAID 0/1/5 (NVMe); multiple USB 2.0/3.2/3.1/3.2 Gen 2×2 ports including Type‑C; LAN via Realtek 8126 5 Gbps.

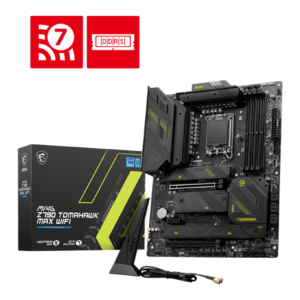

Brand: MSI. Model: 7E25-002R (MAG Z790 TOMAHAWK MAX WIFI). Socket: LGA 1700 supporting DDR5 DIMM memory. Dimensions: 24.4 × 30.5 × 6 cm, 1.5 kg.

Chipset: INTEL Z790
CPU SUPPORT: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Memory: 4x DDR4, Maximum Memory Capacity 128GB
Onboard Graphics: 1x HDMI
EXPANSION SLOT: 2x PCI-E x16 slot
Storage: 4x M.2 slot
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB: 4x USB 2.0 (Front)
LAN: Intel 2.5Gbps LAN
WIRELESS / BLUETOOTH: Intel Wi-Fi 6E
